Sensors: 1/2.7 ”
Matrix size: 8.3 Mpx 4K UHD
Resolution: 3840 x 2160, 3072 x 2048, 3072 x 1728, 2592 x 1944, 2688 x 1520, 2048 x 1536, 2304 x 1296, 1920 x 1080
Lens: - Motozoom
Viewing angle: 113°…31°
Compression: H.265+
Infrared illumination detection area: 60 m
Memory card slot: Supports Micro SD memory cards up to 256GB (local recording possible)
Source of energy supply: PoE (802.3af), 12V DC
| Standard: | TCP/IP |
| Sensors: | 1/2.7 “ Progressive Scan CMOS |
| Matrix size: | 8.3 Mpx 4K UHD |
| Resolution: | 3840x2160 – 8.3 Mpx 4K UHD , 3072x2048 – 6 Mpx , 3072x1728 – 5 Mpx , 2592x1944 – 5 Mpx , 2688x1520 – 4 Mpx , 2048x1536 – 3 Mpx , 2304x1296 – 3 Mpx , 1920 x 1080 - 1080p , 1280x960 – 1.3 Mpx , 1280x720 – 720p |
| Lens: | 2.7 … 13.5 mm – Motozoom |
| Angle of visibility: |
|
| Compression: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Infrared illumination reception area: | 60 m |
| Alarm inputs/outputs: | ✗ |
| Mainstream transmission speed: |
|
| Network interface: | 10/100 Base-T (RJ-45) |
| Audio: | ✗ |
| WEB Server: | Built-in |
| Memory card slot: | Supports Micro SD memory cards up to 256GB (local recording possible) |
| Maximum number of online users: | 20 |
| ONVIF: | ✓ |
| Mobile phone access: | Port: 37777 or access via cloud
|
| Default username/admin password: | admin / – Administrator password must be set during first launch |
| Default IP address: | 192.168.1.108 |
| Browser access ports: | 80, 37777 |
| Access ports using PC application: | 37777 |
| Access ports using the mobile application: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – main stream rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – sub stream |
| RS-485 interface: | ✗ |
| Selected functions: |
|
| Source of energy supply: |
|
| Power consumed: | ≤ 9.9 W |
| Hull: | Compact, Metal |
| Colour: | White |
| Class of protection: | IP67 |
| Operating temperature: | -30°C … 60°C |
| Language selection: | Polish, English |
| Weight: | 0.72 kg |

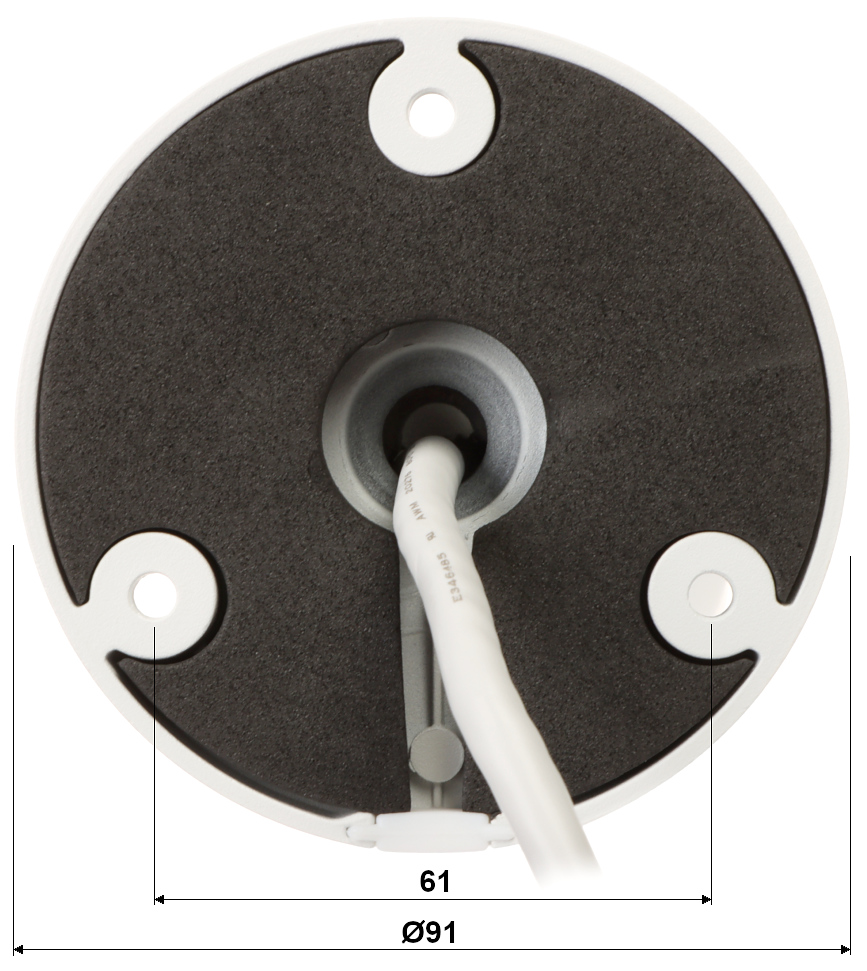

| Size: | 244 x 90 x 90 mm |
| Manufacturer / Brand: | BCS Line |
| Warranty: | 3 years |
