Resolution: 1920 x 1080
Sensor: 1/2.8 ”
Viewing angle: 103 °
LED white light range: 30 m
IR illumination range: 30 m
Rotation speed (manual control): 0.1 °/s … 37.66 °/s (horizontal), 0.1 °/s … 32.61 °/s (vertical)
Image compression method: Smart H.265+
Audio: Built-in microphone, Built-in speaker, Sound detection
Selected features: Active deterrence function
Power supply: PoE (802.3af), 12V DC
| Standard: | IP |
| Resolution: | 1920 x 1080 - 1080p , 1280x720 – 720p |
| Sensor: | 1/2.8 ” CMOS |
| Lens: | 2.8 mm |
| Angle of visibility: | 103 ° |
| LED white light range: | 30 m |
| IR illumination range: | 30 m |
| Video output: | ✗ |
| Rotation speed (manual control): |
|
| Preset rotation speed: |
|
| Horizontal rotation range: | 0 ° … 345 ° |
| Vertical rotation range: | 0°…90° |
| Number of presets: | 50 |
| Horizontal scan: | ✗ |
| Route settings: | ✗ |
| Memory card slot: | ✗ |
| Image compression method: | Smart H.265+ / H.265 / Smart H.264+ / H.264H / H.264B / H.264M / MJPEG |
| Alarm inputs/outputs: | ✗ |
| Audio: |
|
| Main stream frame rate: | 25 fps – 2 Mpx |
| Interface: | 10/100 Base-T (RJ-45) |
| Web server: | Built-in, NVR compliant |
| Maximum number of online users: | 20 |
| ONVIF: | ✓ |
| Intelligent image analysis: |
|
| Selected functions: |
|
| Mobile phone access: | 37777 socket
|
| Default IP address: | 192.168.1.108 |
| Default username/admin password: | admin / – Administrator password must be set during first launch |
| Browser access ports: | 80, 37777 |
| Access ports using PC application: | 37777 |
| Access ports using the mobile application: | 37777 |
| ONVIF socket: | 80 |
| RTSP URL: | rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – main stream rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – sub stream |
| Source of energy supply: |
|
| Power consumed: |
|

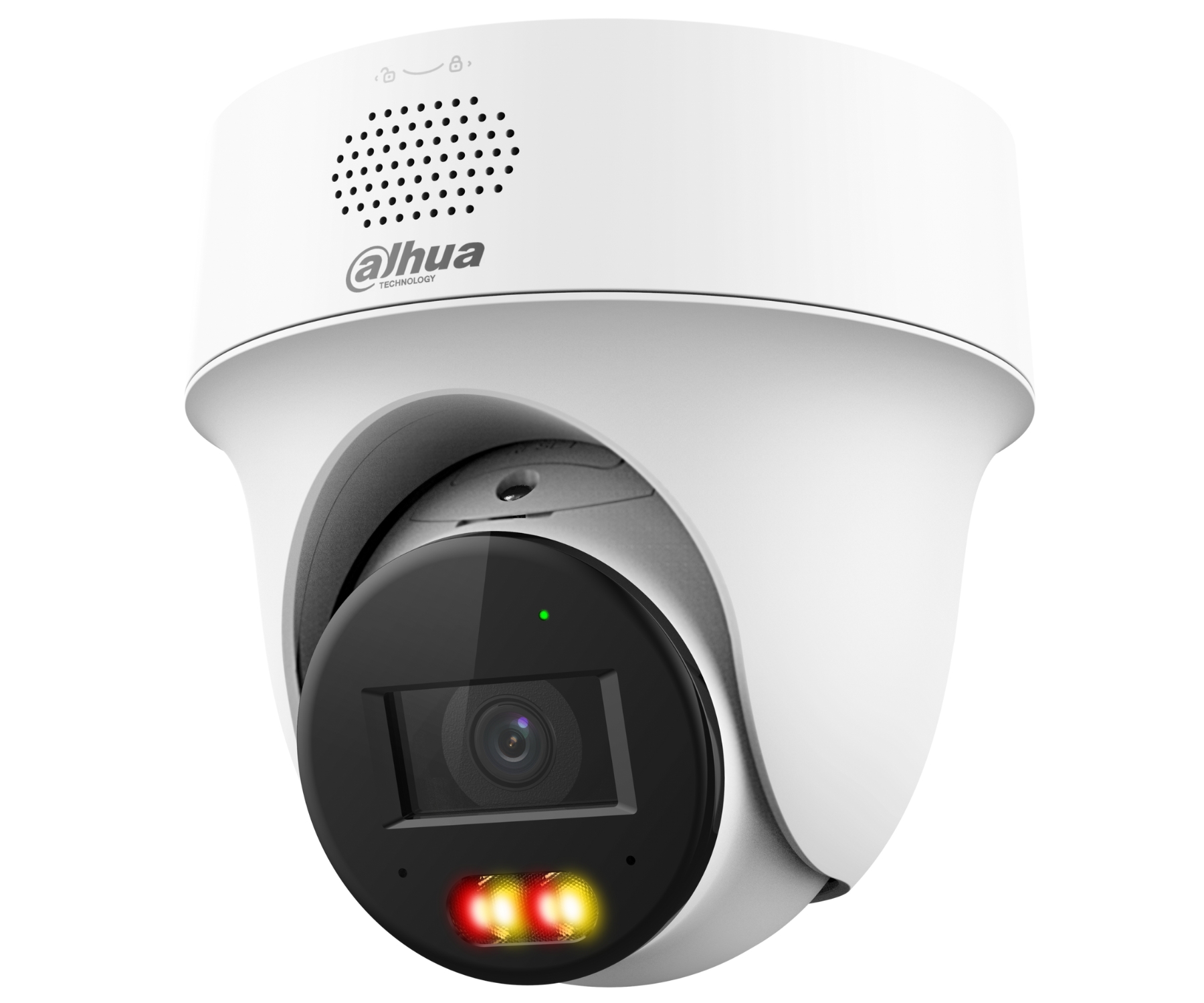

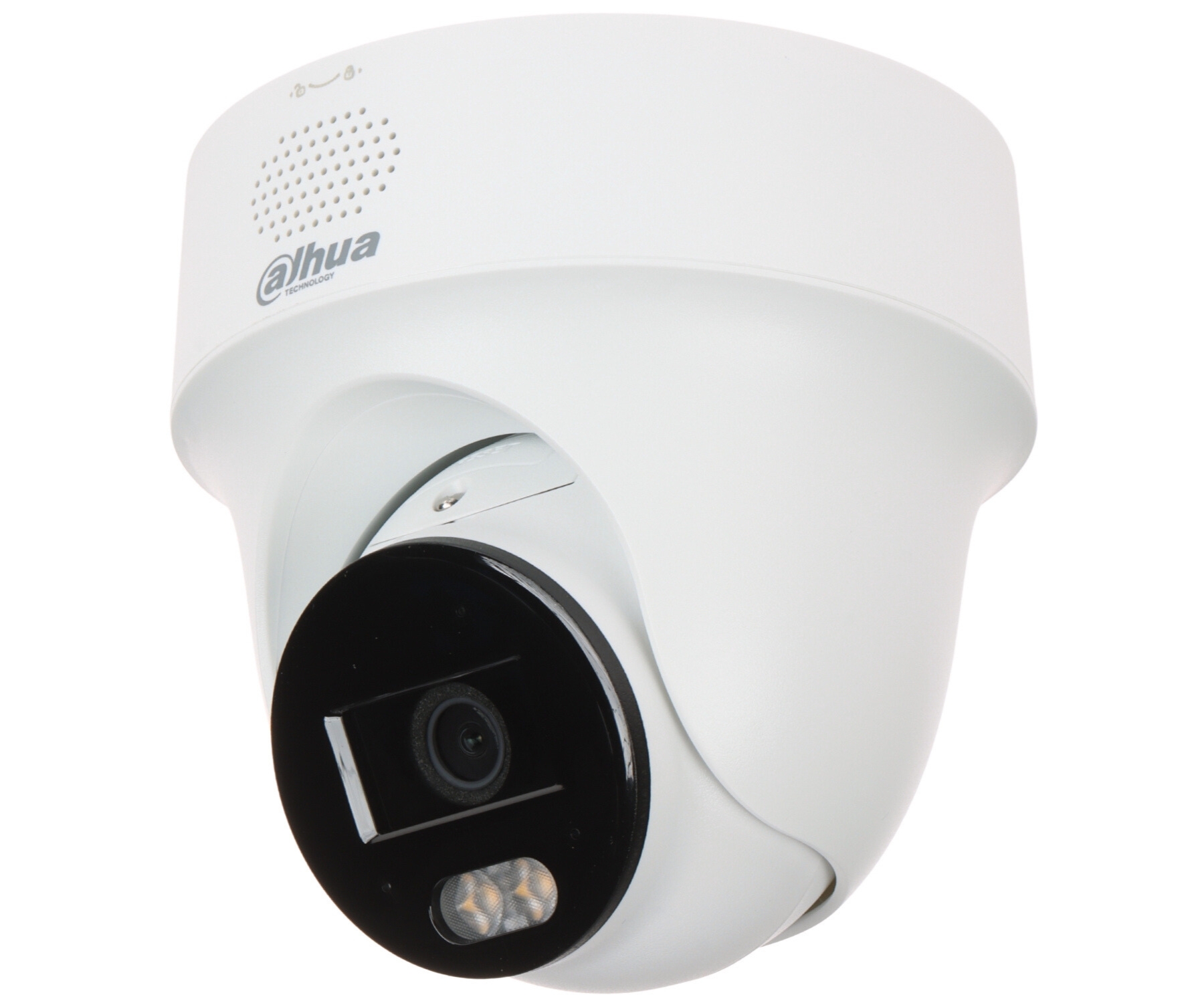

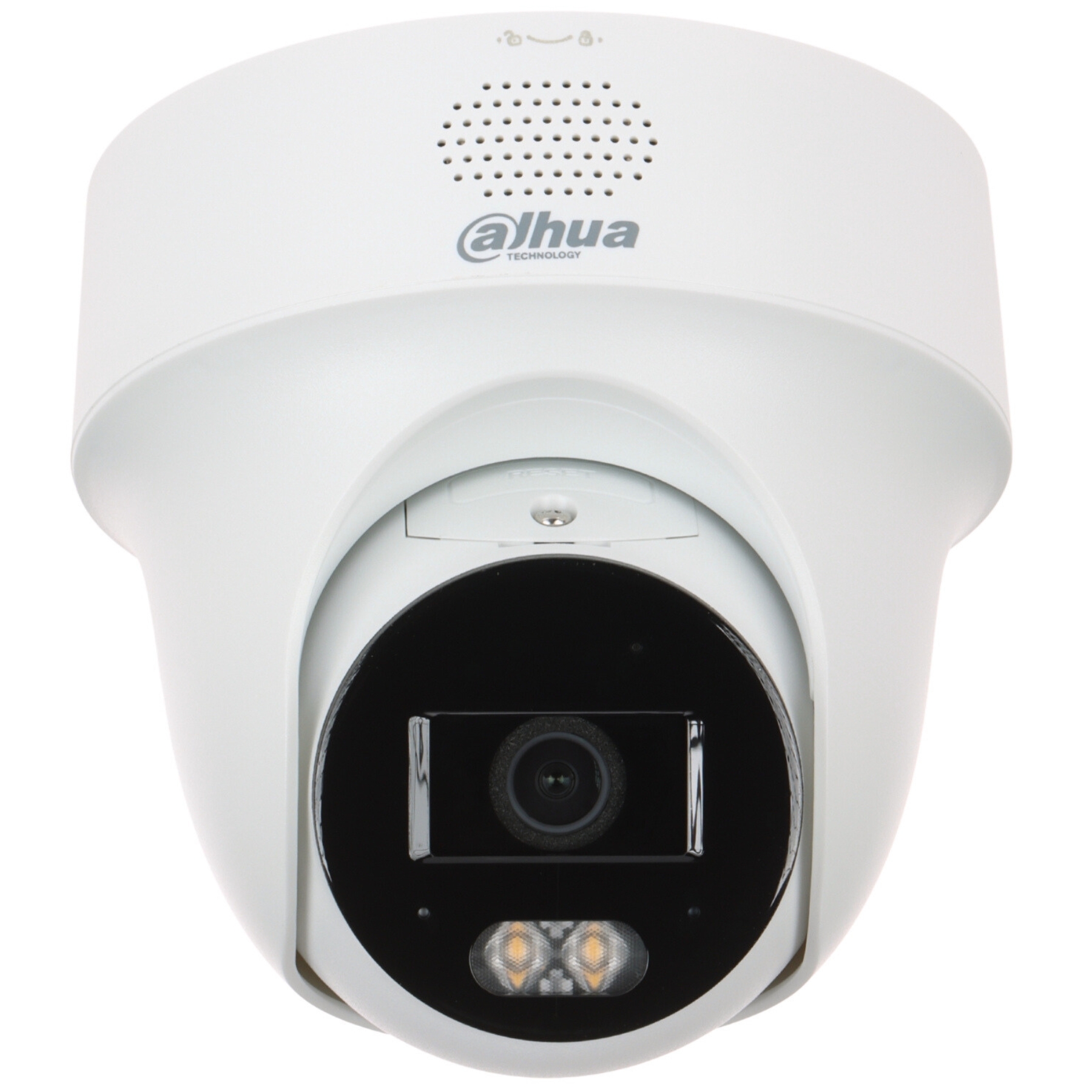

| Housing: | Dome, Plastic |
| Colour: | White + Black |
| Class of protection: | IP66 |
| Operating temperature: | -30°C … 55°C |
| Weight: | 0.41 kg |

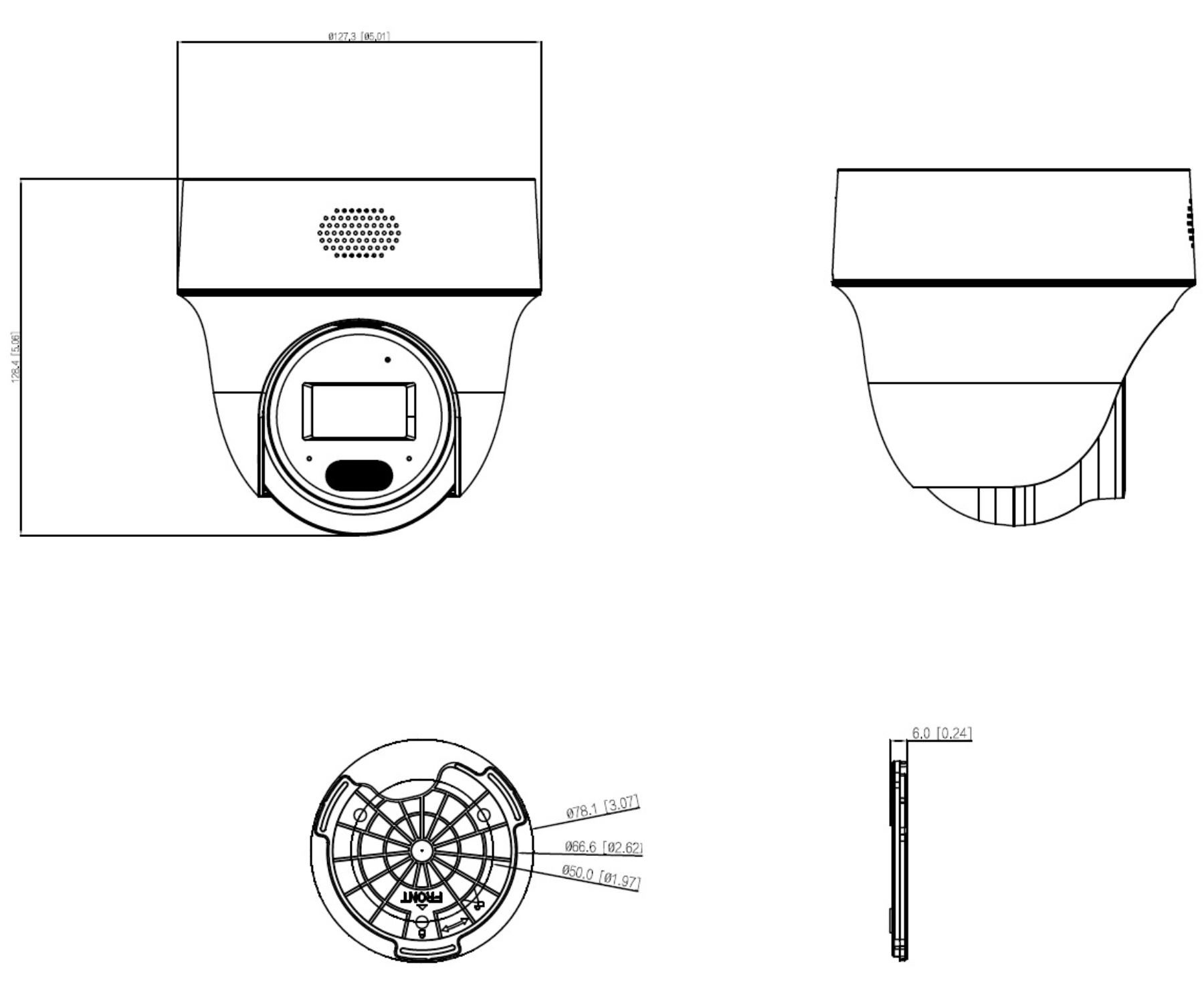

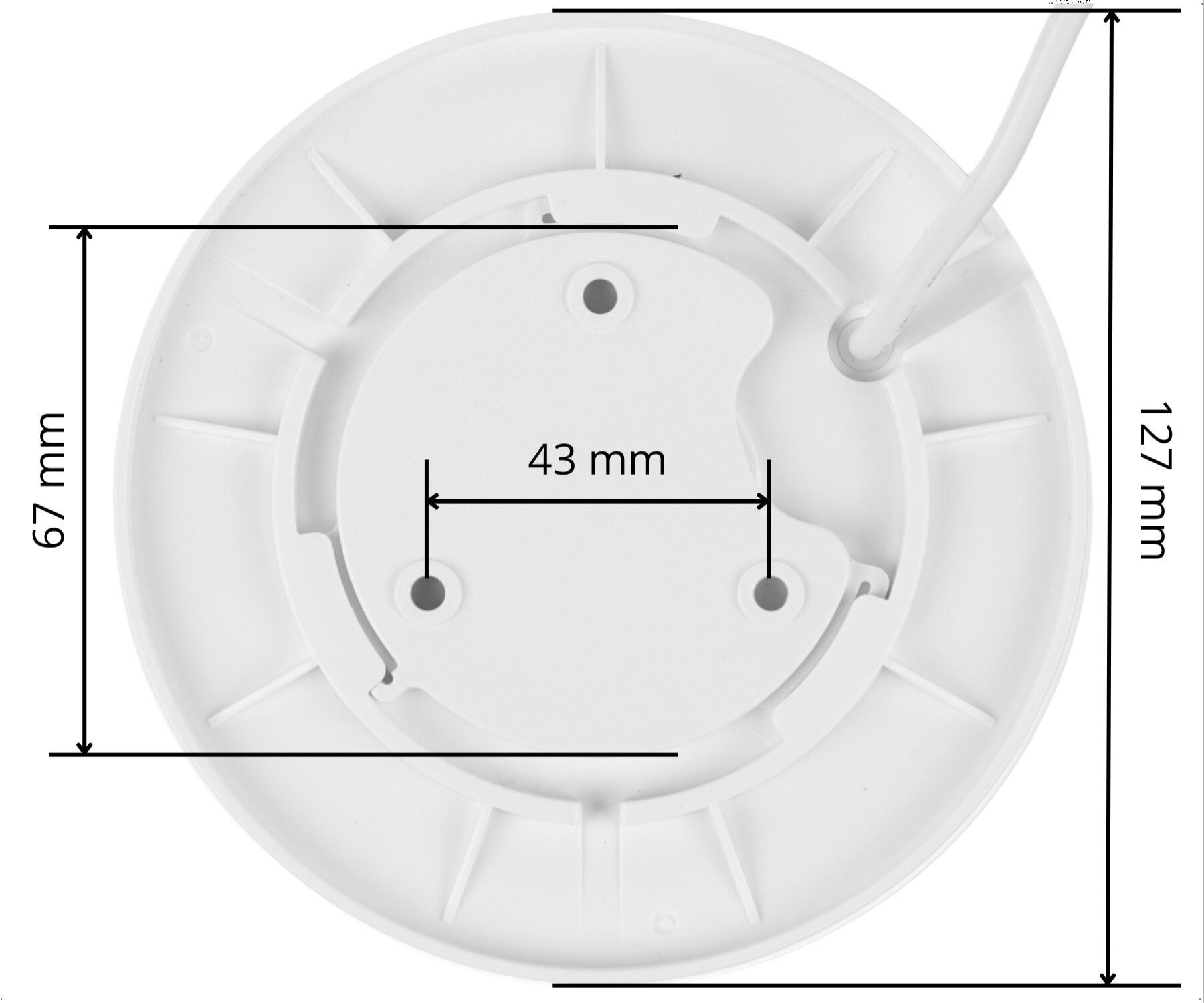

| Size: | Ø 127 x 128 mm |
| Language selection: | English |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
