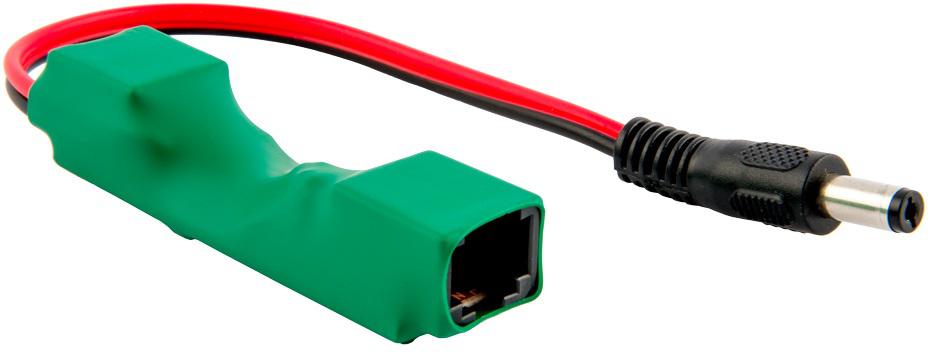

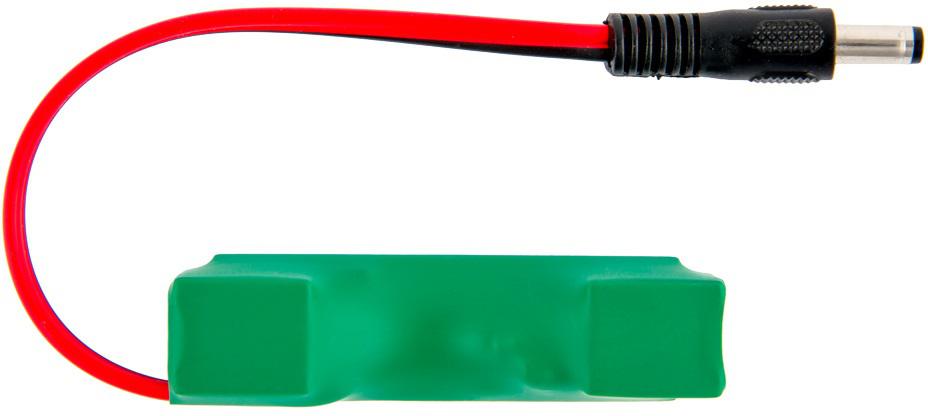

ATTE DC/DC CONVERTER ASDC-12-121-HS RJ45/DC
PoE adapter step-down voltage, Vin 35…56VDC, Vout 12VDC, Iout 1A, Iout 1A, 2SI switch with PoJ.f40es 5/RJ45 connectors + DC plug, type ASDC-12-121-H
Key features:
- PoE power supply interruption at the adapter output (only reducing the LAN source voltage to 2V)
- connectors: RJ-45 – input voltage, DC plug – output voltage
- supported PoE power supplies: PASSIVE PoE 802.3af
- output voltage: 12 VDC +/-3% – DC plug. There is no output voltage on the RJ-45 PoE connector
- Output current: 1A
- Input voltage: 35 … 56 VDC – RJ-45 (PoE)
- Indication: red LED inside the RJ-45 socket – presence of output voltage
- Insulation housing construction: >Operating temperature: -10 … +40°C
- Dimensions / weight: 75 x 21 x 17 mm / 0.015 kg
