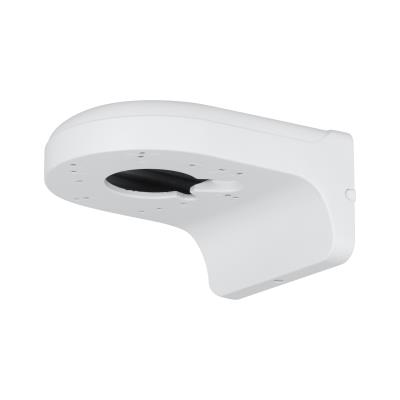

Dahua PFB2203W is a wall mounting bracketdesigned for secure installation of Dahua video surveillance cameras on vertical surfaces. The bracket is made of SGCC steel and aluminum alloy, providing mechanical strength, stable fixation and neat cable routing.
- Wall mount — designed for fixed camera mounting.
- Durable metal construction — SGCC steel and aluminum alloy.
- Maximum load up to 1 kg — suitable for compact and PT cameras.
- White color — compatible with light-colored cameras and facades.
- Internal cable management — aesthetic and protected installation.
Technical specification
| Model / MPN | PFB2203W |
|---|---|
| Type | Wall mounting bracket |
| Material | SGCC; aluminum alloy |
| Colour | White |
| Max. load | 1.0 kg |
| Dimensions | 162 × 129.4 × 80 mm |
| Weight (net) | 0.48 kg |
| Operating temperature | –40°C to +60°C |
| Humidity | < 90% RH |
| Corrosion protection | Basic level |
Where is it useful?
- For building facades — secure camera mounting in outdoor conditions.
- For indoors — video surveillance of corridors, offices and warehouses.
- For sites with a cable outlet in the wall — for a neat installation.
- For systems with a fixed camera position.
Installation recommendations
- Check the load-bearing capacity of the wall before mounting.
- Use fasteners suitable for the wall material.
- Check the compatibility of the camera and the bracket.
- Protect the cable entries from exposure to moisture.
FAQ
Is the bracket suitable for outdoor use?
Yes, it is designed to operate at temperatures from –40 °C to +60 °C.
What is the maximum supported camera weight?
Up to 1.0 kg, including mounting accessories.
Does it fit all Dahua cameras?
No, compatibility must be checked in the Dahua “Camera Accessories Selection” list.
Did you know?
- White brackets heat up less in direct sunlight than dark metal mounts.
- Metal brackets ensure a more stable camera position in the long term.
- Internal cable management reduces the risk of damage in outdoor environments.
