Technical Specification:

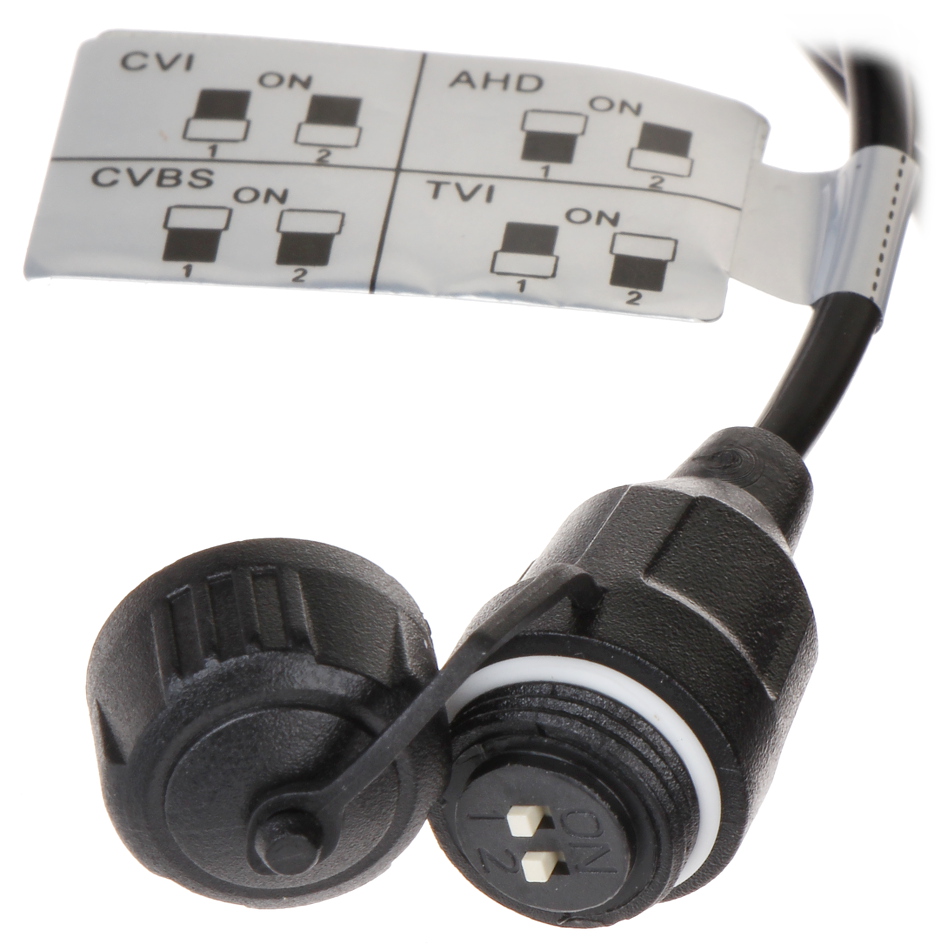

| Standard: | HD-CVI, HD-TVI, AHD, CVBS |
| Sensors: | Progressive Scan CMOS |
| Matrix size: | 2.1 Mpx |
| Resolution: | 1920 x 1080 – 1080p , 960 x 576 – 960H , PAL |
| Infrared illumination detection area: | 60 m |
| IR illuminator power adjustment: | Automatic |
| Lens: | 2.8 mm |
| Viewing angle: | 109 ° (ražotāja dati) 104 ° (mūsu pārbaudes) |
| Video output: | 1 Vpp / 75 Ω : AHD / HD-CVI / HD-TVI / CVBS |
| Audio: | Built-in microphone, Audio playback via coaxial cable – HD-CVI only |
| Selected features: | WDR – 130 dB – Plašs apgaismojuma dinamikas diapazons 3D-DNR – Digitāla trokšņa redukcija BLC – konfigurējama izgaismojuma kompensācija HLC – Intensīvas gaismas kompensācija (punktveida) ICR – infrasarkano staru mehāniskais filtrs Dienas/nakts režīms AGC – Automātiska attēla pastiprinājuma regulēšana Automātisks baltā balanss Privātuma zonas – maks. 8 Mirror – spoguļattēls Sharpness – Attēla kontūru asums |
| OSD screen menu: | OSD menu available using DAHUA video recorders |
| Source of energy supply: | 12 V DC / 425 mA |
| Power consumption: | max. 5.1 W |
| Housing: | Dome, Metal + Plastic |
| Protection class: | IP67 |
| Colour: | White |
| Anti-vandalism: | - |
| Operating temperature: | -40°C … 60°C |
| Weight: | 0.41 kg |
| Size: | Ø 122 x 99 mm |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
