Resolution: 3288 x 1850, 3200 x 1800, 2880 x 1620, 2688 x 1520, 2048 x 1536, 2304 x 1296, 1920 x 1080
Sensor: 1/2.7 ”
Viewing angle: 112 °
IR illumination range: 30 m
LED white light range: 30 m

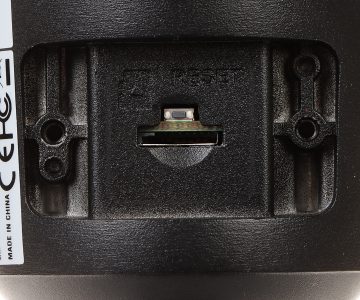

Memory card slot: Supports Micro SD memory cards up to 256GB (local recording possible)
Image compression method: Smart H.265+
Audio: Built-in microphone, Sound detection
Power supply: PoE (802.3af), 12V DC
| Standard: | IP |
| Resolution: | 3288 x 1850 – 6 Mpx , 3200x1800 – 6 Mpx , 2880x1620 – 5 Mpx , 2688x1520 – 4 Mpx , 2048x1536 – 3 Mpx , 2304x1296 – 3 Mpx , 1920 x 1080 - 1080p , 1280x960 – 1.3 Mpx , 1280x720 – 720p |
| Sensor: | 1/2.7” Progressive Scan CMOS |
| Lens: | 2.8 mm |
| Angle of visibility: | 112 ° |
| IR illumination range: | 30 m |
| LED white light range: | 30 m |
| Memory card slot: | Supports Micro SD memory cards up to 256GB (local recording possible) |
| Image compression method: | Smart H.265+ / H.265 / Smart H.264+ / H.264 / H.264H / H.264B / MJPEG |
| Alarm inputs/outputs: | ✗ |
| Audio: |
|
| Main stream frame rate: | 20 fps @ 6 Mpx 25 fps @ 4 Mpx |
| Interface: | 10/100 Base-T (RJ-45) |
| Web server: | Built-in |
| Maximum number of online users: | 20 |
| ONVIF: | ✓ |
| Intelligent image analysis: |
|
| Selected functions: |
|
| Mobile phone access: | Port: 37777 or access via cloud
|
| Default IP address: | 192.168.1.108 |
| Default username/admin password: | admin / – Administrator password must be set during first launch |
| Browser access ports: | 80, 37777 |
| Access ports using PC application: | 37777 |
| Access ports using the mobile application: | 37777 |
| ONVIF socket: | 80 |
| RTSP URL: | rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – main stream rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – sub stream |
| Source of energy supply: |
|
| Power consumed: |
|
| Housing: | Compact – Metal |
| Colour: | Black |
| Class of protection: | IP67 |
| Mechanical protection class: | ✗ |
| Operating temperature: | -40°C … 60°C |
| Weight: | 0.46 kg |

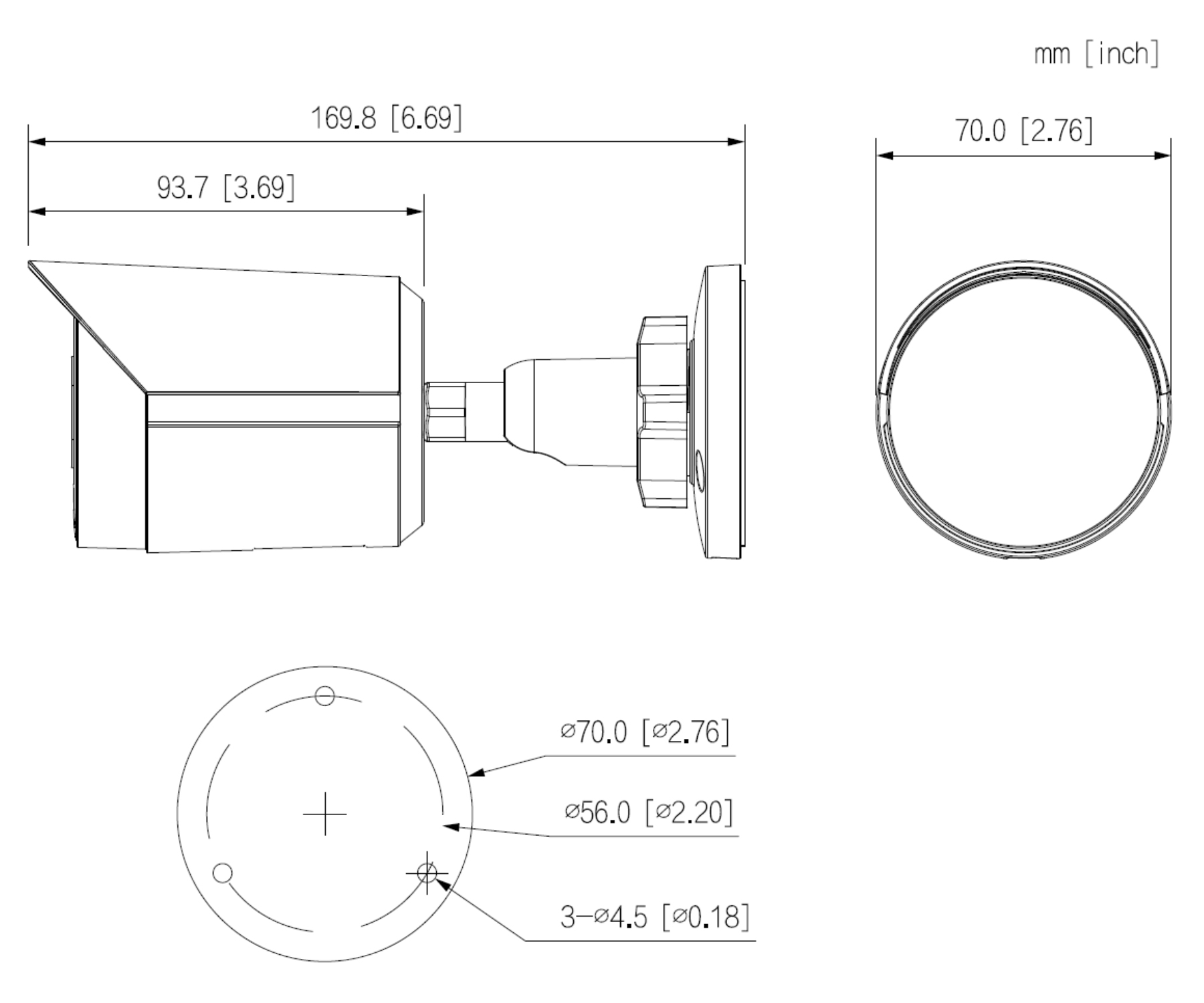

| Size: | 170 x 70 x 70 mm |
| Language selection: | poļu, angļu, čehu, franču, spāņu, Holandiešu, vācu, krievu, portugāļu, krievu, rumāņu, turku, ukraiņu, ungāru, itāļu |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
