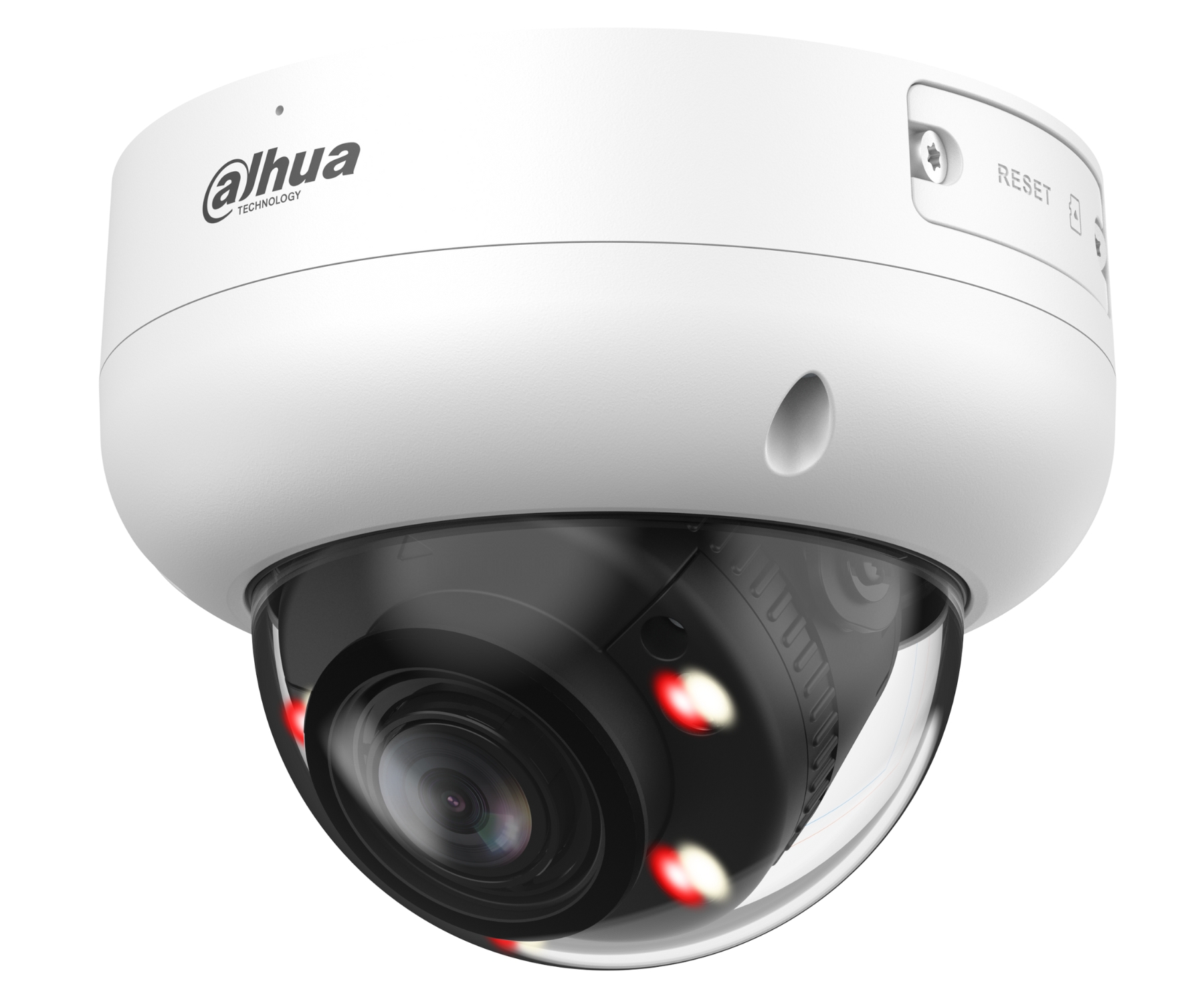

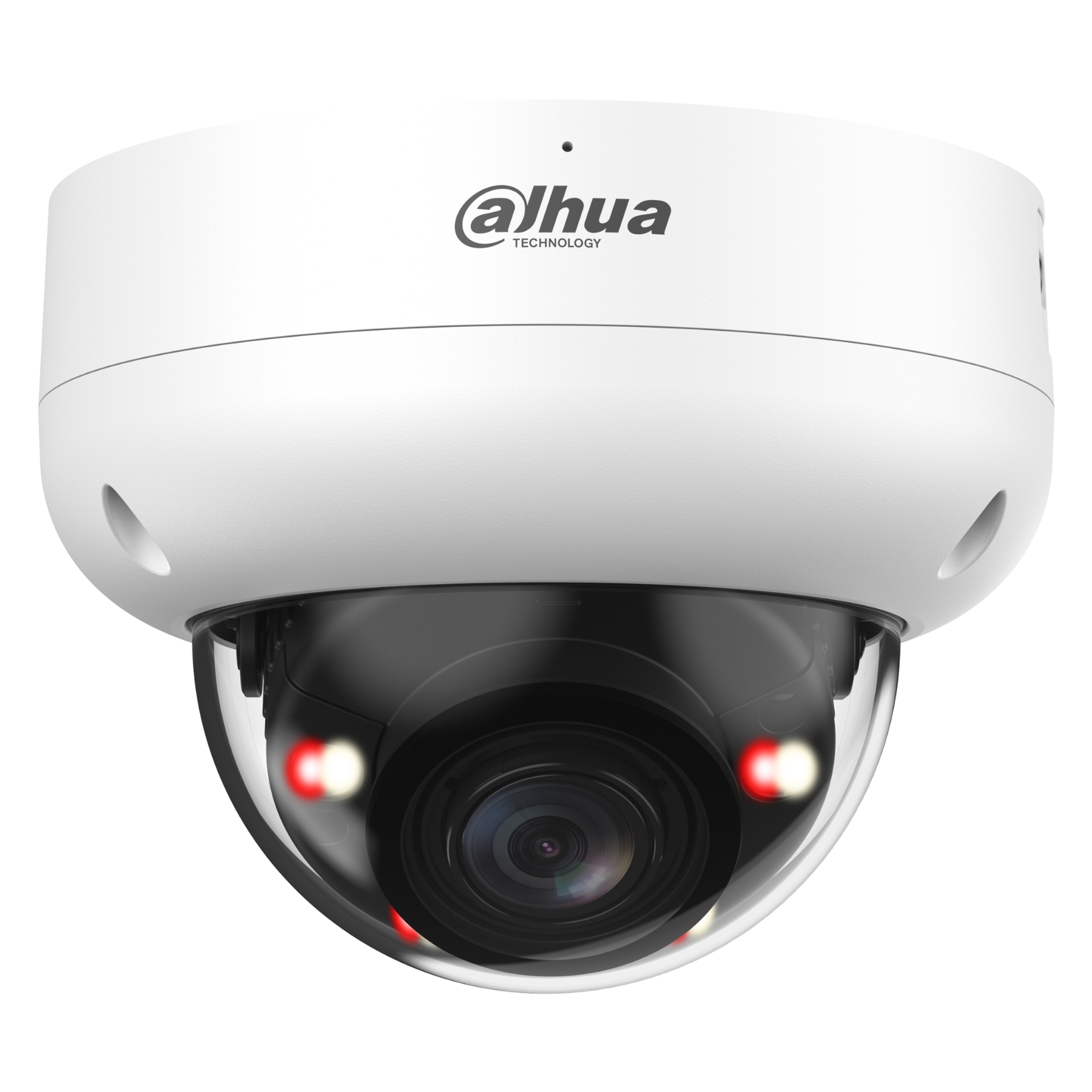

IP vandal-resistant camera IPC-HDBW3649R-ZAS-IL-27135 WizSense Smart Dual Light Acupick – 6 Mpx 2.7 … 13.5 mm – MOTOZOOM DAHUA

Key specifications

ManufacturerDahua
Camera typeDome
TechnologyIP
Resolution6 MP
Lens typeMotorised
PoEYes
Connectivity technologyNone (wired)
Night modeDual light (Smart Dual Light)

Resolution: 3288 x 1850, 3200 × 1800, 2960 x 1688, 2880 × 1620, 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080 1280 x 720
Sensor: 1/2.7 ”
Viewing angle: 114°…32°
LED white light range: 40 m
IR illumination range: 50 m
Memory card slot: Supports Micro SD memory cards up to 512GB (local recording possible)
Image compression method: AI H.265 / Smart H.265+
Alarm inputs/outputs: 1 / 1
Audio: Built-in microphone, Audio input, Audio output, Sound detection
Power supply: PoE (802.3af), 12V DC
Colour: White
Mechanical protection class: IK10

Standard: IP
Resolution: 3288 x 1850 – 6 Mpx ,
3200 × 1800 – 6 Mpx ,
2960x1688 – 5 Mpx ,
2880 × 1620 – 5 Mpx ,
2688x1520 – 4 Mpx ,
2560x1440 – 4 Mpx ,
2304x1296 – 3 Mpx ,
1920 x 1080 - 1080p ,
1280x720 – 720p
Sensor: 1/2.7” Progressive Scan CMOS
Lens: 2.7 … 13.5 mm @ F1.4 – Motozoom
Angle of visibility: 114°…32°
LED white light range: 40 m
IR illumination range: 50 m

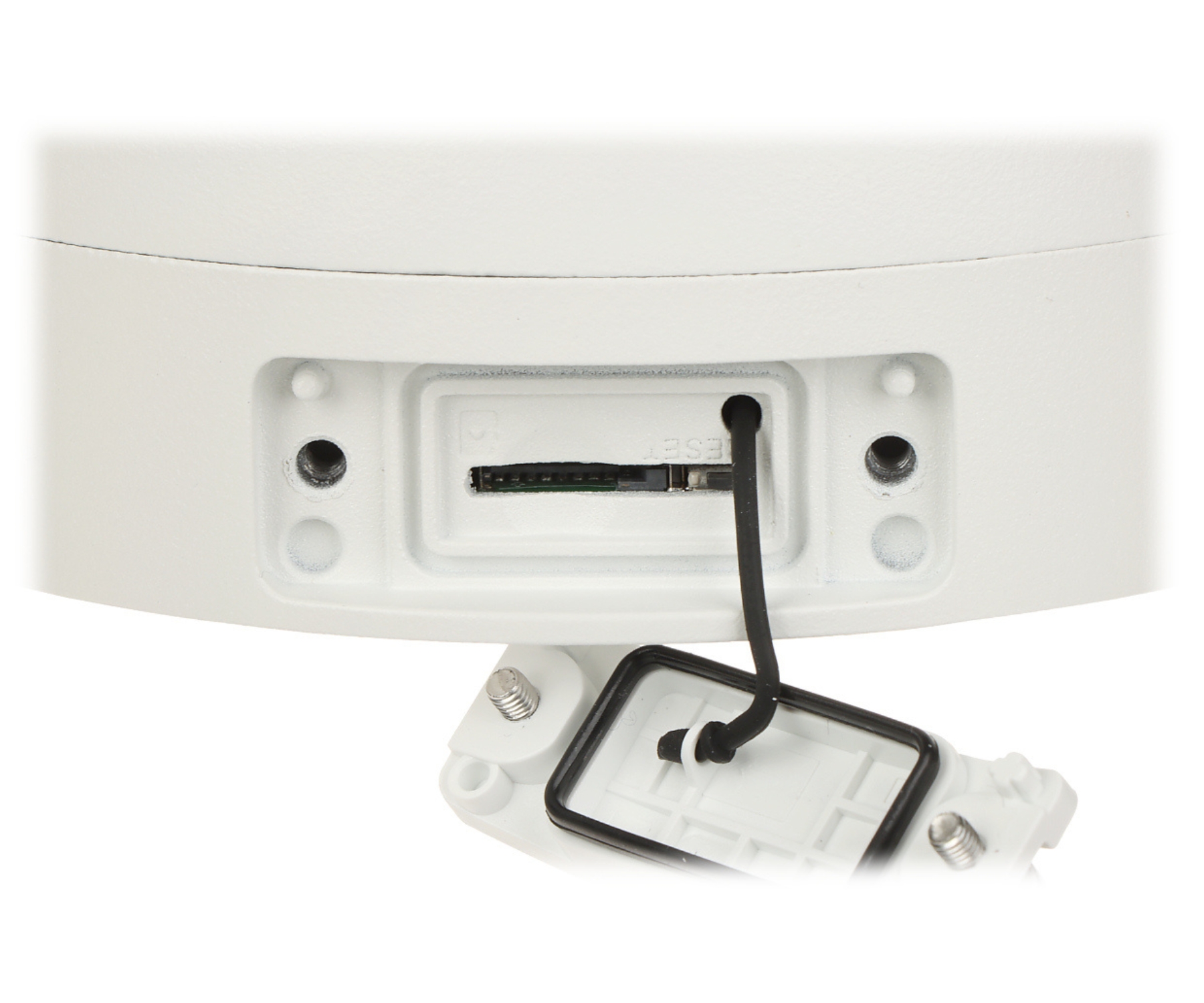

Memory card slot: Supports Micro SD memory cards up to 512GB (local recording possible)
Image compression method: AI H.265 / Smart H.265+ / H.265 / AI H.264 / Smart H.264+ / H.264 / H.264H / H.264B / MJPEG

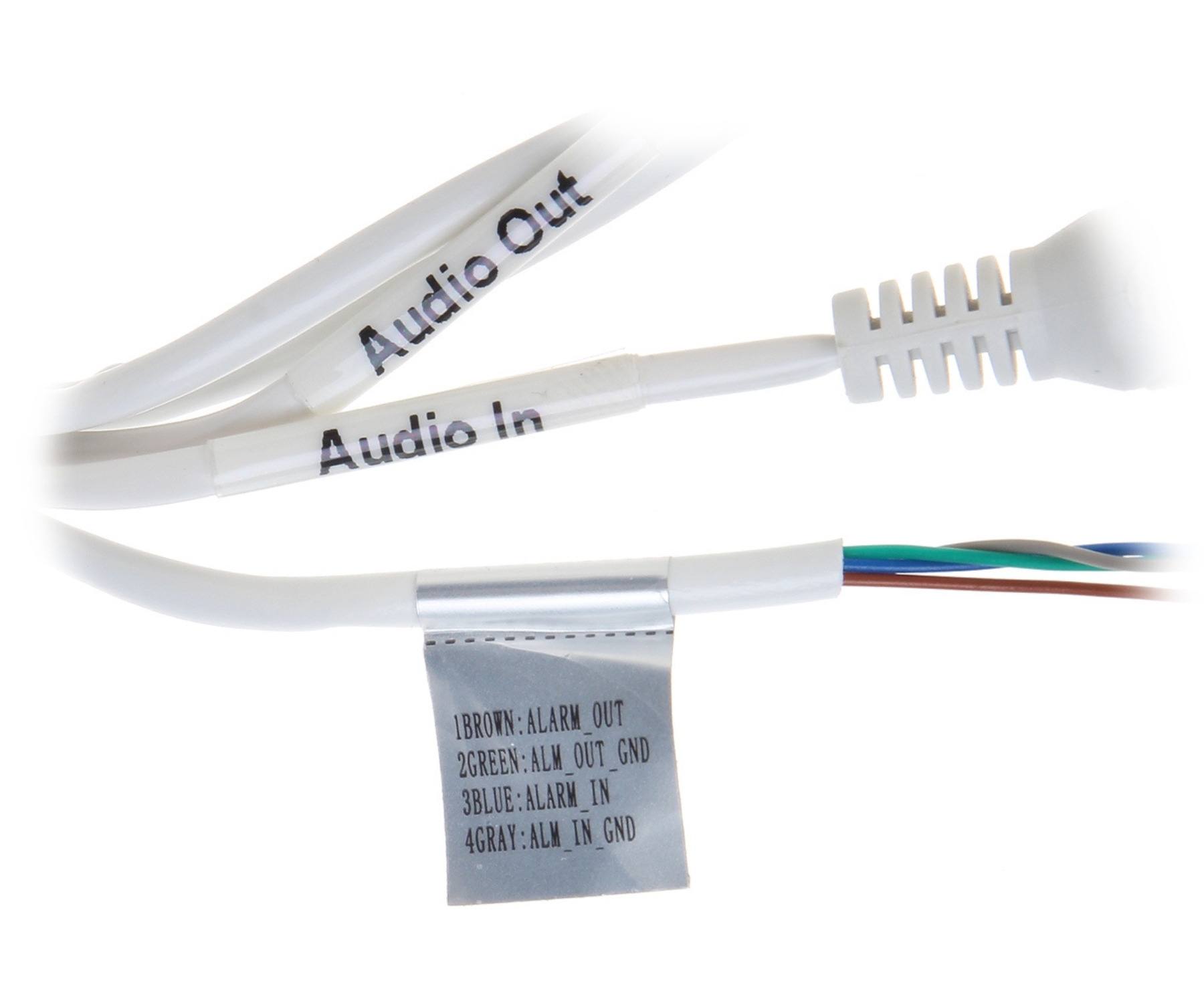

Alarm inputs/outputs: 1 / 1

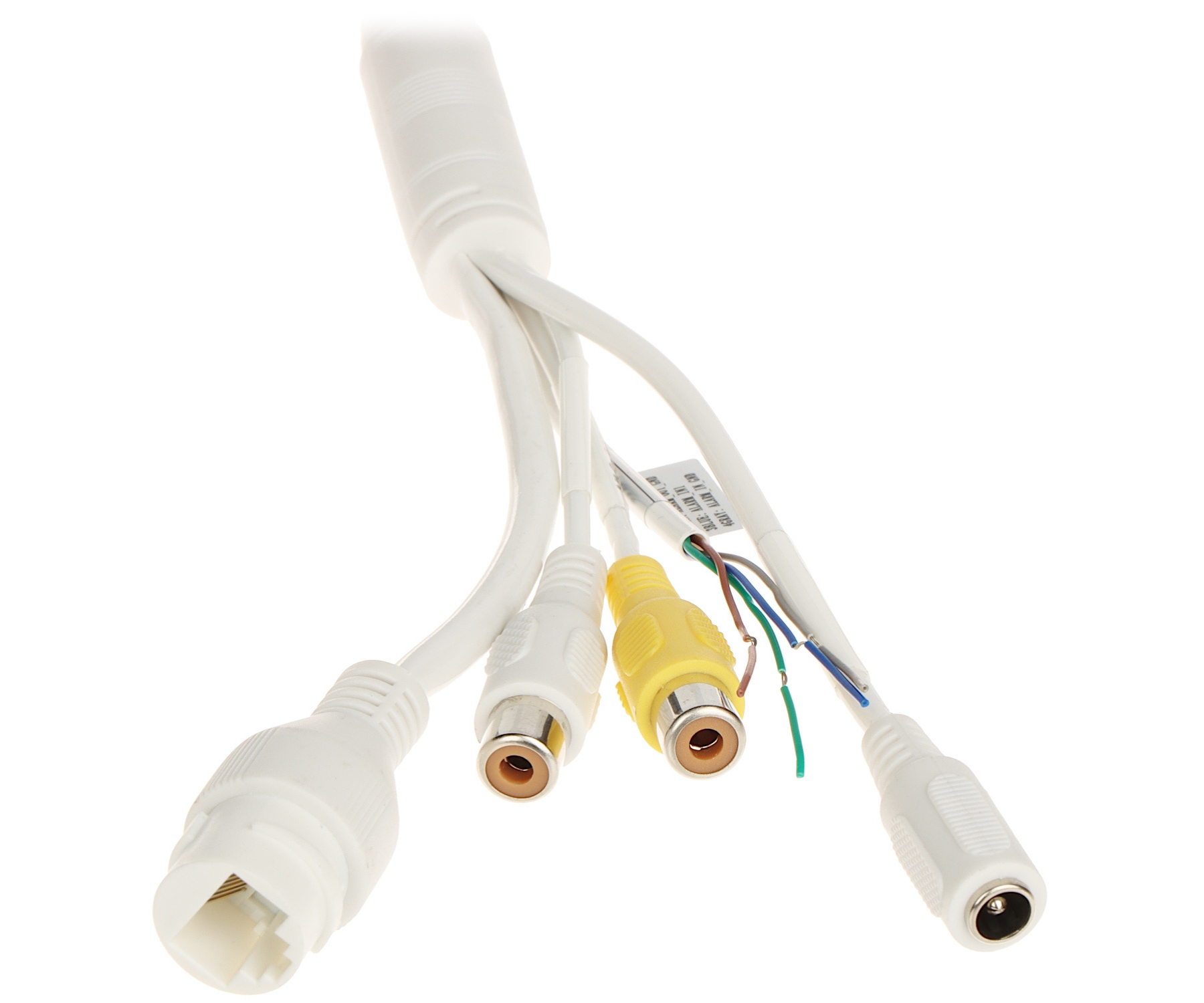

Audio:
  • Built-in microphone,
  • Audio Input,
  • Audio output,
  • Sound detection
  • Main stream frame rate: 25 fps @ 6 Mpx
    Interface: 10/100 Base-T (RJ-45)
    Web server: Built-in
    Maximum number of online users: 20
    ONVIF: ✓
    Intelligent image analysis:
  • intrusion – classification of persons and vehicles
  • line crossing – classification of persons and vehicles
  • SMD 4.0 – search for an object classified as: person, motor vehicle – increased detection distance and resistance to false alarms
  • AcuPick support – technology that uses artificial intelligence both front-end and back-end to search through huge amounts of video data and quickly locate targets with high accuracy
  • AI SSA – AI Smart Scene Adaptive – automatic scene adjustment using deep learning algorithms to detect environmental conditions such as rain, fog, backlight, low light and flicker to set optimal image parameters
  • Selected functions:
  • Smart Dual Light – When Smart Dual Light is active, the white light automatically turns on when an object is detected in the monitoring field, significantly improving image quality
  • Smart Illumination – automatic adjustment of the illuminator power to avoid image overexposure
  • WDR – 120 dB – Wide dynamic range of lighting
  • 3D-DNR - Digital Noise Reduction
  • F-DNR (Defog) – Precipitation Noise Reduction
  • ROI – improving the quality of selected image fragments
  • BLC/HLC – Backlight/High Light Compensation
  • Day/night mode – ICR automatic filter
  • WB – White Balance (ATW/AWB/Manual/Internal/External)
  • AGC - Automatic gain control
  • Motion detection – max. 4 zones
  • Privacy zones – max. 8
  • Image rotation and mirroring
  • AFSA – Anti-flicker Self-adaption – Technology that eliminates the unpleasant effect of image fluctuations
  • EIS – Electronic Image Stabilizer
  • Mobile phone access: Port: 37777 or access via cloud

  • Android: Free application DMSS
  • iOS (iPhone): Free app DMSS
  • Default IP address: 192.168.1.108
    Default username/admin password: admin / –
    Administrator password must be set during first launch
    Browser access ports: 80, 37777
    Access ports using PC application: 37777
    Access ports using the mobile application: 37777
    ONVIF socket: 80
    RTSP URL: rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – main stream
    rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – sub stream
    Source of energy supply:
  • PoE (802.3af),
  • 12 V DC / 708 mA
  • Power consumed:
  • ≤ 9.8 W @ PoE
  • ≤ 8.5W @ 12V DC
  • Housing: Dome – Metal
    Colour: White
    Class of protection: IP67
    Mechanical protection class: IK10
    Operating temperature: -30°C … 60°C
    Weight: 0.56 kg

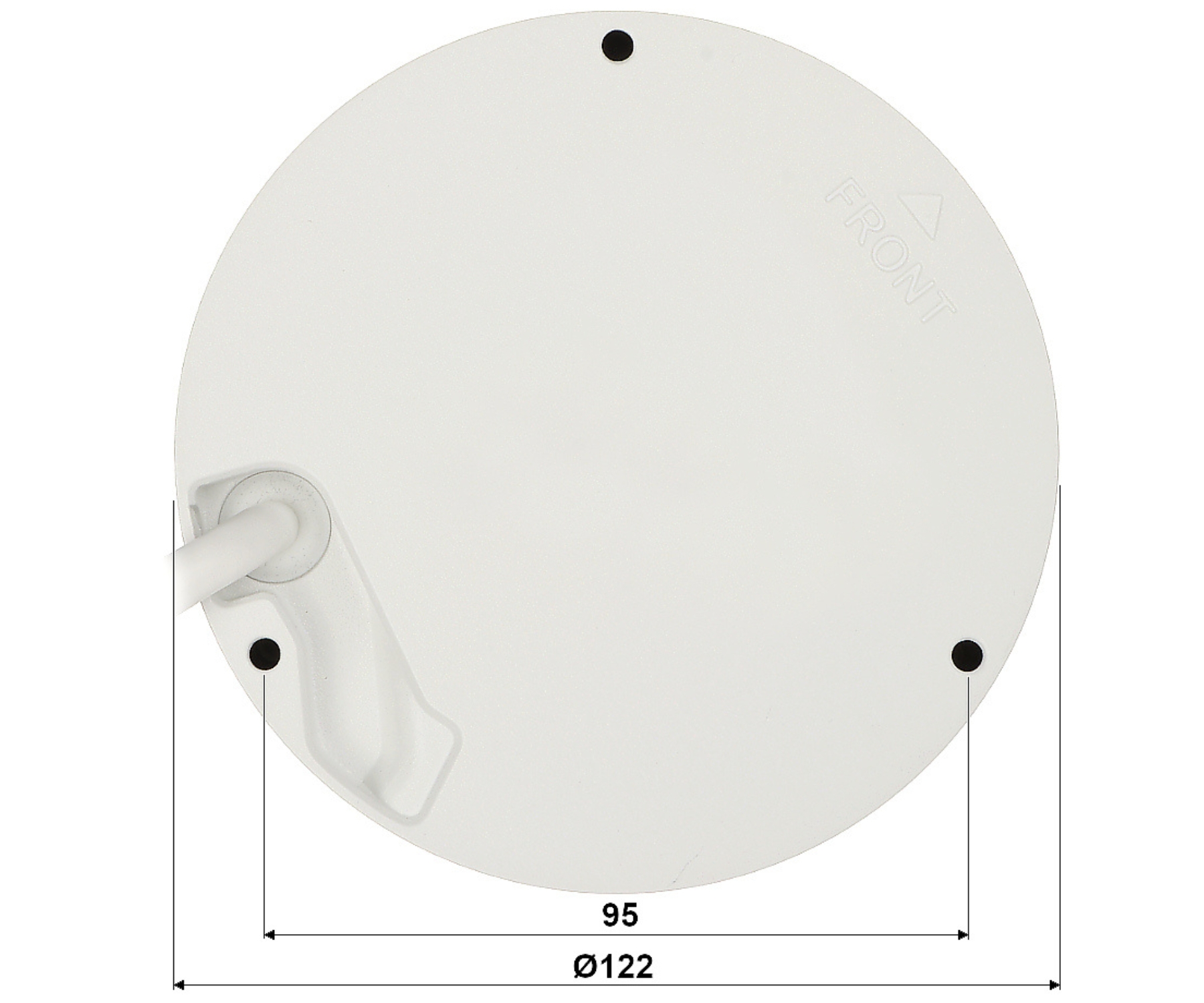

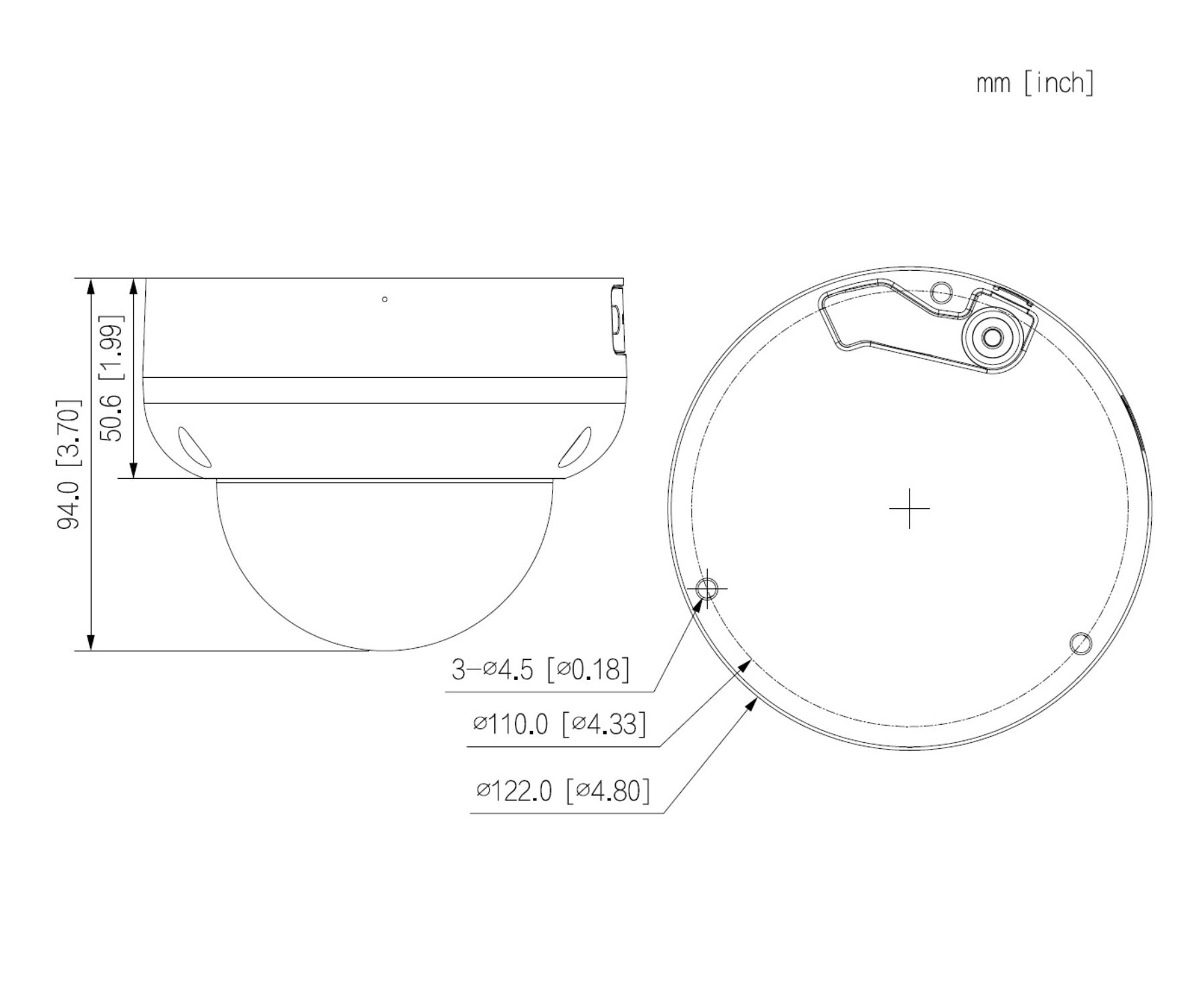

    Size: Ø 122 x 94 mm
    Language selection: Polish, English, Czech, French, Spanish, Dutch, German, Russian, Portuguese, Romanian, Turkish, Ukrainian, Hungarian, Italian
    Manufacturer / Brand: DAHUA
    Warranty: 3 years
