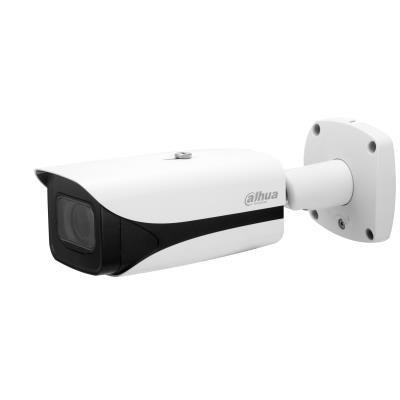

4MP IR bullet-type IP camera Dahua IPC-HFW5442E-ZE-2712-S3 with 1/1.8" CMOS sensor and a motorized varifocal 2.7–12 mm lens provides flexible coverage and high low-light sensitivity. The camera offers IR illumination up to 60 m, 140 dB WDR and a wide range of AI analytics (IVS, SMD 3.0, AcuPick), suitable for professional perimeter and site surveillance.
- 4MP resolution (2688 × 1520) with progressive scan.
- Motorized 2.7–12 mm lens with automatic iris.
- IR up to 60 m (4 IR LED) with Zoomprio/Auto control.
- AI analytics: IVS, SMD 3.0, AcuPick, face detection.
- Smart/AI codecs: Smart H.265+/H.264+, AI H.265/H.264.
- 140 dB WDR and 3D NR for complex lighting.
Technical specification
| Model / MPN | IPC-HFW5442E-ZE-2712-S3 |
|---|---|
| Sensor | 1/1.8" CMOS |
| Resolution | 4 MP (2688 × 1520) |
| Minimum lighting | 0.0007 lux (color), 0.0004 lux (B/W), 0 lux with IR |
| Lens | Motorized varifocal 2.7–12 mm, F1.8 |
| Viewing angle | H: 115°–47° · V: 62°–27° · D: 137°–54° |
| IR illumination | Up to 60 m (4 IR LED) |
| DORI (wide / tele) |
Detect — 57.5 m / 130.8 m Observe — 23.0 m / 52.3 m Recognize — 11.5 m / 26.2 m Identify — 5.8 m / 13.1 m |
| Video compression | H.265 / H.264 / Smart H.265+ / Smart H.264+ / AI H.265 / AI H.264 |
| Frame rate | 4 MP up to 25/30 fps; 1080p up to 50/60 fps |
| WDR | 140 dB |
| Noise reduction | 3D NR |
| Intelligent functions | IVS, SMD 3.0, AcuPick, face detection, people counting, Heat Map |
| Streams | Up to 4 streams |
Where is it useful?
- For perimeter surveillance — IVS with human/vehicle classification.
- For parking lots and roads — flexible zoom coverage.
- For retail areas — people counting and Heat Map analysis.
- For sites with high-contrast lighting — 140 dB WDR.
Installation recommendations
- Use the motorized zoom to fine-tune the frame after installation.
- Enable the Zoomprio IR mode to reduce overexposure.
- Configure AI rules only in the required zones.
- Choose Smart/AI codecs to optimize bandwidth.
FAQ
Does the camera support motorized zoom?
Yes, a 2.7–12 mm motorized varifocal lens.
What is the IR range?
Up to 60 meters with 4 IR LEDs.
Is AI search available?
Yes, AcuPick works with Smart NVR for quick target selection.
How many streams does the camera support?
Up to four simultaneous video streams.
Did you know?
- Motorized zoom lets you fine-tune the view remotely without reinstallation.
- 140 dB WDR improves detail in both shadows and bright backlight.
- SMD 3.0 with self-learning reduces false alarms.
