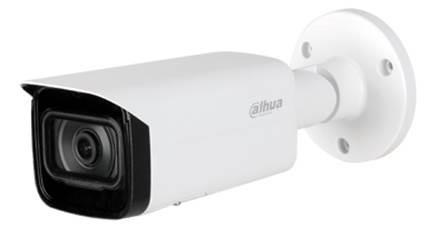

4MP IR bullet-type IP camera Dahua IPC-HFW5442T-ASE-0280BS3 with 1/1.8" CMOS sensor provides high sensitivity in low light and IR illumination up to 80 m. The camera supports AI analytics (IVS, SMD 3.0, AcuPick), face detection, people counting and Heat Map, making it suitable for professional perimeter and site surveillance.
- 4MP resolution (2688 × 1520) with progressive scan.
- IR up to 80 m with 4 IR LEDs and automatic control.
- AI analytics: IVS (intrusion, tripwire, etc.), SMD 3.0, AcuPick.
- Face detection, people counting and Heat Map.
- Smart/AI codecs: Smart H.265+/H.264+, AI H.265/H.264.
- Multi-stream support — up to 4 streams.
Technical specification
| Model / MPN | IPC-HFW5442T-ASE-0280BS3 |
|---|---|
| Sensor | 1/1.8" CMOS |
| Resolution | 4 MP (2688 × 1520) |
| Minimum lighting | 0.0007 lux (color), 0.0004 lux (B/W), 0 lux with IR |
| Lens | 2.8 mm fixed, F1.6 |
| Viewing angle | H: 112° · V: 58° · D: 139° (2.8 mm) |
| IR illumination | Up to 80 m (4 IR LEDs) |
| DORI (2.8 mm) |
Detect — 61.5 m Observe — 24.6 m Recognize — 12.3 m Identify — 6.2 m |
| Video compression | H.265 / H.264 / Smart H.265+ / Smart H.264+ / AI H.265 / AI H.264 |
| Frame rate | 4 MP up to 25/30 fps; 1080p up to 50/60 fps |
| WDR | — |
| Noise reduction | — |
| Intelligent functions | IVS, SMD 3.0, AcuPick, face detection, Heat Map, people counting |
| Streams | Up to 4 streams |
Where is it useful?
- For perimeter surveillance — accurate IVS analytics with false alarm filtering.
- For parking lots and roads — classification of vehicles and people.
- For retail and public areas — people counting and Heat Map analysis.
- For low-light sites — high sensitivity and powerful IR.
Installation recommendations
- Choose the lens (2.8/3.6/6 mm) according to the required coverage.
- Mount it so as to reduce direct IR reflection from walls.
- Enable AI functions only in the required zones for optimal performance.
- Use Smart/AI codecs to reduce bandwidth.
FAQ
Does the camera support AI search?
Yes, AcuPick provides fast target search when working with a Smart NVR.
What is the IR range?
Up to 80 meters with 4 IR LEDs.
Is people counting available?
Yes, people counting and report generation are available.
How many streams does the camera support?
Up to four simultaneous video streams.
Did you know?
- SMD 3.0 uses self-learning to reduce false alarms.
- AI codecs can significantly reduce data volume while preserving detail.
- AcuPick speeds up incident investigation in large archives.
