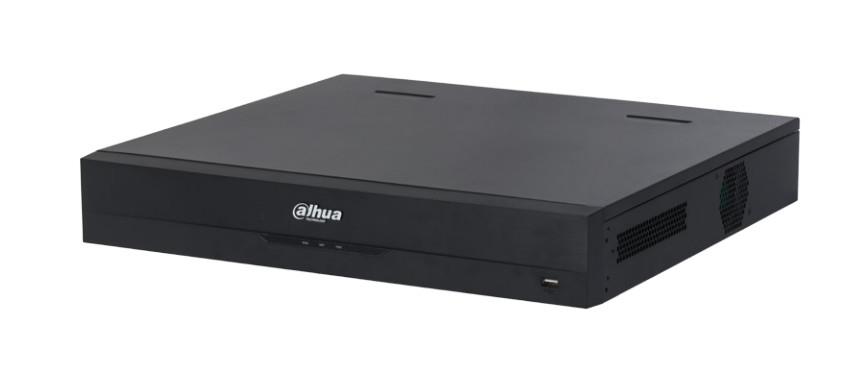

Dahua NVR5432-EI is 32-channel IP network video recorder with built-in AI analytics, designed for professional high-load video surveillance systems. The device supports face recognition, perimeter protection, SMD Plus and wide compatibility with third-party cameras.
- 32 IP cameras — support for resolution up to 32 MP.
- AI features — face recognition, perimeter protection, SMD Plus, AcuPick.
- High throughput — up to 384 Mbps (AI off).
- Multiple video outputs — 2 × HDMI + 2 × VGA.
- ONVIF and brand support — Axis, Sony, Panasonic, Hanwha, etc.
Technical specification
| Model / MPN | NVR5432-EI |
|---|---|
| Number of channels | 32 IP cameras |
| Max resolution | Up to 32 MP |
| Network throughput | 384 Mbps (AI off) / 200 Mbps (AI on) |
| AI features (recorder) | Face Detection/Recognition, IVS, SMD Plus |
| AI features (camera) | Metadata, ANPR, People Counting, Heat Map |
| Face database | Up to 20 DBs / 20,000 images each |
| Video outputs | 2 × HDMI (up to 4K), 2 × VGA |
| Multi-window view | 1/4/8/9/16/25/36 |
| Video codecs | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Audio codecs | G.711a/u, PCM, G.726 |
| Protocols | ONVIF (S/G/T), CGI, SDK |
| Mobile access | iOS, Android |
| Operating system | Embedded Linux |
| Manufacturer | Dahua |
| Warranty | 2 years |
Where is it useful?
- At large sites — for centralized management of up to 32 cameras.
- In shopping centers — for analysis of faces and people flow.
- In industrial areas — for AI perimeter protection.
- In municipal projects — for ANPR and traffic analytics.
Installation recommendations
- Make sure the network infrastructure supports the required bandwidth.
- For optimal performance, use AI features only on the channels that need them.
- Configure separate HDMI/VGA monitors for different views.
- Update the software regularly for security.
FAQ
Does the NVR support third-party cameras?
Yes, via ONVIF and manufacturer profiles (Axis, Sony, Panasonic, etc.).
How many faces can be stored in the database?
Up to 20 databases, with up to 20,000 faces in each.
Is 4K image output possible?
Yes, HDMI supports up to 3840 × 2160.
Is there a mobile app?
Yes, iOS and Android devices are supported.
Did you know?
- AcuPick combines the AI of the camera and the NVR to quickly find specific events.
- AI load reduces the maximum bandwidth but improves analytics accuracy.
- Separate HDMI/VGA output pairs allow creating independent monitor views.
