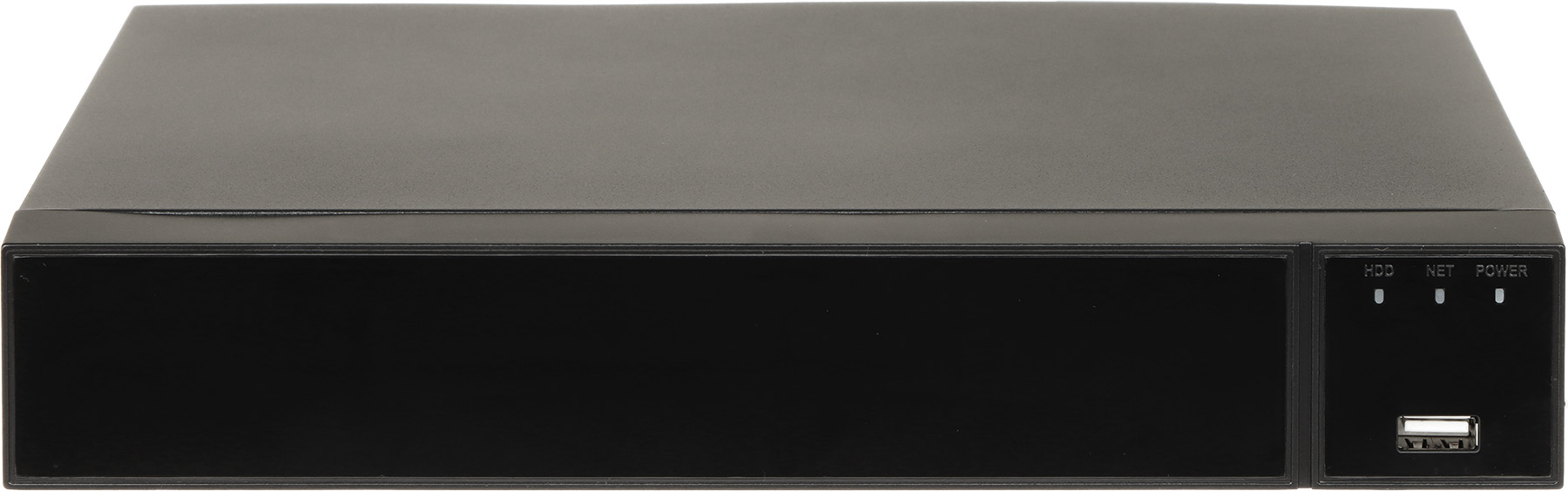

AHD, HD-CVI, HD-TVI, CVBS, IP Tīkla Video Ierakstītājs Videoreģistrators APTI-XB0401H-S35 4 KANĀLI

Audio input: 1 pc. CINCH </span>;>Image compression method: H.265+ </span>;>Recorded image resolution: AHD / HD-TVI : 5 Mpx, AHD / HD-TVI / HD-CVI : 8M-N, IP : max. 5 Mpx </span>;>Supported hard drives: 1 x 8TB SATA </span>;>Regular ports: RS-485 </span>;>Alarm inputs/outputs: 4 / 1 </span>;>Intelligent image analysis</span>; <table>

Standard:
AHD, HD-CVI, HD-TVI, CVBS, IP

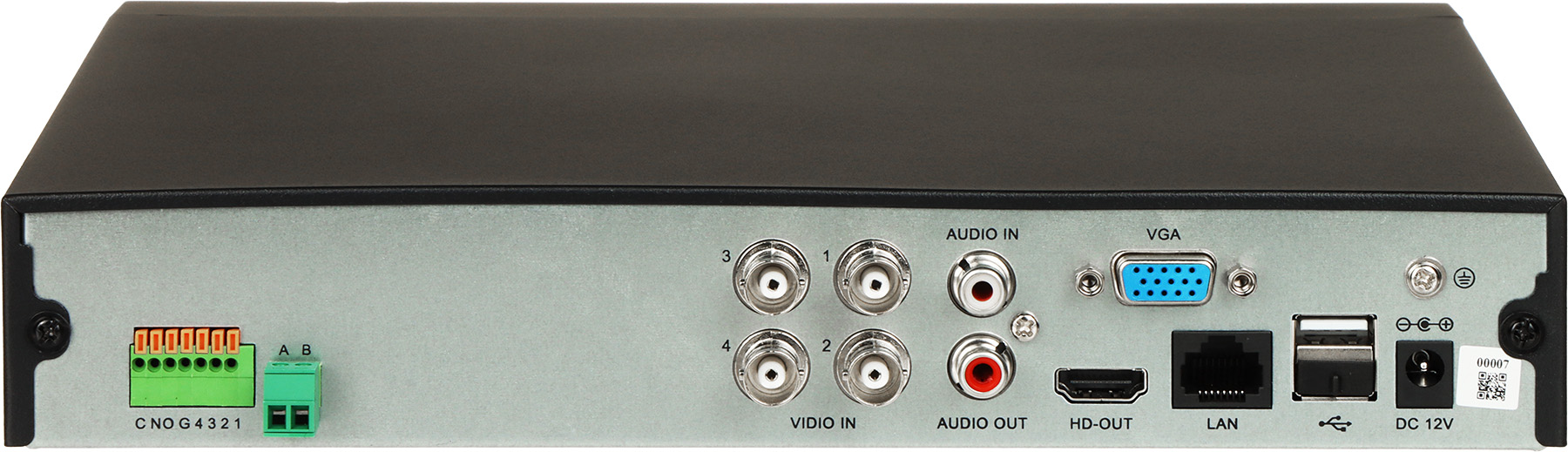

Video inputs:
4 pcs. BNC

Video outputs:

1 piece HDMI

1 piece VGA
Audio input:
1 piece CINCH

Audio output:
1 piece CINCH
Image compression method:
H.265+ / H.265 / H.264+ / H.264

Recorded image resolution:

AHD / HD-TVI :
5 Mpx – 2592 x 1944 px ,

AHD / HD-TVI / HD-CVI :
8M-N – 1920 x 2160 px,
5M-N – 1296 x 1944 px,
3.7 Mpx – 2560 x 1440 px,
4M-N – 1280 x 1440 px,
3 Mpx – 2048 x 1536 px,
3M-N – 1024 x 1536 px,
1080p – 1920 x 1080 px,
1080N – 960 x 1080 px,
720p – 1280 x 720 px ,

CVBS :
960H – 960 x 480 px,

IP :
max. 5 Mpx – 2592 x 1944 px
Recording speed adjustment:
5 Mpx IP @ 1 … 25 frame rate
8M-N @ 1 … 8 frame rate
5 Mpx @ 1 … 6 frame rate
5M-N @ 1 … 10 frame rate
3.7 Mpx @ 1 … 8 frame rate
4M-N @ 1 … 15 frame rate
3 Mpx @ 1 … 9 frame rate
3M-N @ 1 … 18 frame rate
1080p @ 1 … 15 frame rate
1080N @ 1 … 25 frame rate
720p @ 1 … 25 frame rate
960H @ 1 … 25 frame rate
for each of the channels

Working mode:

4 times  AHD / HD-CVI / HD-TVI / CVBS + 2 x IP

2 times  AHD / HD-CVI / HD-TVI / CVBS + 7 x IP

16 x IP

All modes allow any combination of AHD, HD-CVI, HD-TVI, CVBS cameras
Recording modes:
Manual, sensor, motion detection, schedule

Supported hard drives:
1 x 8TB SATA
Backups on external media:
Copy of the recording (.avi) in USB (pendrive) format

Searching and playing recordings:
Search for a recording in the timeline or file list. Playback: forward, backward, fast, slow.
Plays recordings from up to 4 cameras simultaneously
Network interface:
1 x RJ-45 - 10/100 Base-T

Network features:

Client program (iVMS320): live broadcast, playback and archiving of recordings

IE browser: live broadcast, playback and archiving of recordings, and configuration of recorder parameters
Mobile phone access:
Port: 6000 or access via cloud

Android: Free application BitVision, Android: Free application iVMS320

iOS (iPhone): Free app BitVision, iOS: Free app iVMS320

Default IP address:
192.168.1.88
Default username/admin password:
admin / 12345

Browser access ports:
80, 5000, 554
Access ports using PC application:
80, 5000, 554

Access ports using the mobile application:
80, 5000, 6000
USB:
2 pcs. USB 2.0

Regular ports:
RS-485
Alarm inputs/outputs:
4 / 1

PTZ head rotation control:
RS-485 - Pelco-D, Pelco-P
Motion detection:


Intelligent image analysis:

Selected functions:

Identification of persons

Privacy zone

D-ZOOM – Digital zoom

PUSH ziņojums

e-mail ziņojums

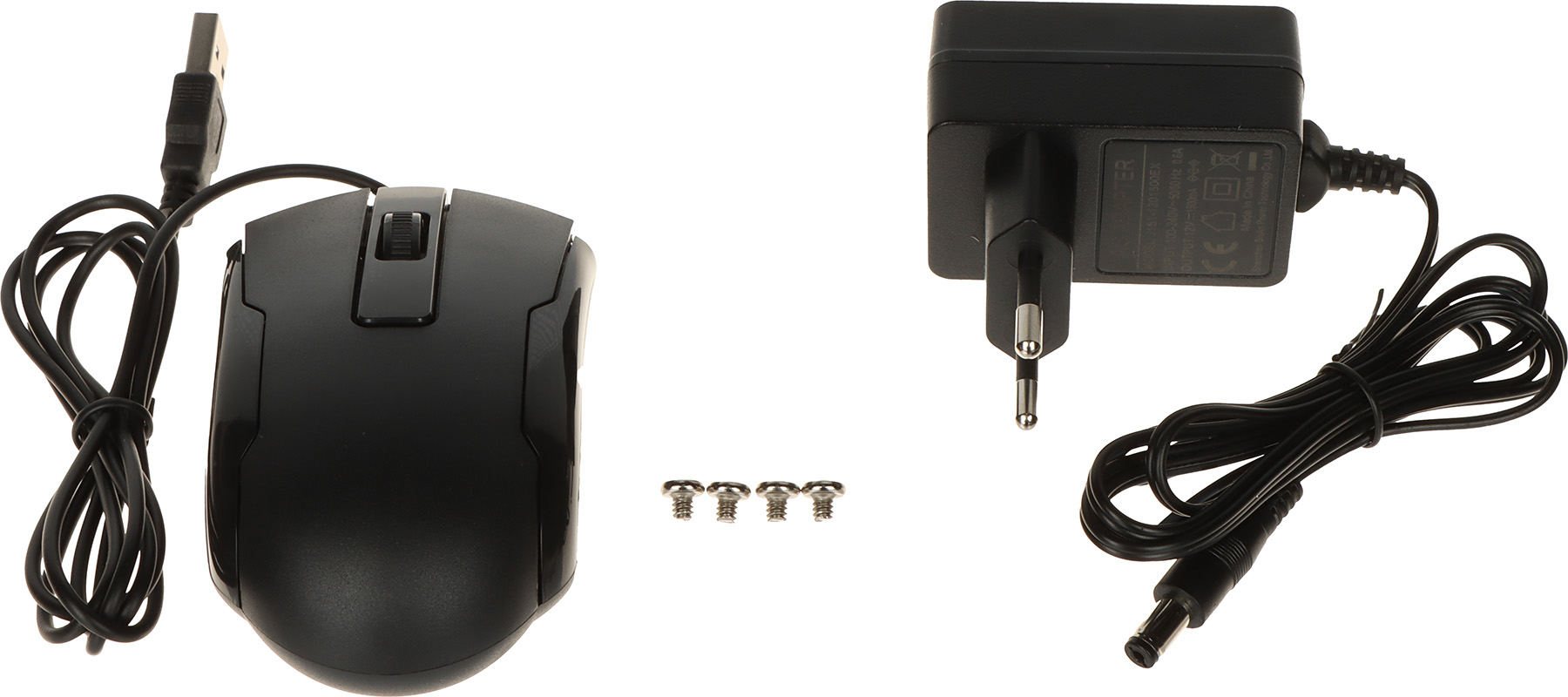

Mouse crew:

IR remote control included:


Source of energy supply:
12 V DC / 2 A (power adapter included)
Power consumed:
≤ 10W (without HDD)

Colour:
Black
Weight:
0.72 kg

Size:
260  x 243  x 46 mm
Language selection:
poļu, angļu, bulgāru, čehu, franču, grieķu, spāņu, nīderlandiešu, vācu, portugāļu, krievu, rumāņu, turku, ukraiņu, ungāru, itāļu

Manufacturer / Brand:
APTI
WARRANTY:
2 years
