AHD, HD-CVI, HD-TVI, PAL kamera HAC-HFW1200TLM-IL-A-0360B-S6 – 1080p 3.6 mm DAHUA

Name: AHD, HD-CVI, HD-TVI, PAL kamera HAC-HFW1200TLM-IL-A-0360B-S6 - 1080p 3.6 mm DAHUA
Brand: Dahua
SKU: HAC-HFW1200TLM-IL-A-0360B-S6
Availability: InStock

* The appearance of the product may differ from what is shown in the picture

Key specifications

ManufacturerDahua

TechnologyHDCVI

Resolution2 MP

Camera typeBullet

PoENo

Connectivity technologyNav (vadu)

Viewing angle81-90

Lens typeFixed

Description
Additional information

Resolution: 1920 x 1080 @ 25 fps
Viewing angle: 83 °
Infrared illumination detection area: 40 m
LED white light range: 40 m
Audio: Built-in microphone, Audio playback via coaxial cable – HD-CVI only
Source of energy supply: 12 V DC

Standard:	AHD, HD-CVI, HD-TVI, CVBS
Sensors:	Progressive Scan CMOS
Matrix size:	2.1 Mpx
Resolution:	1920 x 1080 - 1080p @ HD-CVI / HD-TVI / AHD @ 25 frame rate , 960x576 – 960H @ PAL @ 25 frame rate
Lens:	3.6 mm
Angle of visibility:	83 ° (ražotāja dati) 84° (our tests)
Infrared illumination reception area:	40 m
LED white light range:	40 m
IR illuminator power adjustment:	Automatic
Video output:	AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω
Audio:	Built-in microphone, Audio playback via coaxial cable – HD-CVI only
OSD screen menu:	✓
Selected functions:	Smart Dual Illumination Technology – IR or LED illuminator works in night mode. White light automatically turns on only when an object is detected in the monitoring area, which effectively improves image quality D-WDR – Wide Dynamic Range 3D-DNR - Digital Noise Reduction BLC/HLC – Backlight/High Light Compensation ICR – Infrared mechanical filter AGC - Automatic gain control Privacy zones – max. 8 Mirror – mirror image Automatic white balance Sharpness - Sharpness of the image contours
Source of energy supply:	12 V DC / 340 mA
Power consumed:	≤ 4.1W
Hull:	Compact Plastic + Metal
Colour:	White
Class of protection:	IP67
Anti-vandalism:	✗
Operating temperature:	-40°C … 60°C
Weight:	0.3 kg

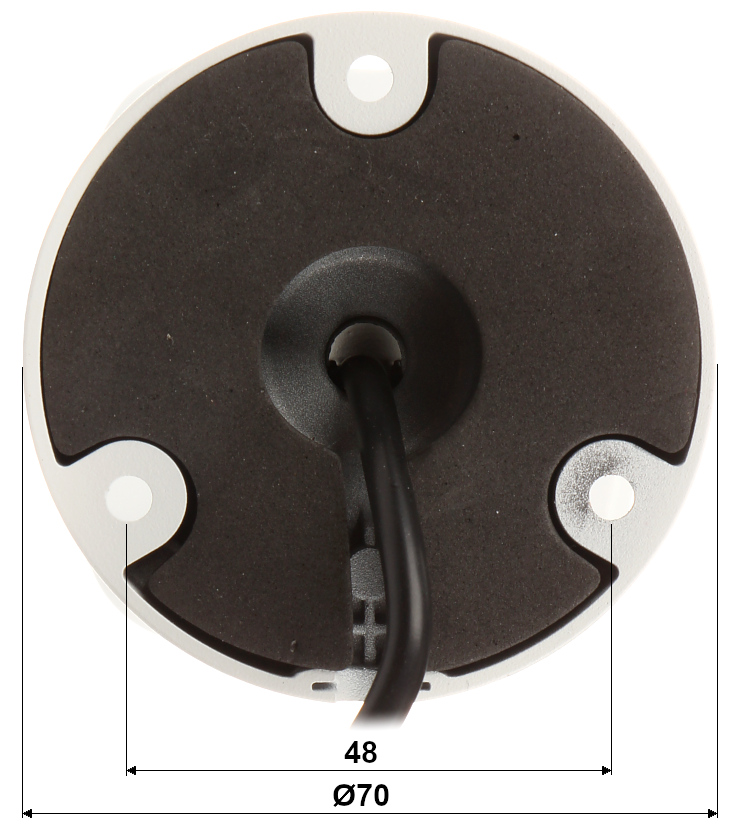

Size:	198 x 80 x 76 mm
Manufacturer / Brand:	DAHUA
WARRANTY:	3 years

Additional information

Weight	0,4680 kg
Dimensions	24 × 11,5 × 11 cm
Manufacturer	Dahua
Technology	HDCVI
Resolution	2 MP
Camera type	Bullet
PoE	No
Connectivity technology	Nav (vadu)
Viewing angle	81-90
Lens type	Fixed
Lens size (mm)	3.6mm
Lighting distance (m)	40m
Night mode	Divējs apgaismojums (Smart Dual Light)
Audio	Yes
Alarm input/output	N/A
Class of protection	IP67
Memory card support	N/A
Camera colour	White
