Technical Specification:
| Standard: | AHD, HD-CVI, HD-TVI, CVBS |
| Sensors: | 1/2.8 ” SONY Starvis™ Back-illuminated CMOS |
| Matrix size: | 8.3 Mpx |
| Resolution: | 3840 x 2160 – 8.3 Mpx , 4K UHD @ AHD , 15 kadru nomaiņas ātrums , 3840 x 2160 – 8.3 Mpx , 4K UHD @ HD-CVI / HD-TVI , 15 kadru nomaiņas ātrums / 12.5 kadru nomaiņas ātrums , 2592 x 1944 – 5 Mpx @ AHD / HD-TVI , 20 kadru nomaiņas ātrums / 12.5 kadru nomaiņas ātrums , 2560 x 1440 – 4 Mpx @ AHD , 30 kadru nomaiņas ātrums / 25 kadru nomaiņas ātrums / 15 kadru nomaiņas ātrums , 2560 x 1440 – 4 Mpx @ HD-TVI / HD-CVI , 30 kadru nomaiņas ātrums / 25 kadru nomaiņas ātrums , 1920 x 1080 – 1080p @ AHD / HD-TVI / HD-CVI , 30 kadru nomaiņas ātrums / 25 kadru nomaiņas ātrums , 960 x 576 – 960H @ CVBS |
| Infrared illumination detection area: | 30 m |
| IR illuminator power adjustment: | Automatic |
| Lens: | 2.8 … 12 mm |
| Viewing angle: | 87 ° … 24 ° (ražotāja dati) 85 ° … 34 ° (mūsu pārbaudes) |
| Video output: | 1 Vpp 75 Ω, AHD / HD-CVI / HD-TVI / CVBS – iestatīšana ar slēdzi |
| Selected features: | D-WDR – Wide Dynamic Range 3D-DNR – Digital Noise Reduction ICR – Infrared mechanical filter AGC – Automatic image gain adjustment Automatic white balance Day/night mode – configurable Sharpness – Sharpness of image contours |
| OSD screen menu: | - |
| Housing: | Dome – Metal |
| Colour: | White |
| Anti-vandalism: | - |
| Protection class: | IP67 |
| Source of energy supply: | 12 V DC / 750 mA |
| Power consumption: | ≤ 9 W |
| Operating temperature: | -10°C … 60°C |
| Weight: | 0.56 kg |

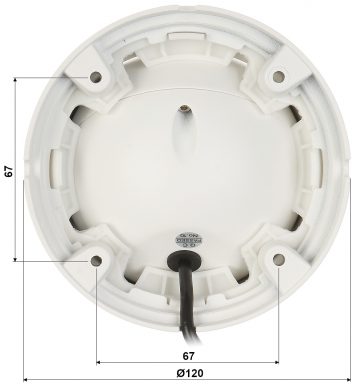

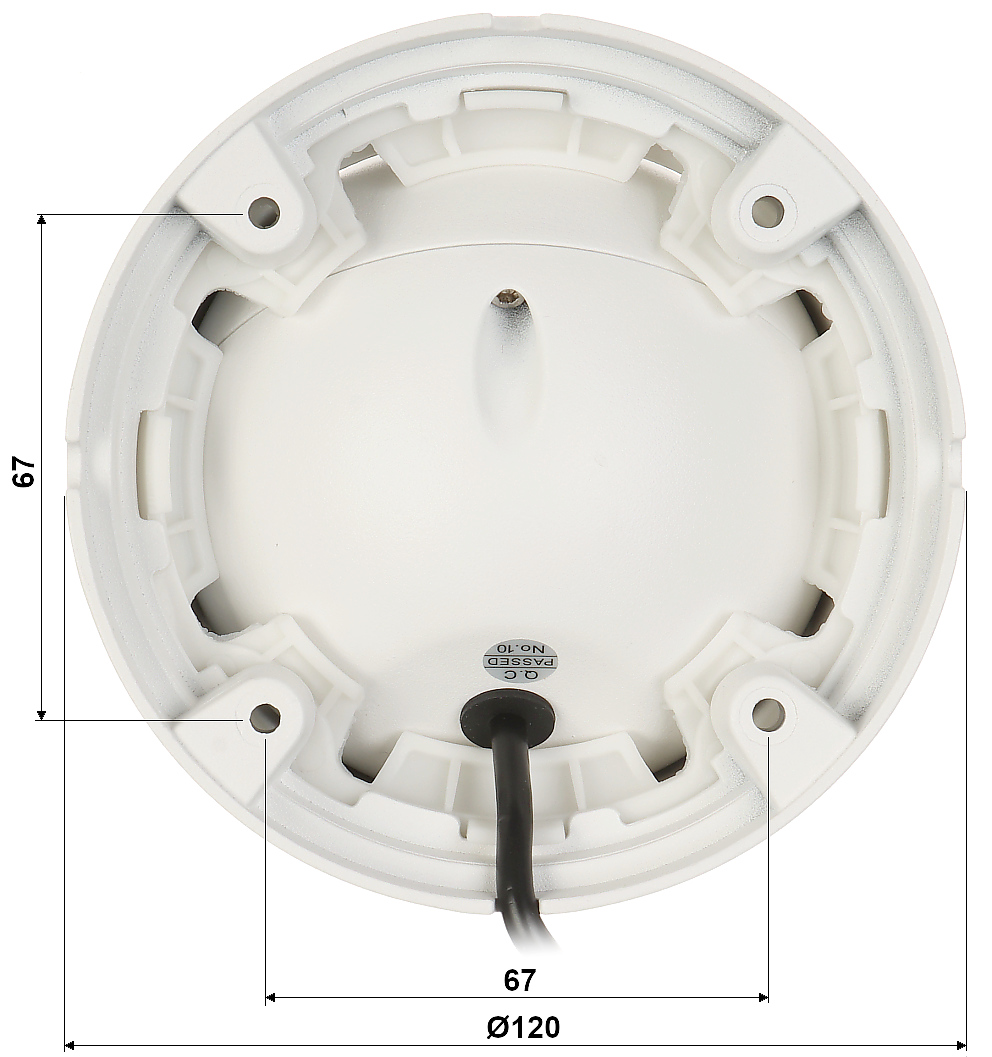

| Size: | Ø 120 x 98 mm |
| Language selection: | English |
| Manufacturer / Brand: | APTI |
| Warranty: | 2 years |
