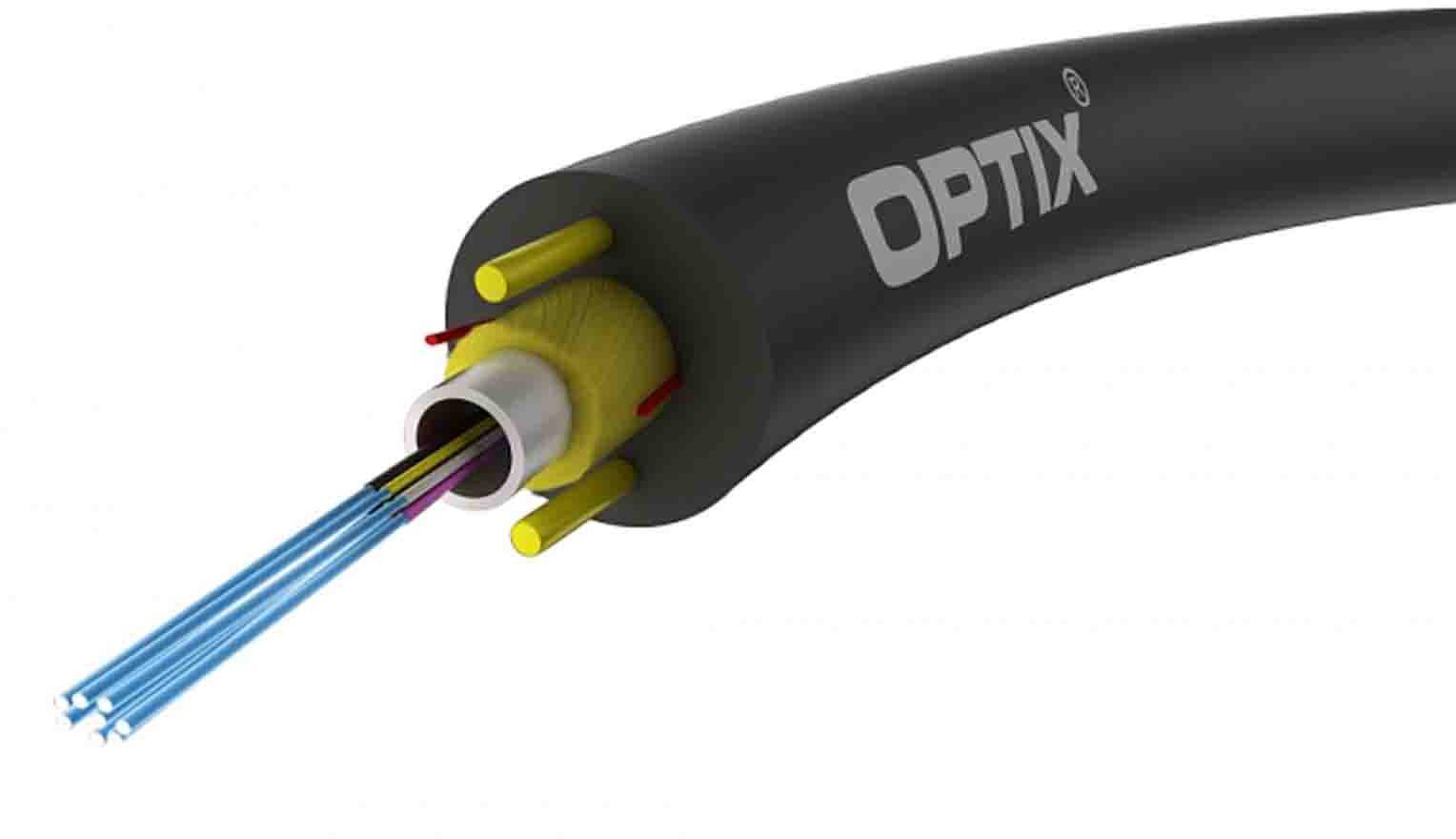

ARAMĪDA OPTISKAIS KABELIS Z-XOTKtcdD 12J — 200 m
Key features:
OPTIX Aramids
svara vads L-single-hp> (~20kg/km), high elasticity and tensile strength despite the small diameter (~5.5mm), gel and water blocking construction (WB), HDPE coating, UV resistance, temperature range from -40°C to 70°C, reinforced with 2 ARP rods (ø 0.5mm) / F 0.5mm. Maximum installation voltage: 1200 N.

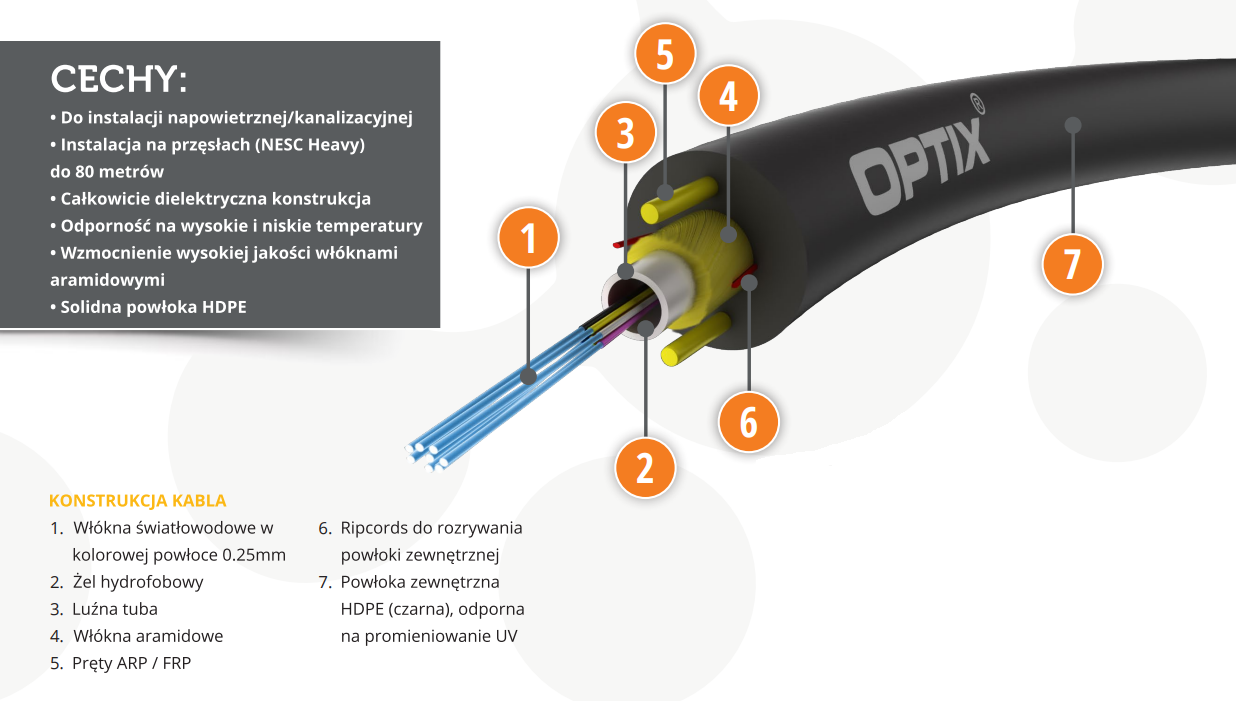

Visām kabeļu šķiedrām ir krāsu kods saskaņā ar kodēšanas standartu eia/tia-598. Caurule satur līdz 24 optiskām šķiedrām un ir piepildīta ar hidrofobu gēlu, lai aizsargātu šķiedras no mitruma un vibrācijas. Kabelis ir pastiprināts ar aramid fibers. To provide additional structural strength, two ARP or FRP bars are embedded in the outer HDPE in the layer.
Two threads embedded in the sheath facilitate the removal of the outer cable sheath. (ripcords) The cables are intended for installation in primary and secondary telecommunications ducts using pneumatic (blowing) and mechanical (pulling) methods. and overhead installations at distances up to 80 m.
.eltrox.pl/zdjecia/12415K2/kabel_wiatowodowy_aramid_zxotktcdd_12j__200m_ed1430b033a7c.png” alt=”Apraksts” loading=”slinks” />
| Versija kabelis | 1T12J | ||
| Kopējais šķiedru skaits | 12 gab. | ||
| Weight | 22 kg/km (+/- 10%) | ||
| Kabeļa diametrs Caurules diametrs | 1,4/2,0 (+/- 0,15) | ||
| Nestājelements / Apkārtnes stiegrojums | Aramīda šķiedras | ||
| Stiprināšanas elements | ARP (2x> > | ||
| Pārklājuma veids un biezums | HDPE 1,5 mm | ||
| Temp. during installation | -10°C ~ +50°C | ||
| Temp. operations | -40°C ~ +70°C | ||
| Min. bending radius temporary / permanent | 20D / 10D | ||

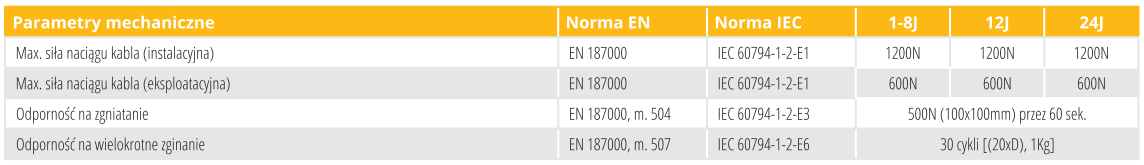

| Max. cable tensile force (installation) | 1200N | ||
| Max. cable tension force (working) | 600 N | ||
| compression resistance | 500 N (100 x 100 mm) 60 sec. | ||
| Resistance to repeated bending | 30 cycles, |
| Svars | 3,0000 kg |
|---|
