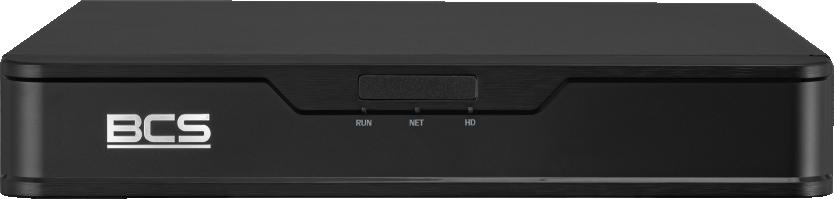

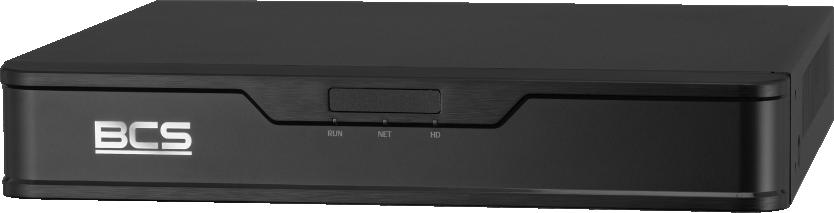

BCS-P-NVR0801-4KE-III BCS Point 8 kanālu IP tīkla ierakstītājs
Main functions
- 8-kanālu saderība ar IP NDAA
- Atbalsts 1 HDD.
- Atbalsts 8 Mpx IP kameras.
- Audio output
- HDMI4K/VGA output
Mobile
BCS Manager ir bezmaksas lietojumprogrammas versija IP videonovērošanas sistēmu darbināšanai mobilajiem tālruņiem ar Android un iOS sistēmām. Ļauj skatīt BCS NVR/XVR ierīces.
BCS Manager works both in the local Wi-Fi network and in the GSM network. It allows you to connect to devices that are available on the Internet using a fixed IP address or the P2P BCS cloud service (P2P BCS cloud requires appropriate device preparation).
Technical specifications
64 Mb/sC % RH
| Device name | BCS | BCS POINT |
| NDAA | State Protection Permit Act | |
| System | IP | |
| Pentaplex function | Tiešraides skats / Ieraksts / Attālā atskaņošana piekļuve | |
| Channels | 8 | |
| Discs | 1 | |
| Disk capacity | 6 TB | |
| Maksimālā ieraksta izšķirtspēja | ||
| Output bandwidth | 48 Mb/s | |
| Display performance | 1 × 8 M (30 kadri/s) / 1 × 5 M (30 kadri/s) / 2 × 4 M (30 fps) / 4 × 3 /2 /2 fps 8×720P (30 kadri/s) | |
| Recording resolution | 8M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF | |
| Video saspiešana / H+H+26d. H.264 | ||
| HDMI output | HDMI4K | |
| VGA izvade | VGA | |
| HDMI display resolution | 3840 × 2160 / 0,1 × 2160 / 0,0 × 190 / 1280 × 720 / 1024 × 768 | |
| VGA display resolution | 1920 × 1080 / 1600 × 1200 / 1280 × 1024 / 1280 × 720 / lit / 1024 × 768 / 1024 × 768 / t/td 9 (3/4/5/7/9 koridora režīms) | |
| Playback | 1/4/6/8 | |
| Archiving | Ability to save material to external media, such as USB FLASH, USB HDD | |
| Users | 128 | |
| interfaces | 2×USB2.0 | |
| Audio output | 1 | |
| 17.1.1.1.1. | ||
| Support | vietējais,Tīmekļa pakalpojums, CMS BCS pārvaldnieks (Windows/Linux/MAC), mobilā lietotne (iOS, android) | |
| Network | RJ-45 10/100Mbps | |
| Compatibility | ONVIF, atbalsts trešās puses kamerām P, UPnP, NTP, DHCP, PPPoE | |
| Power source | 12V līdzstrāva | |
| Power consumption (without discs) | max. 5 W | |
| Companion | 1U | |
| Izmēri (P × P × A) | 260 × 240 × 47 mm | |
| Weight (without discs) | vdi
1kg |
