| Standard: |
TCP/IP |
| Sensors: |
1/3” Progressive Scan CMOS |
| Matrix size: |
4 Mpx |
| Resolution: |
2688 x 1520 – 4 Mpx , 1920 x 1080 – 1080p , 1280 x 720 – 720p |
| Lens: |
2.8 mm |
| Viewing angle: |
103 ° (manufacturer's data) 97 ° (our tests) |
| Compression: |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Infrared illumination detection area: |
60 m |
| Alarm inputs/outputs: |
- |
| Audio: |
- |
| Memory card slot: |
Supports Micro SD memory cards up to 256GB (local recording possible) |
| Main stream transmission speed: |
25 frames per second @ 4 Mpx |
| Network interface: |
10/100 Base-T (RJ-45) |
| Network protocols: |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv4/IPv6, UDP, Bonjour, SSL / TLS, PPPoE |
| WEB Server: |
Built-in |
| Maximum number of online users: |
6 |
| ONVIF: |
- |
| Mobile phone access: |
Port: 8000 or cloud access Android: Free BCS Manager app iOS (iPhone): Free BCS Manager app |
| Default username/admin password: |
admin / – |
| Default IP address: |
192.168.1.64 |
| Browser access ports: |
80 |
| Access ports using PC application: |
Port: 8000 or cloud access – BCS View application |
| Access ports using the mobile application: |
8000 |
| ONVIF port: |
80 |
| RTSP URL: |
Main stream: rtsp://user:password@192.168.1.64:554/Streaming/Channels/101/ – with authorization Side stream: rtsp://user:password@192.168.1.64:554/Streaming/Channels/102/ – with authorization |
| Selected features: |
The “DarkView Starlight” series camera emits very low light for a vivid color image WDR – 120 dB – Wide dynamic range of illumination 3D-DNR – Digital noise reduction BLC/HLC – background / strong light compensation ROI – improvement of the quality of selected image fragments Day/night mode ICR – infrared mechanical filter AGC – Automatic image gain adjustment Automatic white balance Ability to change resolution, quality and bit rate Sharpness – Sharpness of image contours Mirror – mirror image Configurable privacy zones Motion detection Intelligent image analysis: line crossing, intrusion, face detection |
| Source of energy supply: |
PoE (802.3af), 12 V DC / 710 mA |
| Power consumption: |
≤ 9.5 W @ PoE (802.3af) ≤ 8.5 W @ 12 V DC |
| Housing: |
Compact, Metal |
| Colour: |
White |
| Protection class: |
IP67 |
| Operating temperature: |
-30°C … 60°C |
| Language selection: |
Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Finnish, French, Greek, Spanish, Dutch, Lithuanian, Latvian, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Hungarian, Italian |
| Weight: |
1.1 kg |
| Size: |

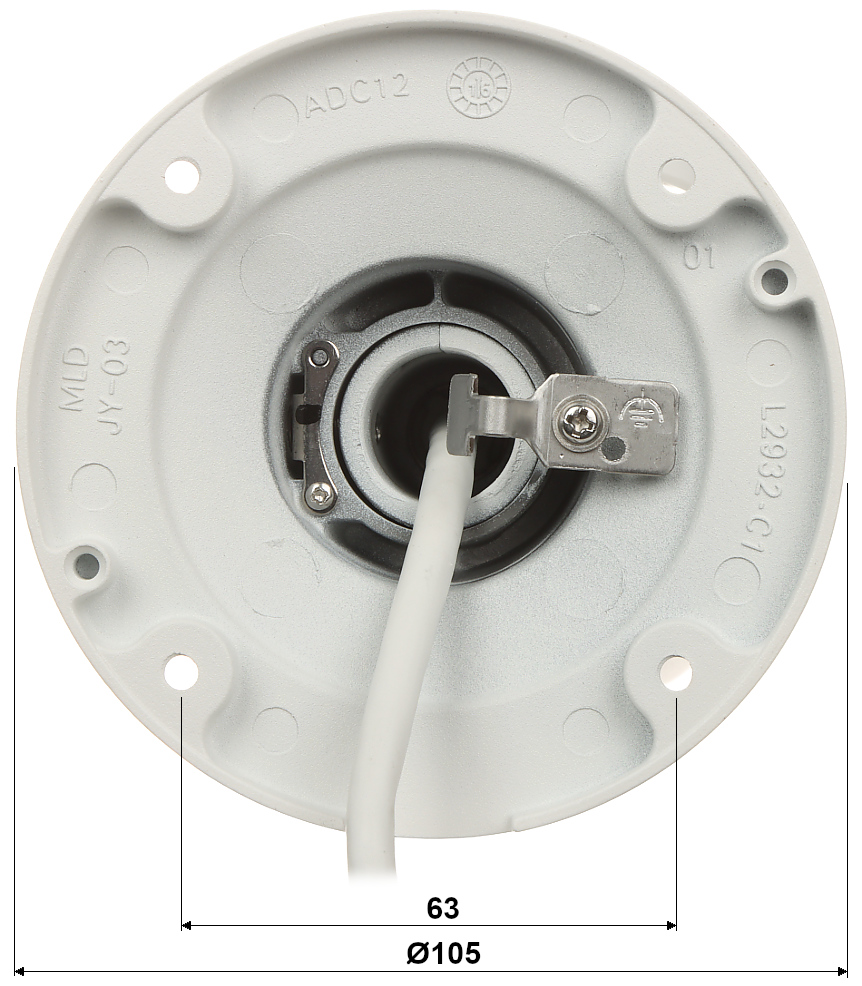

Ø 105 x 287 mm |
| Manufacturer / Brand: |
BCS View |
| Warranty: |
3 years |
