Technical Specification:
| Support: | ABAX/ABAX2 |
| Detection: | smoke |
| Alarm: | Buzzer LED flashing Signal to control panel |
| Frequency band: | 868 … 868.6 MHz |
| Radio communication range (in open area): | ≤ 2000 m – ABAX2 @ ACU-220, ≤ 1600 m – ABAX2 @ ACU-280, ≤ 500 m – ABAX |

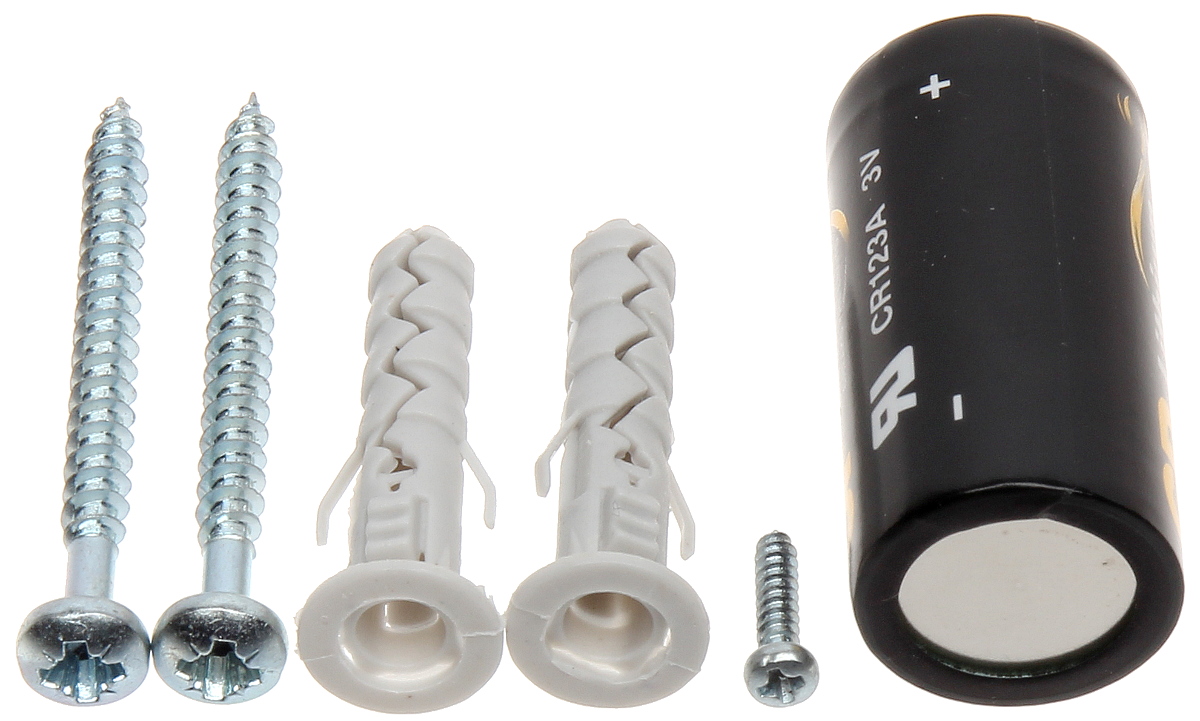

| Battery: | CR123A 3V |
| Battery operating time: | ~ 2 gadi – ABAX/ABAX2 ~ 4 gadi – Autonomais darbs |
| Strāvas patēriņš gaidstāves režīmā: | 90 µA @ ABAX/ABAX2 15 µA @ Autonomais darbs |
| Selected characteristics: | ASD-250 var darboties autonomi vai ABAX/ABAX2 divvirzienu bezvadu sistēmas ietvaros “ECO” opcija ļauj līdz pat četrām reizēm pagarināt darbības laiku ar baterijām (tikai ABAX2) |
| Operating temperature: | 0°C … 55°C |
| Weight: | 0.17 kg |
| Size: | Ø 108 x 54 mm |
| Manufacturer / Brand: | SATEL |
| Warranty: | 2 years |
