DAHUA NVR4432-EI IP RECORDER
Main functions
- NVR ierakstītājs līdz 32 16MP kamerām
- Smart H.265+/Hmart kompresija/Smart H.265+/H. H.264+/H.264/MJPEG
- 256 Mb/s caurlaidspēja (180 Mb/s ar ieslēgtām AI funkcijām)
- HDD interfeiss 4 SATA porti, katrs līdz 16 TB (kopā — 64 TB)
- AI, ko nodrošina NVR: 1 kanāla sejas noteikšana un atpazīšana; 2 kanālu perimetra aizsardzība; līdz 10 seju datu bāzēm un 20 000 sejas attēlu; 4CH SMD Plus
- AI through the camera: face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map
- Third-party network camera connection with Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon
- Basic security level 2.3
Push notifications for alarm events from Dahua IP network devices. Push notifications are a very useful tool because they allow users to quickly respond to important events without constantly monitoring the application. They are especially useful when monitoring applications because they allow users to quickly respond when an important event occurs.
 un ļauj attālināti skatīt no jebkuras vietas pasaulē.</li><li>Vēl viena svarīga funkcija ir kustību noteikšana, pateicoties kurai jūs saņemsit informāciju pa e-pastu par konstatēto notikumu, kas padara to ērtāku, un tā ir ērtāk lietojama.</li><li> ul></p></div></p></div><div class=)
Dahua Mobile Application: DMSS
DMSS is a mobile surveillance application with functions such as remote monitoring and remote configuration, video playback. You can connect devices such as IPC, NVR, XVR, VTO, doorbells, alarm hubs and access controllers. After logging in to your account, you can use cloud services such as cloud update and so on. The application supports iOS 9.0 and Android 5.0 or above, and can be used with 3G/4G/Wi-Fi.

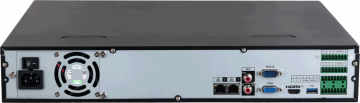

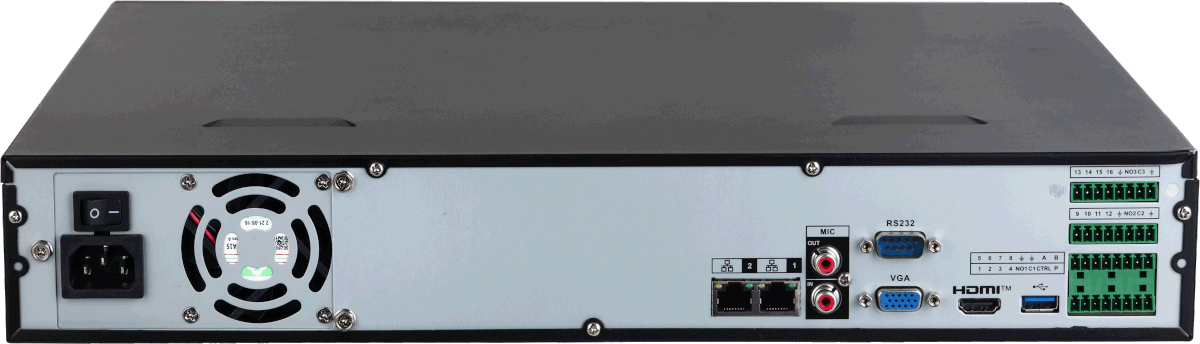

Rear panel:
| System | |||
| Main processor | Industrial-grade processor | ||
| Operating system | Embedded system | Embedded system |
|
| AI | |||
| AI using DVR | face detection, facial recognition, perimeter security and SMD Plus; | ||
| AI using the camera | face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; Heat map | ||
| Perimeter protection | |||
| AI perimeter performance with recorder (number of channels) | 2 channels, 10 IVS rules per channel | ||
| AI perimeter performance by camera (number of channels) | 8 channels | ||
| Face detection | |||
| Facial attributes | Gender; age group; glasses; Expressions; Mask; beard | ||
| Recorder AI face detection performance (number of channels) | 1 channel (up to 12 face images/s per channel) | ||
| Camera AI face detection performance (number of channels) | 8 channels >| Each facial image can be added to up to 10 facial databases with 200,000 images with a total capacity of 2.5G. Each facial image can be added with name, gender, date of birth, address, credential type, credential number, countries and regions, and country. |
| |
| (with recorder), image stream: 12 Face Images/s | |||
| 1-ch FD (by recorder) + FR (by recorder), Video Stream: 12 Face Images / s | |||
| Face Recognition by Camera (Number of Channels) | |||
| 8 Channels | |||
| SMD Plus | |||
| SMD Plus by Recorder | 4 Channels: Secondary filtering for humans and motor vehicles, reducing false alarms caused by leaves, rain, and changing lighting conditions | ||
| SMD Plus by Camera | 8 Channels | ||
| Audio and Video | |||
| Channel Access | |||
| 32 Channels | |||
| Bandwidth networks | AI off: 256 Mbps inbound, 256 Mbps write, and 256 Mbps outbound | ||
| AI on: 180 Mbps incoming, 180 Mbps write speed and 180 Mbps> | |||
| Decoding option | AI off: 2ch 16MP@30fps; 2ch 12MP@30fps; 4ch 8MP@30fps; 6ch 5MP@30fps; 8ch 4MP@30fps; 16ch 1080p@30fps | ||
| AI enabled: 1 channel 16 MP@30 fps; 2 channels 12 MP@30 fps; 3 channels 8 MP@30 fps; 4 channels 5 MP@30 fps; 6 channels 4 MP@30 fps; 12 channels 1080p@30 fps | |||
| Video output | 1 x HDMI, 1 x VGA | ||
| HDMI: 3840 x 2160, 1920 x 1080, 1080 x 10, 10 tr> | VGA: 1920 x 1080, 1280 x 1024, 1280 x 720 | ||
| *Configurable simultaneous/heterogeneous VGA and HDMI output sources.> |
Screen 1: 1/4/8/9/16/25/36 | ||
| Screen 2: 1/4/8/9/16 | |||
| Third-party camera access | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon | ||
| Compression standard | |||
| Audio compression | G.711a; G.711u; PCM; G726 | ||
| Network | |||
| Network protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP camera; recorder; CIS, etc.); P2P; Auto Registration | ||
| Mobile phone access | iOS; Android | ||
| Interoperability | ONVIF 22.06 (Profile T; Profile S; Profile G); .CGI; SDK | ||
| Browser | Chrome; IE9 and later; Firefox browser | ||
| Playing a recording | |||
| Multi-channel playback | Up to 16 channels | ||
| Recording mode | General, motion detection; intelligent; alarm clock | ||
| Backup method | USB device and network | ||
| Playback mode | Instant playback, general playback, event playback, tag playback, smart playback | ||
| Memory | |||
| Disk group | Yes | ||
| Anxiety | |||
| General alarm signal | Motion detection; privacy masking; video loss; scene change; PIR alarm; IPC external alarm | ||
| Anomaly alarm | Camera disconnection; storage error; disk full; IP address conflict; MAC address conflict; login blocked; and cybersecurity exception | ||
| Smart alarm | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; Heat map | ||
| Alarm connection | Record; snapshot; IPC external alarm output; sound; buzzer; .log; Default settings; Email | ||
| Port | |||
| Audio input | 1 channel RCA | ||
| Audio output | 1 channel RCA | ||
| Alarm input | 4 channels | d>2 channels | |
| HDD interface | 2 SATA ports, up to 16 TB. Maximum hard drive capacity varies depending on ambient temperature. | ||
| USB | 2 (1 x USB 2.0 port on the front, 1 x USB 2.0 port on the back) | ||
| HDMI | 1 | 1 | Port | 1 x 10/100/1000 Mb/s Ethernet port, RJ-45) |
| General | |||
| Power source | DC 12V, 4A | ||
| Hard drive tr> | Net weight | 1.51 kg (3.33 lbs) | |
| Gross weight | 2.76 kg (6.08 lbs) | ||
| Product dimensions | 375mm × 284.3mm × 53mm (W.) /tr> | ||
| Package dimensions | 433 mm x 141 mm x 366 mm (17.05 x 5.55 x 14.41 in) (W x D x H)) | ||
| Temperature | -10°C to +55°C (14°F to +131°F) | ||
| Storage temperature | -20°C to +60°C (-4°F to +60°C (-4°F to +60°C)> | ||
| Installation | Stand or desktop | ||
| Certification | FCC: 47 CFR FCC Part 15, Subpart B, Class A | ||
| CE-EMC: 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 | |||
| CE-LVD: EN 62368-1:2014 |
Additional information
| Svars | 6,3500 kg |
|---|
