| Standard: |
TCP/IP |
| Sensors: |
1/2.7” Progressive Scan CMOS |
| Matrix size: |
5 Mpx |
| Resolution: |
2960 x 1668 – 5 Mpx , 2880 x 1620 – 4.7 Mpx , 2688 x 1520 – 4 Mpx , 2560 x 1440 – 3.7 Mpx , 2048 x 1536 – 3 Mpx , 2304 x 1296 – 3 Mpx , 1920 x 1080 – 1080p , 1280 x 960 – 1.3 Mpx , 1280 x 720 – 720p |
| Lens: |
2.8 mm |
| Viewing angle: |
111 ° (manufacturer's data) 105 ° (our tests) |
| Infrared illumination detection area: |
50 m |
| RS-485 interface: |
- |

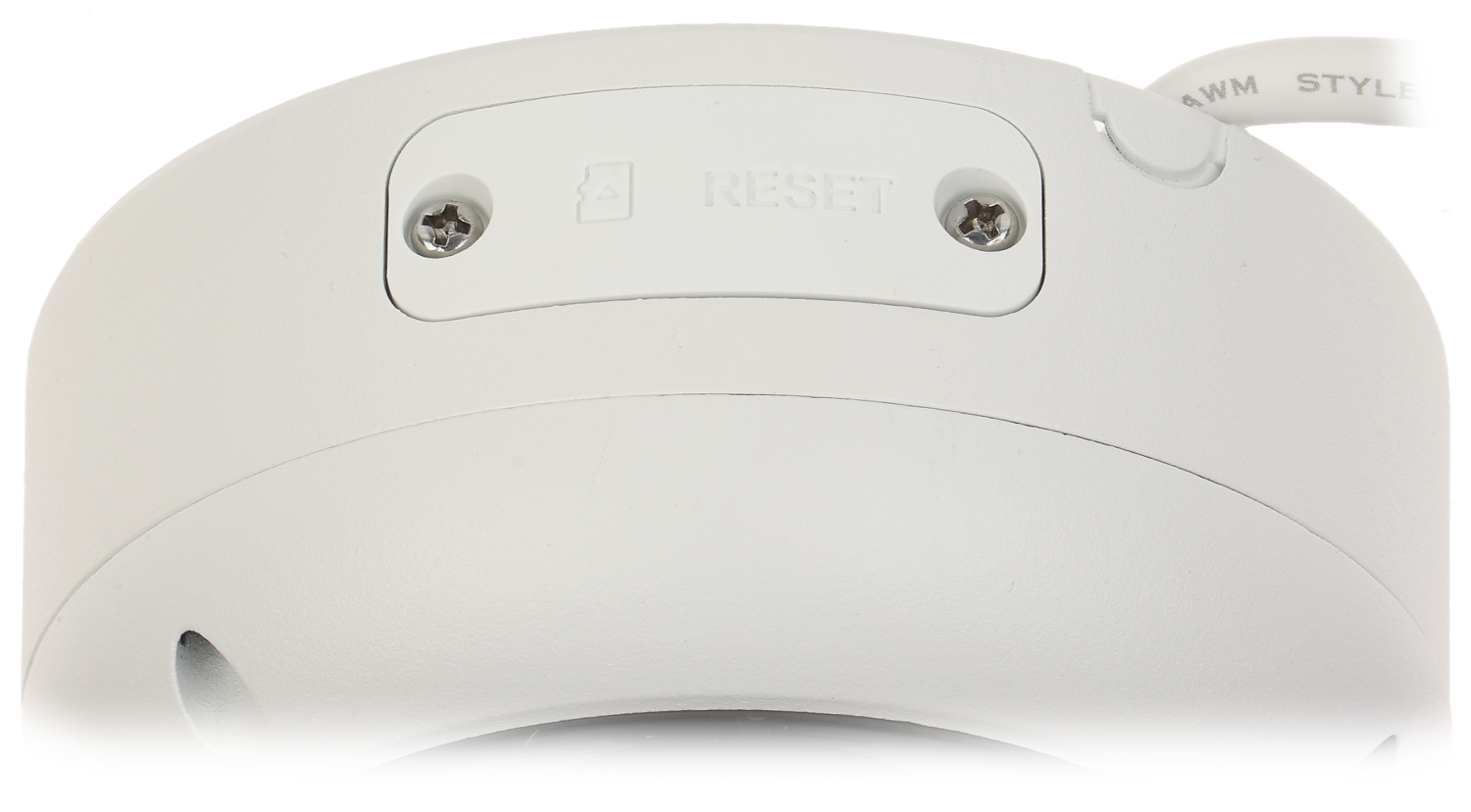

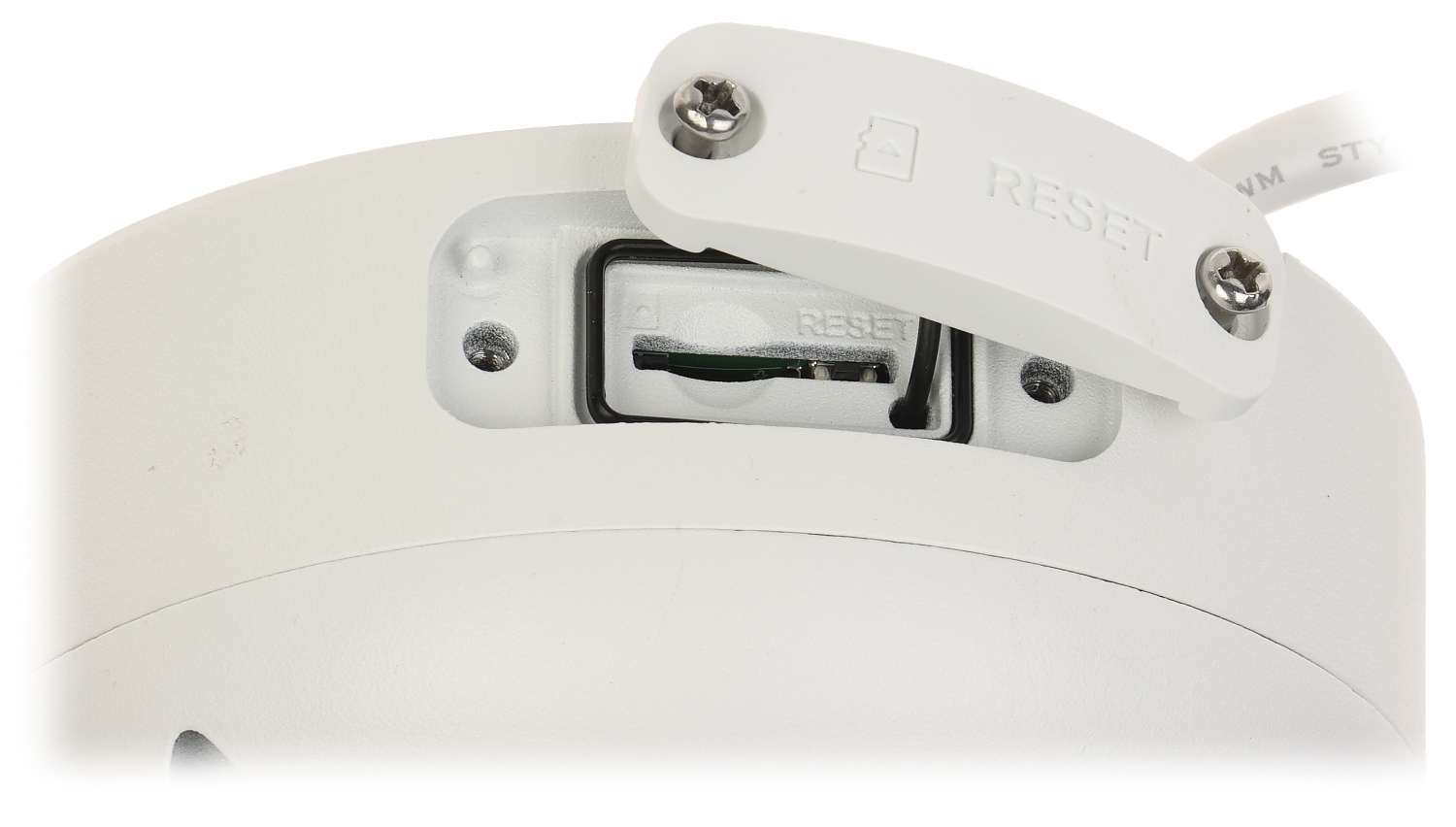

| Memory card slot: |
Supports Micro SD memory cards up to 256GB (local recording possible) |
| Image compression method: |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |

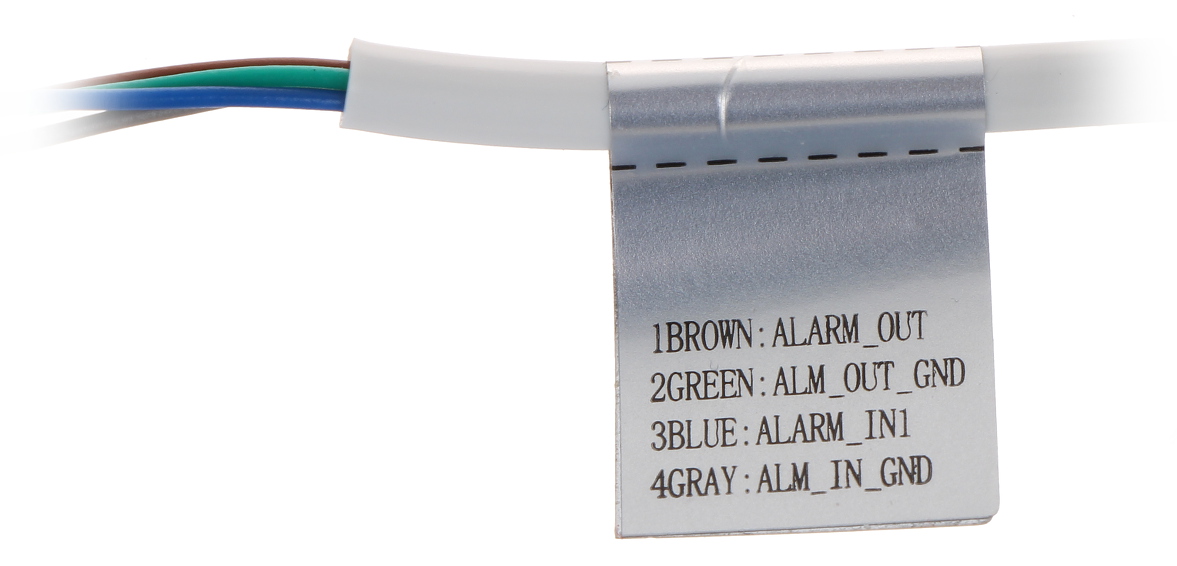

| Alarm inputs/outputs: |
1 / 1 |

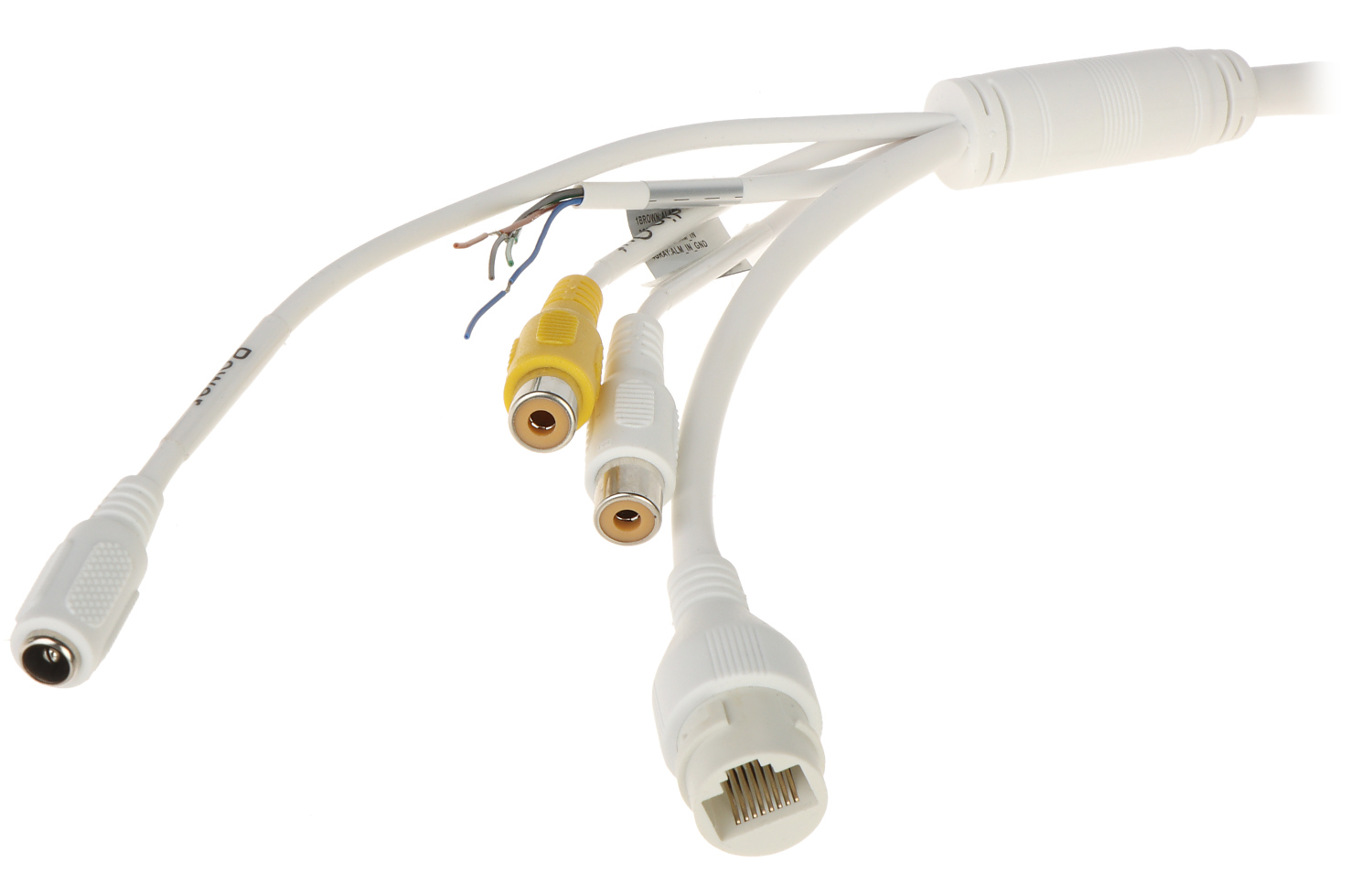

| Audio: |
Built-in microphone Audio input Audio output Two-way audio streaming support Sound detection |
| Main stream transmission speed: |
20 fps @ 5 Mpx 25 fps @ 4 Mpx |
| Network interface: |
10/100 Base-T (RJ-45) |
| Network protocols: |
IPv4 , IPv6 , HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP |
| WEB Server: |
Built-in |
| Maximum number of online users: |
20 |
| ONVIF: |
21.12 |
| Mobile phone access: |
Port: 37777 or cloud access Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Default username/admin password: |
admin / – Administrator password must be set during first launch |
| Default IP address: |
192.168.1.108 |
| Browser access ports: |
80, 37777 |
| Access ports using PC application: |
37777 |
| Access ports using the mobile application: |
37777 |
| ONVIF port: |
80 |
| RTSP URL: |
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Side stream |
| Selected features: |
WDR – 120 dB – Wide dynamic range of lighting 3D-DNR – Digital noise reduction F-DNR (Defog) – Reduction of noise associated with atmospheric precipitation ROI – improvement of the quality of selected image fragments BLC/HLC – background / strong light compensation Ability to change resolution, quality and bit rate ICR – infrared mechanical filter Day/night mode (color/b&w/auto) Automatic white balance AGC – Automatic image gain adjustment Mirror – mirror image Motion detection Configurable privacy zones AFSA – Anti-flicker Self-adaption – Technology that eliminates the unpleasant effect of image fluctuations AI SSA – ang. AI Smart Scene Adaptive – automatic scene adaptation using deep learning algorithms to detect environmental conditions such as rain, fog, backlight, low light and flickering in order to set optimal image parameters SMD 4.0 – object search classified as: person, motor vehicle – increased detection distance and resistance to false alarms IVS analysis: line crossing, intrusion – classification of persons and vehicles, scene change |

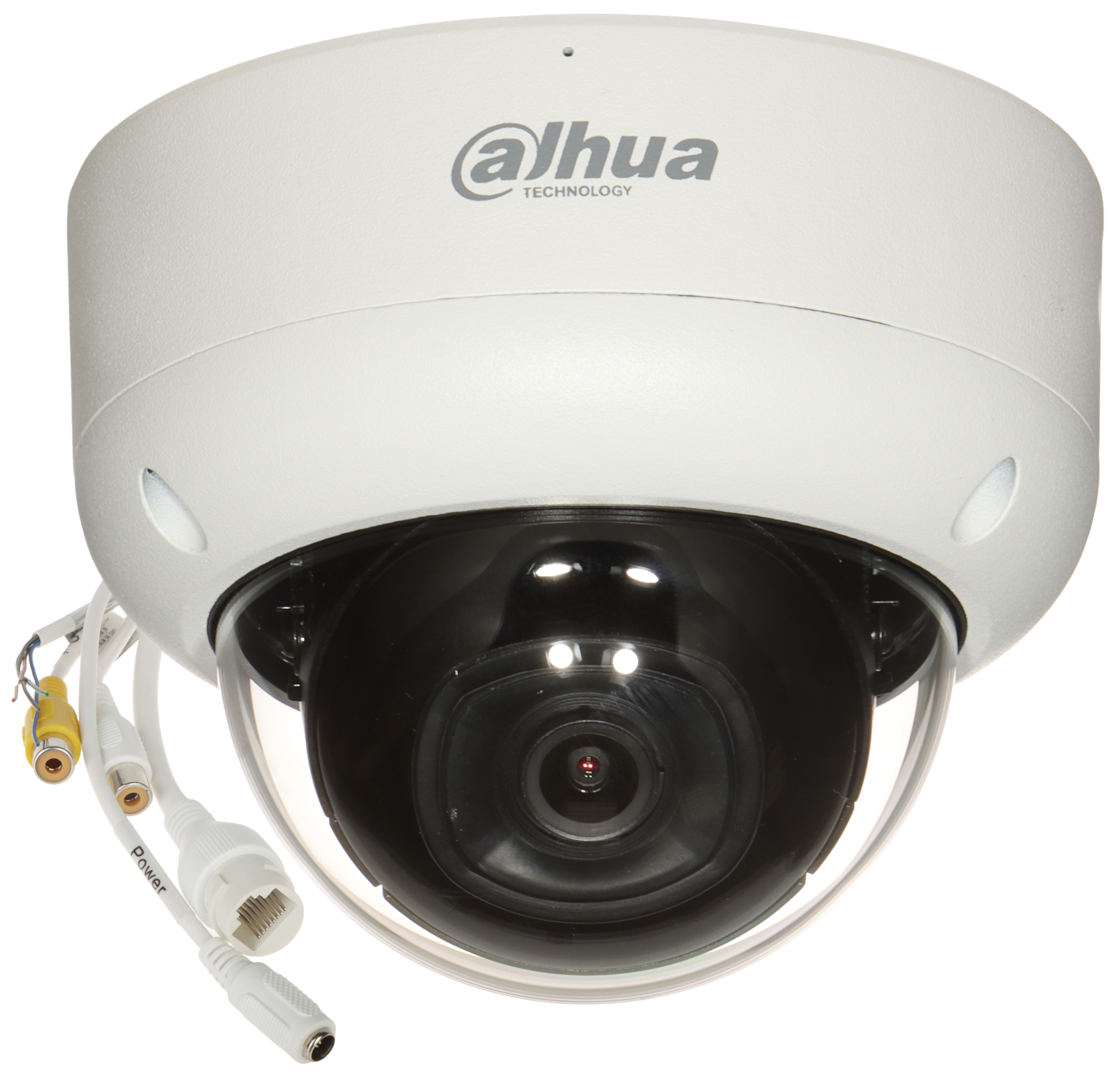

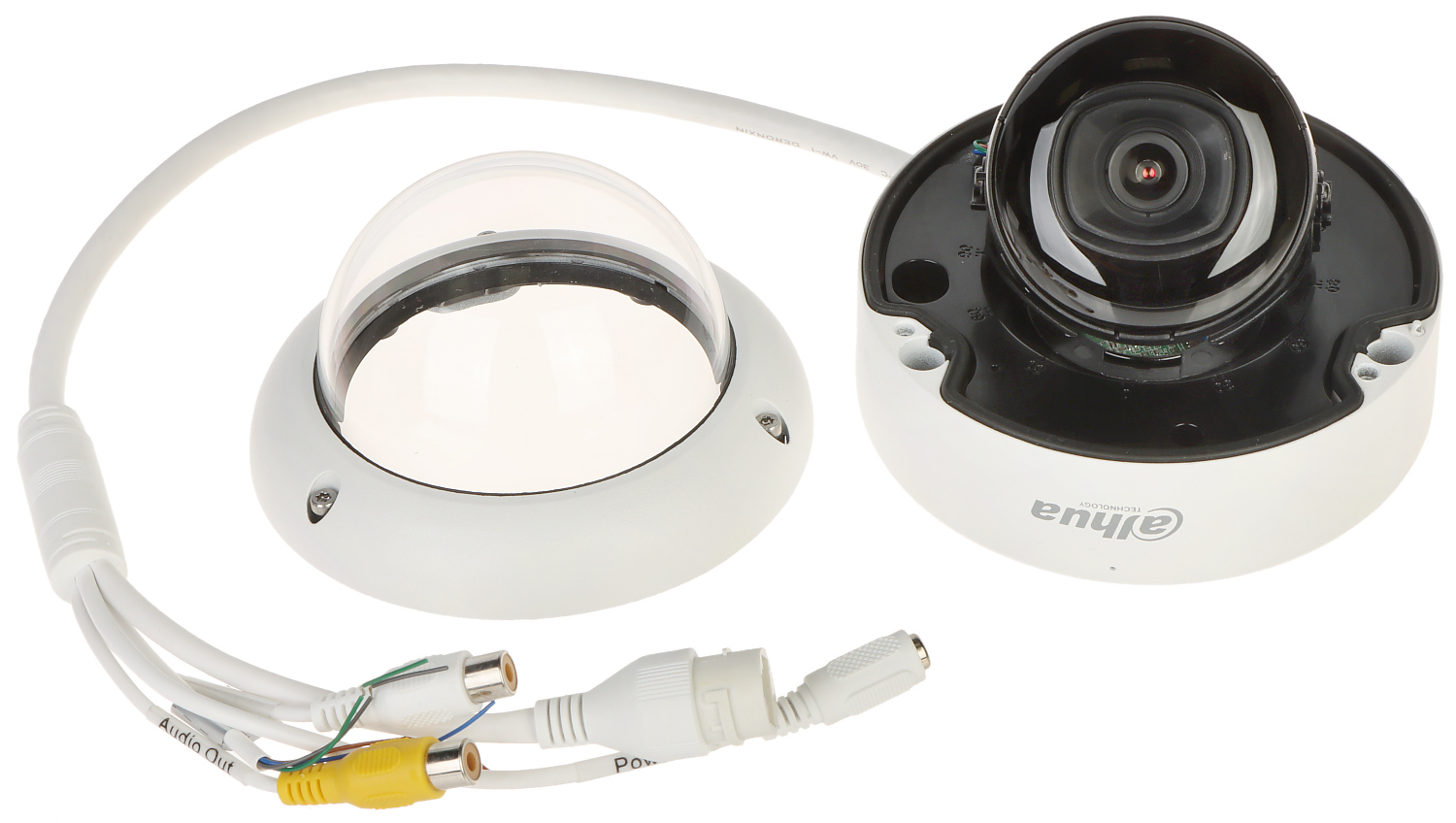

| Housing: |
Dome, Metal |
| Colour: |
White |
| Protection class: |
IP67 |
| Anti-vandalism: |
IK10 |
| Source of energy supply: |
PoE (802.3af), 12 V DC / 710 mA |
| Power consumption: |
max. 9.7 W @ PoE max. 8.5W @ 12V DC |
| Operating temperature: |
-40°C … 60°C |
| Weight: |
0.51 kg |

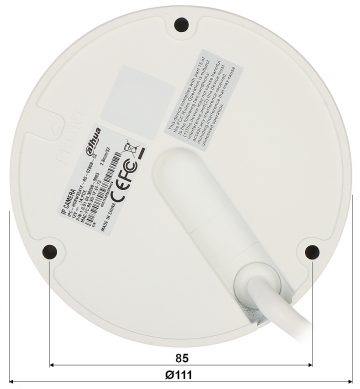

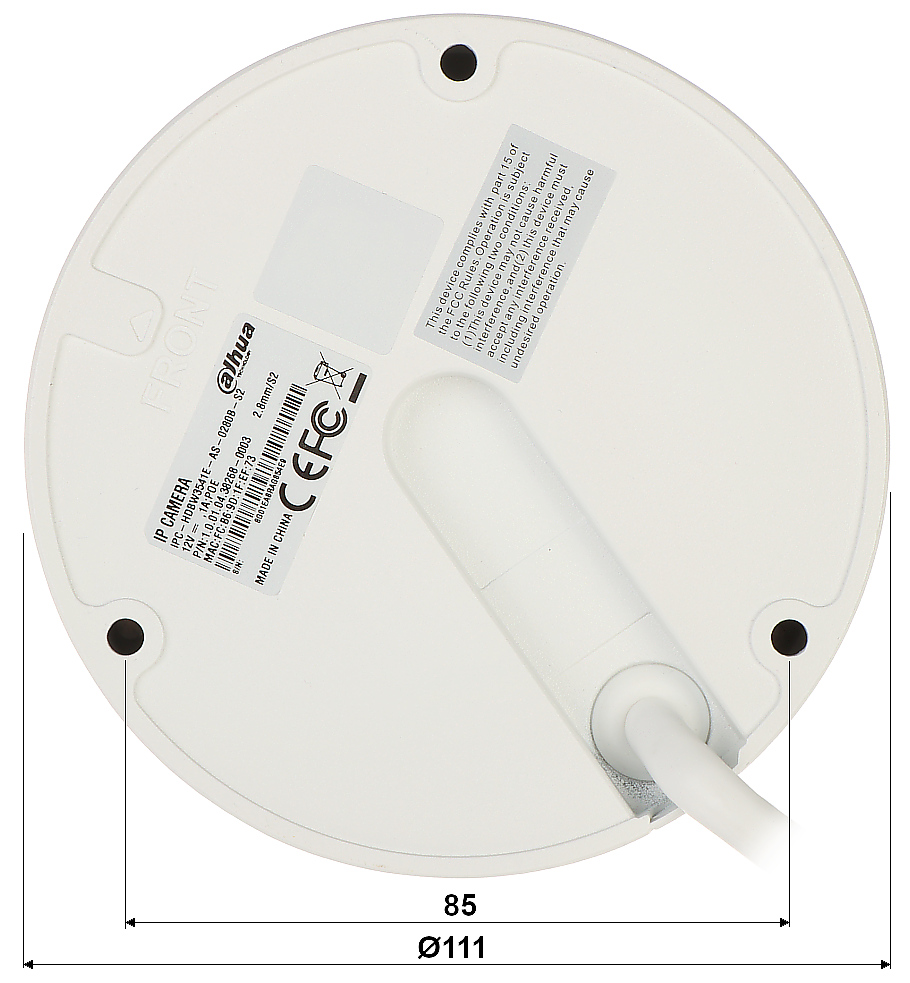

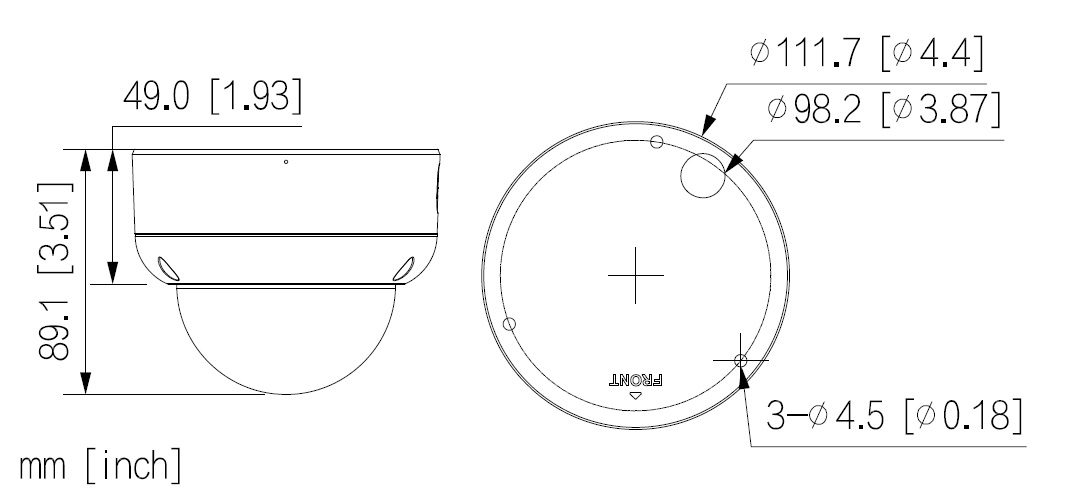

| Size: |
Ø 112 x 89 mm |
| Language selection: |
Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Romanian, Turkish, Ukrainian, Hungarian, Vietnamese, Italian |
| Manufacturer / Brand: |
DAHUA |
| Warranty: |
3 years |
