| Standard: |
TCP/IP |
| Sensors: |
1/2.9” Progressive Scan CMOS |
| Matrix size: |
4 Mpx |
| Resolution: |
2688 x 1520 – 4 Mpx , 2560 x 1440 – 3.7 Mpx , 2304 x 1296 – 3 Mpx , 1920 x 1080 – 1080p , 1280 x 960 – 1.3 Mpx , 1280 x 720 – 720p |
| Scanning system: |
Progressive |
| Lens: |
3.6 mm |
| Viewing angle: |
78 ° |
| Infrared illumination detection area: |
30 m |
| LED white light range: |
30 m |
| Lighting: |
0.002 Lux / F1.0 (color) |
| Signal to noise ratio (S/N): |
> 56 dB |
| RS-485 interface: |
- |

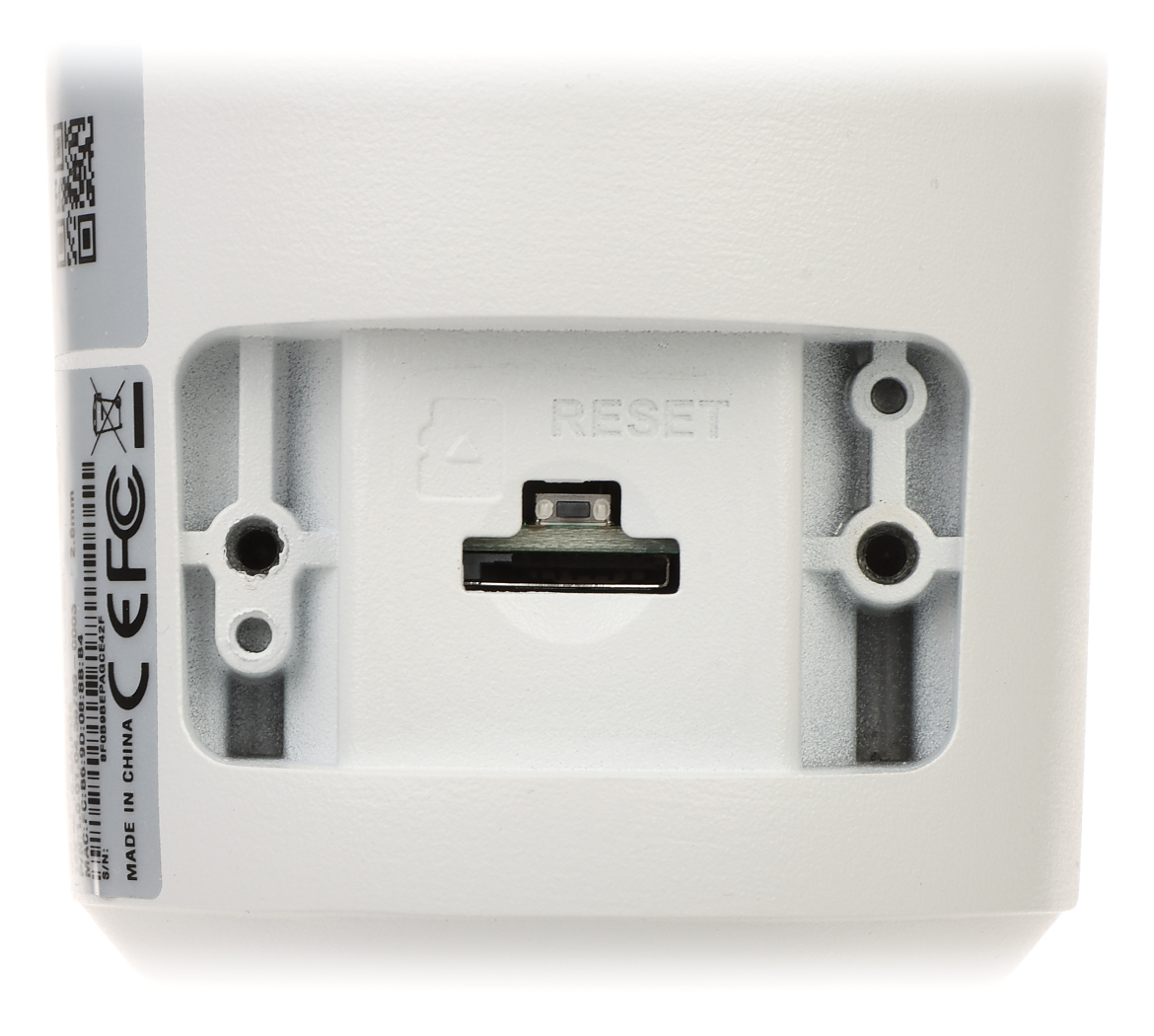

| Memory card slot: |
Supports Micro SD memory cards up to 256GB (local recording possible) |
| Image compression method: |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Alarm inputs/outputs: |
- |
| Audio: |
Built-in microphone Sound detection |
| Main stream transmission speed: |
25 frame rate @ 1080p |
| Network interface: |
10/100 Base-T (RJ-45) |
| Network protocols: |
IPv4/IPv6 , HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP |
| WEB Server: |
Built-in |
| Maximum number of online users: |
6 |
| ONVIF: |
21.06 |
| Mobile phone access: |
Port: 37777 or cloud access Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Default IP address: |
192.168.1.108 |
| Default username/admin password: |
admin / – Administrator password must be set during first launch |
| Browser access ports: |
80, 37777 |
| Access ports using PC application: |
37777 |
| Access ports using the mobile application: |
37777 |
| ONVIF port: |
80 |
| RTSP URL: |
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Side stream |
| Selected features: |
WDR – 120 dB – Wide dynamic range of illumination 3D-DNR – Digital noise reduction ROI – quality improvement of selected image fragments BLC/HLC – background / strong light compensation Possibility to change resolution, quality and bit rate Motion detection Configurable privacy zones Mirror – mirror image SMD PLUS – search for an object classified as: person, motor vehicle IVS analysis: intrusion, line crossing – classification of persons and vehicles video sabotage |
| Source of energy supply: |
PoE (802.3af), 12 V DC / 330 mA |
| Power consumption: |
≤ 3.8 W @ 12 V DC ≤ 4.4 W @ PoE |
| Housing: |
Compact – Metal |
| Colour: |
White + Black |
| Protection class: |
IP67 |
| Anti-vandalism: |
- |
| Operating temperature: |
-40°C … 60°C |
| Weight: |
0.47 kg |

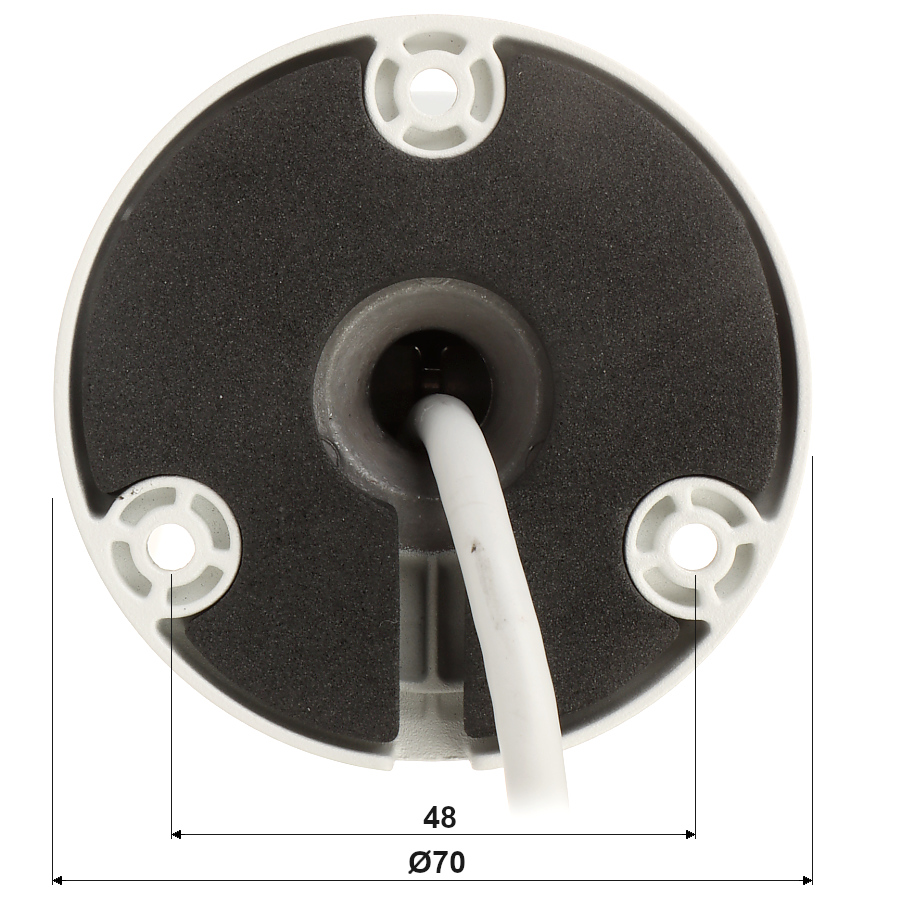

| Size: |
162 x 70 x 70 mm |
| Language selection: |
Polish, English, Czech, French, Spanish, Dutch, German, Russian, Portuguese, Romanian, Turkish, Ukrainian, Hungarian, Italian |
| Manufacturer / Brand: |
DAHUA |
| Warranty: |
3 years |
