Technical Specification:
| Support: | ABAX/ABAX2 |
| Frequency band: | 868MHz … 868.6MHz |
| Radio communication range (in open area): | max. 2000 m @ ABAX2 max. 500m @ ABAX |

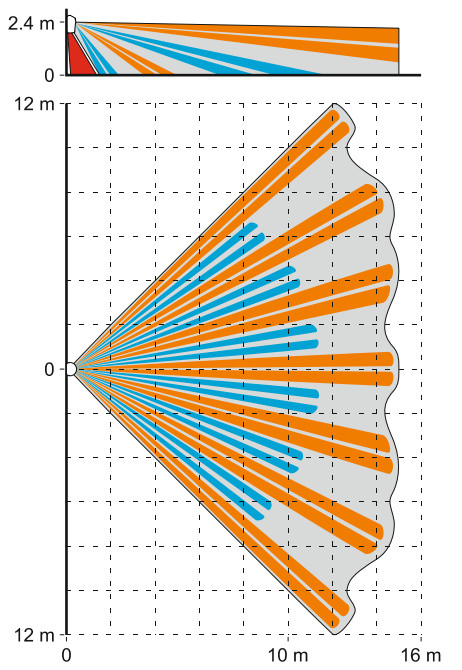

| PIR detector detection area: | 15m/90° |

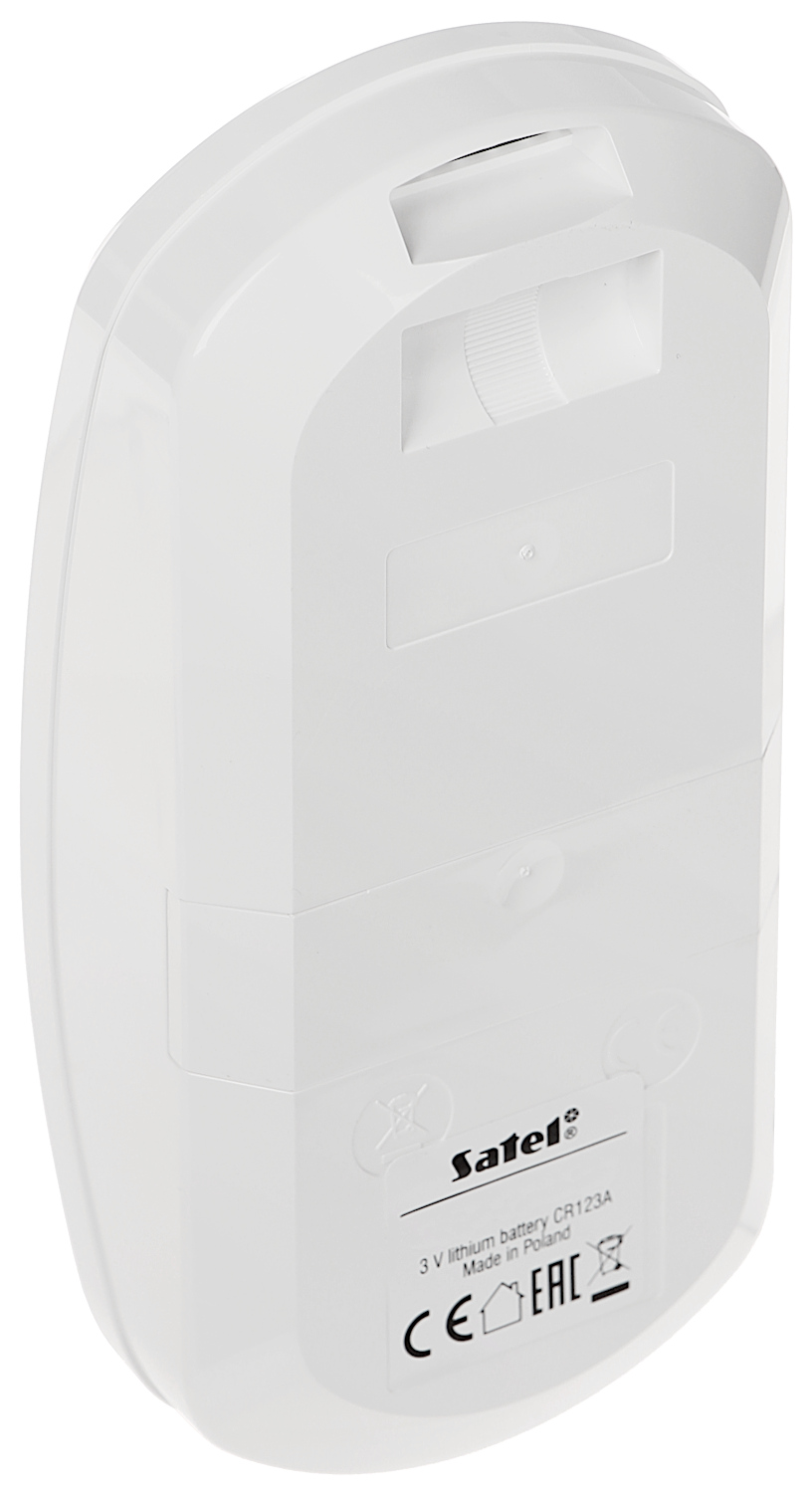

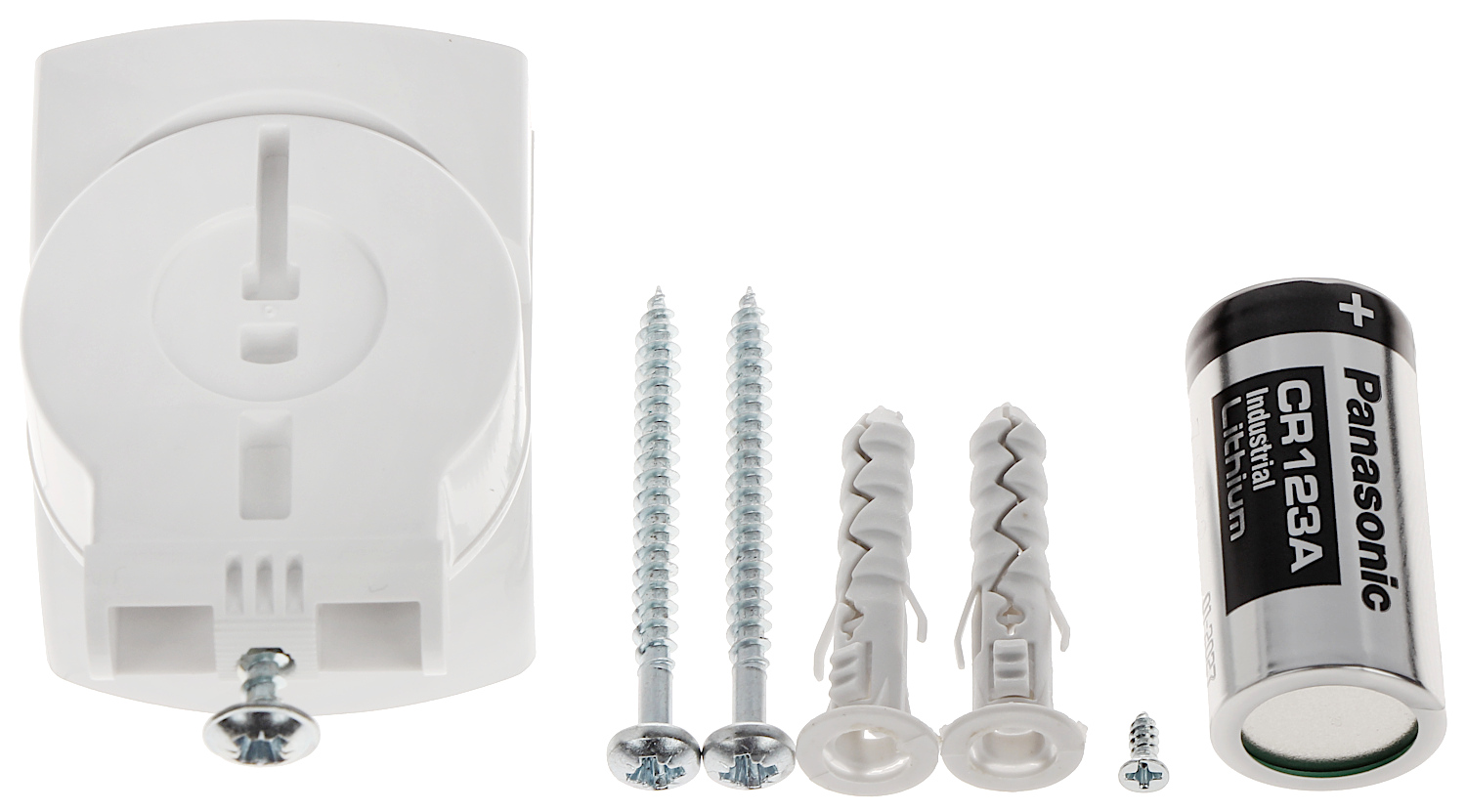

| Source of energy supply: | CR123A 3V |
| Battery life (in power saving mode): | about 2 years |
| Target movement speed: | 0.3 … 3 m/s |
| Recommended mounting height: | 2m … 2.4m |
| Selected characteristics: | Passive infrared (PIR) and microwave (MW) High resistance to false alarms is achieved thanks to the combination of PIR and MW detection Advanced temperature compensation Access zone control Advanced energy management PIR / MW motion detection sensitivity adjustment Remote configuration Diode LED in test mode signals a violation, facilitating system startup and further maintenance Tamper detection – opening the housing, tearing off from the base Possibility to replace lenses with curtain type CT-CL or long-range LR-CL (available separately) |
| Operating temperature: | -10°C … 55°C |
| Allowable relative humidity: | 93 ± 3 % |
| Weight: | 0.1 kg |
| Size: | 137 x 62 x 42 mm |
| Manufacturer / Brand: | SATEL |
| Warranty: | 2 years |
