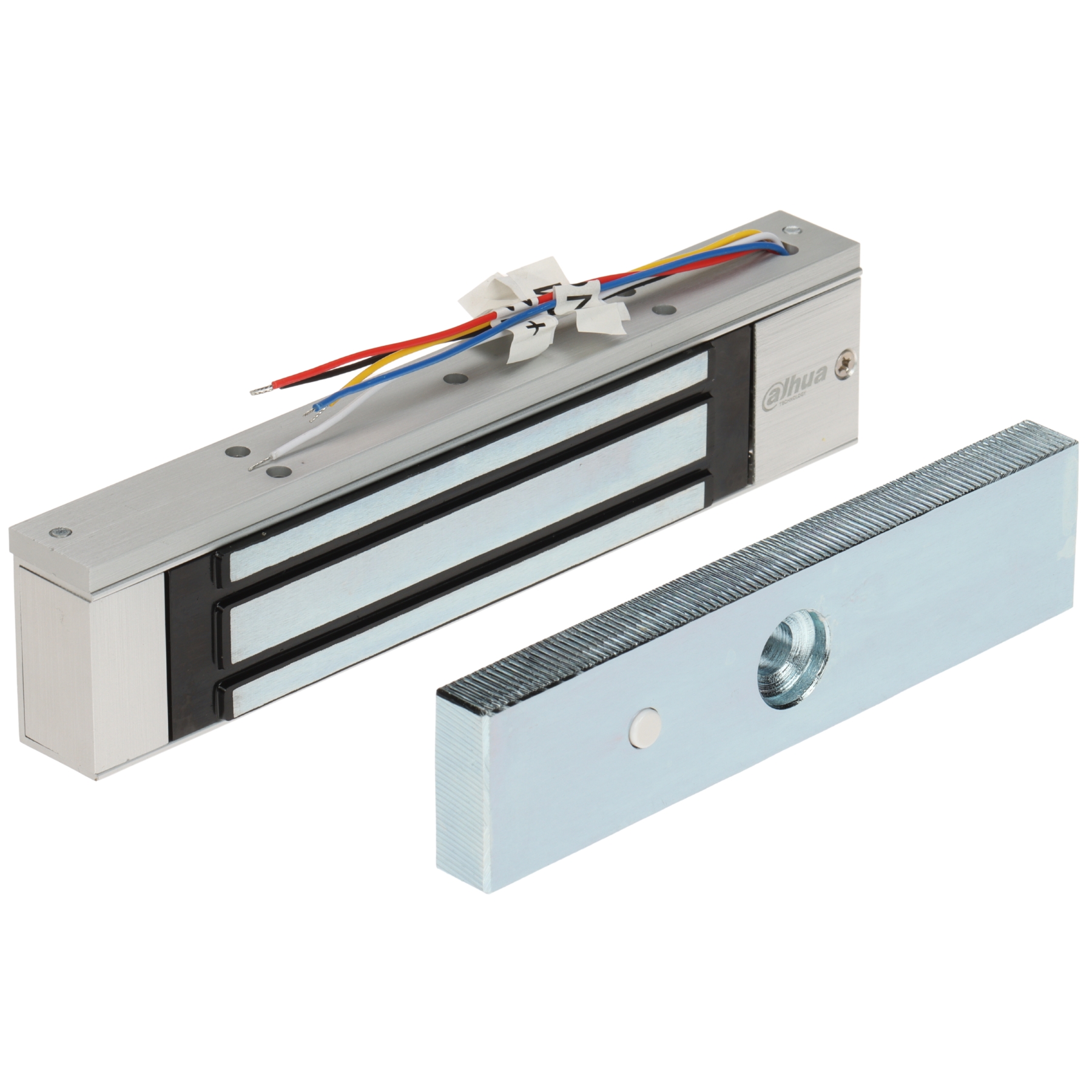

Electromagnetic lock ASF180A-V1 DAHUA

Load capacity: 180 kg
Rated voltage: 12 V DC
Current consumption: 370mA
Selected characteristics: LED indication, Door status detection

Load capacity: 180 kg
Rated voltage: 12 V DC
Current consumption: 370mA
Selected characteristics:
  • LED indication,
  • Door status detection

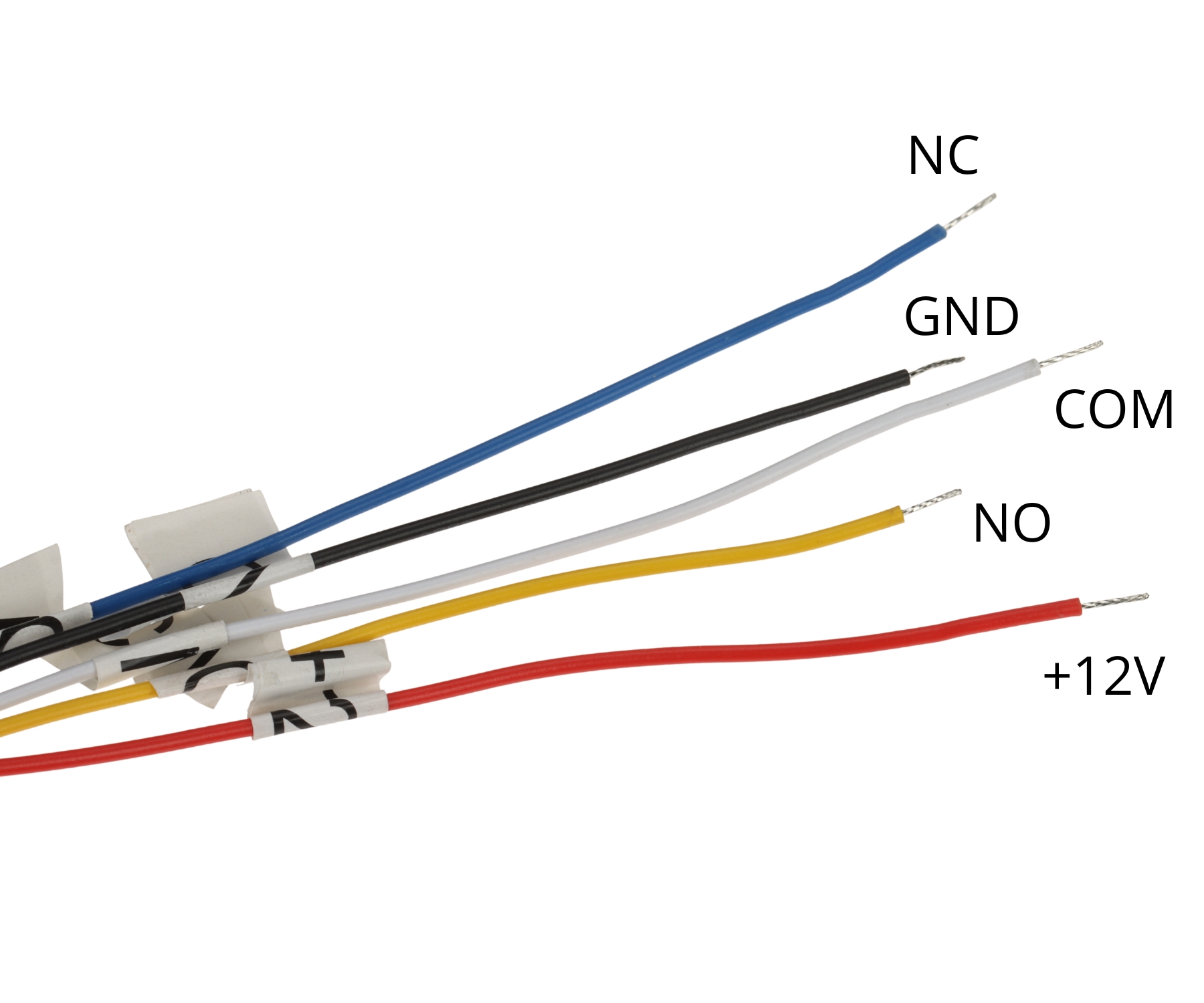

  • NO/NC output signals door opening
  • Turnstile remains open after power outage
  • For internal use
  • Door thickness range: 5 … 15 cm
  • Weight: 1.04 kg (total)

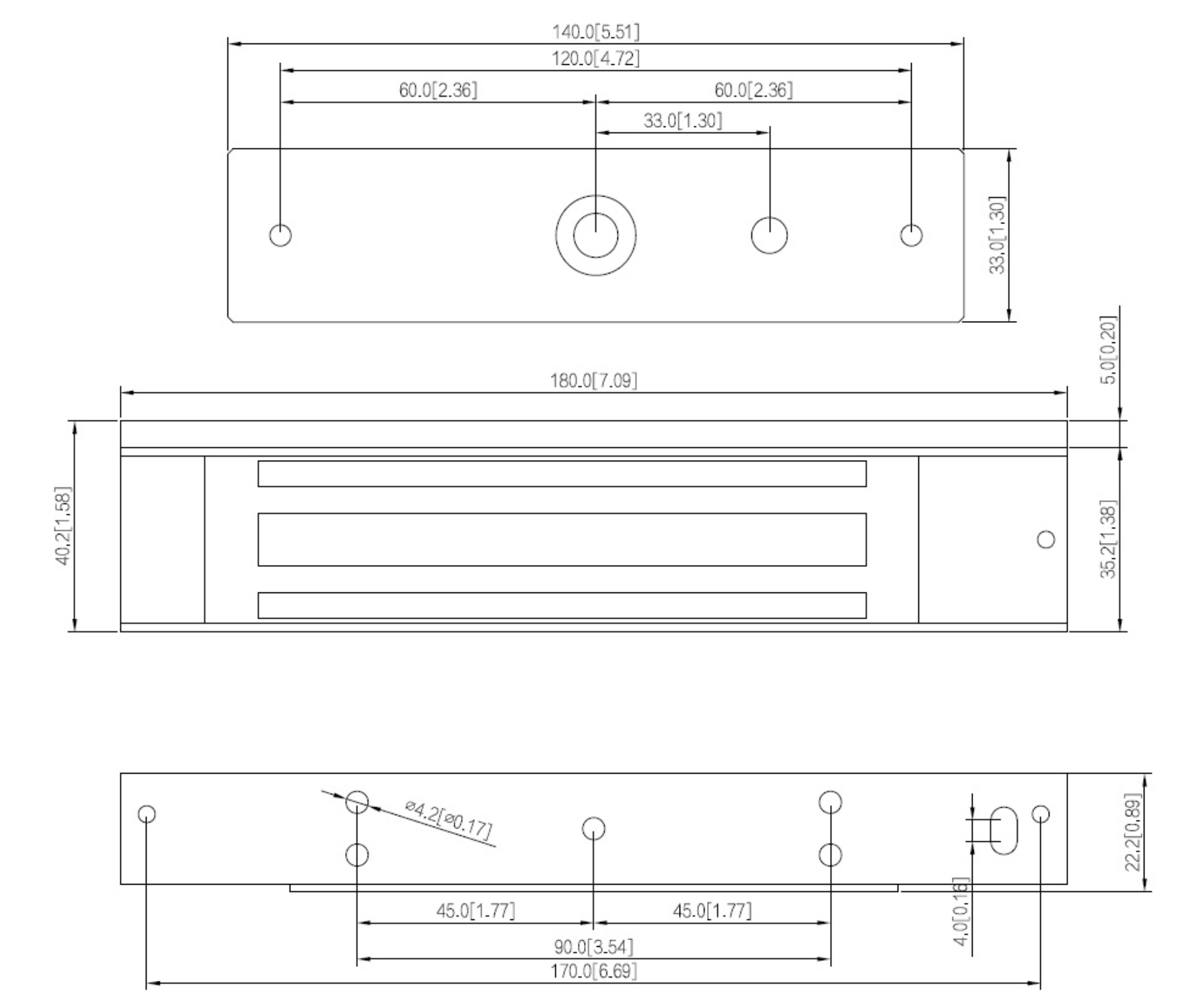

    Size:

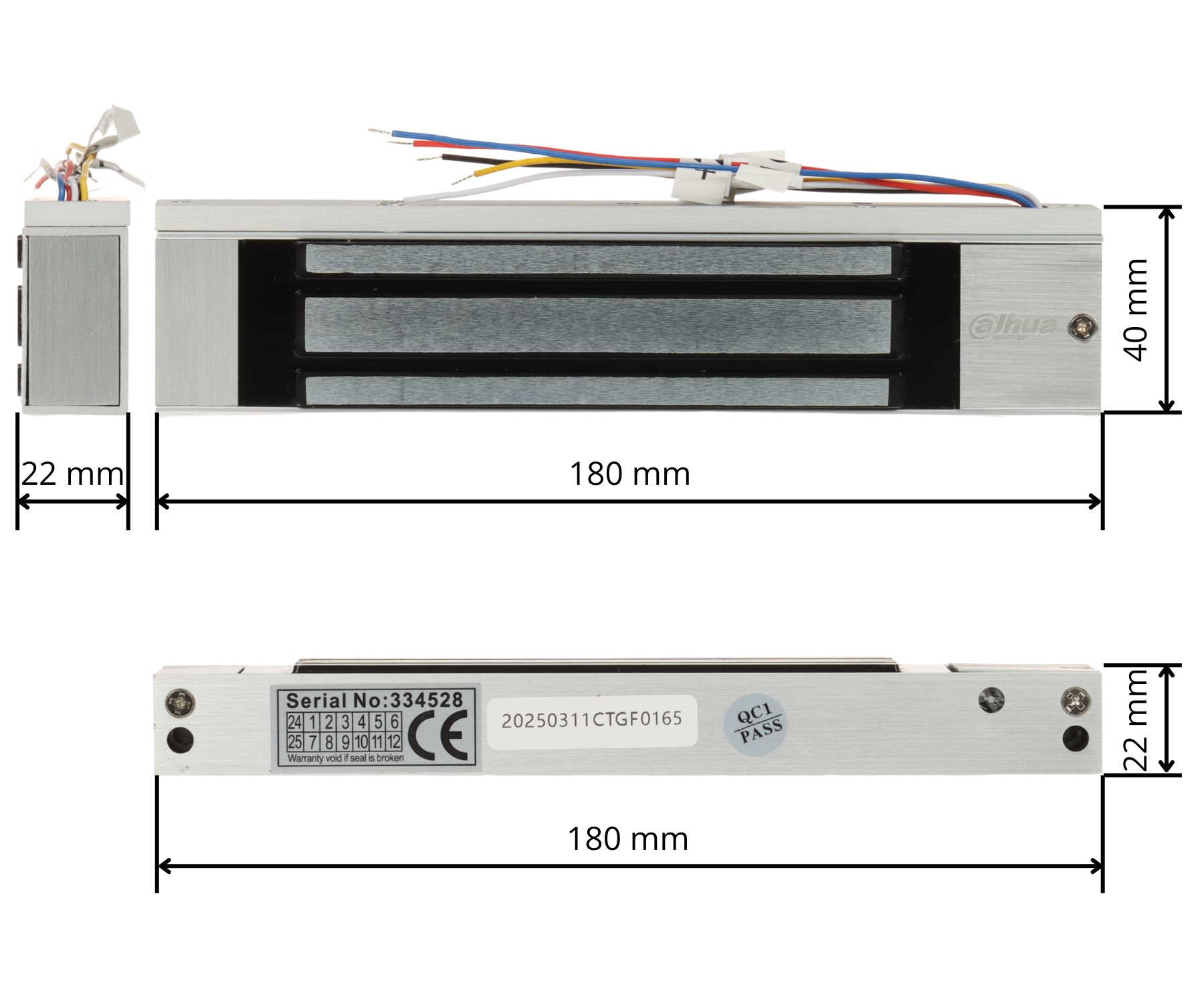

  • 180 x 40 x 22 mm (ELECTROMAGNETIC HOLDER)

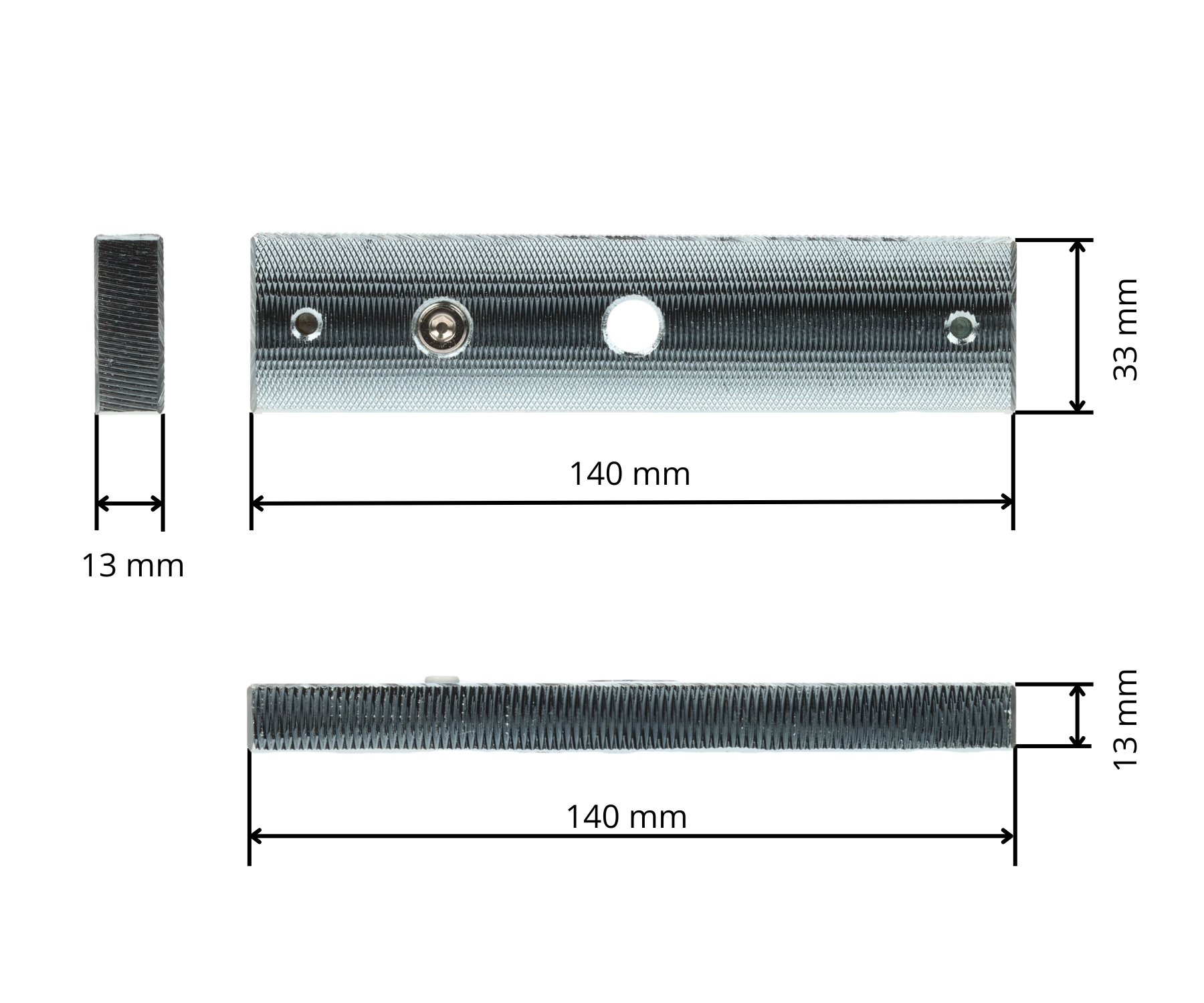

  • 140 x 33 x 13 mm (metal plate)
  • Manufacturer / Brand: DAHUA
    Warranty: 2 years

    Additional information

    Weight 1,184 kg
    Dimensions 21 × 6 × 5,5 cm
