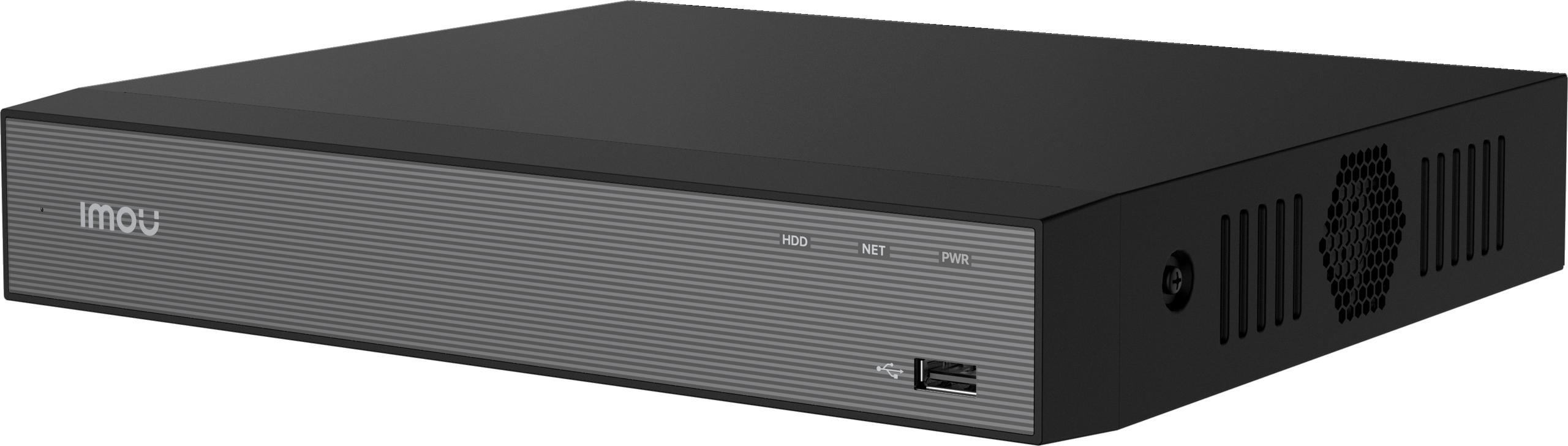

Imou NVR-N110-8A0E-P network video recorder, 10 channels, up to 4K
Model: NVR-N110-8A0E-P
Key features – Imou NVR-N110-8A0E-P IP recorder (10 channels):
- Supports up to 10 IP cameras – ideal for large home and commercial installations

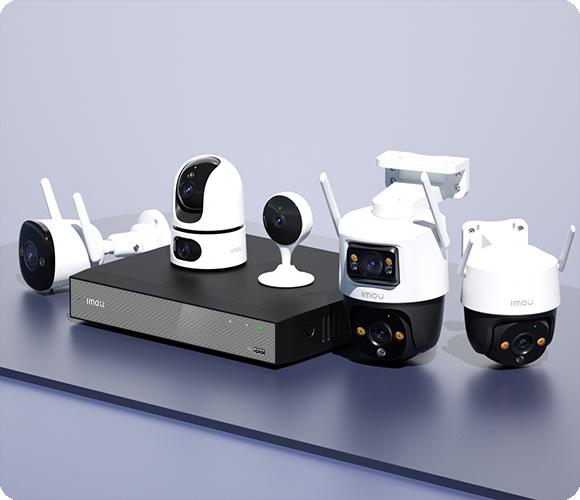

- Automatic pairing of Imou cameras – fast and intuitive “plug & play” installation
- Support for high-resolution cameras (up to 4K) – detailed and clear image
- Modern H.265 video compression – lower disk space usage while maintaining quality
- Slot for a SATA hard drive (up to 16 TB) – long-term archiving of recordings
- HDMI and VGA video outputs – easy connection to a monitor or TV
- Remote viewing and management via the Imou Life mobile app
- Stable 24/7 operation – designed for continuous monitoring

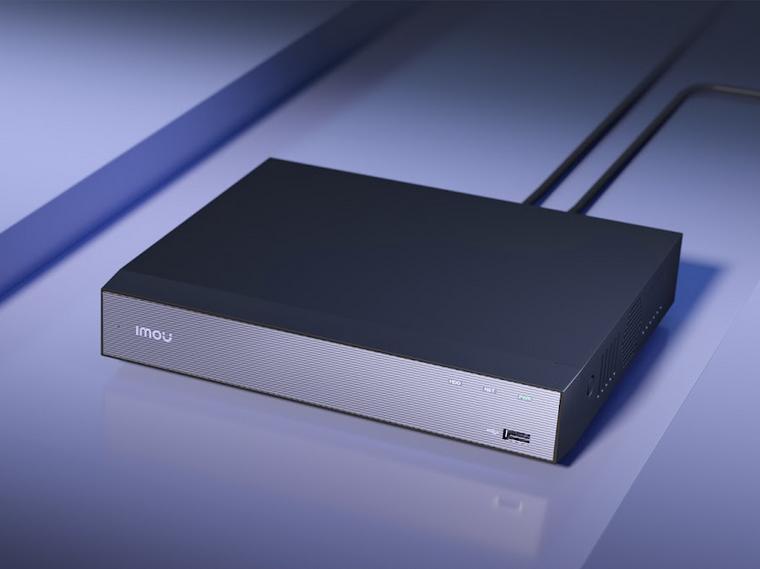

- Compact, aesthetically pleasing housing — easy integration into a retail or office space
For multi-lens cameras:
– 1 lens = 1 channel.
- Imou Dual (2-lens) camera takes up 2 channels on the recorder.
- Imou Triple (3-lens) camera takes up 3 channels on the recorder.
This makes it easier to plan the actual number of supported devices.
Technical specifications
Channels and bandwidth
- Number of channels (wired): 10
- Max. network bandwidth: 90 Mb/s
Playback and compression

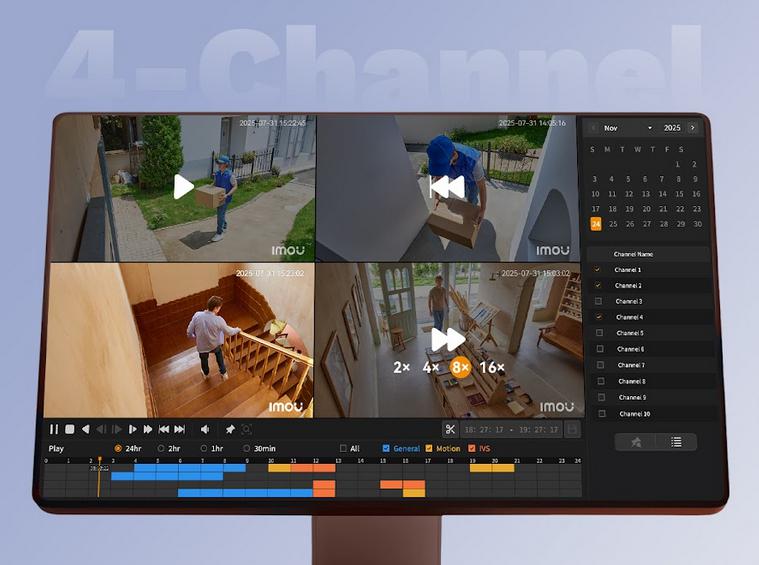

- Preview/playback decoding:
- 4 × 8MP @ 15 fps
- 4 × 5MP @ 30 fps
- Video compression: H.265 / H.264
- Audio compression: AAC
- Backup file format: MP4
- Display modes: 1 / 4 / 8 / 9 / 10 channels
Network
- Wired interface: 1 × RJ-45 10/100Mbps, self-adaptive
- Apps and compatibility
- Mobile app: Imou app (iOS / Android)
- ONVIF compliance: Yes, general ONVIF support

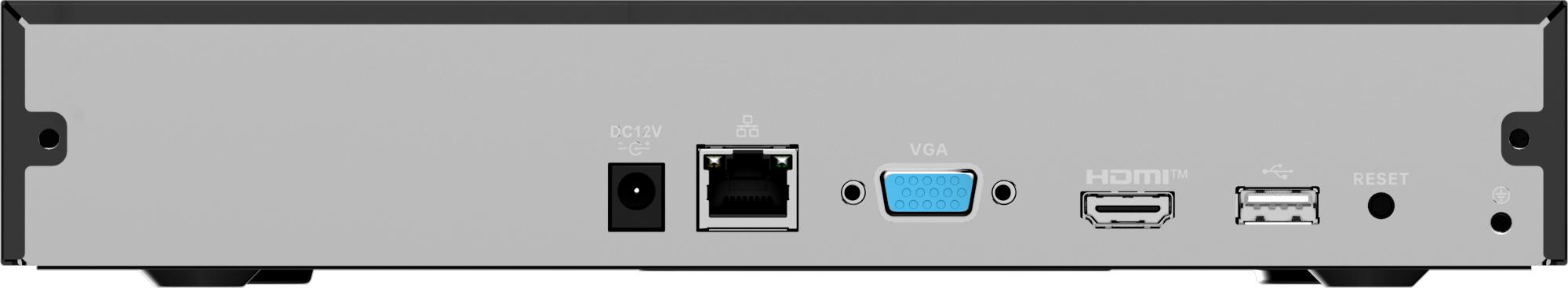

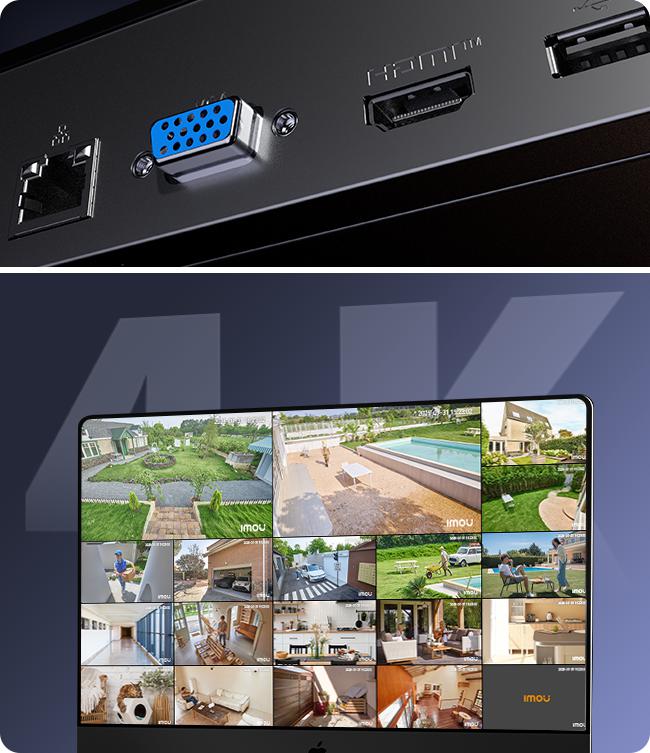

Connectors and interfaces

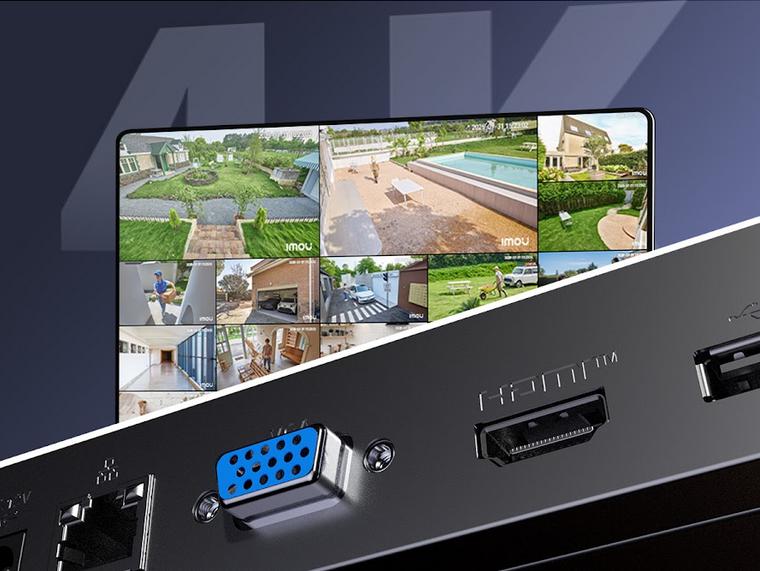

- Video outputs:
- 1 × VGA
- 1 × HDMI
- Audio input:
- 1 × Microphone (built-in)
- Audio output:
- 1 × Speaker (built-in)
- USB: 2 × USB
- Reset button: Yes
- Network port: 1 × RJ-45 (10/100 Mbps)
- Power supply: DC 12V 2A
Special features
- Automatic connection to Imou cameras
- Smart detection: Motion / Person / Vehicle
- Two-way audio
- Remote update: Yes
Power and power consumption
- Average power consumption (with hard drive): < 9 W
- Maximum power consumption (with hard drive): < 19 W
Memory
- Disk support: 1 × SATA, up to 16TB
- Backup: USB flash drive
Operating conditions
- Operating temperature: −10°C ~ +45°C
- Humidity: < 95% relative humidity
Dimensions and weight
- Dimensions: 241.5 × 260 × 60.2 mm
- Weight: 890 g (without hard drive)
