Technical Specification:
| Number of rays: | 6 |
| Detection type: | Programmable number of beams whose violation will trigger an alarm |
| Outdoor reception area: | 10 m |
| Reception area inside the premises: | 20 m |
| Stream characteristics: | Transmission encoding |
| Breakout time (beam disruption): | 40 … 1000 ms |
| Alarm time: | 2 seconds |
| Anti-sabotage connection: | NC |

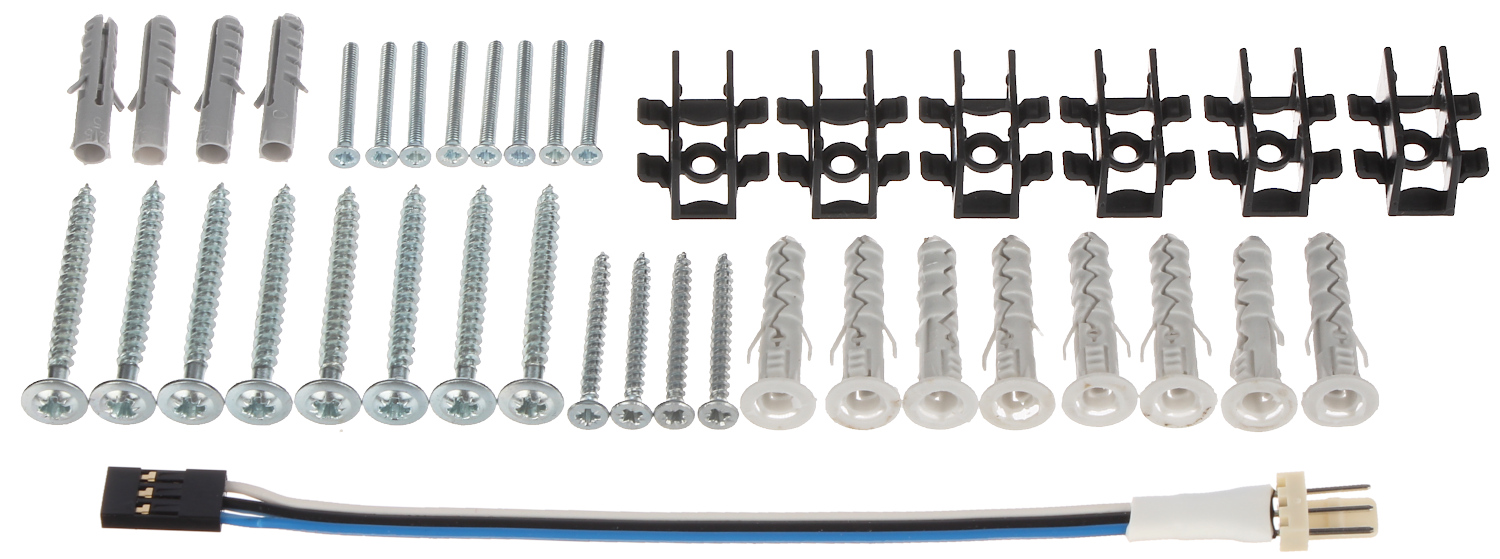

| Assembly: | Possibility of wall mounting |
| Source of energy supply: | 12V DC |
| Current consumption: | max. 50 mA |
| Corner adjustment range: | - |
| Protection class: | IP44 |
| Operating temperature/relative humidity: | -25 °C … 55 °C / max. 95 % |
| Selected features: | continuous sensitivity adjustment The RS-232 port enabling programming by means of a computer with the ACTIVA program installed |
| Colour: | Brown |
| Transmitter or receiver dimensions: | 1578 x 25 x 26 mm |
| Angle adjustment range: | 0.75 kg |
| Manufacturer / Brand: | SATEL |
| Warranty: | 2 years |
