Sensor: Uncooled VOx microbolometer
Matrix size: 120 x 90 px
Viewing angle: 90°
Temperature measurement range: -10 °C … 200 °C
Temperature measurement accuracy: MAX (±5°C, ±5%)
Sensor: 1/2.7 ”
Resolution: 2688x1520, 1920x1080
Viewing angle: 85 °
Image compression method: Smart H.265+
Intelligent image analysis: flame detection
Selected features: Detection of a sudden temperature rise makes it possible to detect a fire before flames appear
Power supply: PoE (802.3af), 12V DC
TERMOKAMERA:
| Sensor: | Uncooled VOx microbolometer |
| Matrix size: | 120 x 90 px |
| Pixel pitch: | 17 µm |
| Thermal sensitivity (NETD): | < 60 mK @ F1.0, 300 K |
| Spectral range: | 8 µm … 14 µm |
| Color palettes: | 12 |
| Lens: | 1.2 mm, F1.1 |
| Angle of visibility: | 90° |
| Optical zoom: | ✗ |
| Digital zoom: | ✗ |
| Temperature measurements: |
|
| Temperature measurement range: | -10 °C … 200 °C |
| Accuracy of temperature measurement: | MAX (±5°C, ±5%) |
VIDEOKAMERA:
| Sensor: | 1/2.7” Progressive Scan CMOS |
| Resolution: | 2688x1520 – 4 Mpx , 1920 x 1080 - 1080p 1280x960 – 1.3 Mpx 1280x720 – 720p |
| Lens: | 4.0 mm |
| Angle of visibility: | 85 ° |
| Optical zoom: | ✗ |
| Digital zoom: | ✗ |
| Lighting: | 0.0052 Lux (color) @ F1.6 0.0028 Lux (B/W) @ F1.6 |
| IR illumination range: | 15 m |
| LED white light range: | ✗ |
General information:
| Standard: | IP |
| Video output: | ✗ |
| RS-485 interface: | ✗ |
| Memory card slot: | ✗ |
| Image compression method: | Smart H.265+ / H.265 / Smart H.264+ / H.264 / H.264H / H.264B / MJPEG |

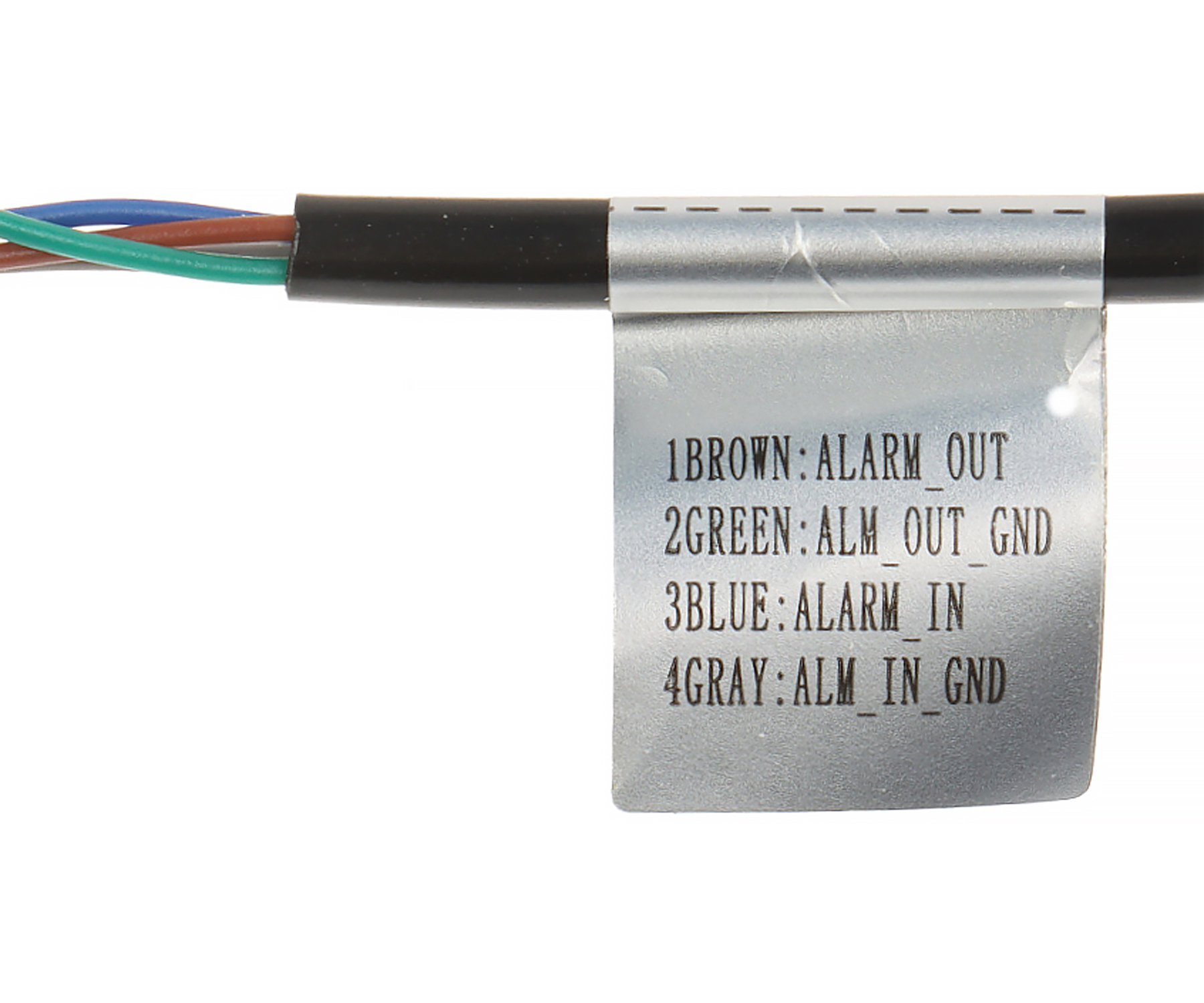

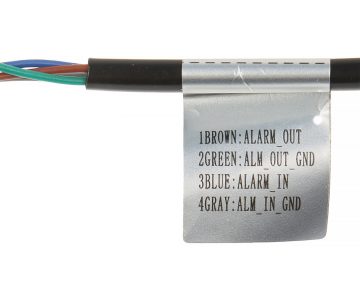

| Alarm inputs/outputs: | 1 / 1 |
| Audio: |
|
| Main stream frame rate: | 25 fps @ 4 Mpx |

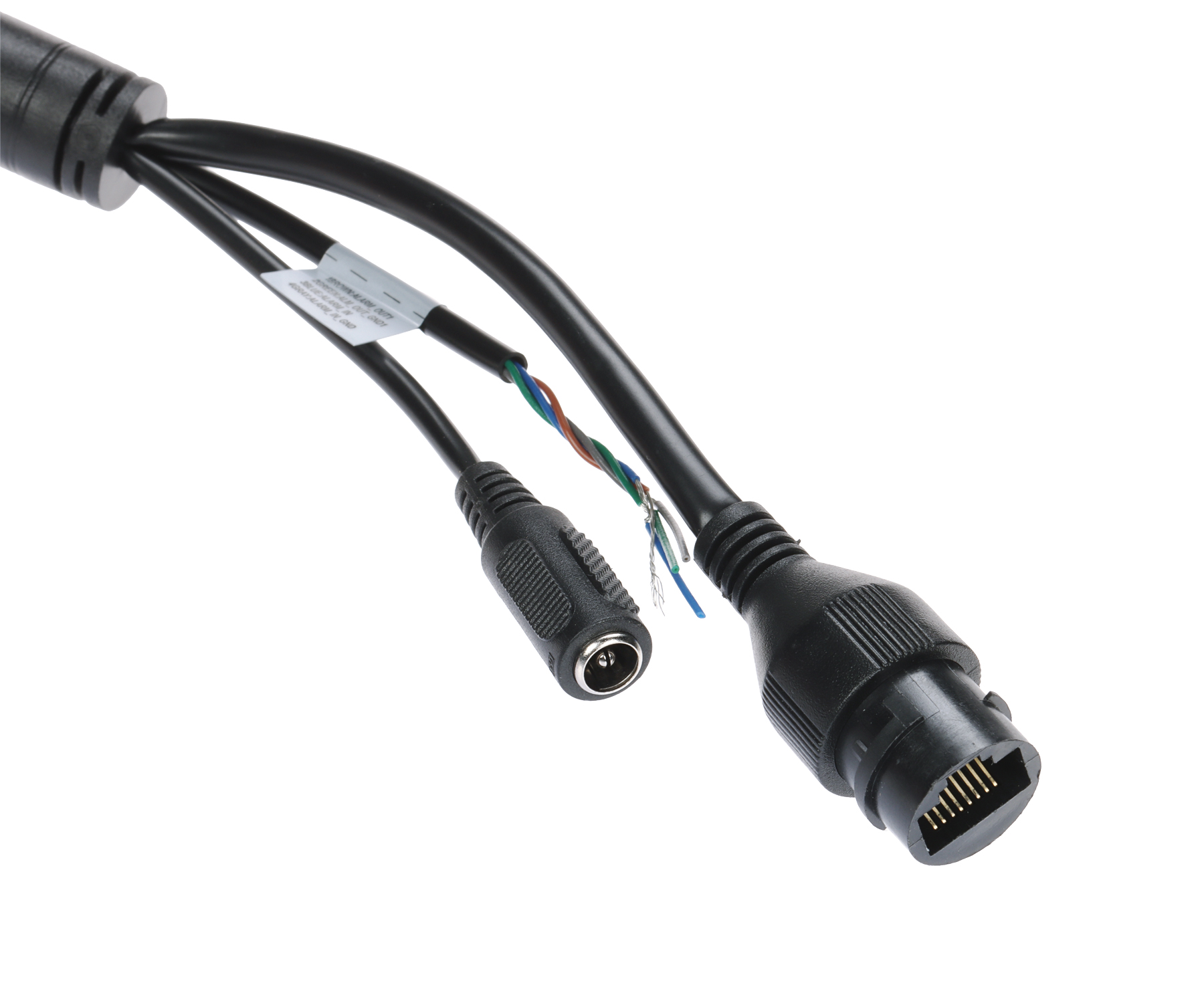

| Interface: | 10/100 Base-T (RJ-45) |
| Web server: | Built-in |
| Maximum number of online users: | 10 |
| ONVIF: | ✓ |
| Intelligent image analysis: |
|
| Selected functions: |
|
| Mobile phone access: | 37777 socket
|
| Default IP address: | 192.168.1.108 |
| Default username/admin password: | admin / – Administrator password must be set during first launch |
| Browser access ports: | 80, 37777 |
| Access ports using PC application: | 37777 |
| Access ports using the mobile application: | 37777 |
| ONVIF socket: | 80 |
| RTSP URL: | rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – main stream rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – sub stream |
| Source of energy supply: |
|
| Power consumed: | ≤ 3W |

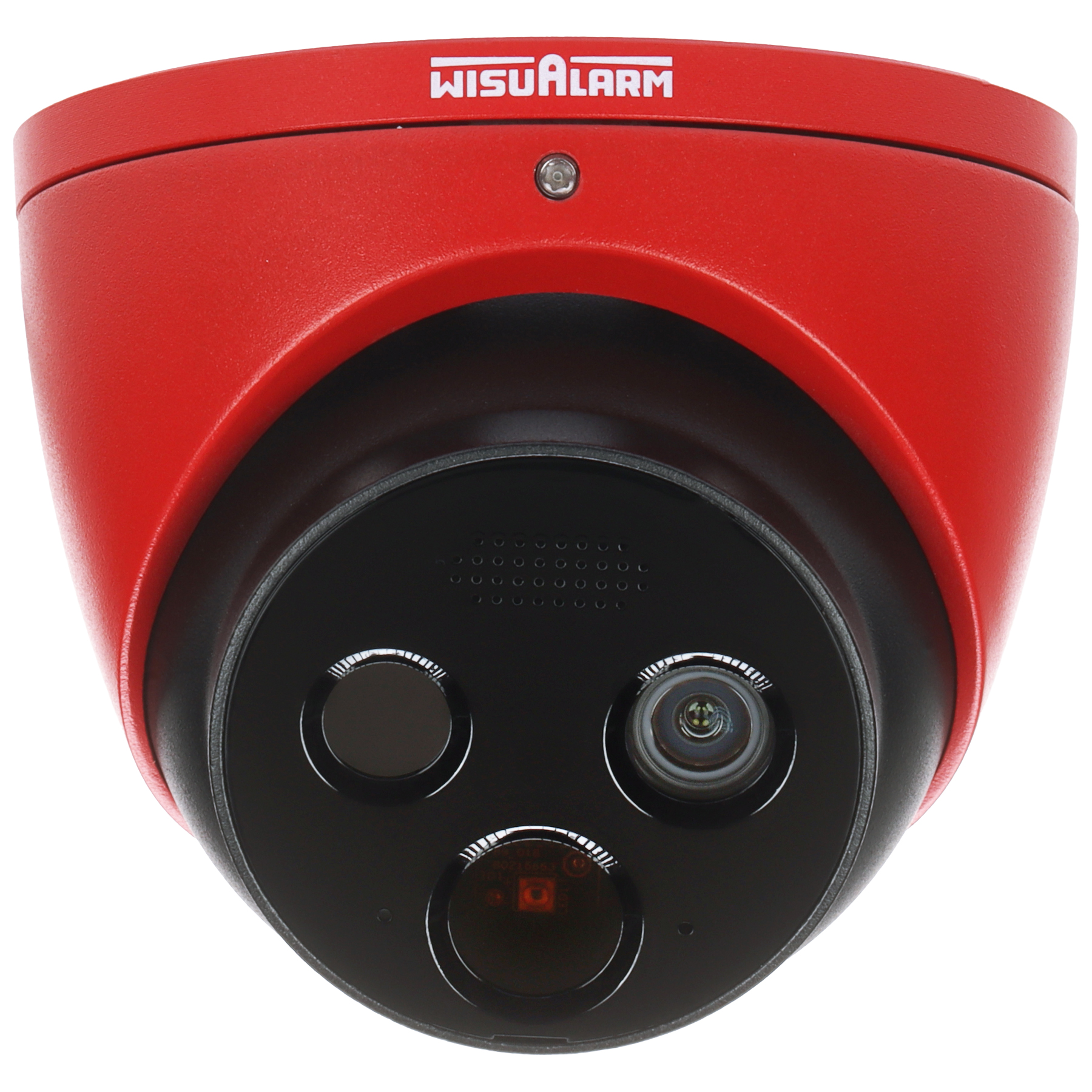

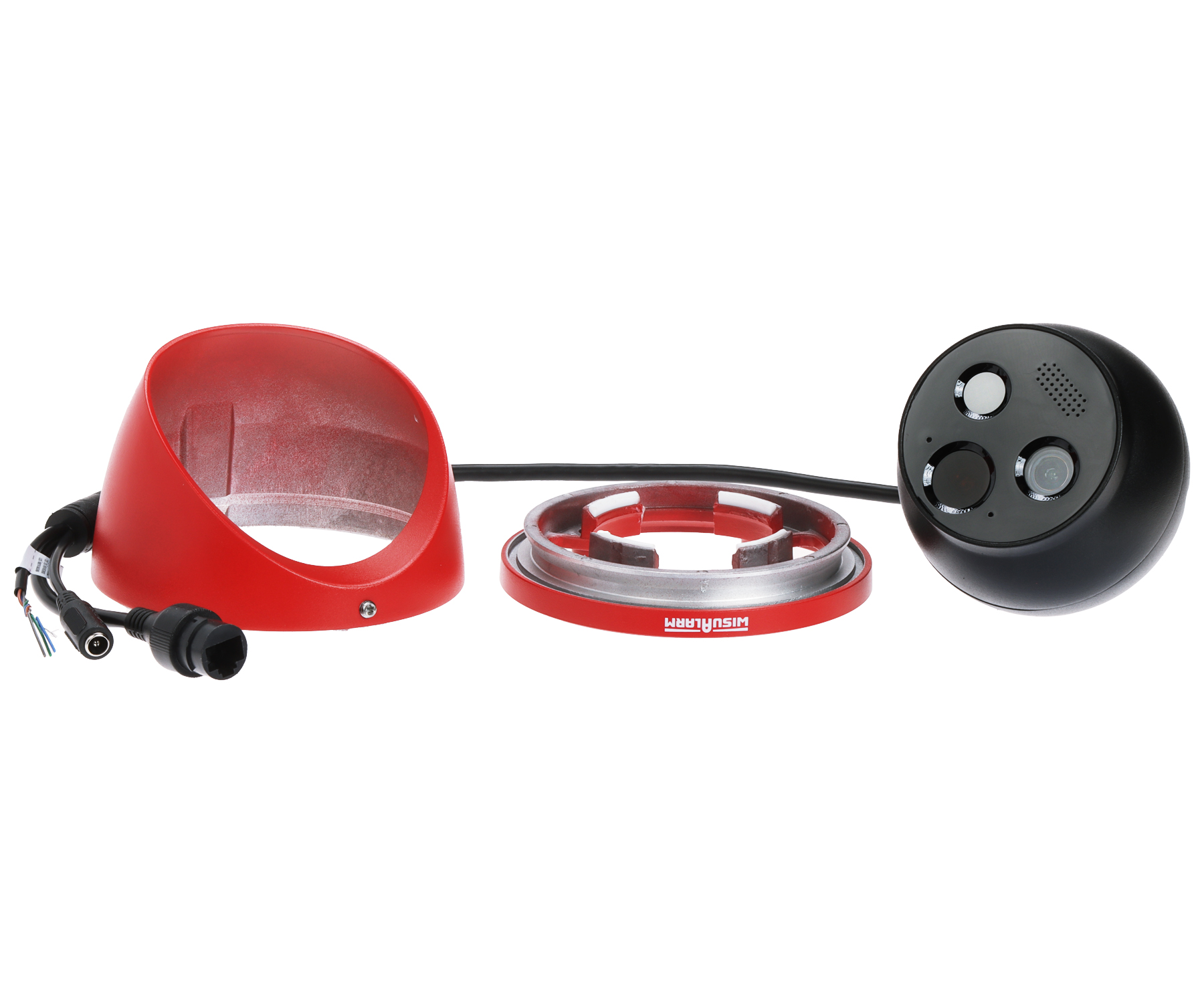

| Housing: | Dome – Metal |
| Colour: | Red + Black |
| Class of protection: | IP66 |
| Mechanical protection class: | ✗ |
| Operating temperature: | -10°C … 55°C |
| Weight: | 0.49 kg |

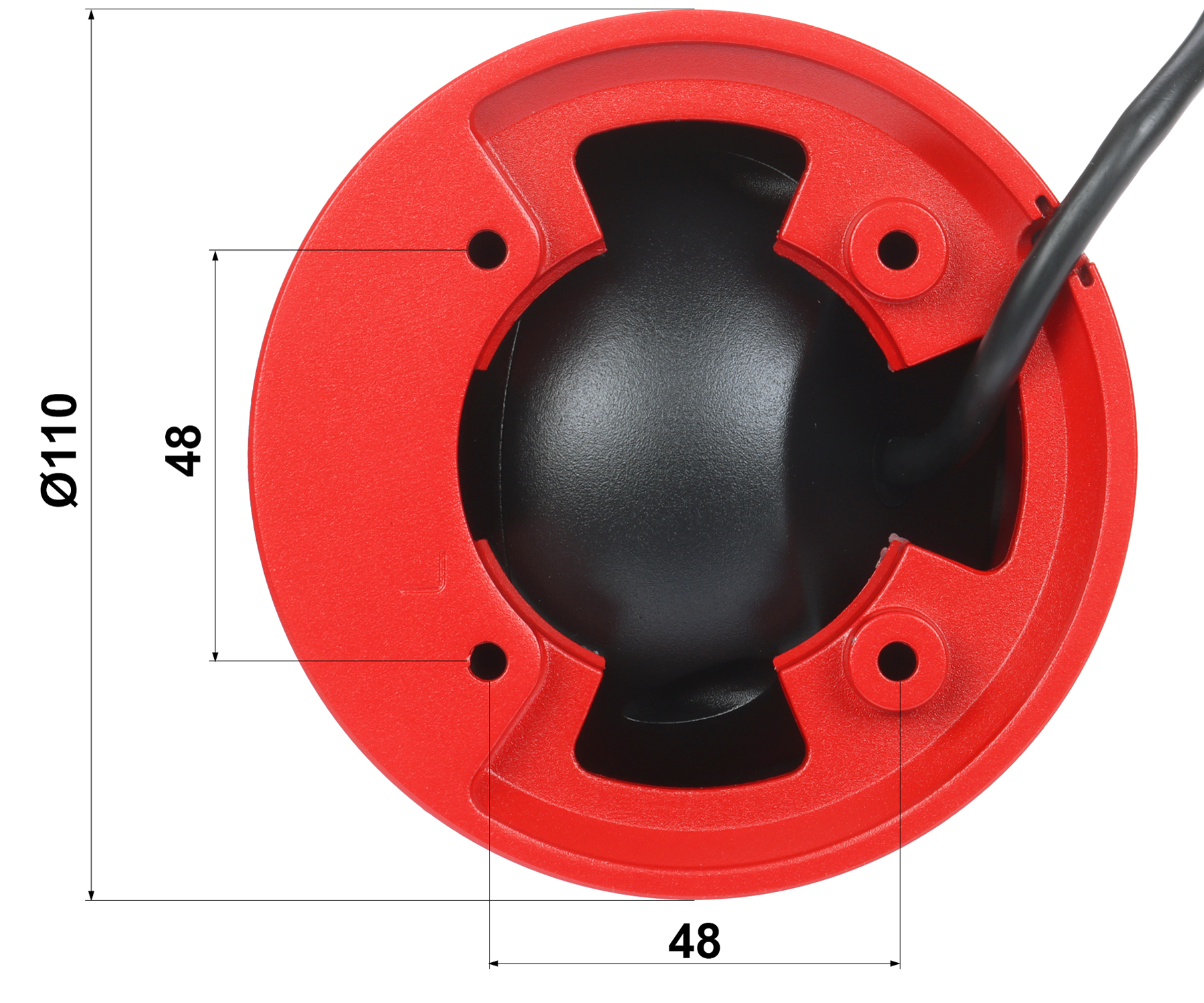

| Size: | Ø 110 x 90 mm |
| Language selection: | English |
| Manufacturer / Brand: | WISUALARM / DAHUA |
| Warranty: | 3 years |
