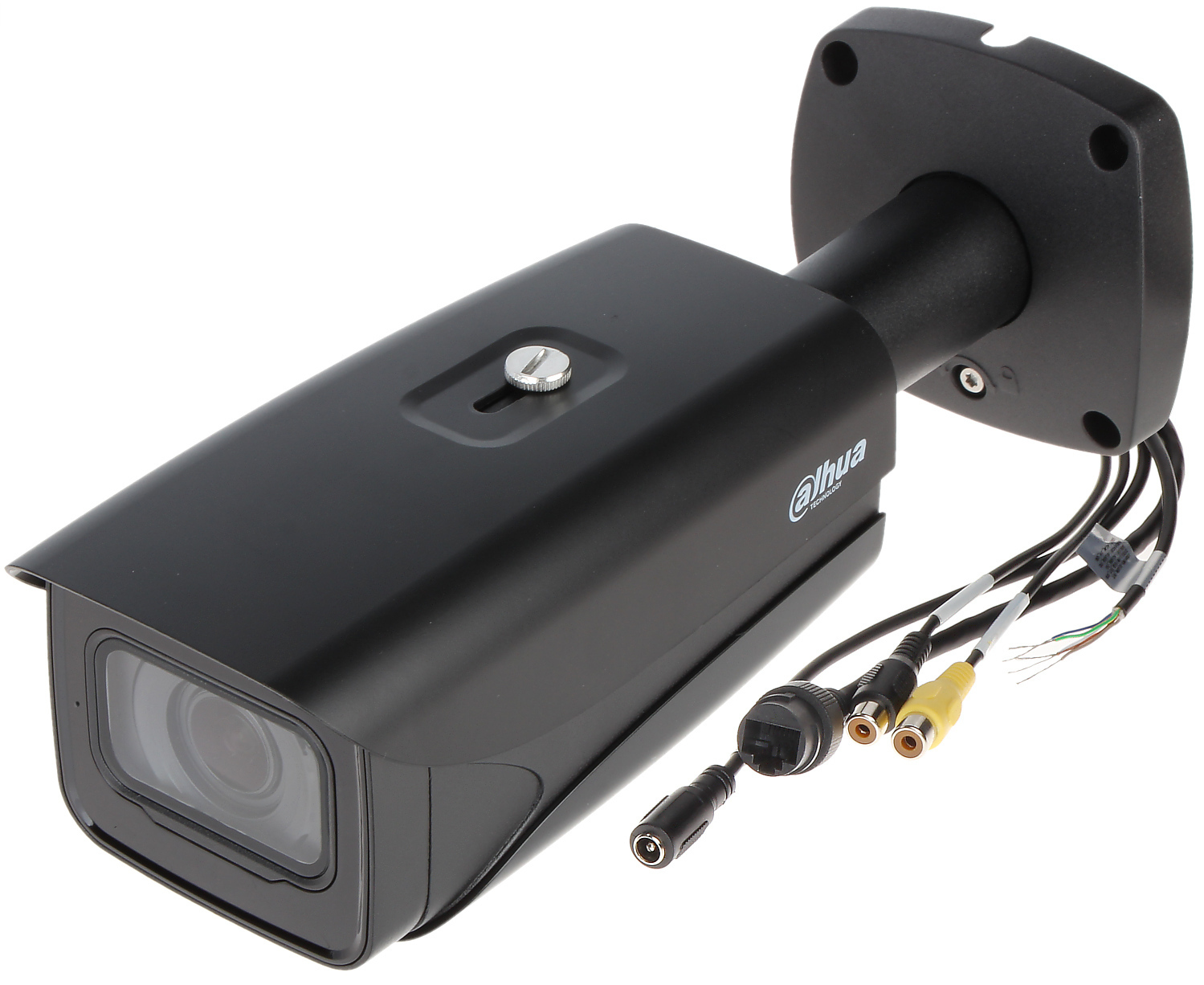

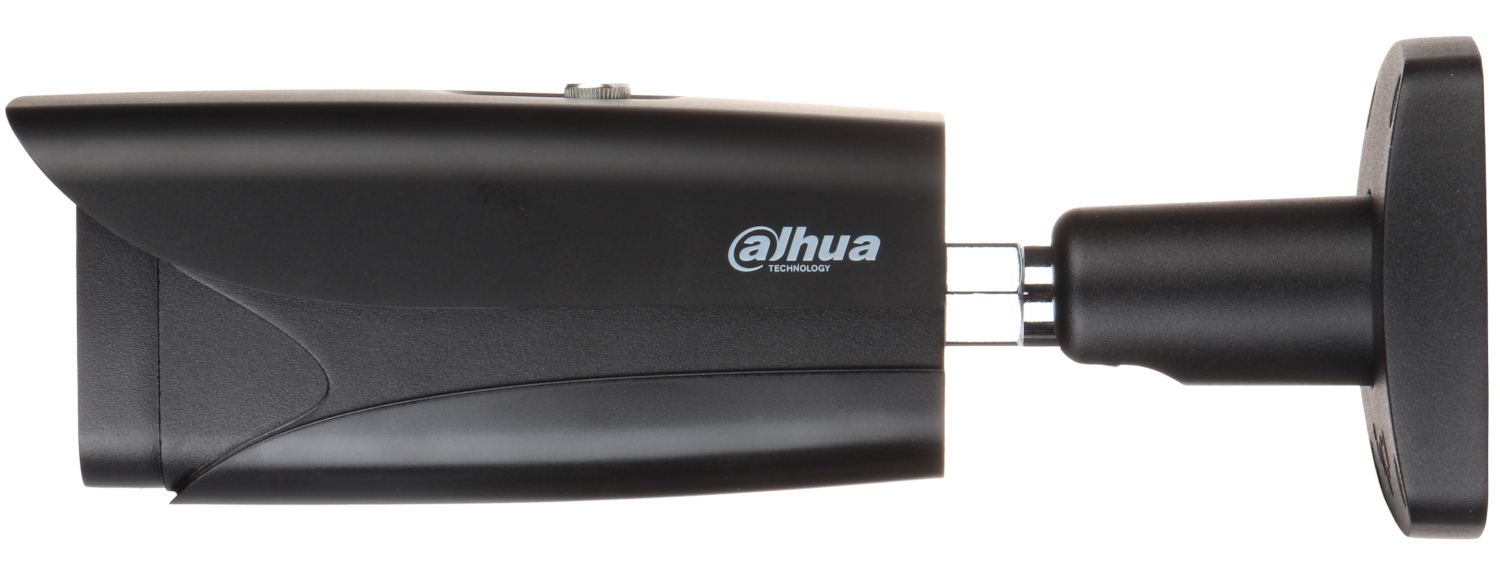

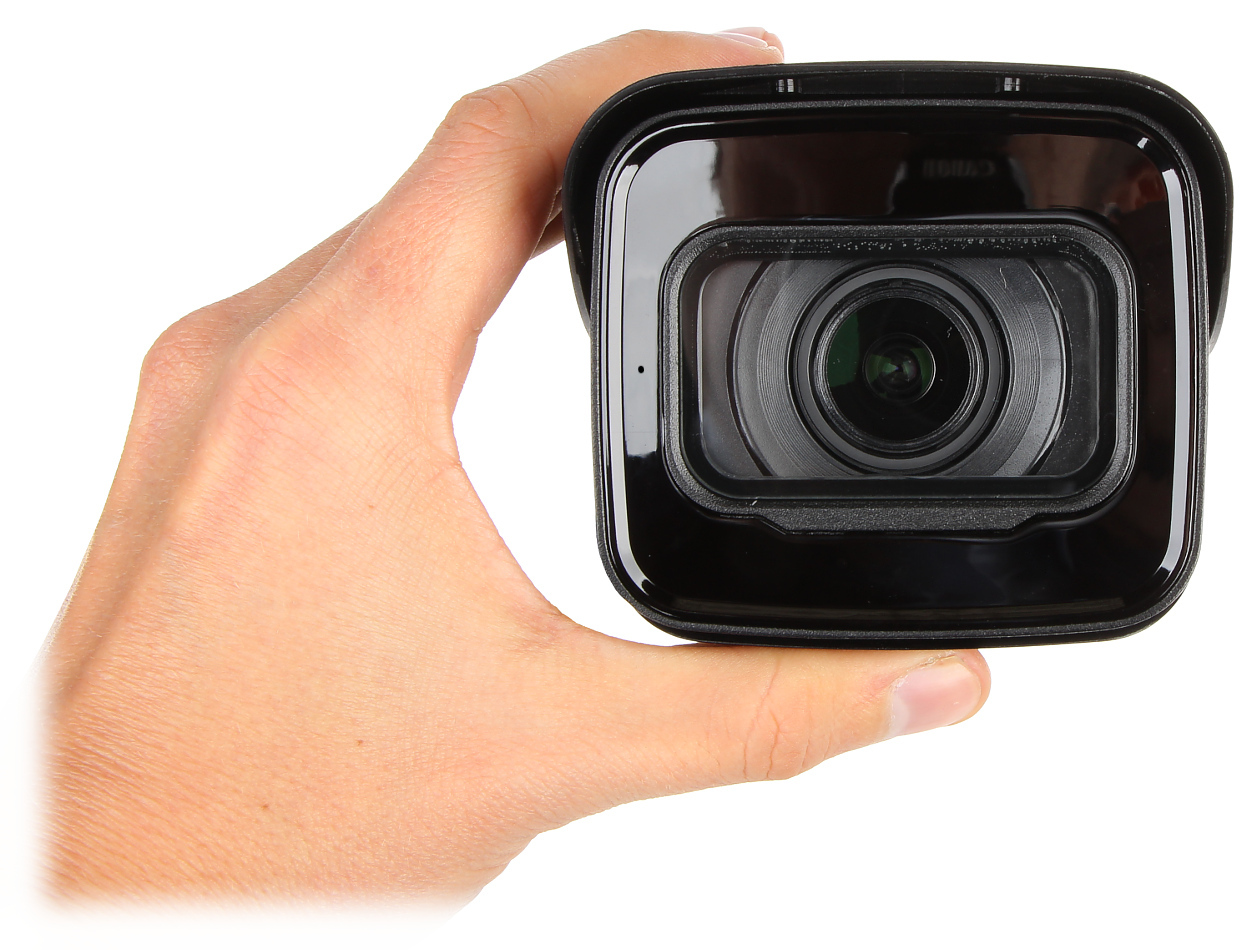

IP pretvandālisma kamera IPC-HFW5442E-ZE-2712-S3-BLACK WizMind S – 4 Mpx 2.7 … 12 mm – MOTOZOOM DAHUA

Name: IP pretvandālisma kamera IPC-HFW5442E-ZE-2712-S3-BLACK WizMind S - 4 Mpx 2.7 ... 12 mm - MOTOZOOM DAHUA
Brand: Dahua
SKU: IPC-HFW5442E-ZE-2712-S3-BLACK
Availability: InStock

* The appearance of the product may differ from what is shown in the picture

Key specifications

ManufacturerDahua

Camera typeBullet

TechnologyIP

Resolution4MP

Lens typeMotorised

PoEYes

Connectivity technologyNav (vadu)

Night modeIR illumination

Description
Additional information

Sensors: 1/1.8” Progressive Scan CMOS
Resolution: 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080
Lens: Motozoom
Viewing angle: 115°…47°
Compression: H.265+ / AI Coding
Infrared illumination detection area: 60 m

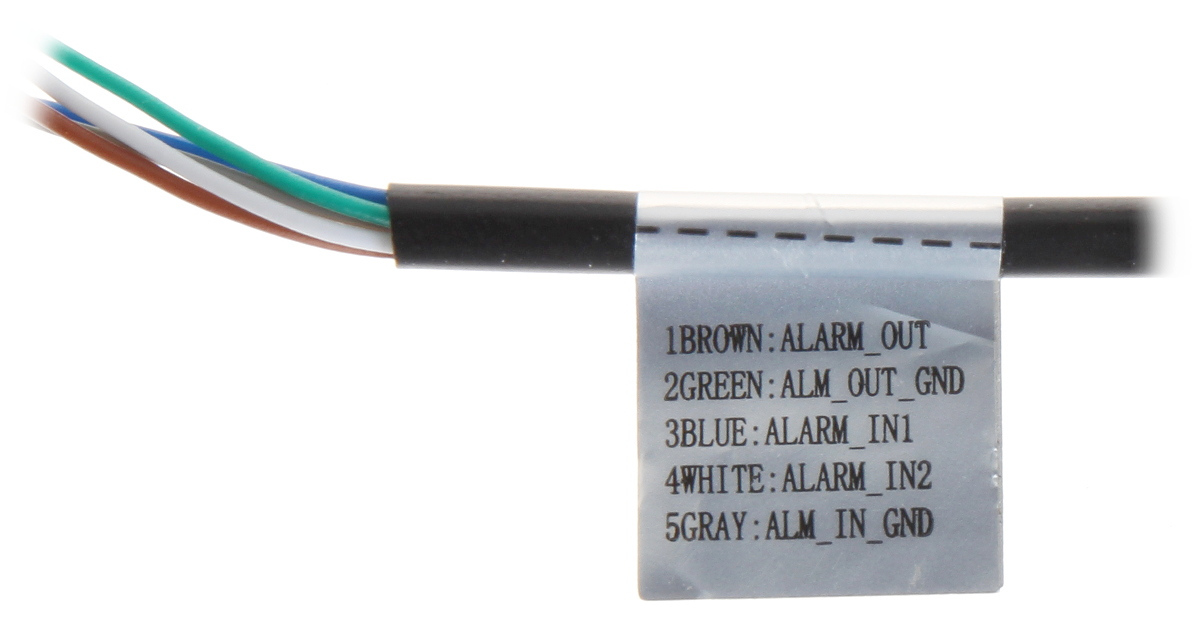

Alarm inputs/outputs: 2 / 1

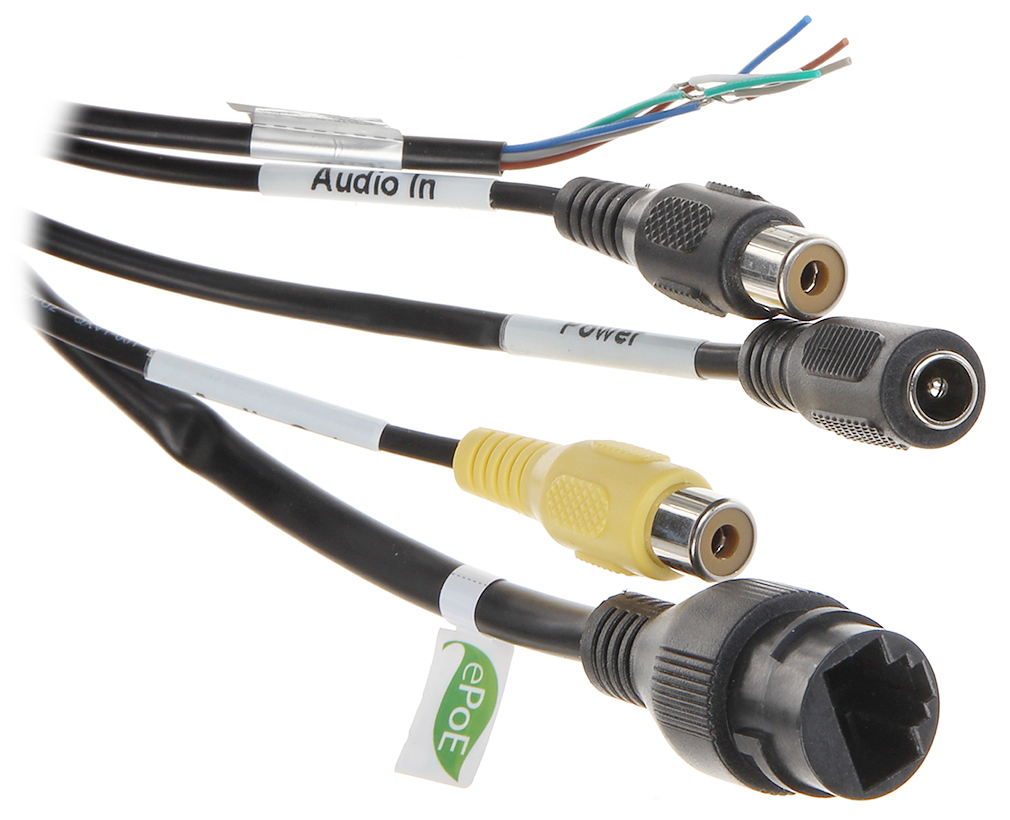

Audio: Built-in microphone, Two-way audio streaming support

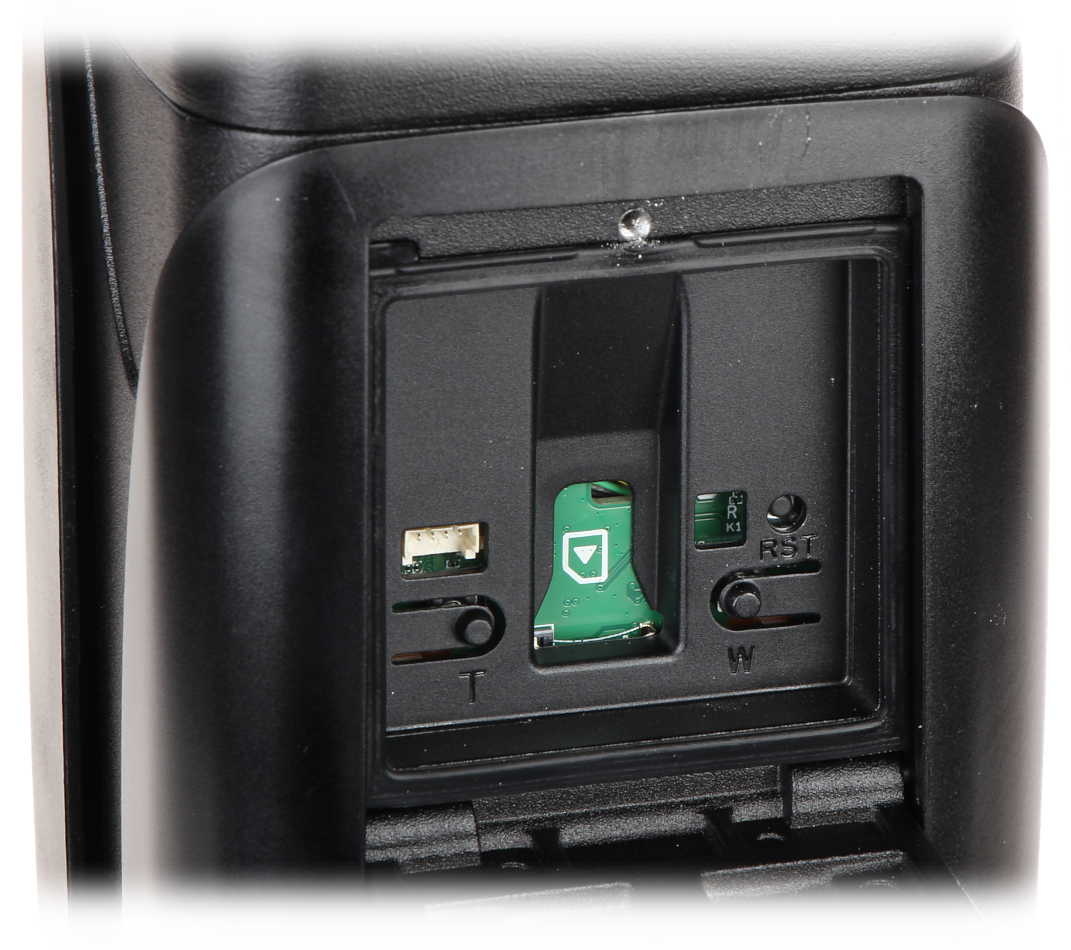

Memory card slot: Supports Micro SD memory cards up to 512GB (local recording possible)
Anti-vandalism: IK10
Source of energy supply: ePoE, PoE (802.3af), 12V DC

Standard:	TCP/IP
Sensors:	1/1.8” Progressive Scan CMOS
Matrix size:	4 Mpx 4K UHD
Resolution:	2688x1520 – 4 Mpx , 2560x1440 – 3.7 Mpx , 2304x1296 – 3 Mpx , 1920 x 1080 - 1080p 1280x960 – 1.3 Mpx 1280x720 – 720p
Lens:	2.7 … 12 mm – Motozoom
Angle of visibility:	115 ° … 47 ° (manufacturer data) 103°…46° (our tests)
Compression:	H.265+ / H.265 / H.264+ / H.264 / MJPEG / AI Coding
Infrared illumination reception area:	60 m
Alarm inputs/outputs:	2 / 1
Mainstream transmission speed:	25 frame rate @ 4 Mpx
Audio:	Built-in microphone, External microphone input Audio output Two-way audio streaming support Smart sound detection Compliant with AAC standard
Network interface:	10/100 Base-T (RJ-45)
Network protocols:	IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
Default IP address:	192.168.1.108
Default username/admin password:	admin / – Administrator password must be set during first launch
Mobile phone access:	Port: 37777 or access via cloud Android: Free application DMSS iOS (iPhone): Free app DMSS
WEB Server:	Built-in
Browser access ports:	80, 37777
Access ports using PC application:	37777
Access ports using the mobile application:	37777
Maximum number of online users:	20
ONVIF:	22.06
ONVIF port:	80
RTSP URL:	rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Sidestream
Memory card slot:	Supports Micro SD memory cards up to 512GB (local recording possible)
Selected functions:	Motozoom lens WDR – 140 dB – Wide dynamic range of lighting 3D-DNR - Digital Noise Reduction EIS – Electronic Image Stabilizer F-DNR (Defog) – Precipitation Noise Reduction ROI – improving the quality of selected image fragments BLC/HLC – Backlight/High Light Compensation Ability to change resolution, quality and bitrate Motion detection Configurable privacy zones Day/night mode ICR – Infrared mechanical filter Automatic white balance Compatible with NAS – Network Attached Storage AGC - Automatic gain control Image rotation and mirroring SMD 3.0 – search for an object classified as: person, motor vehicle Smart sound detection AI SSA – AI Smart Scene Adaptive – automatic scene adjustment using deep learning algorithms to detect environmental conditions such as rain, fog, backlight, low light and flicker to set optimal image parameters Temperature map – areas with different motion intensity are marked in the image with corresponding colors IVS analysis : crossing the line, burglary, fast movement – classification of persons and vehicles, abandoned/missing object, detection of suspicious activity, detection of gatherings of people, detection of parking, counting people entering and leaving the territory – configuration of up to 4 counting rules, detection – compatible with 6 facial attribute extraction types, supports 8 facial expression types
Hull:	Compact, Metal + Plastic
Colour:	Black
Class of protection:	IP67
Anti-vandalism:	IK10
Source of energy supply:	ePoE, PoE (802.3af), 12 V DC / 820 mA
Power consumed:	≤ 12.3W @ PoE ≤ 9.8W @ 12V
Operating temperature:	-30°C … 60°C
Weight:	1.08 kg

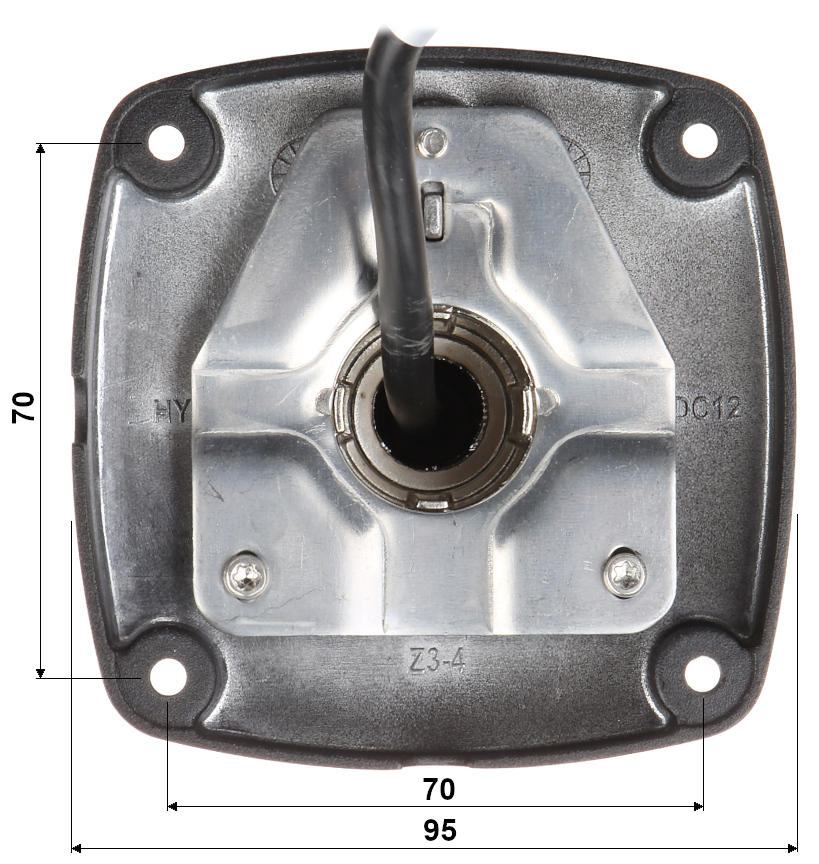

Size:	273 x 95 mm x 95
Language selection:	Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Romanian, Turkish, Ukrainian, Hungarian, Italian
Manufacturer / Brand:	DAHUA
WARRANTY:	5 years

Additional information

Weight	1,5480 kg
Dimensions	36,5 × 15 × 13,5 cm
Manufacturer	Dahua
Camera type	Bullet
Technology	IP
Resolution	4MP
Lens type	Motorised
PoE	Yes
Connectivity technology	Nav (vadu)
Night mode	IR illumination
Audio	Yes
