The network video recorder is equipped with an advanced image analysis function; Supported resolution: max. 16 Mpx – 4608 x 3472 px
Audio support: 16 Channels – Audio from cameras
Audio input: 1 pc. CINCH
Audio output: 1 pc. CINCH
Image compression method: Smart H.265+
Supported hard drives: 8 x 16 TB SATA
Selected features: Intelligent image analysis, shape detection
| Standard: | TCP/IP |
| Supported resolution: | max. 16 Mpx – 4608 x 3472 px |

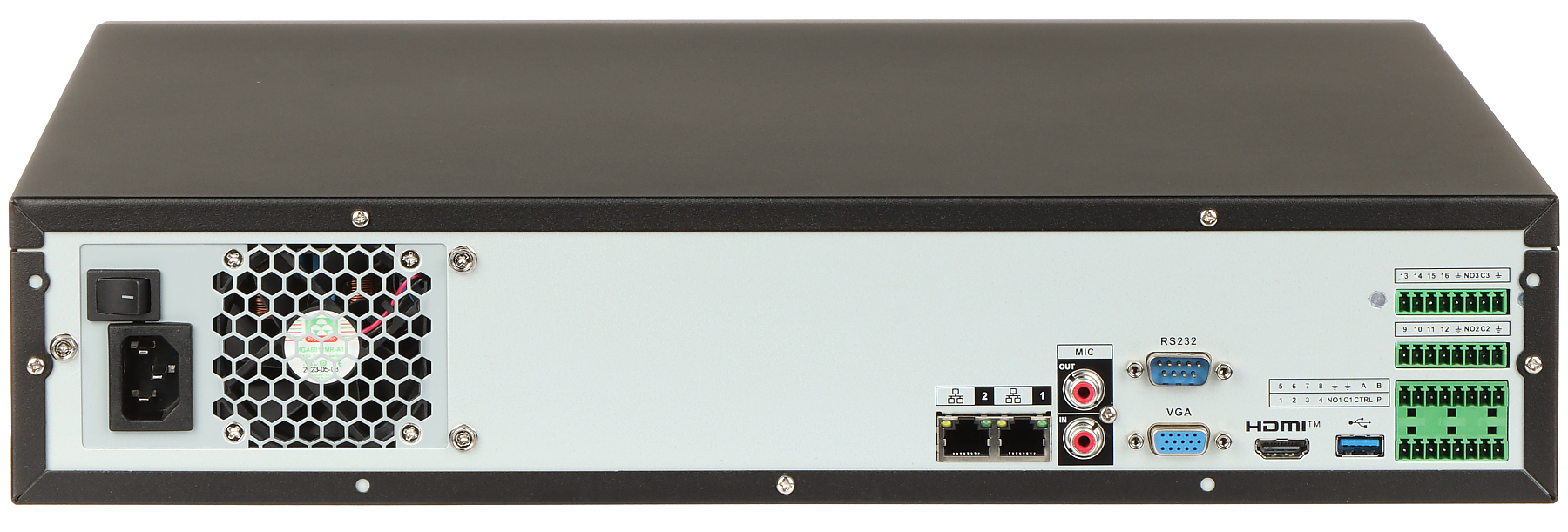

| Video outputs: | 1 pc HDMI 4K 1 piece VGA |
| Audio support: |
|
| Audio input: | 1 piece CINCH |
| Audio output: | 1 piece CINCH |
| Image compression method: | Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG |
| Bit transmission: | max. 256 Mbps |
| Supported hard drives: | 8 x 16 TB SATA |
| Recording modes: | Manual, sensor, motion detection, schedule |
| Backups on external media: | Backup to USB (pendrive, external drive) |
| Searching and playing recordings: |
|
| Network interface: | 2 times RJ-45 10/100/1000 Base-TX |
| Network features: | Full network support, Remote recording copy, Built-in web server |
| Network protocols: | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P, Auto Register |
| ONVIF: | 22.06 |
| Default IP address: | 192.168.1.108 |
| Default username/admin password: | admin / – Administrator password must be set during first launch |
| Mobile phone access: | Port: 37777 or access via cloud
Watch the video on how to perform P2P configurations on Dahua recorders and how to enable the mobile app |
| Browser access ports: | 80, 37777 |
| Access ports using PC application: | 37777 |
| Access ports using the mobile application: | 37777 |
| RTSP URL: |
|
| USB: |
|
| Regular ports: | RS-485, RS-232 |
| Alarm inputs/outputs: | 16 / 4 |
| PTZ head rotation control: |
|
| Motion detection: | ✓ |
| Intelligent image analysis: | ✓ |
| Selected functions: |
The functions are implemented by the video recorder in cooperation with cameras that support these functions: |
| Mouse crew: | ✓ |
| IR remote control included: | ✗ |
| Source of energy supply: | 100 … 240 V AC @ 50 / 60 Hz |
| Power consumed: | max. 10 W (without HDD) |
| Operating temperature: | -10°C … 55°C |
| Weight: | 6.31 kg |
| Size: | 440 x 458 x 95 mm |
| Language selection: | Polish, English, Bulgarian, Czech, Finnish, Greek, Romanian, Serbian, Slovenian, Hungarian |
| Manufacturer / Brand: | DAHUA |
| WARRANTY: | 3 years |
