Technical Specification:

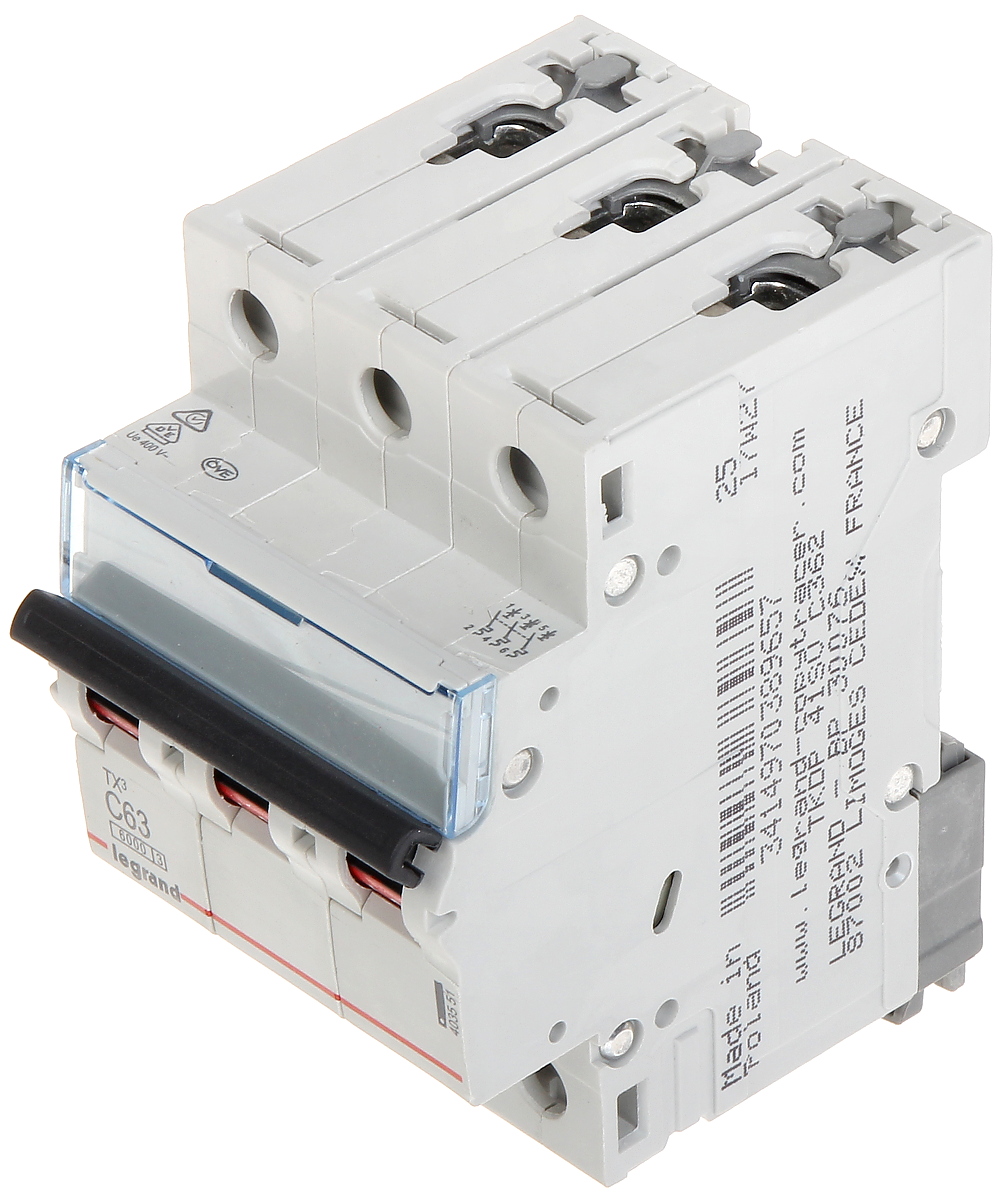

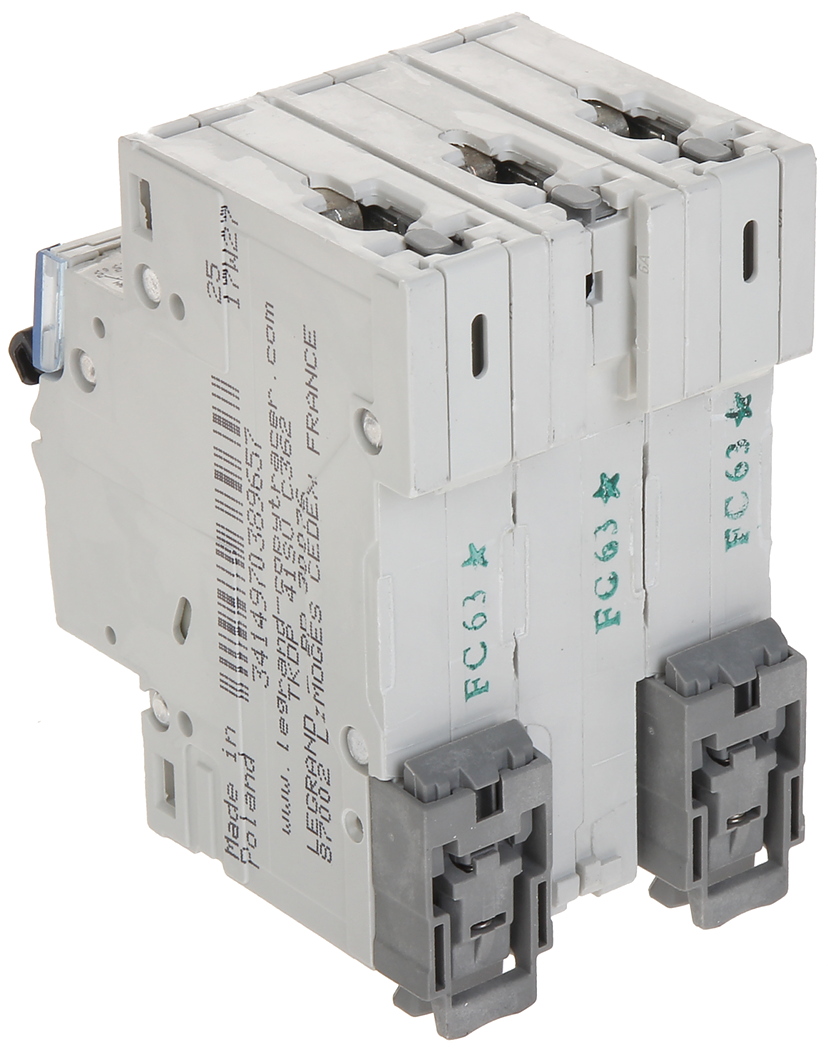

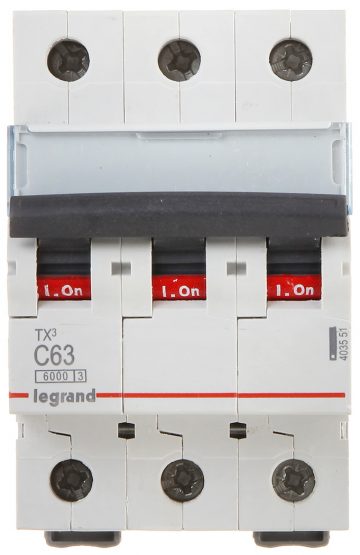

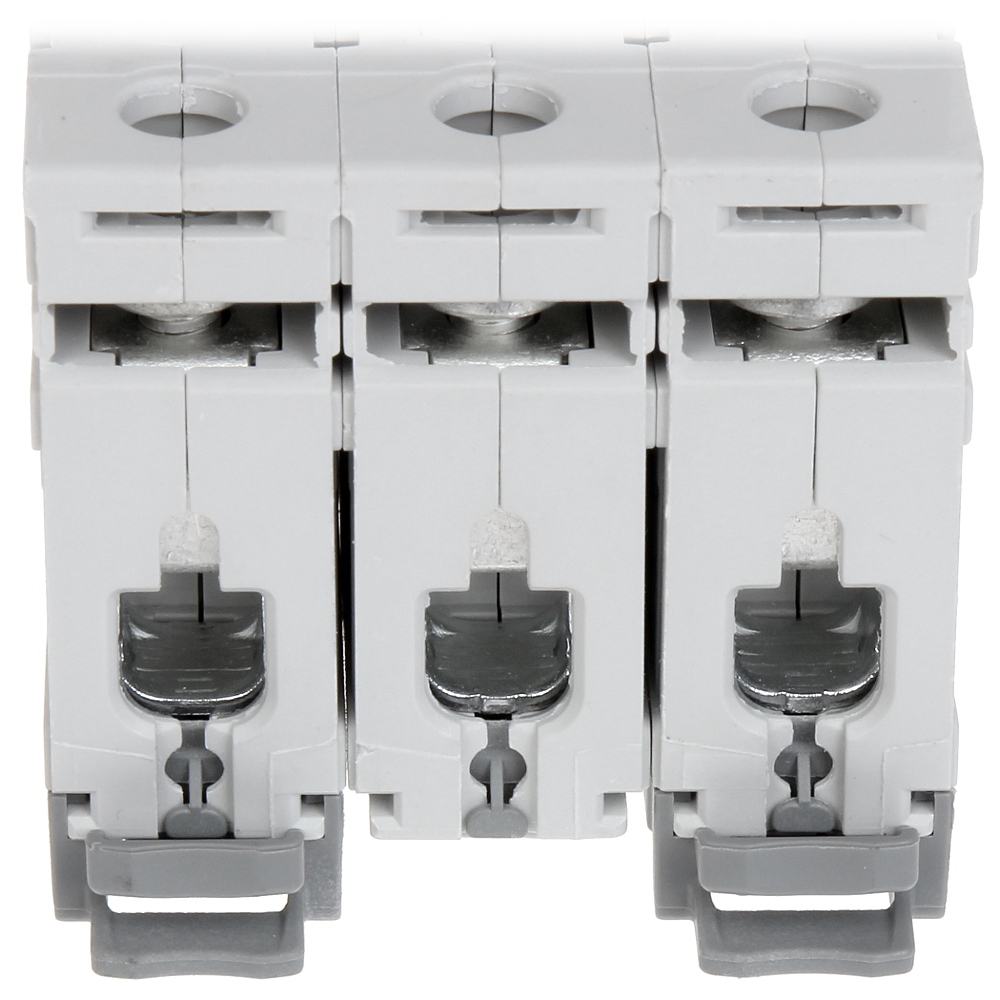

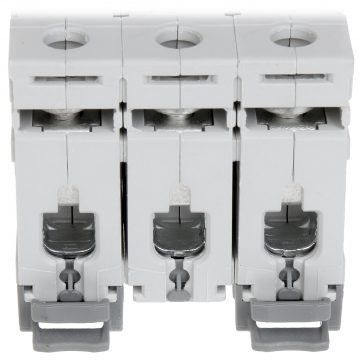

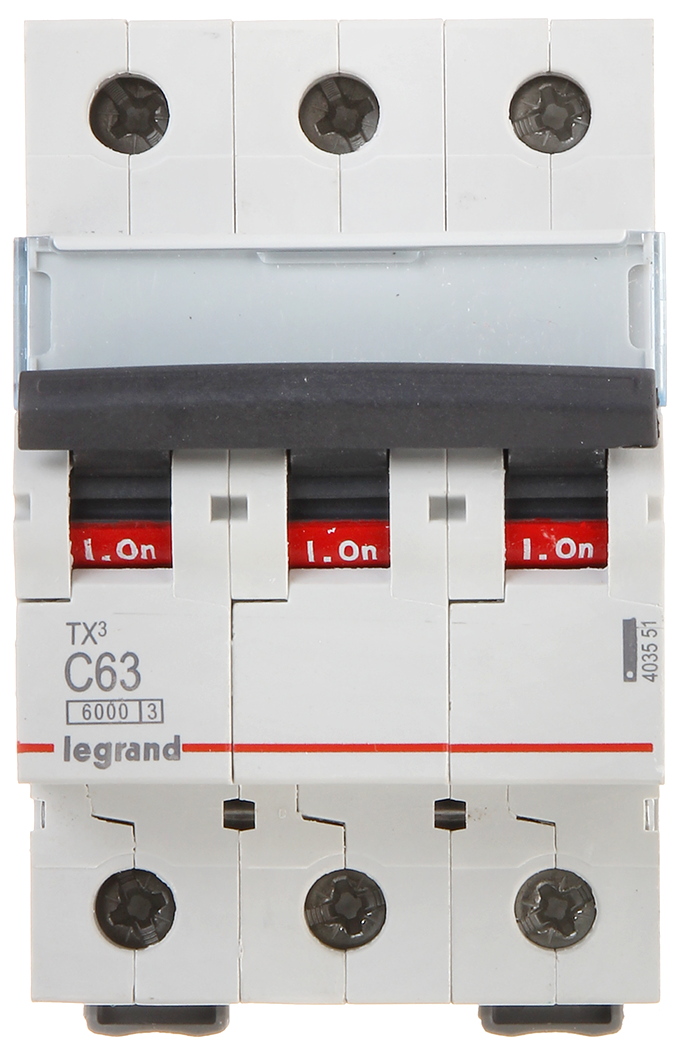

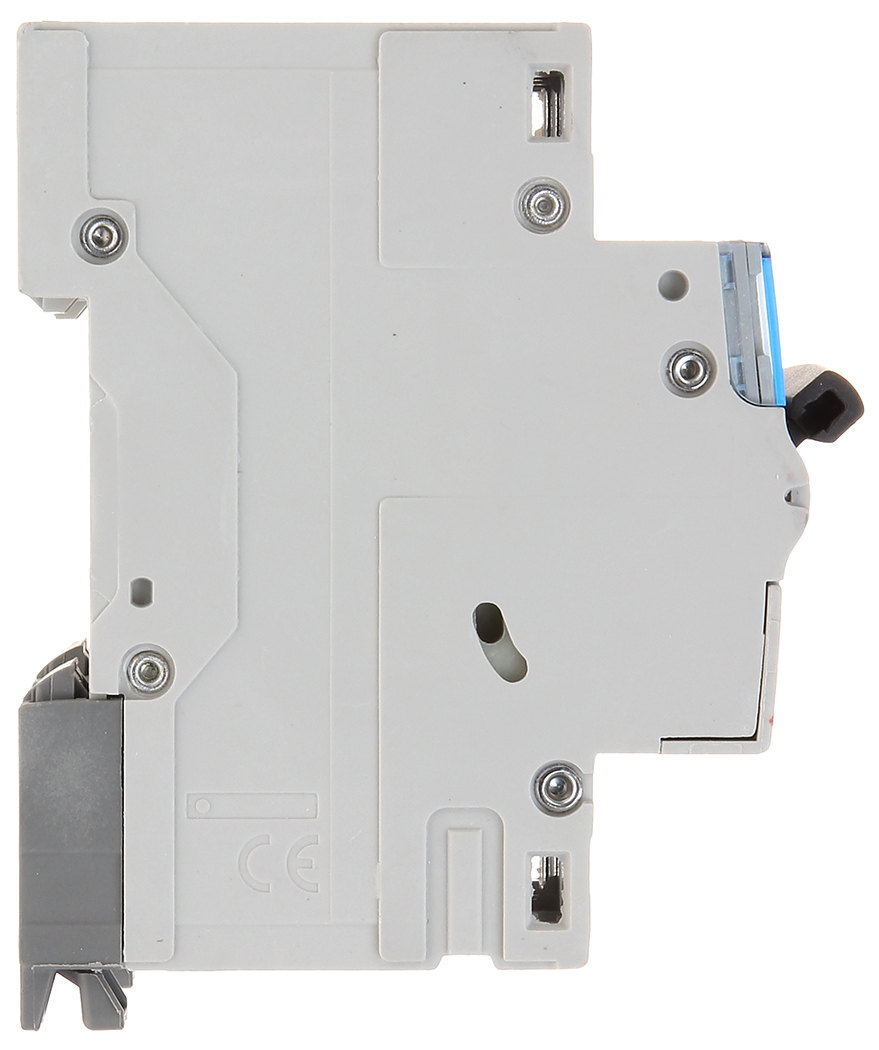

| Device type: | Power switch, Three-phase |
| Rated current: | 63 A |
| Number of poles: | 3 |
| Trip characteristics: | Type C |
| Unlocking capacity: | 6000 A |
| Rated voltage: | 230 V AC / 50 Hz 400 V AC / 50 Hz |
| Connector type: | screw plate |
| Selected characteristics: | Can be equipped with DX3 series auxiliary switches, triggers and controls No possibility to connect residual current units Connection option with comb busbar or forks Space provided for a label with an inscription |
| Housing: | Plastic, DIN rail mounting, TS-35 |
| Width in 17.5 mm modules: | 3 |
| Weight: | 0.43 kg |
| Size: | 54 x 83 x 75 mm |
| Manufacturer / Brand: | LEGRAND |
| Warranty: | 2 years |
