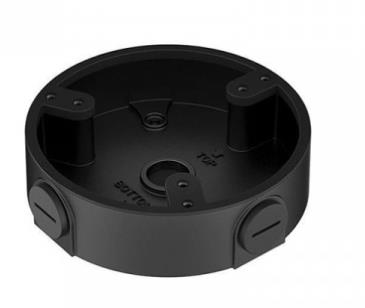

Dahua PFA137-B is aluminum junction box, designed for secure mounting of video surveillance cameras and cable protection. It ensures a neat installation, hides connections and improves the overall durability of the installation.
- Durable aluminum alloy — for mechanical stability and longevity.
- G1/2 thread — for standard cable entry and a sealed connection.
- Load capacity up to 1 kg — suitable for dome and bullet cameras.
Technical specification
| Model / MPN | PFA137-B |
|---|---|
| Type | Junction box |
| Housing material | Aluminum alloy |
| Colour | Black |
| Dimensions | Φ123.6 × 34.2 mm |
| Thread type | G1/2 |
| Max. load | 1.0 kg |
| Operating temperature | –40°C to +60°C |
| Humidity resistance | < 90% RH |
| Anti-corrosion level | Basic protection |
| Manufacturer | Dahua |
Where is it useful?
- For outdoor video surveillance systems — for protecting cable connections.
- For wall and ceiling mounting — for a neater camera installation.
- For sites with high humidity or dust — for insulating connections.
Installation recommendations
- Check the camera's compatibility with PFA137-B before installation.
- Use a seal for the G1/2 cable entry for moisture protection.
- Mount on a flat surface to ensure stability.
FAQ
Is the PFA137-B suitable for outdoor installation?
Yes, it is designed to operate at temperatures from –40 °C to +60 °C.
What is the maximum load?
The maximum permissible load is up to 1 kg.
Are mounting screws included in the kit?
The kit contents depend on the supplier; the screws are usually included.
Did you know?
- A junction box helps hide connections and extends cable service life.
- An aluminum housing withstands temperature fluctuations better than plastic.
- The standard G1/2 thread simplifies compatibility with cable entries.
