Technical Specification:

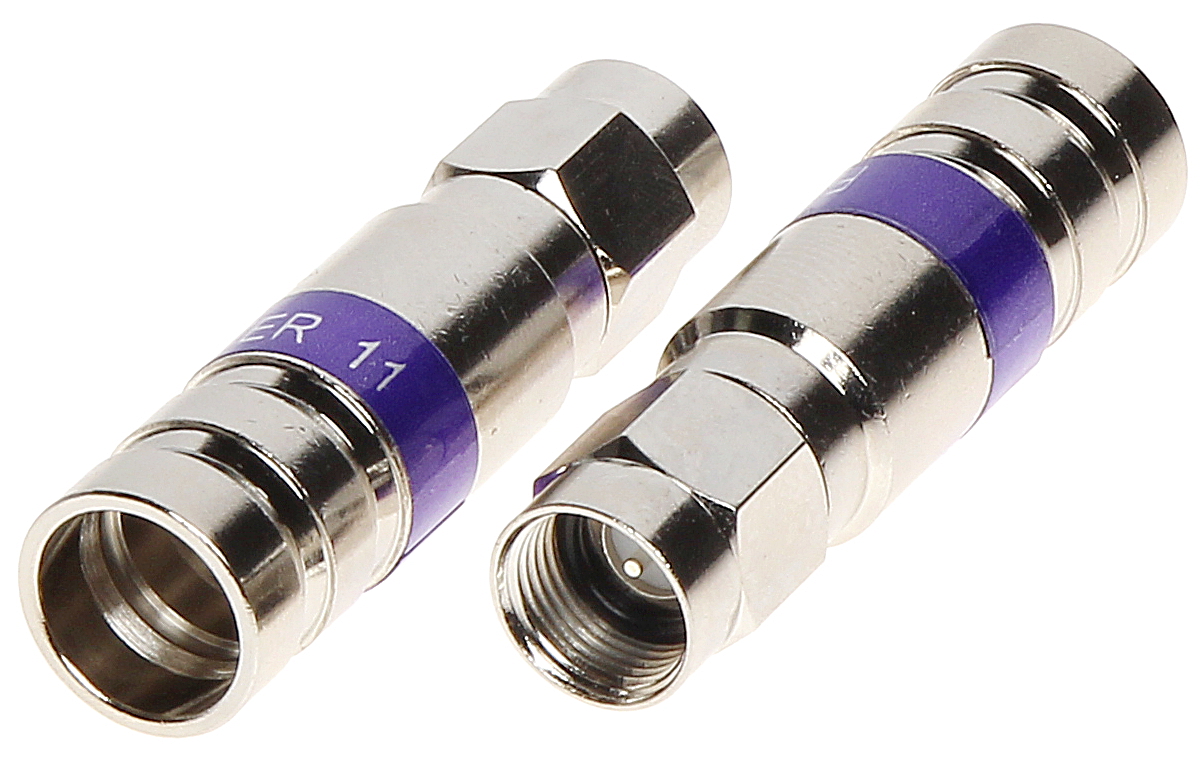

| Connector type: | "F" Simple plug |
| Fitting the connecting elements: | Compression installation |
| Application: | Coaxial cable |
| Full resistance: | 75 Ω |
| Assembling the throat: | - |
| Cable diameter: | max. 10.4 mm |
| Setting up the screen: | Compression installation |
| Material: | Brass (nickel plated) |
| Waterproofness: | - |
| Application examples: | TRISET-11PE/GEL |
| Selected characteristics: | Wide frequency range Waterproofness of connector and cable connection Corrosion resistance – made entirely of the highest quality dielectric non-ferrous metals Very low attenuation throughout the entire operating band Perfect compatibility with the transmission line throughout the entire operating band Correctly crimped connections cannot be broken The design is protected by several patents For crimping, use terminals, HT-5082R / HTL-548B |
| Weight: | 0.020 kg |
| Size: | Ø 12.7 mm x 46.1 mm |
| Warranty: | 2 years |
