Device type: Contactor – NO/NC, Single-phase </span>;>Load current: 20A @ AC7A / AC1, 7A @ AC7B </span>;>Nominal load voltage: 230V AC </span>;>Number of normally open/close contacts: 1 / 1 </span>;>Usage category: AC1, AC7A, AC7B </span>;>Connector type: screw plate </span>;>Housing: DIN rail mounting, TH-35 </span>;
<table>
Device type:
Contactor – NO/NC, Single-phase
Load current:
Rated load voltage:
230V AC
Control voltage:
230V AC
Rated power:
Number of normally open/close contacts:
1 / 1
Usage category:
AC1, AC7A, AC7B
Connector type:
screw plate
Selected characteristics:
Hull:
Plastic, DIN rail mounting, TH-35
Class of protection:
IP20
Width 17.5 mm in modules:
1
Weight:
0.13 kg
Size:

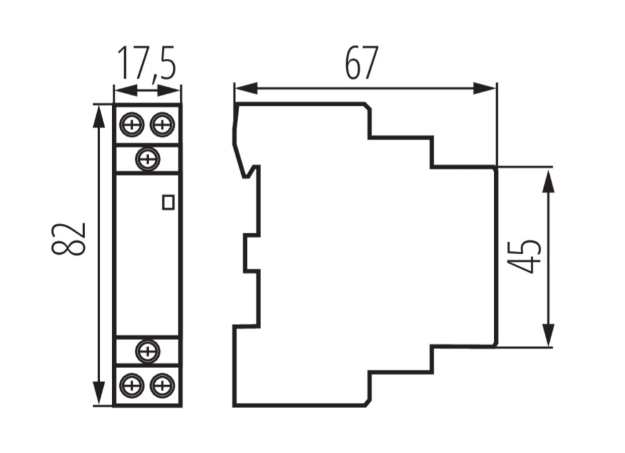

67 x 82 x 17.5 mm
Manufacturer / Brand:
IDEAL
WARRANTY:
5 years

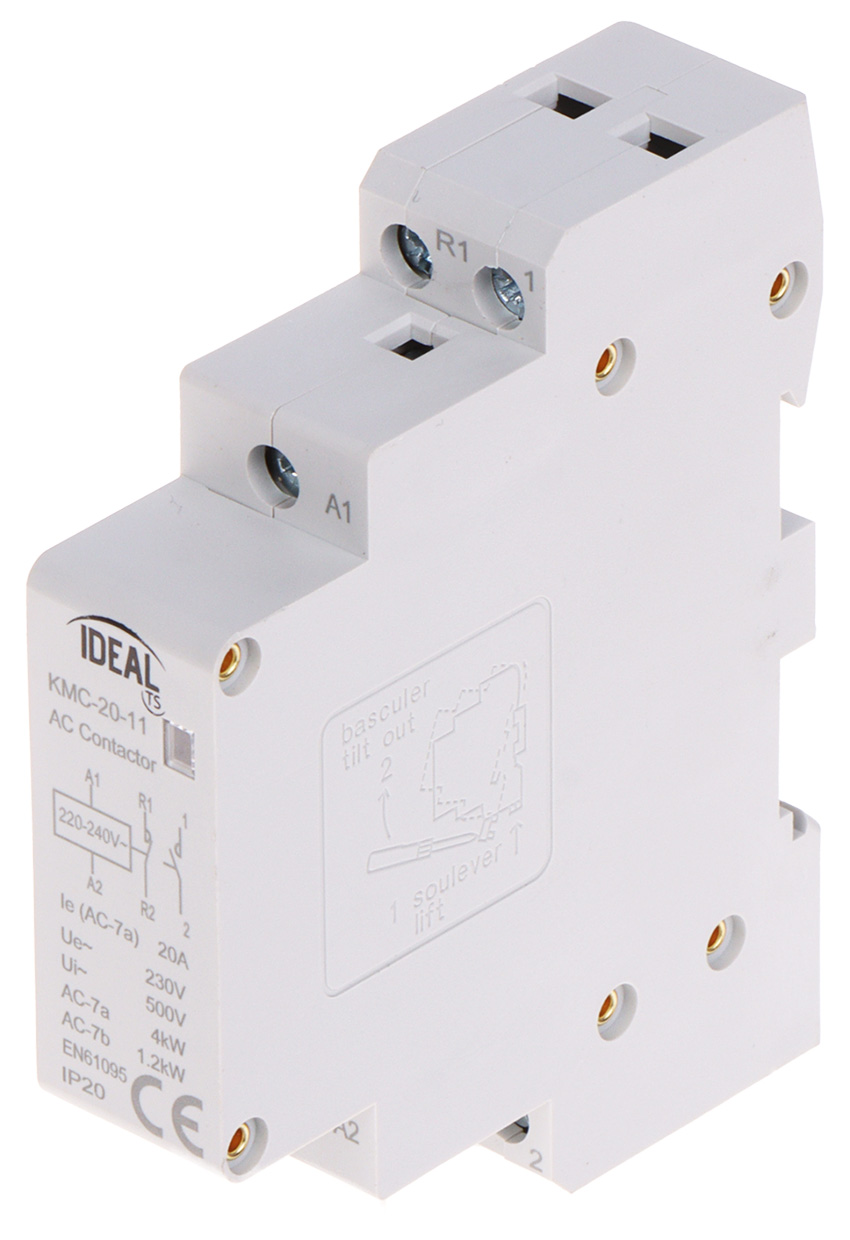

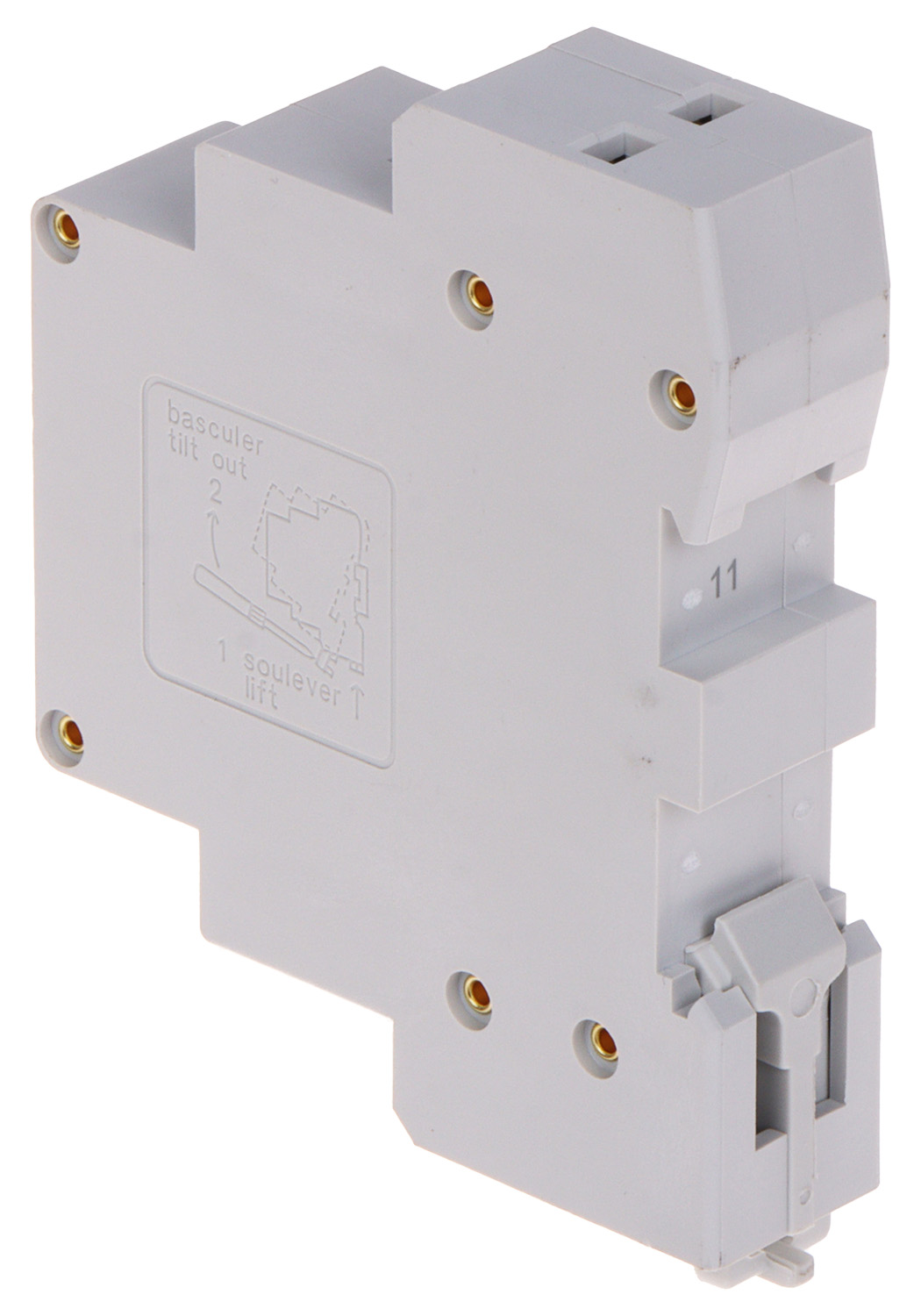

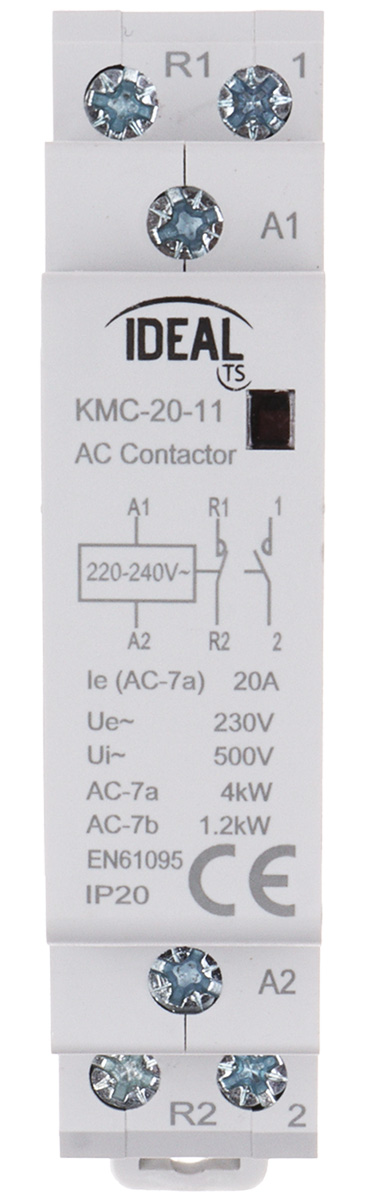

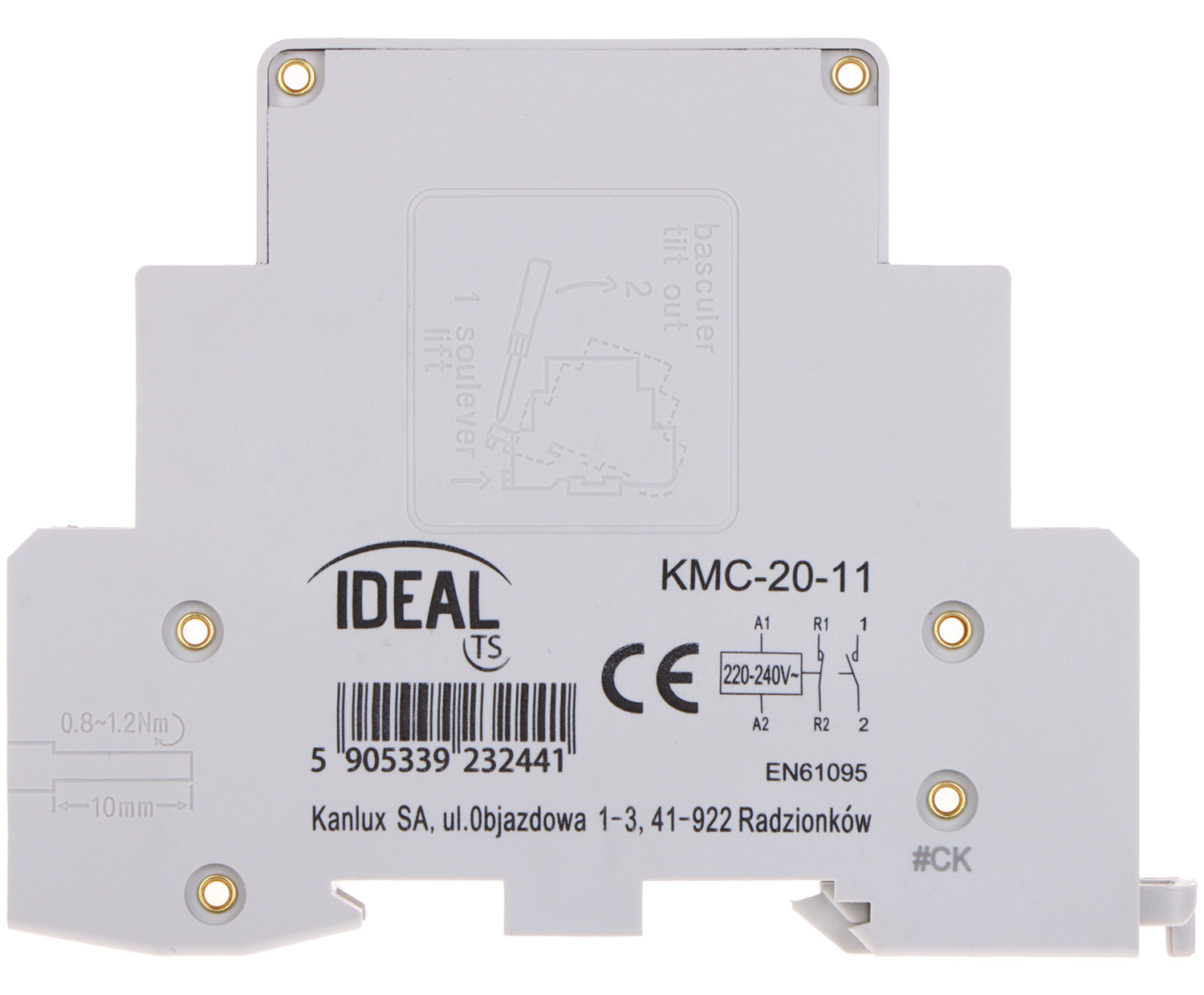

MODULAR CONTACTOR KMC-20-11 20 A 230 V AC IDEAL
Estimated Delivery Dates
14,22 €
Availability: 19
Additional information
| Svars | 0,1320 kg |
|---|---|
| Dimensions | 86 × 67 × 18 cm |
