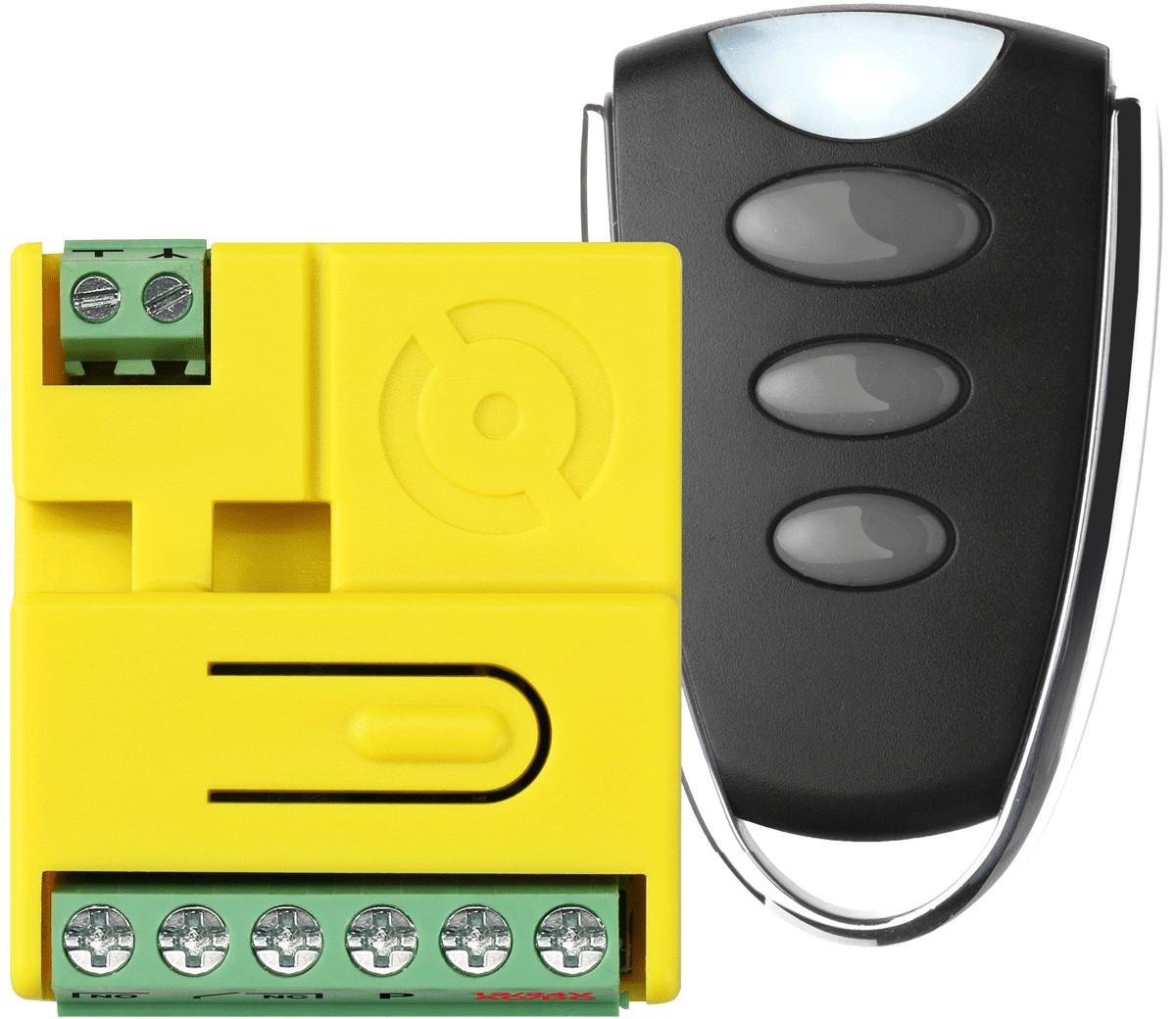

Proxima HomeCar1 EU receiver and remote control kit, 1 channel, 433.92 MHz
Intended use
The kit lets you open the gate with the HomeLink system built into the car (for cars made for the European market). It consists of the NW_HomeCar1 EU single-channel receiver and the HomeCar EU remote control. The receiver also works with other HomeCar EU remotes and with 433.92 MHz remotes based on the HCS chip.
How it works
- A button of the HomeCar EU remote is programmed into one of the car's three HomeLink buttons and into the NW_HomeCar1 EU receiver.
- The receiver is connected to the gate control unit at the push-button input, which controls the gate step by step: open – stop – close.
- Pressing the selected HomeLink button in the car controls the gate step by step.
- The remote's button codes can be programmed into any number of cars. Users can generate new button codes themselves, and this can be repeated.
Package contents
- NW_HomeCar1 EU single-channel receiver
- HomeCar EU remote control

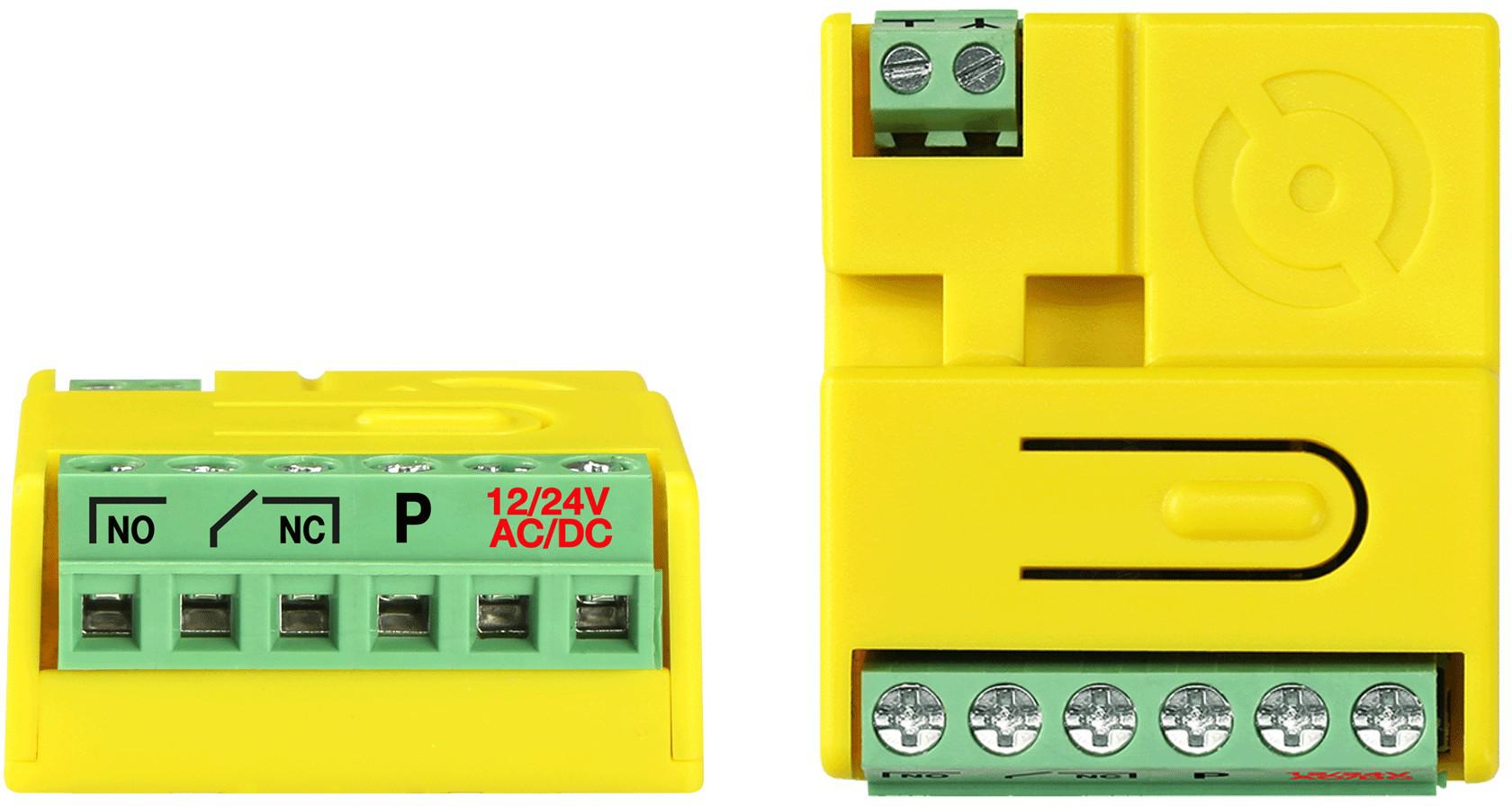

NW_HomeCar1 EU receiver
- Power supply: 12–24 V AC/DC
- Frequency: 433.92 MHz
- Standby consumption: 10 mA
- Remote memory: 14 remotes
- Relay output: 1 channel, NO (24 V, 1 A)
- Output activation time: 1 s
- Receiver dimensions: 37 × 41 × 15 mm
HomeCar EU remote control
- Frequency: 433.92 MHz
- Number of buttons: 3 rubber buttons
- Remote housing: chrome + plastic, key fob with a carabiner
- Battery: 1 × CR2032, 3 V
- Remote dimensions: 33 × 52 × 10 mm
- Remote weight: 34 g
