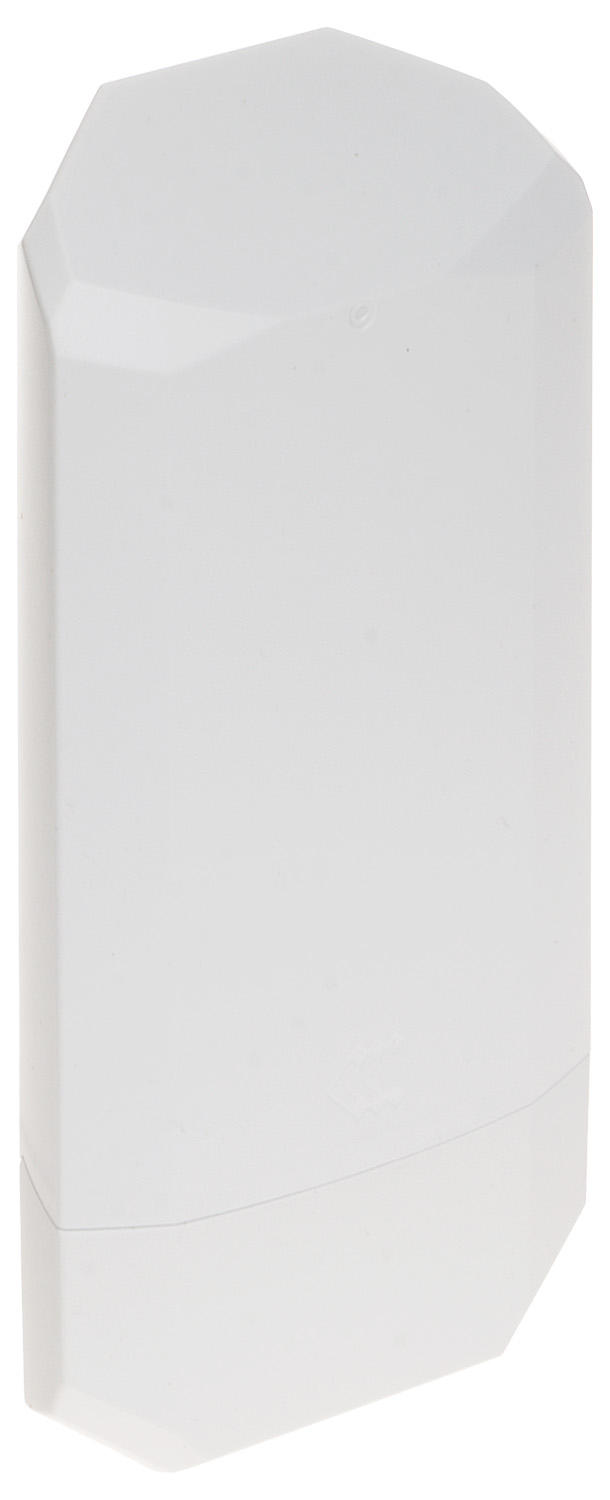

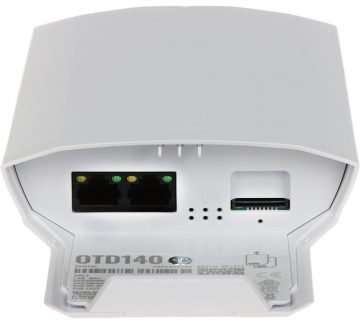

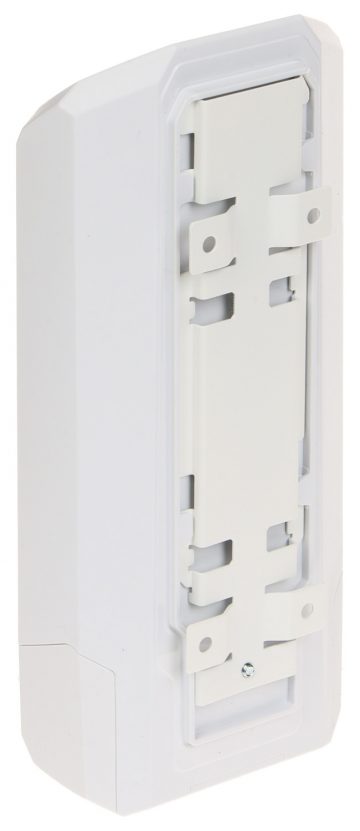

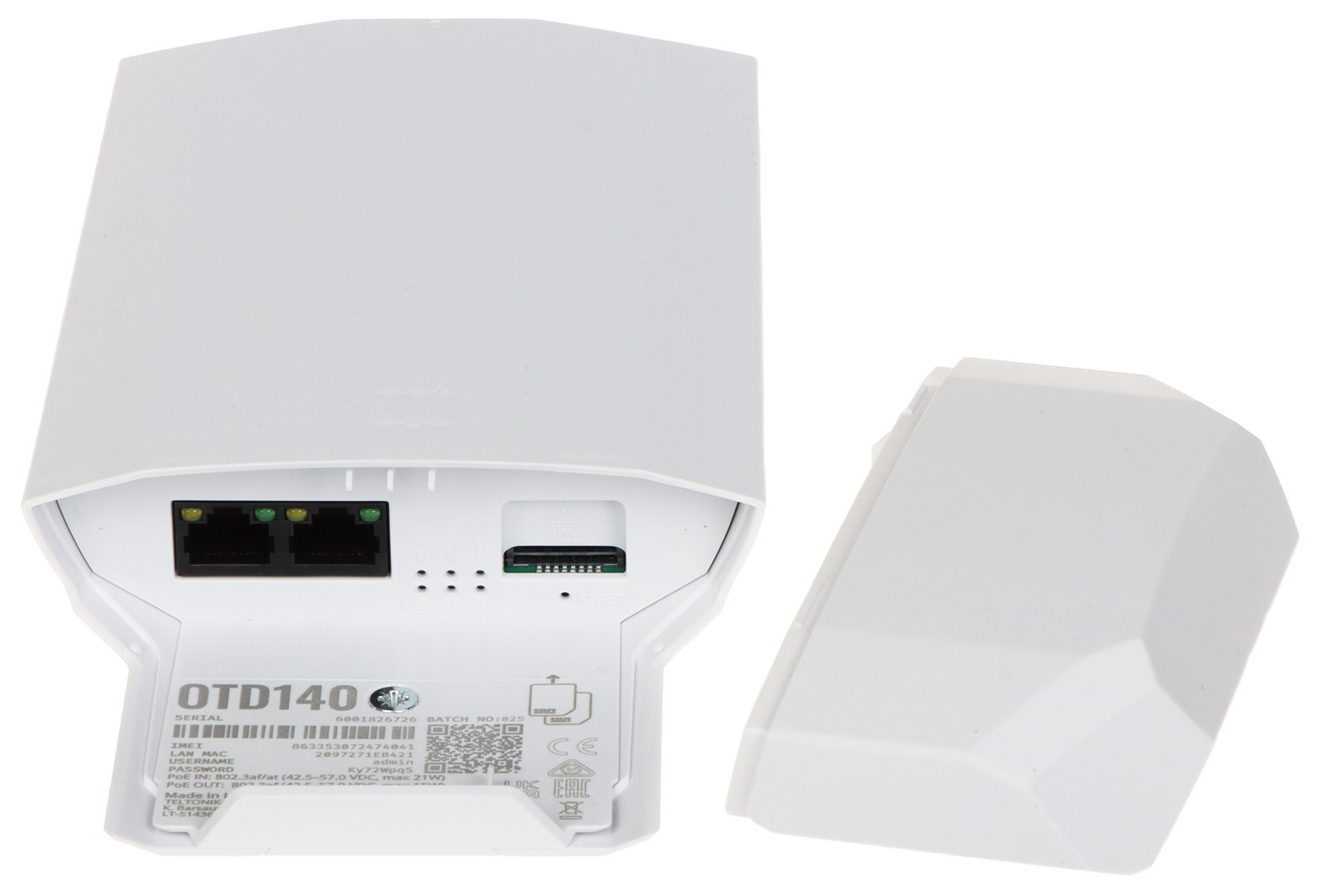

Name: RŪTERIS 4G LTE OTD140 Dual SIM Teltonika
SKU: OTD140
Availability: InStock

RŪTERIS 4G LTE OTD140 Dual SIM Teltonika

Preces kods: OTD140

EAN: 4779027312927

Delivery time: 26-30 July

Estimated Delivery Dates

147,95 €

Pieejamība: 14

Frequency range: LTE / GSM : 698 … 960 MHz, 1710 … 2690 MHz Antenna type: 1 x Izkliedētā antena , Integrēts – 3.5 dBi, 1 x Izkliedētā antena , Integrēts – 3 dBi Standards: LTE Cat. 4, 3G WCDMA, 2G GSM Transmission speed: DL : 150 / 21 / 0.2368 Mbps (4G / 3G / 2G), UL : 50 / 5.76 / 0.2368 Mbps (4G / 3G / 2G) SIM card slot: 2 x Mini SIM - 2FF Selected characteristics: Dual SIM, Atbalsts VoIP tehnoloģijai, IoT (Internet of Things) sistēmu atbalsts, Korpuss noturīgs pret laikapstākļiem, Aizsardzības klase : IP55

Frequency range:
LTE / GSM :

698 ... 960 MHz,

1710 … 2690 MHz
Antenna type:

1 x Izkliedētā antena , Integrēts – 3.5 dBi,

1 x Izkliedētā antena , Integrēts – 3 dBi

Standards:
LTE Cat. 4, 3G WCDMA, 2G GSM
Transmission speed:

DL : 150 / 21 / 0.2368 Mbps (4G / 3G / 2G),

UL : 50 / 5.76 / 0.2368 Mbps (4G / 3G / 2G)

LAN ports:

1 x 10 / 100 Mbps – Ethernet + PoE IN – 802.3af/at

1 x 10 / 100 Mbps – Ethernet + PoE OUT – 802.3af
Transmitter power:
≤ 25 dBm @ 4G LTE
≤ 25 dBm @ 3G WCDMA
≤ 35 dBm @ 2G GSM

LED indicators:
2 x Link/Act – Ethernet, 2G, 3G, 4G, 3 x Signāla indikators
Type of network:

4G LTE-FDD: B1/3/5/7/8/20/28

4G LTE-TDD: B38/40/41

3G WCDMA: B1/5/8

2G : B3/B8

LTE:

SIM card socket:
2 x Mini SIM - 2FF

DDNS:
Support > 25
DHCP server:

Protection:

Authentication with IEEE 802.1x and Radius standards

MAC address filtering

Firewall

DDOS, SYN, SSH, HTTP/HTTPS uzbrukumu aizsardzība

Mobile quota control

White List / Black List

Access control

Protection against polarity reversal connection

Surge protection
Control interface:
WWW pārlūkprogramma, aplikācija Teltonika RMS, SMS

Operating system:
RutOS (Linux OS based)
Firmware update:

Selected characteristics:

Dual SIM,

Modbus, DLMS, DNP3, OPC UA protocol compliance

Auto MDI/MDI-X detection - automatic detection of data transmission mode

Static/dynamic routing

Support for VoIP technology,

Opportunity to act as a hotspot

Topology and network status view

Compatible with WMM (802.11e QoS standard mechanism)

Compatible with DHCP Relay

Compatible with VLAN

VPNs: IPsec VPN, L2TP VPN, PPTP VPN, Open VPN

MQTT protocol compliance

SNMP v1/v2/v3/Trap

Support for IoT (Internet of Things) systems,

Konfigurācija ar Teltonika RMS lietotni

Izturīgs āra korpuss

Korpuss noturīgs pret laikapstākļiem,

RESET key

Class of protection : IP55
Source of energy supply:
42.5 … 57 V DC (power adapter not included)

Patērētā jauda:
≤ 21 W
Operating temperature:
-40 °C … 75 °C

Pieļaujamais relatīvais mitrums:
10 % … 90 % (bez kondensācijas)
Weight:
0.36 kg

Size:
235 x 110 x 49 mm
Manufacturer / Brand:
Teltonika

WARRANTY:
2 years

Papildu informācija

Svars	0,4120 kg
Dimensions	255 × 115 × 55 cm
