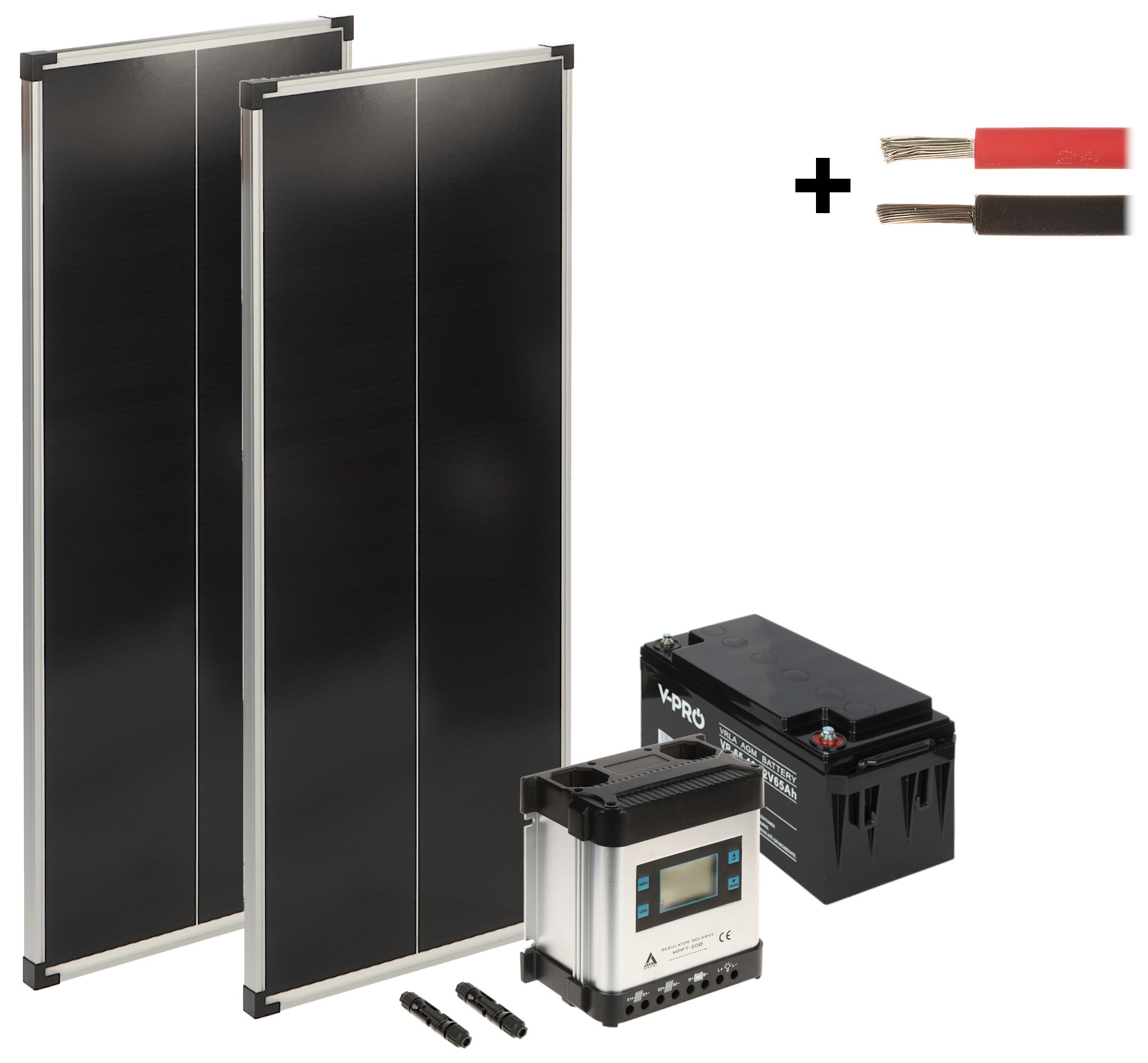

| Included: |
2 solar panels 100 W, Akumulators 65 Ah, Saules uzlādes kontrolieris – 20 A, MPPT, Pieslēguma kabeļi : 2 x 10 m, MC4 savienotāji – 2 gab. |
| Theoretical amount of energy produced per day (for Poland): |
540 Wh |
| Warranty: |
2 years |

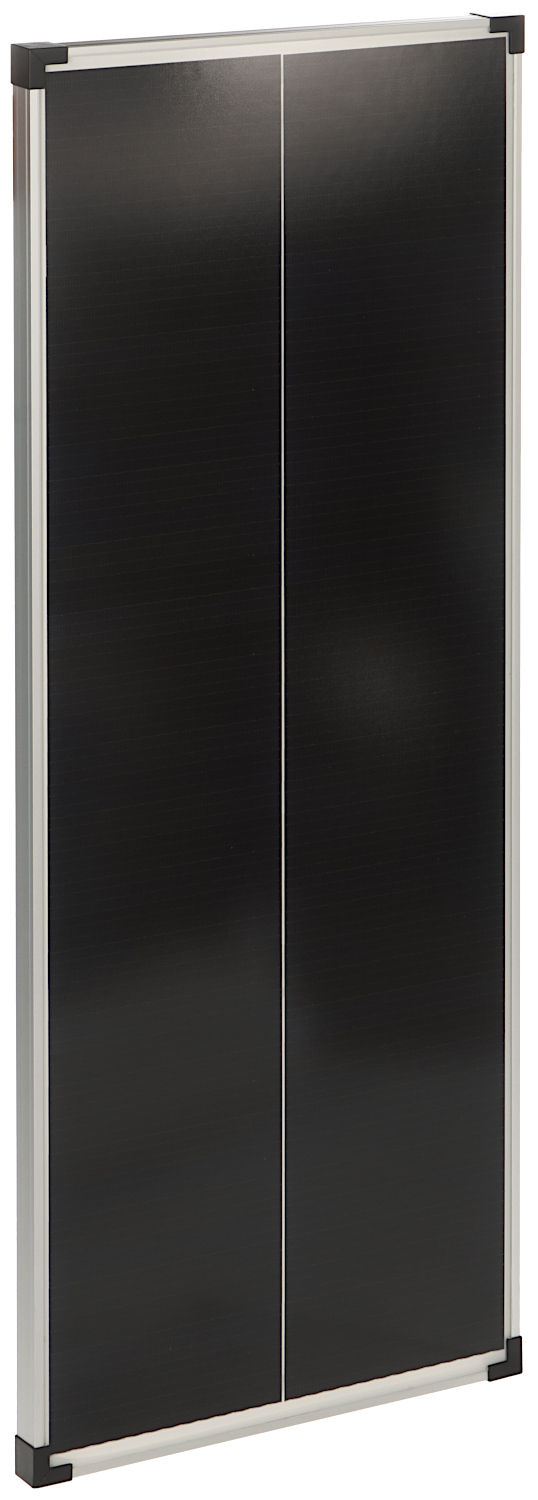

| Maximum power: |
100W |
| Maximum power current (I mp ): |
4.46 A |
| Maximum power voltage (V mp ): |
22.4V |
| Short-circuit current (I sc ): |
4.97 A |
| No-load voltage (V oc ): |
26.4V |

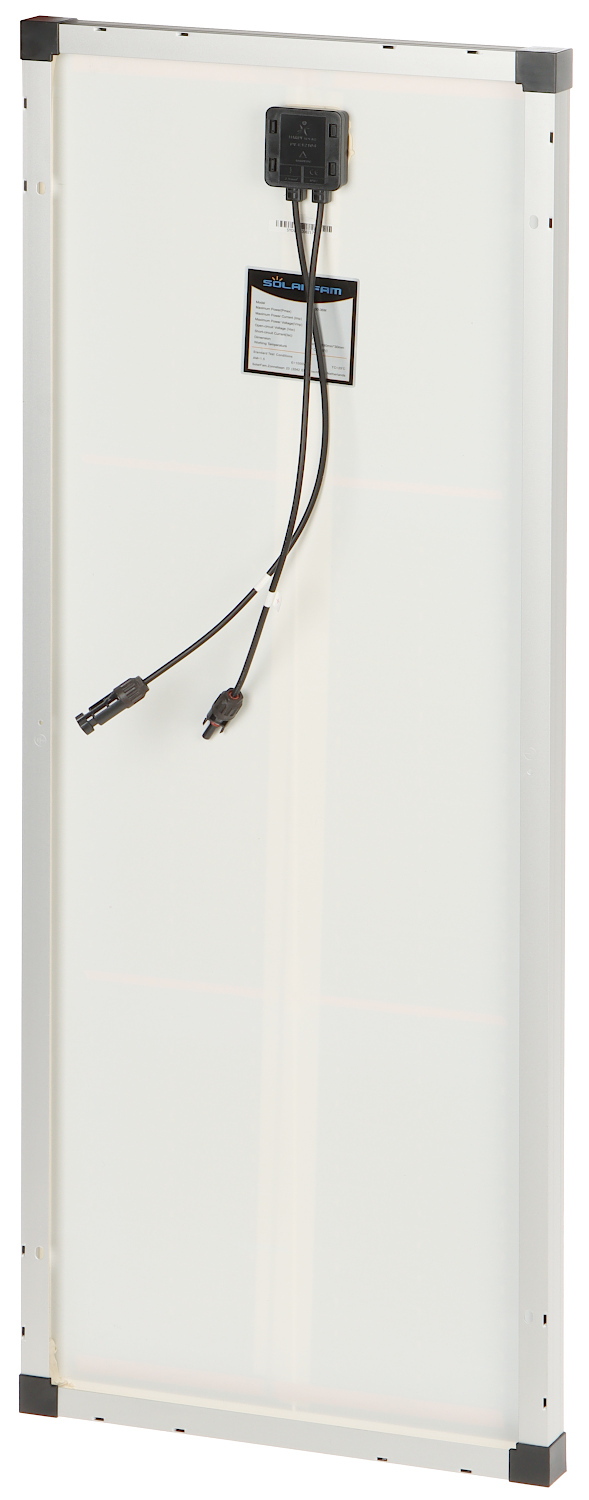

| Cable length: |
2 x 0.45 m |
| Solar battery type: |
Polycrystalline |
| Panel structure: |
Sturdy aluminum frame construction |
| Weight: |
5.96 kg |
| Size: |
1190 x 450 x 30 mm |
| Manufacturer / Brand: |
SolarFam |

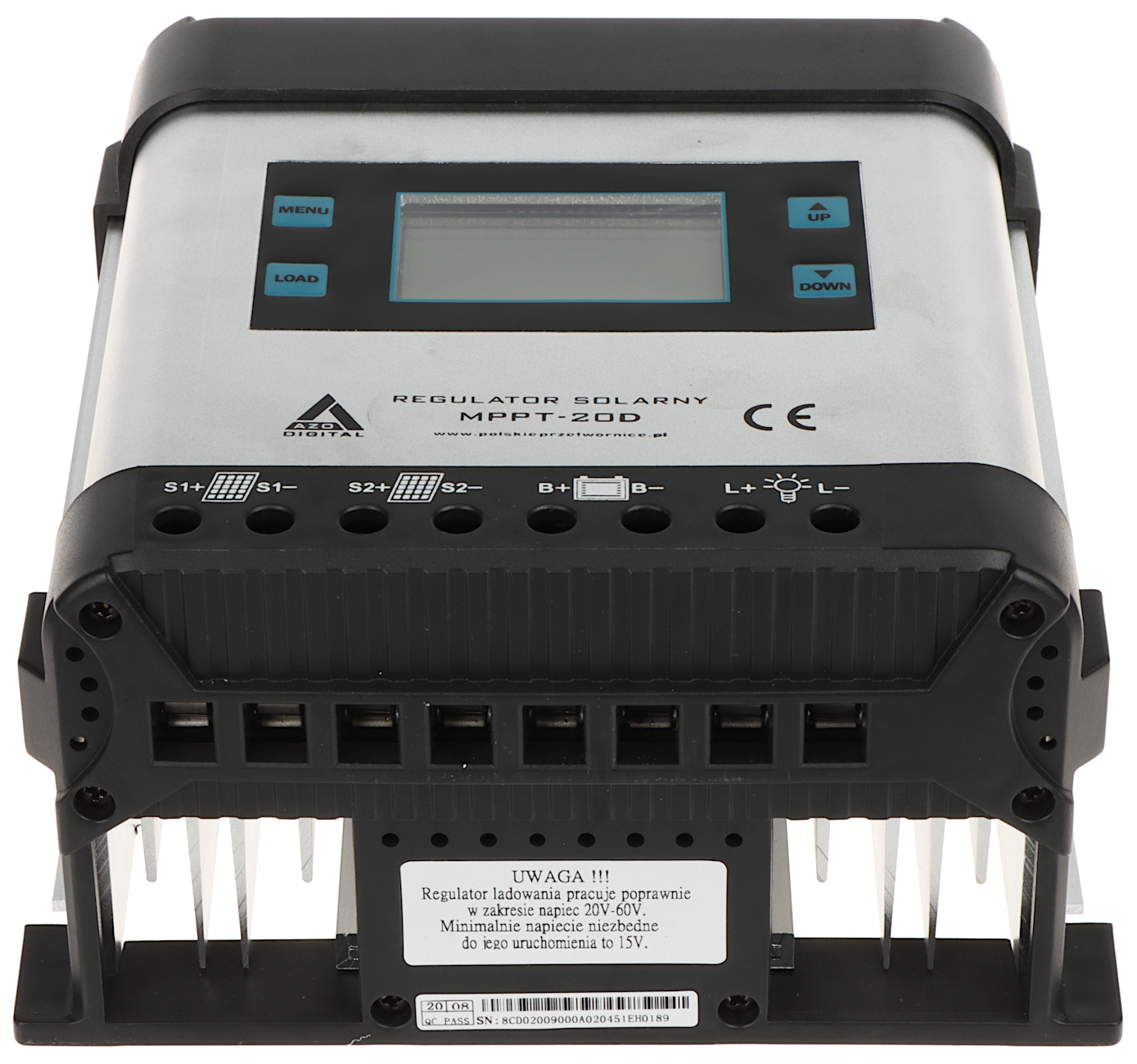

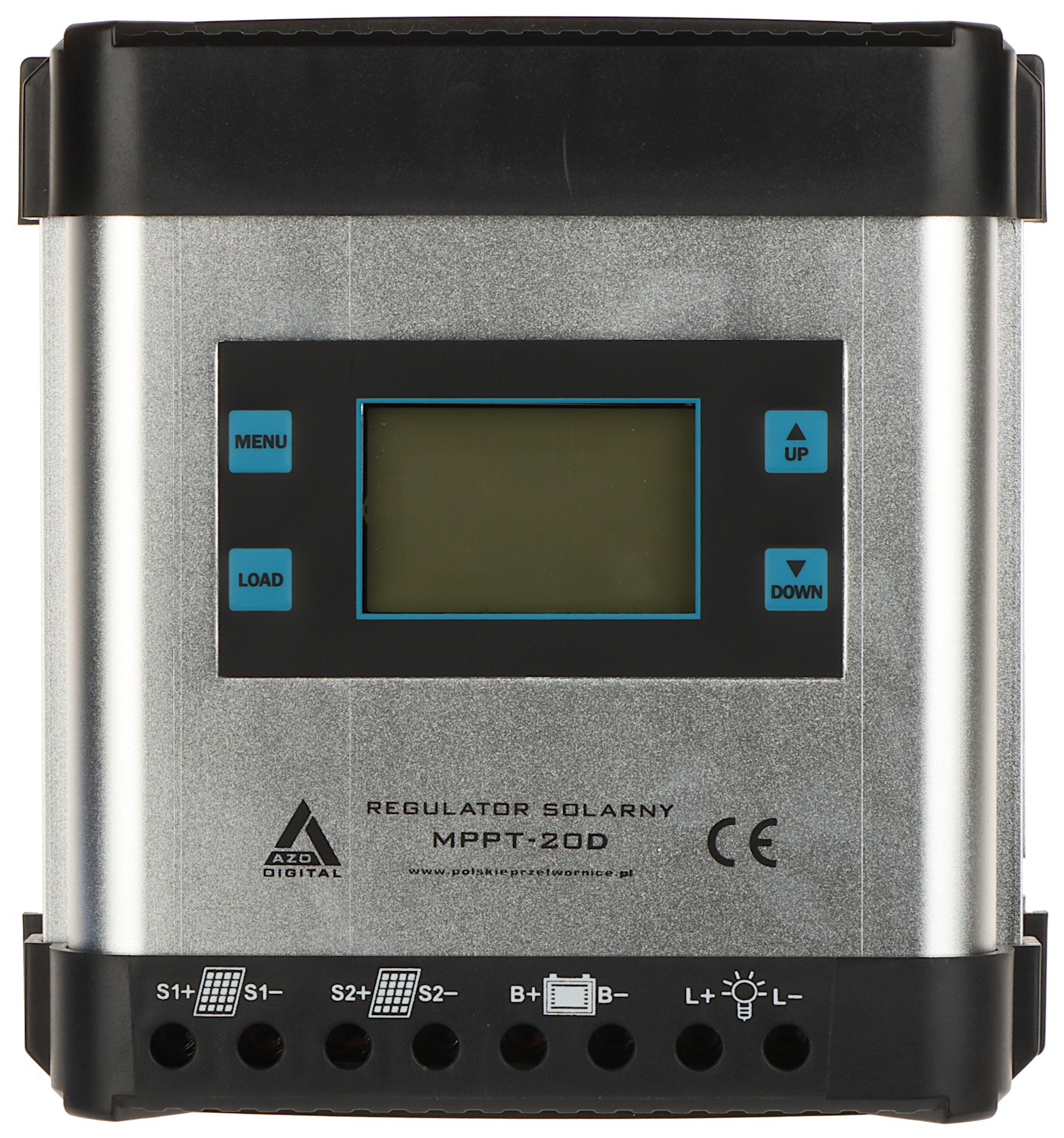

| Regulation type: |
MPPT |
| Rated voltage: |
12 / 24 V |
| Rated current: |
20 A |
| Input voltage: |
20 … 60 V 12 V akumulatoram 30 … 90 V 24 V akumulatoram |
| Battery charging current: |
max. 20 A |
| Load current: |
max. 20 A |
| Selected characteristics: |
Ierīce ir paredzēta tikai AGM un gela akumulatoru uzlādei, LCD displejs, LED diodes norāda uz ierīces darbības statusu |
| Weight: |
1.41 kg |
| Size: |
177 x 175 x 93 mm |
| Manufacturer / Brand: |
AZO Digital |

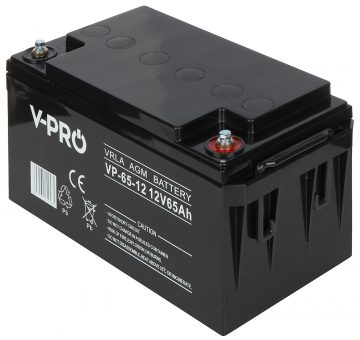

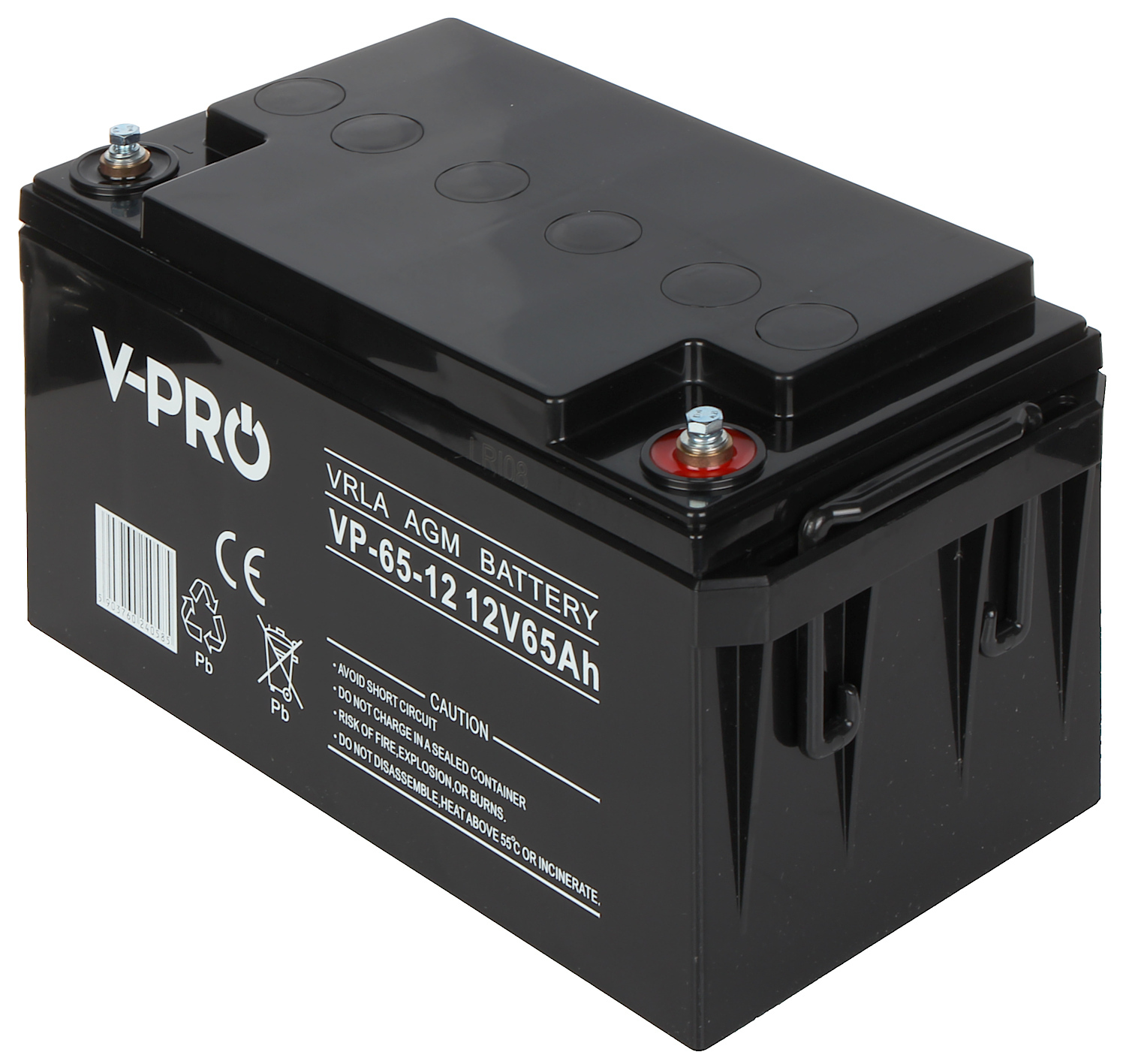

| Battery capacity: |
65 Ah |
| Rated voltage: |
12V |
| Battery charging current: |
max. 19.5 A |
| Connector: |
M6 screw |
| Battery type: |
AGM (Absorbent Glass Mat) maintenance-free batteries |
| Battery life: |
8 … 10 years |
| Weight: |
19.1 kg |
| Size: |
345 x 165 x 177 mm |
| Manufacturer / Brand: |
V-PRO |
| Inner core: |
4.0 mm² – Stranded wire Cu – Galvanizing |
| Rated voltage: |
600V / 1000V AC 1800V DC |
| External coating: |
Ø 5.0 mm – Non-halogen plastic |
| Selected characteristics: |
Resistance to UV ultraviolet radiation Resistance to ozone Resistance to hydrolysis Resistance to oils and aggressive chemicals Fire resistance (according to VDE 0482-332-2, DIN EN 60332-1) The insulating coating is made of a material that does not contain halogens and does not produce aggressive fumes during combustion Increased mechanical strength of the outer coating Expected service life: 25 years |

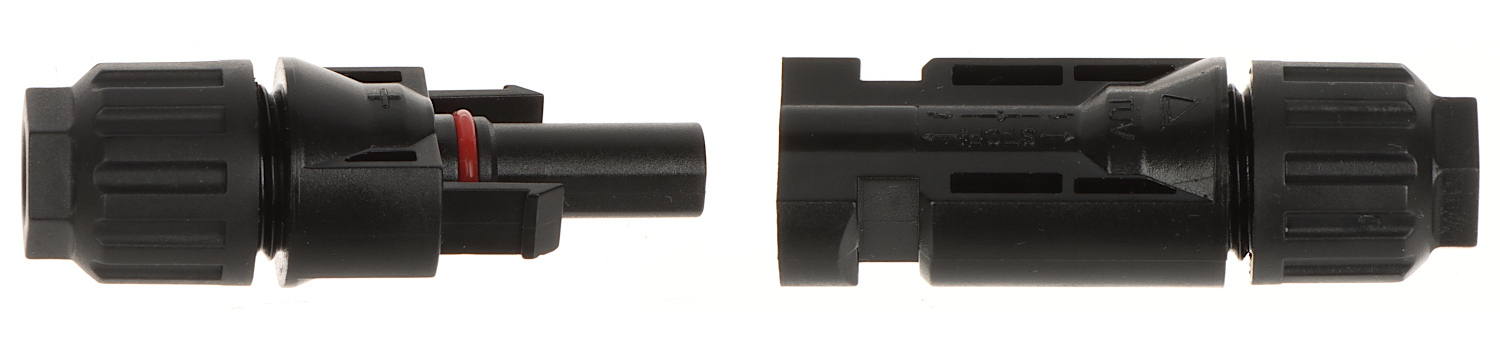

| Connector type: |
MC4 – set (M + F) / Fixation |
| Rated voltage: |
1000V |
| Rated current: |
30 A |
| Material: |
Plastic + Metal |
| Colour: |
Black |
| Application: |
Solar photovoltaic installations |
| Protection class: |
IP67 |
| Flammability class: |
UL94-VO |
| Weight: |
0.022 kg |
| Size: |
Ø 19 x 87 mm |
