Technical Specification:
| Application: | Internal |
| Infrared detector: | Double |
| Sensor type: | Passive infrared (PIR) |

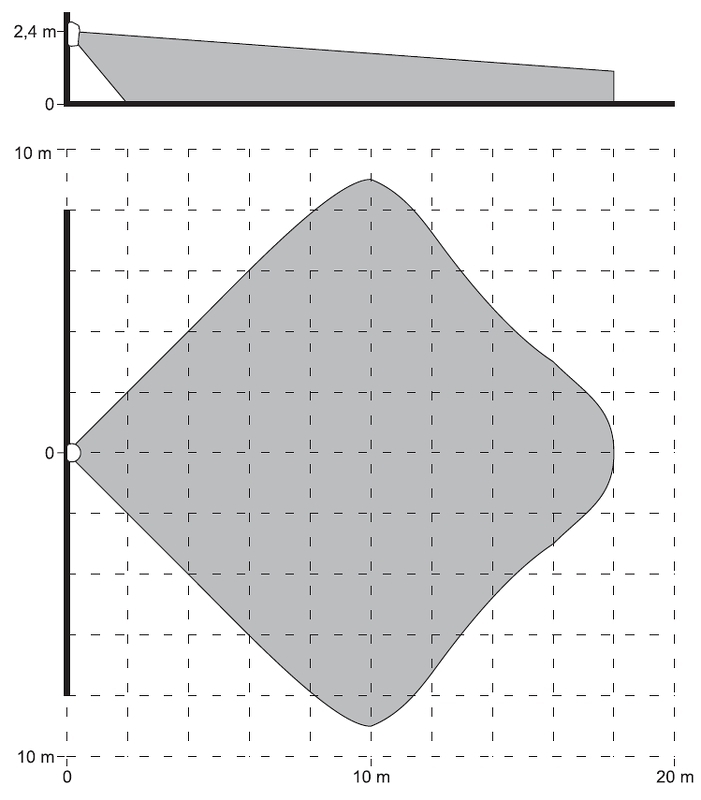

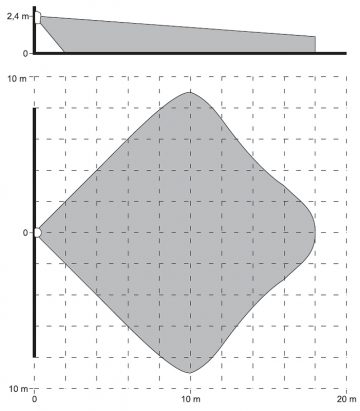

| Reception area: | 18 x 18 m |
| Sensitivity setting: | With potentiometer |
| Resistant to animals: | - |
| Alarm time: | 2 seconds |
| Maximum output load: | 40mA / 16V DC |
| Digital temperature compensation: | - |
| Source of energy supply: | 12V DC / 14mA |
| Selected characteristics: | Alarm memory |
| Target movement speed: | 0.3 … 3 m/s |
| Operating temperature: | -30°C … 55°C |
| Weight: | 0.07 kg |
| Size: | 62 x 96 x 48 mm |
| Manufacturer / Brand: | SATEL |
| Warranty: | 2 years |
