Technical Specification:
| LAN ports: | 1 x RJ45 10/100 Base-T + power input : PoE (802.3af/at), 2 x RJ45 10/100 Base-T + PoE (802.3af) |
| Management via WWW/console: | - |

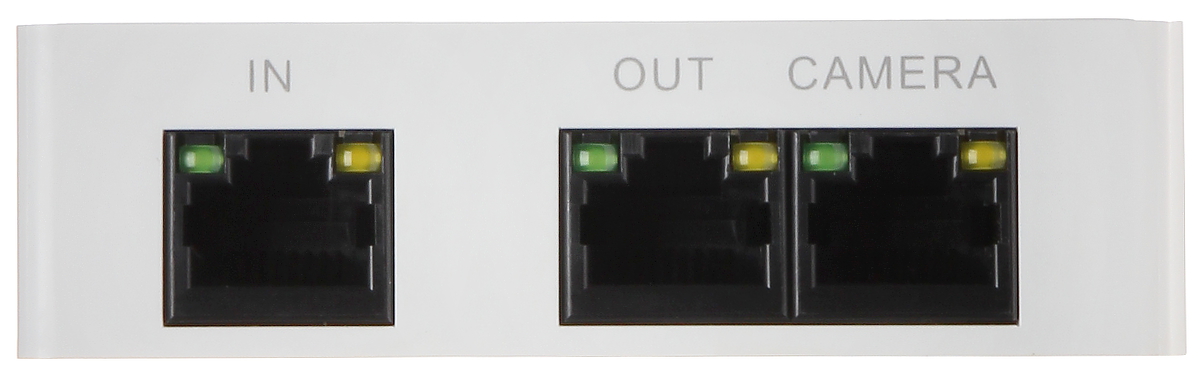

| LED diodes: | LAN, PoE |
| Transmission speed: | 10 / 100 Mbps |
| Maximum output power: | 15.4 W @ PoE socket – First device 3 W @ PoE socket – Second device in cascade |

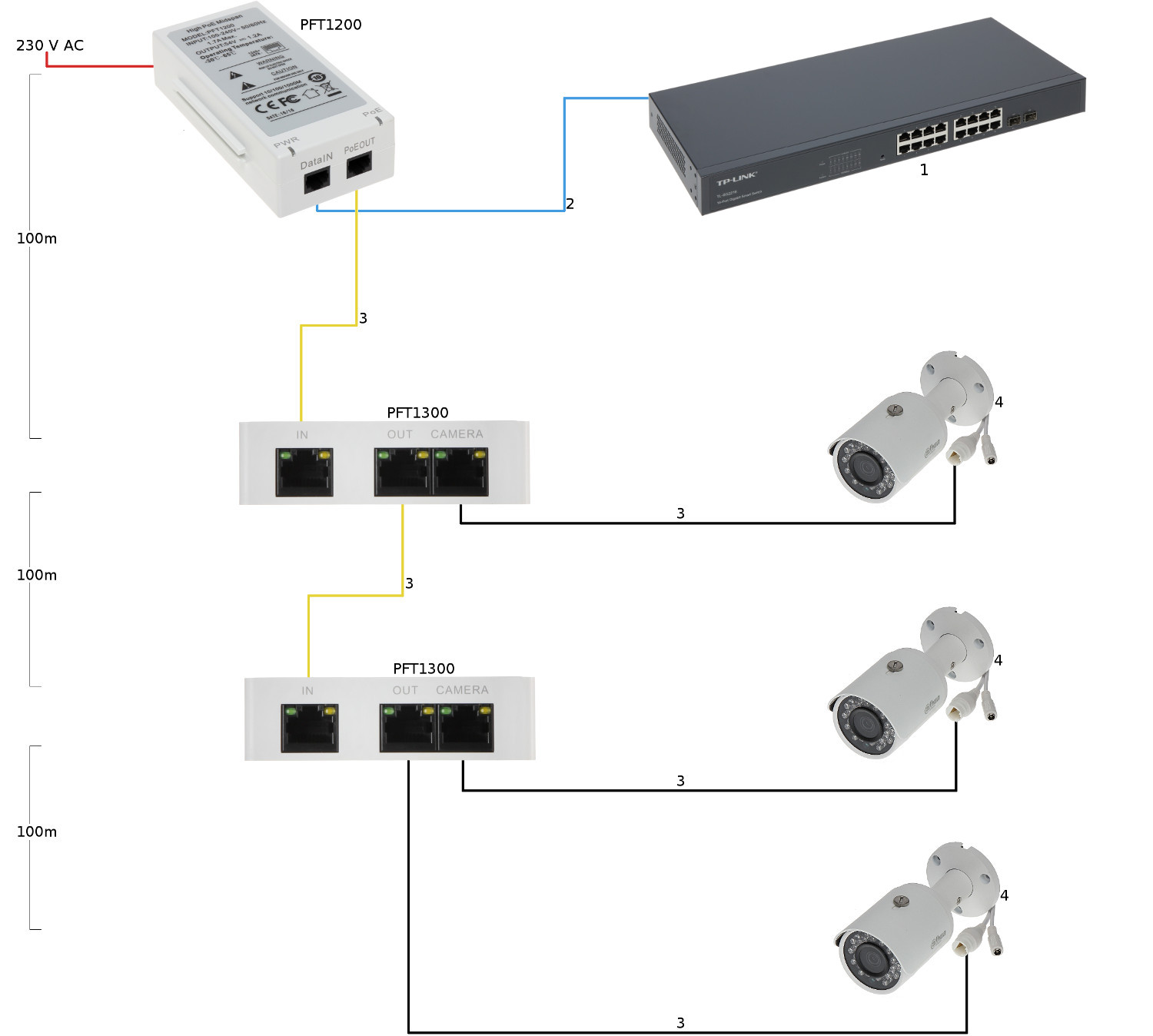

| Selected characteristics: | Serial connection option The device can function as a LAN network extender and PoE power supply. |
| Power consumption: | 0.3W |
| Reception area: | 100 m – Entrance 100 m – Exit |
| Protection: | Overvoltage |

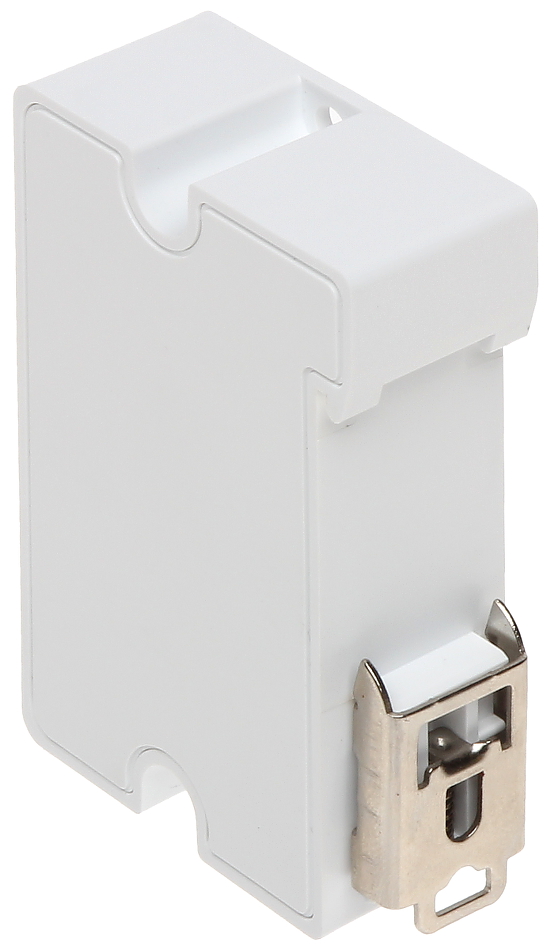

| Housing: | Plastic, DIN rail mounting, TS-35 |
| Source of energy supply: | PoE (802.3af/at) |
| Operating temperature/relative humidity: | -30 … 65 °C / 10 … 90 % |
| Weight: | 0.06 kg |
| Size: | 80 x 51 x 23 mm |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
