LAN ports: 8 x RJ45 10/100 Base-T ( 1 x Hi-PoE (802.3bt) + 7 x PoE (802.3af/at) ), 2 x RJ45 10/100/1000 Base-T – Uplink
Transmission speed: 10 / 100 Mbps : 8 LAN & PoE porti, 10 / 100 / 1000 : 2 Uplink porti
Maximum total power: 110W
Selected characteristics: The switch is managed via the web and cloud (DoLynk Care app)
| LAN ports: |
8 times RJ45 10/100 Base-T ( 1 x Hi-PoE (802.3bt) + 7 x PoE (802.3af/at) ),
2 times RJ45 10/100/1000 Base-T – Uplink
|
| Transmission speed: |
10 / 100 Mbps : 8 LAN & PoE porti,
10 / 100 / 1000 : 2 Uplink porti
|
| Maximum output power: |
90 W / Hi-PoE / PoE 802.3bt ligzda – 1 ligzda
30 W / PoE 802.3af/at ligzda – 2 … 8 porti
|
| Maximum total power: |
110W |
| MAC address table: |
8k |
| Management: |
✓ |
| Working mode: |
Extend On : 250 m, 10 Mbps @ UTP cat. 5e, 6 |
| LED diodes: |
Power, System, PoE, Link/Act |
| Selected characteristics: |
The switch is managed via the web and cloud (DoLynk Care app)
PoE power supply mode: The device is compatible with 8-pin power supply – pins: 1-2(+), 3-6(-), 4-5(+), 7-8(-)
Inteliģenta barošanas jaudas izejas līmeņa pārvaldības
protection against lightning discharge and voltage differences between devices
Watchdog PoE
Loop Protection
Compliance with LLDP protocol
Spanning Tree STP/RSTP
Port Based VLAN : 32
Data flow control (802.3x)
DHCP client
RESET key
Possibility of wall mounting
|
| Certificates: |
CE |
| Protection: |
Lightning protection (common/differential): 4 / 2 kV
Protection against electrostatic discharge – Contact/Air (ESD/EMP): 6 / 8 kV
|
| Hull: |
Desktop, Metal |
| Source of energy supply: |

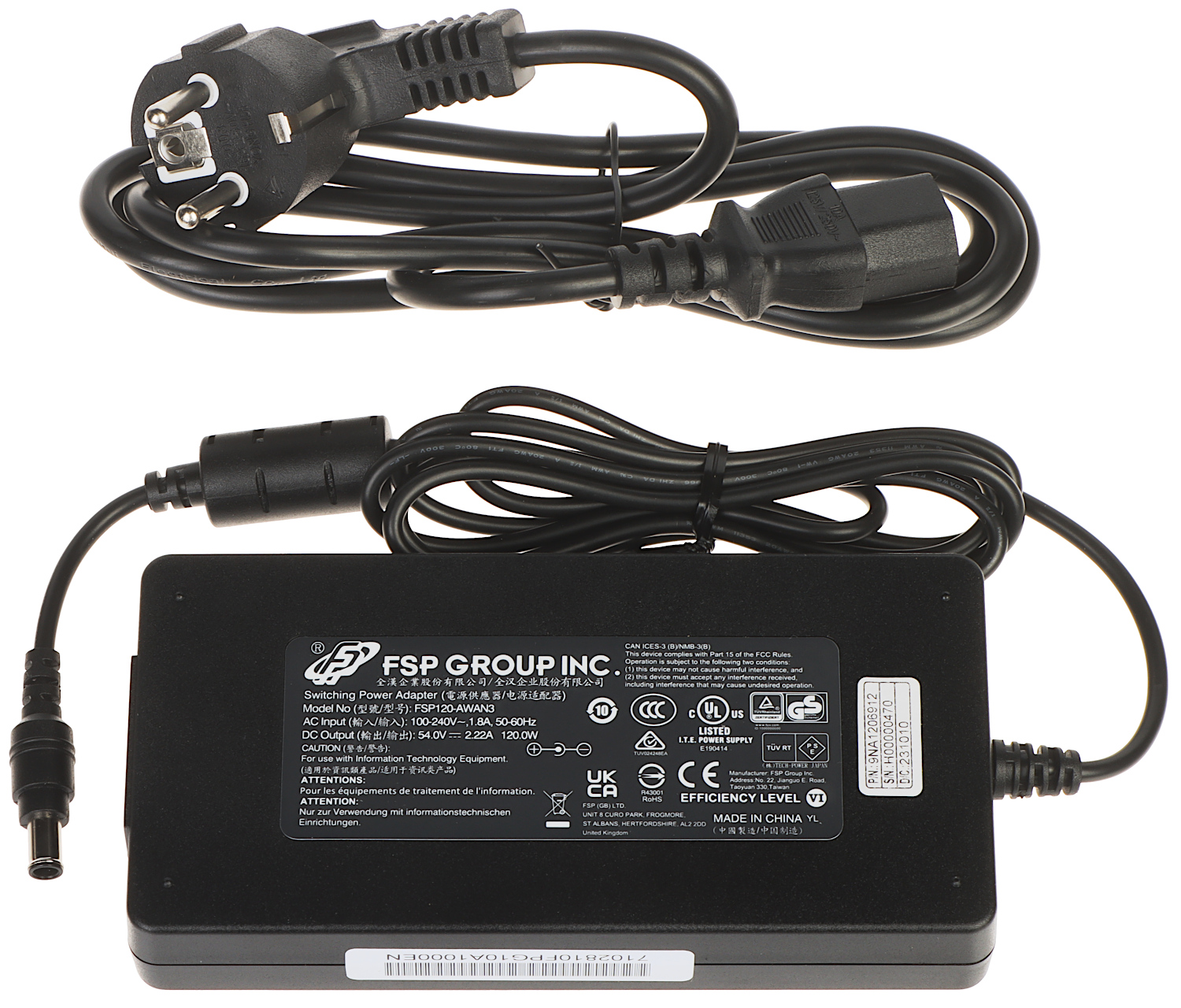

54 V DC / 2.22 A (komplektā strāvas adapteris) |
| Power consumed: |
max. 110 W |
| Operating temperature: |
-10°C … 55°C |
| Weight: |
0.49 kg |
| Size: |
190 x 106 x 30 mm |
| Manufacturer / Brand: |
DAHUA |
| WARRANTY: |
3 years |
