Support: BE WAVE system
Measurements: Temperature, relative humidity, air pressure
Measurement range: Temperature: -10 °C … 55 °C ± 0.2 °C, relative humidity: 0 % … 100 % ± 1.5 %, air pressure: 260 hPa … 1260 hPa ± 0.1 hPa
Frequency band: 868.0 MHz … 868.6 MHz ( ABAX2 )
Radio communication range (in open area): < 600 m
Colour: Brown
Battery operating time: ~ 5 years
| Support: | BE WAVE system |
| Measurements: |
|
| Measurement range: |
|
| Measurement resolution: |
|
| Frequency band: | 868.0 MHz … 868.6 MHz ( ABAX2 ) |
| Radio communication range (in open area): | < 600 m |
| Anti-sabotage connection: | ✓ |
| Mobile phone access: | Cooperation with Smart-Hub series controllers:
|
| Selected characteristics: |
|
| Hull: | Plastics |
| Colour: | Brown |
| Environmental class EN 50130-5: | II |

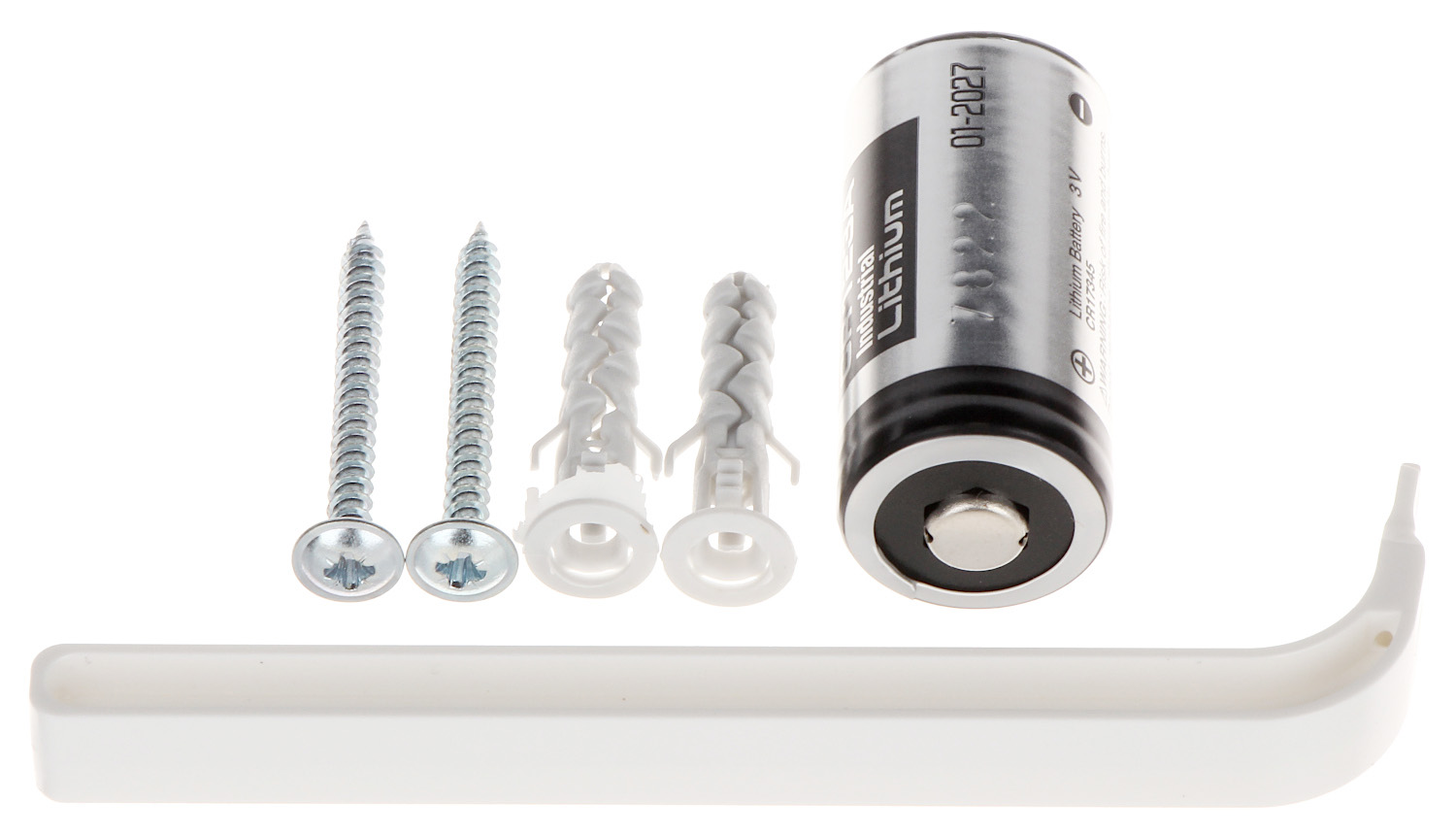

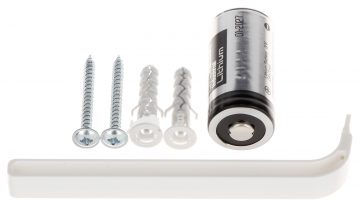

| Source of energy supply: | 1 x CR123A 3V (included) |
| Current consumption: | 48 µA (Standby mode) |
| Battery operating time: | ~ 5 years |
| Operating temperature: | -10°C … 55°C |
| Permissible relative humidity: | 93 % ± 3 % |
| Weight: | 0.04 kg |
| Size: | 20 x 102 x 23 mm |
| Manufacturer / Brand: | SATEL |
| WARRANTY: | 2 years |
