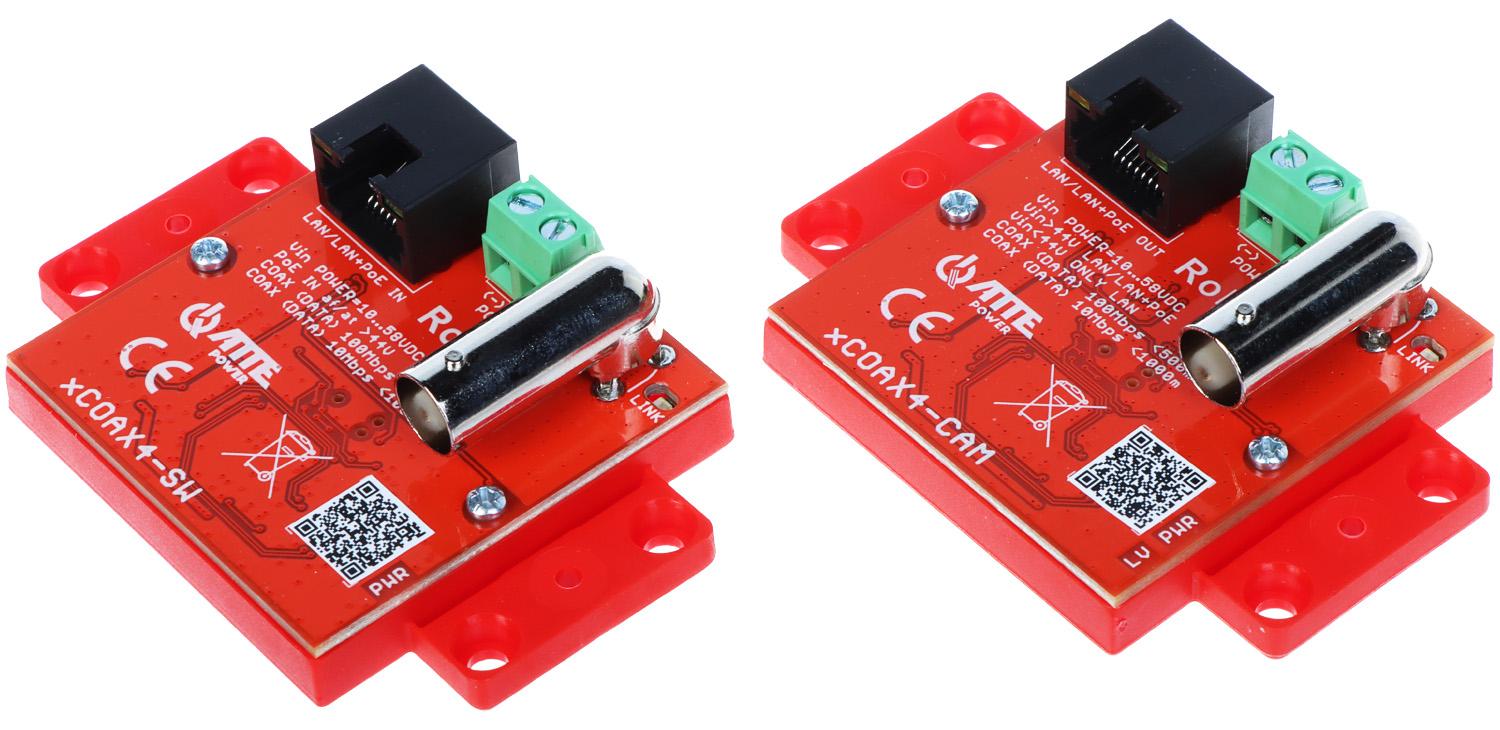

Name: UTP / coaxial converter set for LAN+POE transmission XCOAX4-SET set of 2 pcs. ATTE
Brand: Atte
SKU: XCOAX4-SET
Availability: InStock

UTP / coaxial converter set for LAN+POE transmission XCOAX4-SET set of 2 pcs. ATTE

Product code: XCOAX4-SET

EAN: 5902143691464

Delivery time: 16–20 November

Estimated Delivery Dates

126,00 €

Availability: 35

Brand: Atte

Broadcast reception area: < 1000 m @ Coaxial cable

Connectors:	1 piece RJ45 1 pc. cable clamp 1 piece BNC
LAN ports:	1 piece RJ45 100Mbps
LAN+PoE port configuration description:	xCOAX4-SW : PoE IN – Passive PoE ≤ 30 W, PoE (802.3at) ≤ 30W, PoE (802.3af) ≤ 15W (“+/-“: pini 1, 2; “+/-“: pini 3, 6) vai (“+/-“: pini 4, 5; “+/-“: pini 7, 8) xCOAX4-CAM : LAN port 10/100Mb or LAN + PoE OUT – PoE (802.3bt) ≤ 60 W, PoE (802.3at) ≤ 30W, PoE (802.3af) ≤ 15W

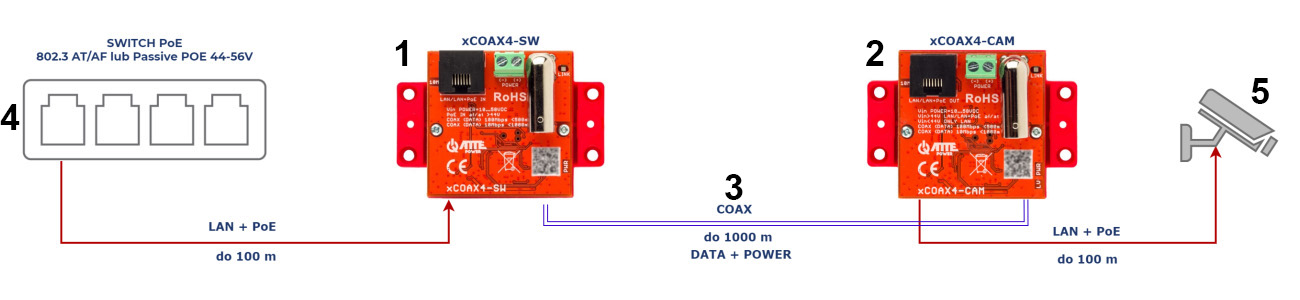

Broadcast reception area:	< 1000 m @ Coaxial cable < 100 m @ xCOAX4-SW – Switch PoE < 100 m @ xCOAX4-CAM – IP KAMERA
LED indicators:	PoE LAN Link 10Mb
Protection:	Overvoltage – LAN, BNC Short circuit – xCOAX4-SW
Selected characteristics:	Plug & Play Compatible with IP cameras and network devices Complete network transparency Watchdog function – Coaxial cable
Source of energy supply:	xCOAX4-SW : 10 … 58 V DC – cable terminal PoE 802.3af/at / PASSIVE PoE output voltage is equal to input voltage
Power consumed:	1.35 W (total)
Hull:	Plastic (PC)
Class of protection:	IP20
Operating temperature:	-25°C … 65°C
Weight:	0.033 kg (one element)
Size:	73 x 52 x 20 mm – xCOAX4-SW 73 x 52 x 20 mm – xCOAX4-CAM
Manufacturer / Brand:	ATTE
WARRANTY:	3 years
