| Standard: |
TCP/IP |
| Sensors: |
1/2.8” Progressive Scan CMOS |
| Matrix size: |
2.1 Mpx |
| Resolution: |
1920 x 1080 – 1080p 1280 x 960 – 1.3 Mpx 1280 x 720 – 720p |
| Lens: |
2.8 mm, F1.4 |
| Viewing angle: |
107 ° (ražotāja dati) 102 ° (mūsu pārbaudes) |
| Infrared illumination detection area: |
30 m |
| Image compression method: |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |

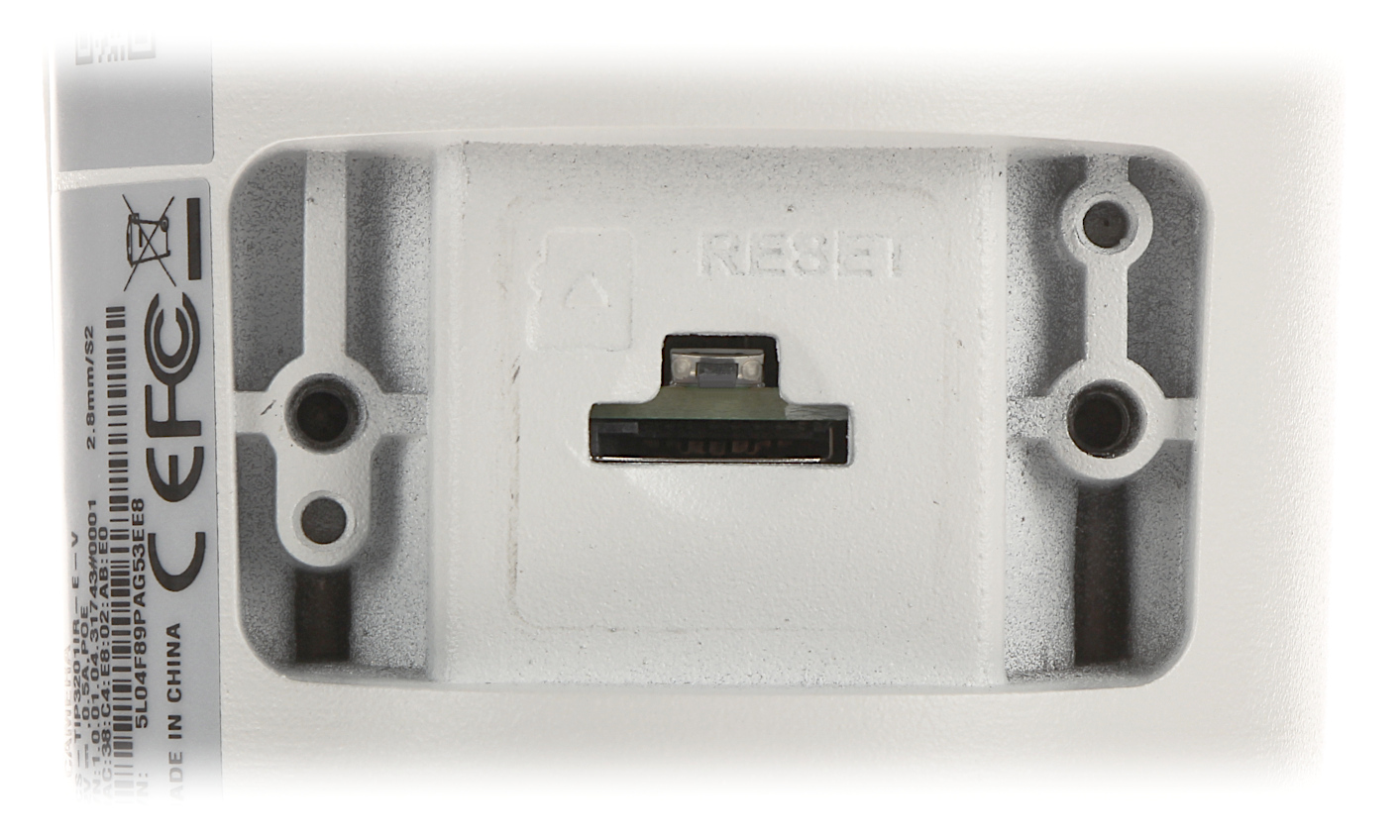

| Memory card slot: |
Supports Micro SD memory cards up to 256GB (local recording possible) |
| RS-485 interface: |
– |
| Alarm inputs/outputs: |
– |
| Audio: |
Built-in microphone Audio signal transmission over the network |
| Main stream transmission speed: |
25 frame rate @ 1080p |
| Network interface: |
10/100 Base-T (RJ-45) |
| Network protocols: |
IPv4/IPv6 , HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP |
| ONVIF: |
– |
| WEB Server: |
Built-in |
| Maximum number of online users: |
6 |
| Mobile phone access: |
Ports: 37777 vai piekļuve caur mākoni Android: Bezmaksas aplikācija BCS Manager iOS (iPhone): Bezmaksas aplikācija BCS Manager |
| Default IP address: |
192.168.1.108 |
| Default username/admin password: |
admin / – Administrator password must be set during first launch |
| Browser access ports: |
80, 37777 |
| Access ports using PC application: |
37777 |
| Access ports using the mobile application: |
37777 |
| ONVIF port: |
80 |
| RTSP URL: |
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Side stream |
| Selected features: |
WDR – 120 dB – Plašs apgaismojuma dinamikas diapazons 3D-DNR – Digitāla trokšņa redukcija BLC/HLC – fona / spēcīgas gaismas kompensācija ICR – infrasarkano staru mehāniskais filtrs Dienas/nakts režīms (color/b&w/auto) Automātisks baltā balanss AGC – Automātiska attēla pastiprinājuma regulēšana Iespēja mainīt izšķirtspēju, kvalitāti un bitu pārraidi Konfigurējamas privātuma zonas Mirror – spoguļattēls Kustības atklāšana Privātuma zona SMD PLUS – objekta meklēšana, kas tiek klasificēts kā: cilvēks, mehāniskais transportlīdzeklis IVS analizė : ielaušanās , līnijas šķēršošana – personu un transportlīdzekļu klasifikācija |
| Housing: |
Compact – Metāls |
| Colour: |
White |
| Protection class: |
IP67 |
| Anti-vandalism: |
– |
| Source of energy supply: |
PoE (802.3af), 12 V DC / 420 mA |
| Power consumption: |
≤ 5.1W |
| Operating temperature: |
-40°C … 60°C |
| Weight: |
0.47 kg |

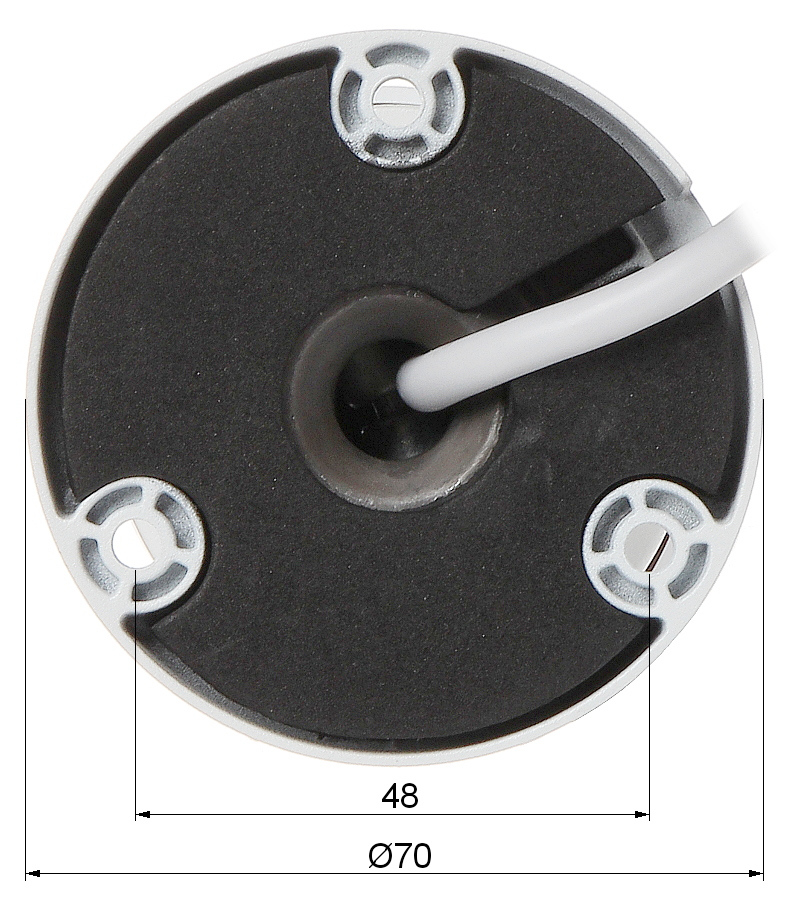

| Size: |
163 x 70 x 70 mm |
| Language selection: |
Polish, English |
| Manufacturer / Brand: |
BCS Line |
| Warranty: |
2 years |
