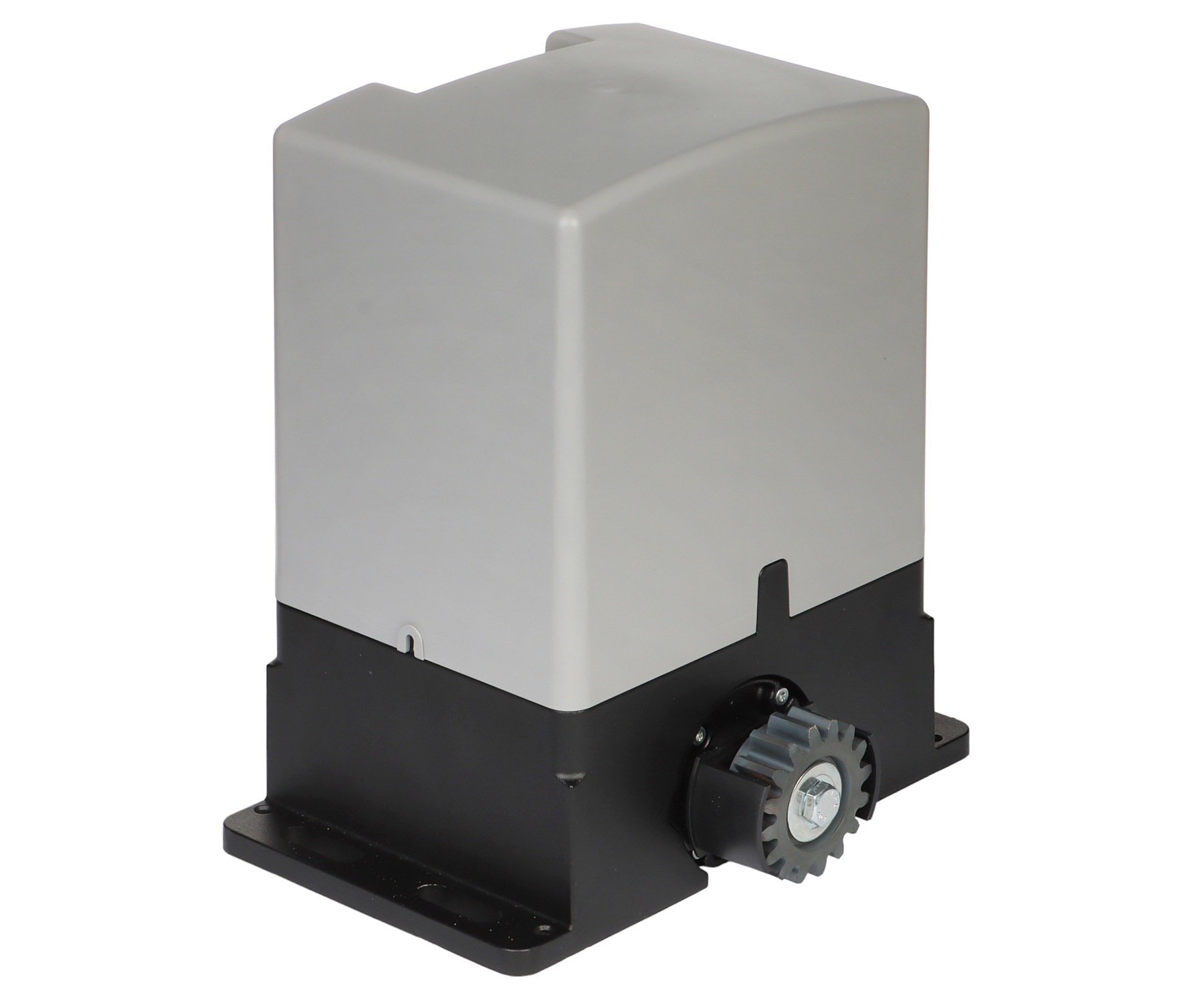

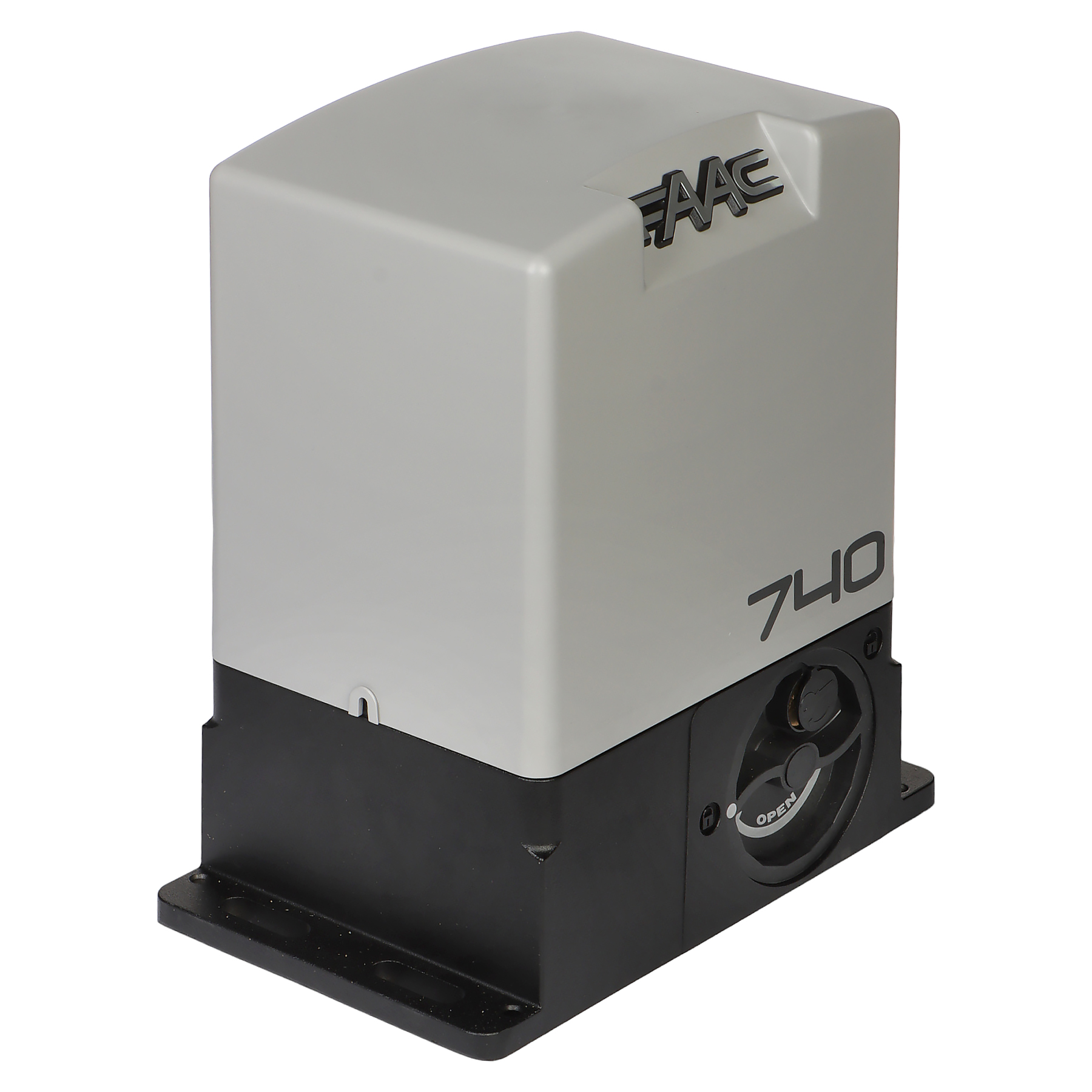

Gate drive type: Mechanical
Torque: 18 Nm (max)
Maximum gate weight: 500 kg
Maximum gate length: 15 m
Linear speed: 12 m/min (max)
Wireless transmission reception area: ≥ 50 m (in open area)
Selected characteristics: Self-locking closer

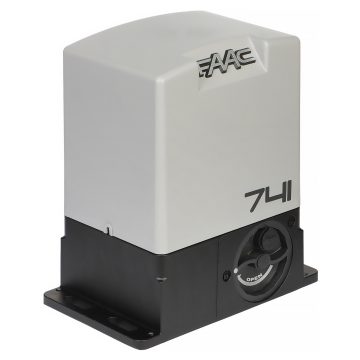

| Gate drive type: | Mechanical, For Sliding Gates – Starter Kit |
| Torque: | 18 Nm (max) |
| Maximum thrust: | 450 N |
| Engine type: | Asynchronous single-phase motor, 230 V AC |
| Maximum gate weight: | 500 kg |
| Maximum gate length: | 15 m |
| Linear speed: | 12 m/min (max) |
| Automatic gate closing: | ✓ |

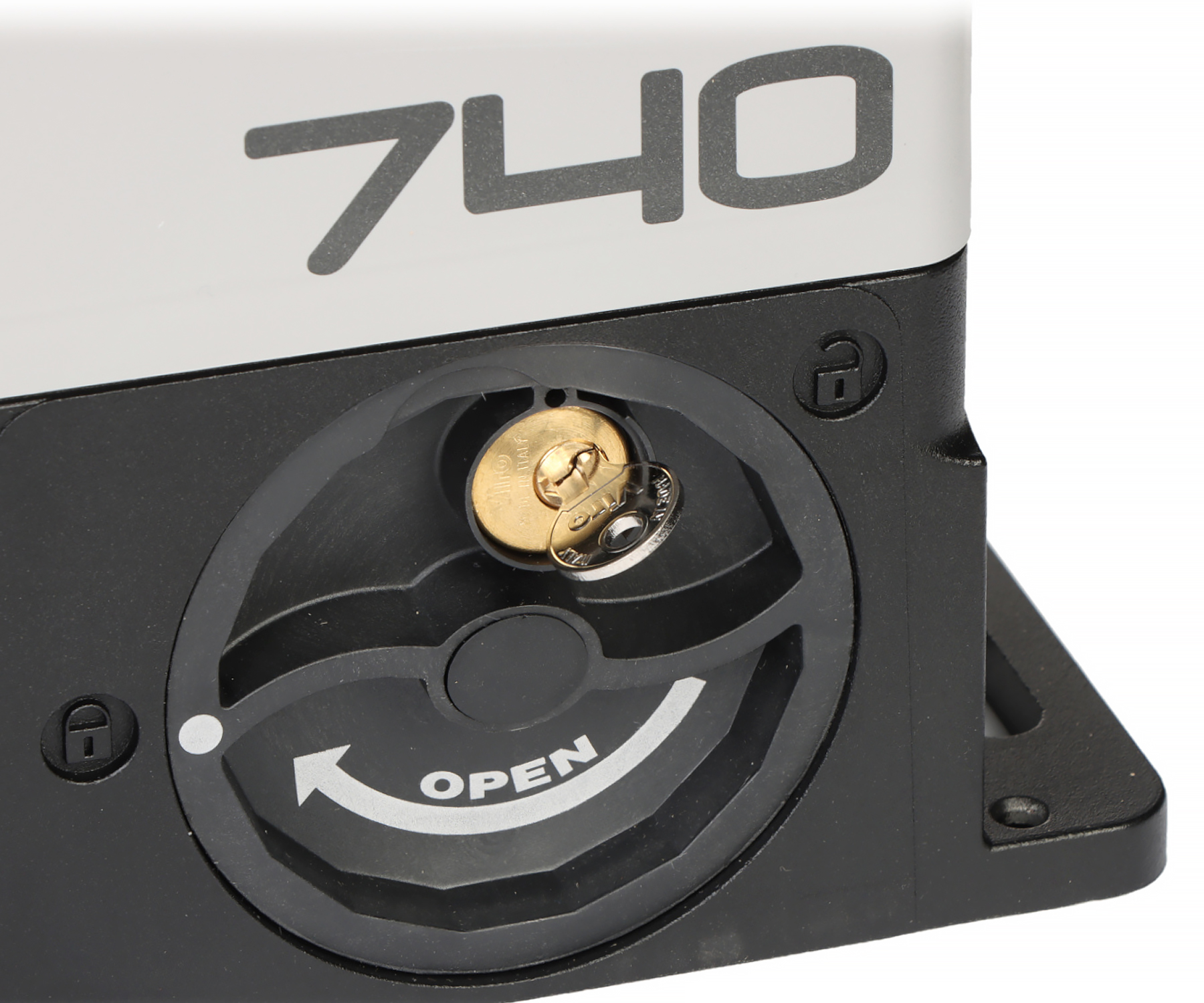

| Automatic drive lock: | ✓ |
| Limit switch: | ✓ |

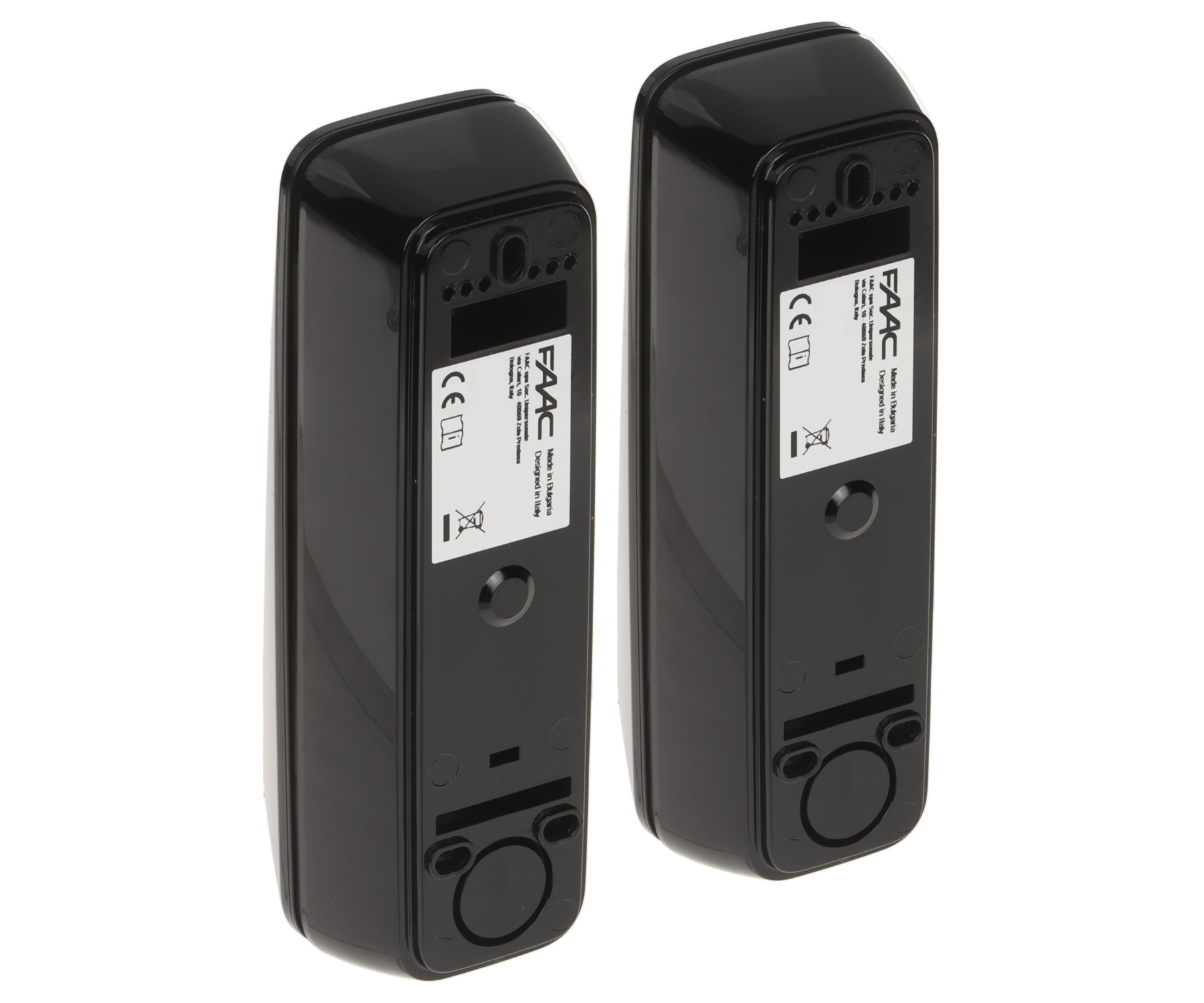

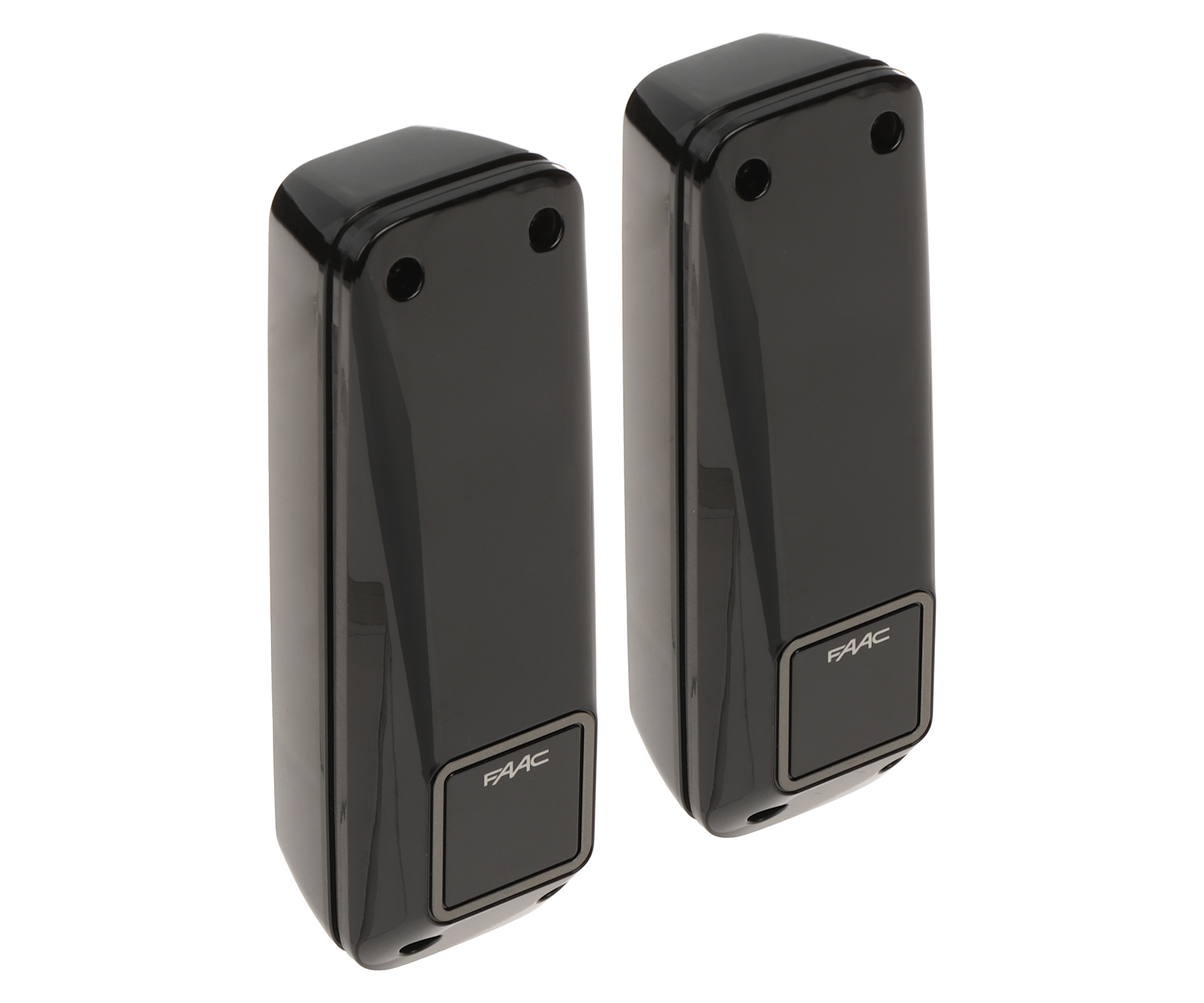

| Possibility to connect a photocell: | ✓ |
| Possibility to connect a signal lamp: | ✓ |

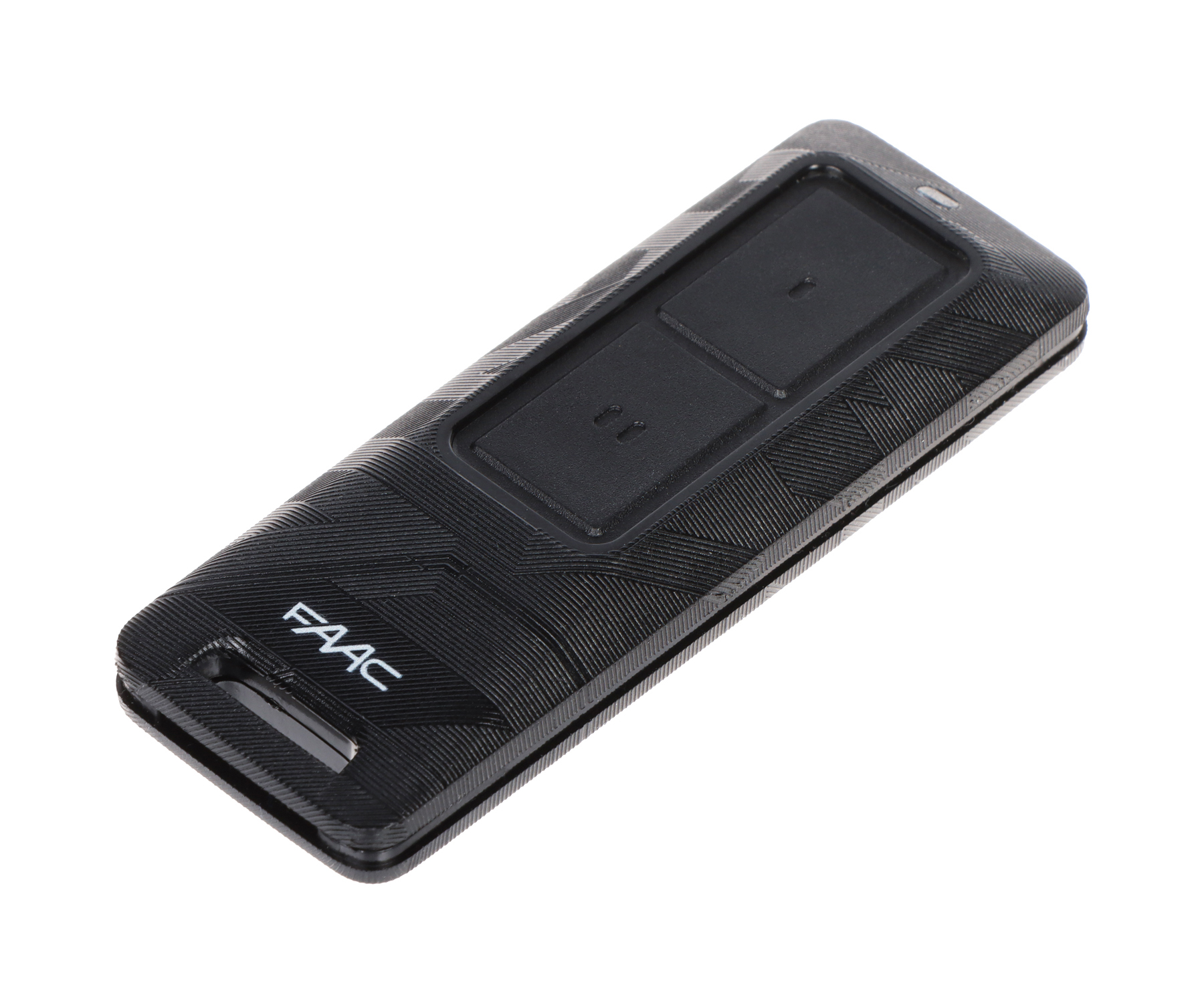

| Maximum number of programmed remote controls: | 250 Channels |
| Wireless transmission reception area: | ≥ 50 m (in open area) |

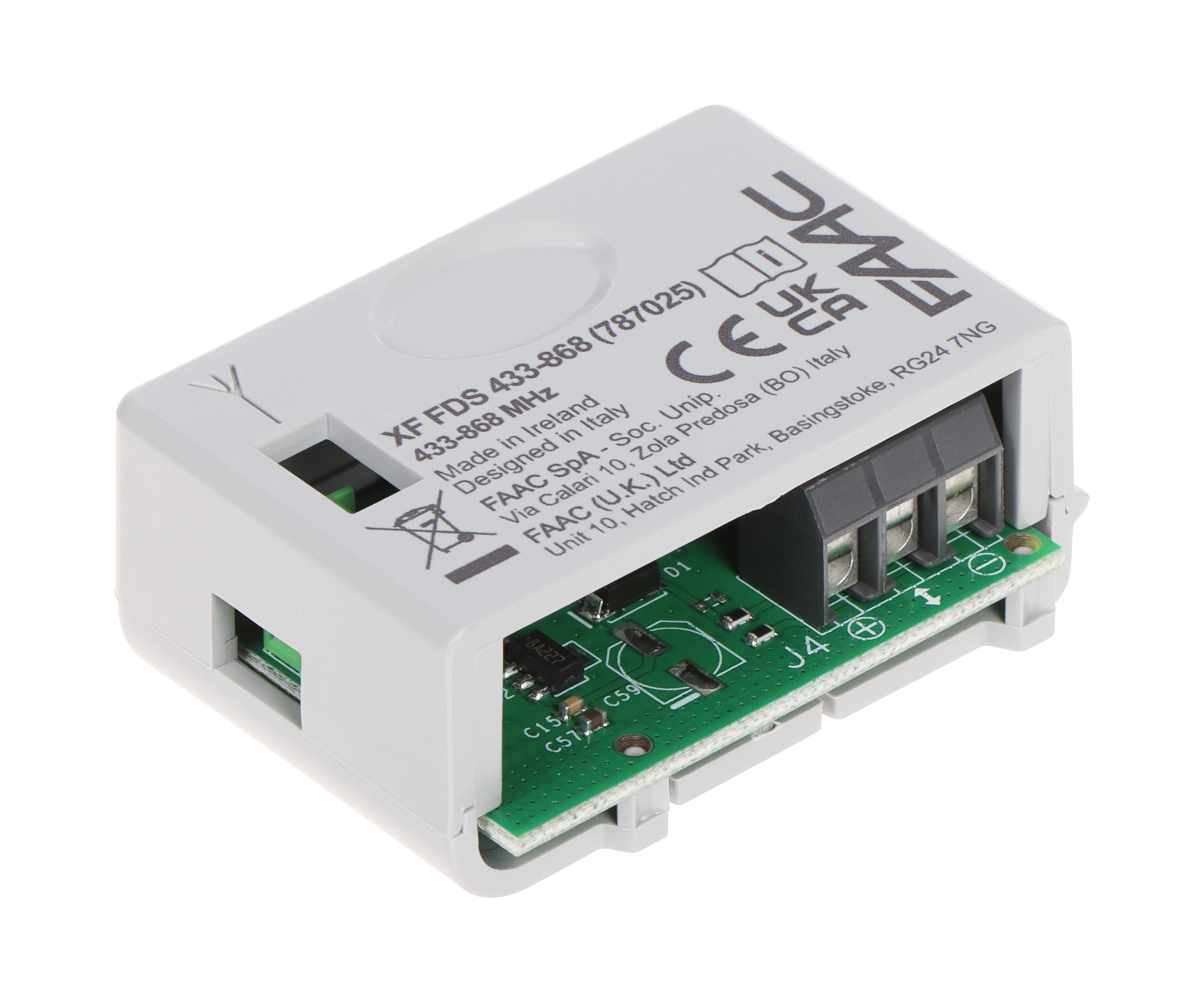

| System operating frequency band : | 433.92 / 868.35 MHz – FAAC Digital Signature sistēma |
| Selected characteristics: | Self-locking closer |
| Source of energy supply: | 220 … 240 V AC, 50 / 60 Hz |
| Hull: | Plastics |
| Class of protection: | IP44 |
| Colour: | Light gray + Black |
| Operating temperature: | -20°C … 55°C |
| Weight: | 9.25 kg |
| Size: | 295 x 181 x 320 mm |
| Manufacturer / Brand: | FAAC |
| WARRANTY: | 2 years |
