Sensors: 1/2.7” Progressive Scan CMOS; Matrix size: 8.3 Mpx 4K UHD; Resolution: 3840 x 2160, 3072 x 2048, 3072 x 1728, 2880 x 1620, 2688 x 1520, 2048 x 1536, 2304 x 1296, 1920 x 1080; Viewing angle: 111 °; Infrared illumination detection area: 30 m; LED white light range: 30 m; Memory card slot: Supports Micro SD memory cards up to 256GB (local recording possible); Image compression method: H.265+; Alarm inputs/outputs; Source of energy supply: PoE (802.3af), 12V DC;
| Standard: | TCP/IP |
| Sensors: | 1/2.7” Progressive Scan CMOS |
| Matrix size: | 8.3 Mpx 4K UHD |
| Resolution: | 3840x2160 – 8.3 Mpx 4K UHD , 3072x2048 – 6 Mpx , 3072x1728 – 5 Mpx , 2880x1620 – 4.6 Mpx , 2688x1520 – 4 Mpx , 2048x1536 – 3 Mpx , 2304x1296 – 3 Mpx , 1920 x 1080 - 1080p , 1280x960 – 1.3 Mpx , 1280x720 – 720p |
| Scanning system: | Progressive |
| Lens: | 2.8 mm |
| Angle of visibility: |
|
| Infrared illumination reception area: | 30 m |
| LED white light range: | 30 m |
| Lighting: | 0.008 Lux / F1.6 (krāsa) |
| Signal-to-sound ratio (S/N): | > 56 dB |
| RS-485 interface: | ✗ |

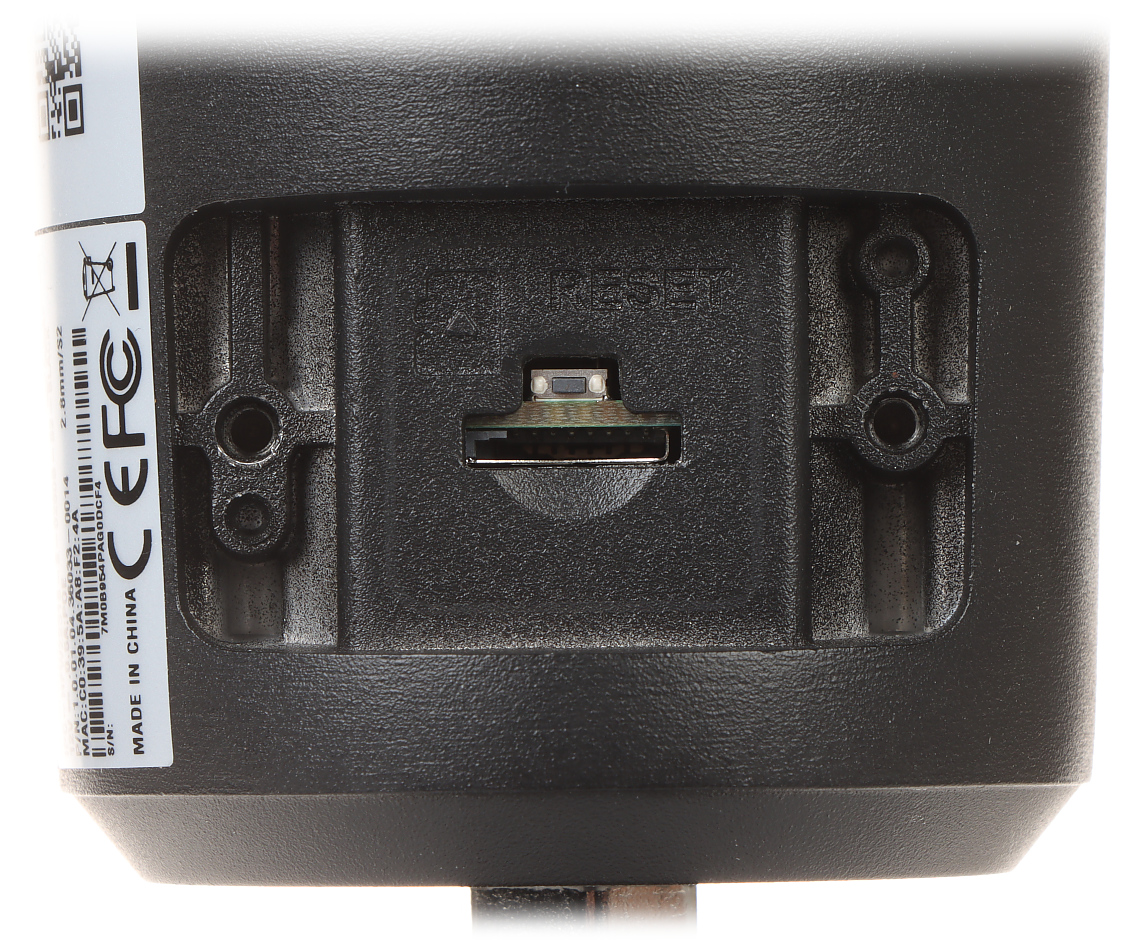

| Memory card slot: | Supports Micro SD memory cards up to 256GB (local recording possible) |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Alarm inputs/outputs: | ✗ |
| Audio: |
|
| Mainstream transmission speed: | 20 frame rate @ 8.3 Mpx 25 frame rate @ 4 Mpx |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour |
| WEB Server: | Built-in |
| Maximum number of online users: | 20 |
| ONVIF: | 21.12 |
| Mobile phone access: | Port: 37777 or access via cloud
|
| Default IP address: | 192.168.1.108 |
| Default username/admin password: | admin / – Administrator password must be set during first launch |
| Browser access ports: | 80, 37777 |
| Access ports using PC application: | 37777 |
| Access ports using the mobile application: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Sidestream |
| Selected functions: |
|
| Source of energy supply: |
|
| Power consumed: |
|
| Hull: | Compact – Metal |
| Colour: | Black |
| Class of protection: | IP67 |
| Anti-vandalism: | ✗ |
| Operating temperature: | -40°C … 60°C |
| Weight: | 0.47 kg |

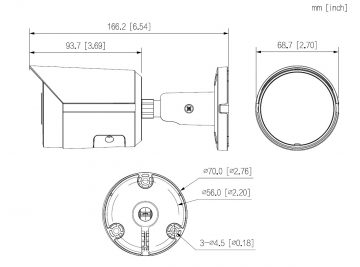

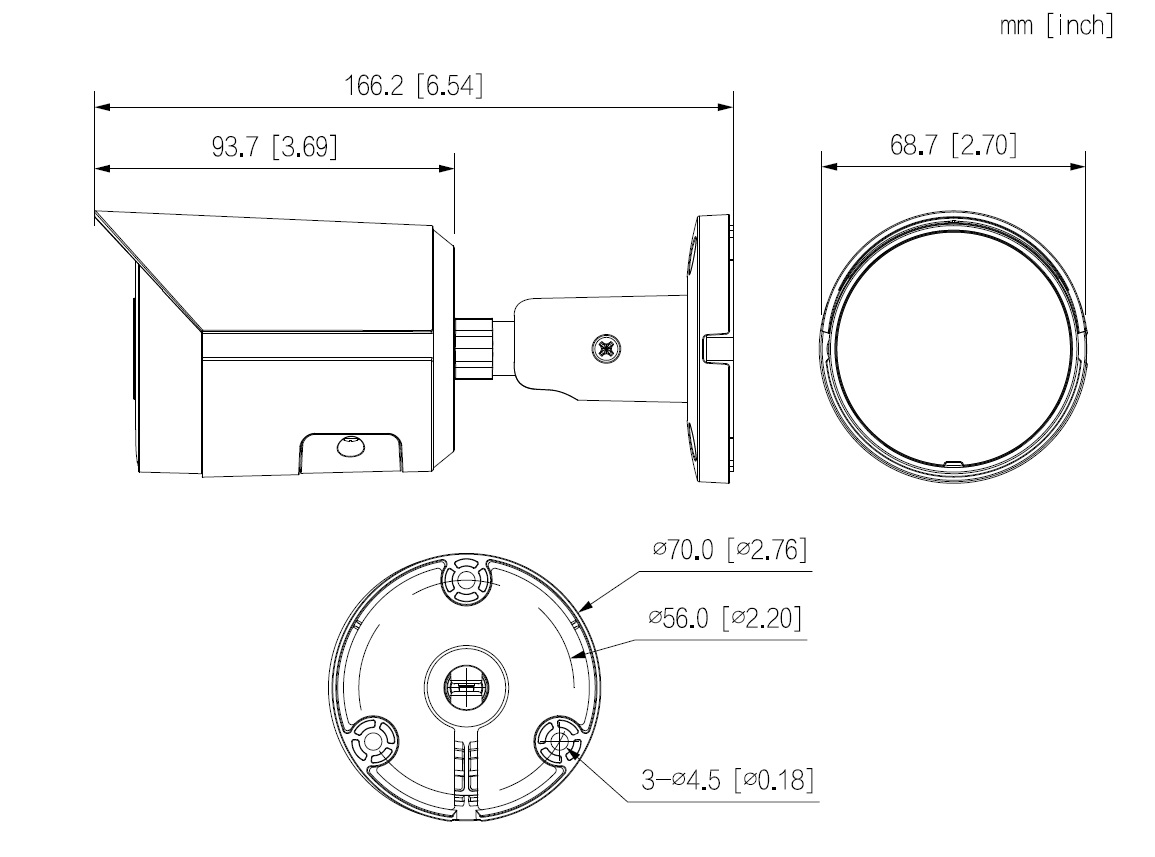

| Size: | 166 x 70 x 70 mm |
| Language selection: | Polish, English, Czech, French, Spanish, Dutch, German, Russian, Portuguese, Russian, Romanian, Turkish, Ukrainian, Hungarian, Italian |
| Manufacturer / Brand: | DAHUA |
| WARRANTY: | 3 years |
