External battery power supply system for CCTV cameras with PoE+ iCAM battery
Key features:
- External lightweight 64Ah lithium-ion battery – a powerful but very lightweight lithium battery used in military equipment, among other things.
- Battery power supply for any CCTV system Camera with PoE+ — iCAM-Battery is equipped with a PoE+ port and works with PoE+ and Hi-PoE (50W) cameras from manufacturers such as Bosch, Axis, Hikvision, Avagilon, Dahua, UNV, Vivotec, Flir, Novus, Aper and many others. Clamp port with 12V/4A DC power supply — it can be used for any electronic devices. — it can be used for any electronic devices. — it can be used for any electronic devices. — it can be used for any electronic devices. loading=”lazy” />

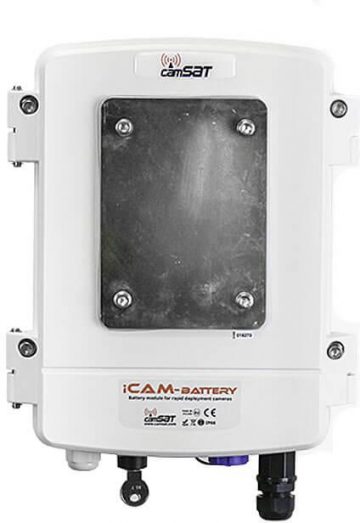

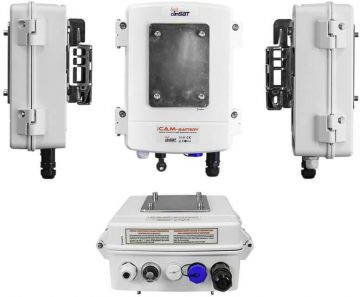

iCAM-Battery – external module for additional battery power supply (lithium-ion)
External, lightweight IP66 battery adapted to power mobile camera systems from the following series:
• iCAM-MobileHD II – increases battery life by 200% (from 24–32 hours)
• iCAM-PowerHD – increases battery life by 100% (from 48–140 hours)
• iCAM-MiniHD – provides battery power for the iCAM-MiniHD system for 24–72 hours of continuous operation.
iCAM-Battery as an additional battery power source for iCAM-PowerHD and iCAM-MobileHD II.
Powerful, yet very light a lithium battery used in military equipment, among other things. It operates in temperatures from -10 to +70°C and provides up to 5000 charge cycles with a performance reduction of only 20%. The additional battery power module for the iCAM series mobile cameras with a capacity of up to 64 Ah provides twice as long as the iCAM-PowerHD camera and up to three times longer with the iCAM-MobileHD II cameras. The module is adapted for outdoor and harsh weather conditions with a temperature range of -10 to +55 °C and IP66. It is equipped with camera-compatible quick connectors, allowing it to be mounted on a pole or facade in seconds.
iCAM-Battery iCAM is recommended for mobile cameras with options that consume more power, which can significantly extend the standard operating time, such as: IR night vision illumination option above 100-150 m, very frequent use of PTZ and scanning functions, continuous LTE transmission in areas with weak GSM signal, etc.
An important feature of iCAM-Battery is the order of use. The external battery will be used first, and only after it is discharged will it switch to the iCAM-PowerHD's internal battery. This ensures continuous operation of the camera system and only cyclical charging of the external battery.
Technical specifications:
- Charging from street lights is not possible
- Very fast charging time 9 h
- Ports 1. 1x RJ45 – LAN with PoE (50 W) (external port with IP66); 2. 1x RJ45 – LAN (internal); 3. Power: 12V DC (inside)
- 64 Ah battery (lithium-ion)
- Additional voltage Option: 34 V - 48 V DC
- Operating time On battery power for continuous 20 W load: 72 h
- Power and charging Power and charging from the desktop charger
- Battery life >5000 charge cycles
- IP66 protection class
- Dimensions 248 x 297 x 140 mm
- Weight <9,5 kg
- Additional options Cascade connection with another battery is possible for longer operating time
The additional battery power module for iCAM series mobile cameras with a capacity of up to 64 Ah provides twice the operating time of the iCAM-PowerHD camera and up to three times longer with iCAM-MobileHD II cameras. The module is adapted for outdoor and harsh weather conditions with a temperature range of -10 to +55 °C and IP66. It is equipped with camera-compatible quick connectors, making installation on a pole or facade a matter of seconds.
iCAM battery iCAM is recommended for mobile cameras with options that consume more power, which can significantly extend the standard operating time, such as: IR night vision option above 100-150 m, very frequent use of PTZ and scanning functions, continuous LTE transmission in areas with weak GSM signal, etc.
An important feature of the iCAM battery is the use order. The external battery will be used first, and only after it is discharged will it switch to the iCAM-PowerHD internal battery. This ensures continuous operation of the camera system and only cyclical charging of the external battery.
