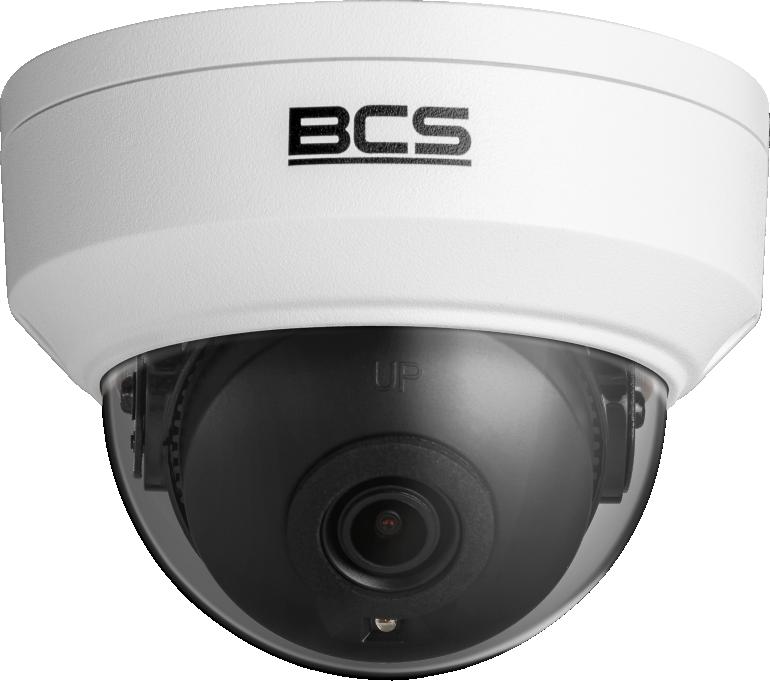

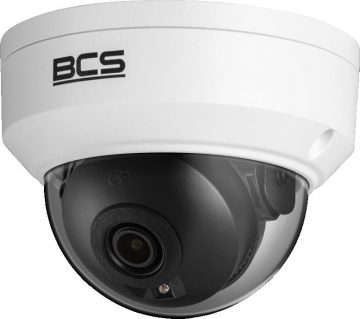

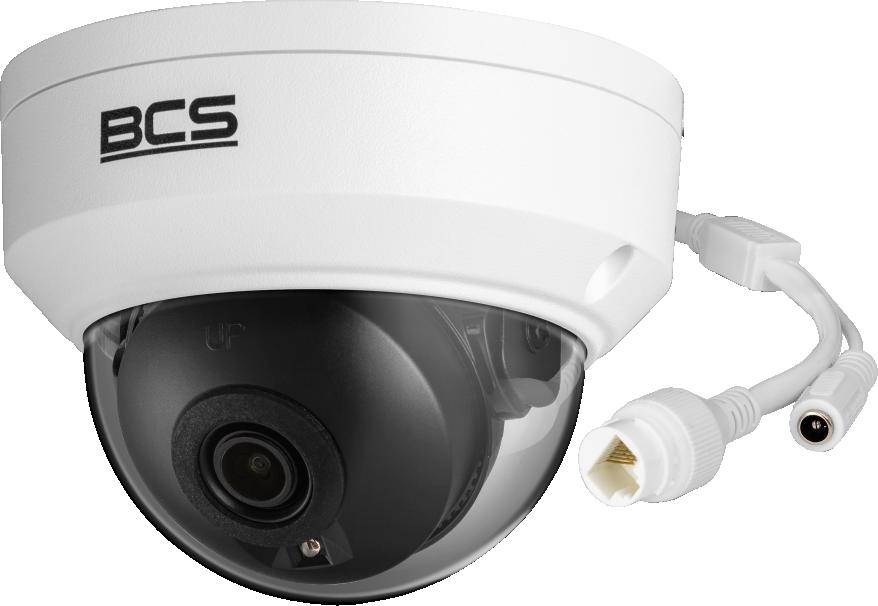

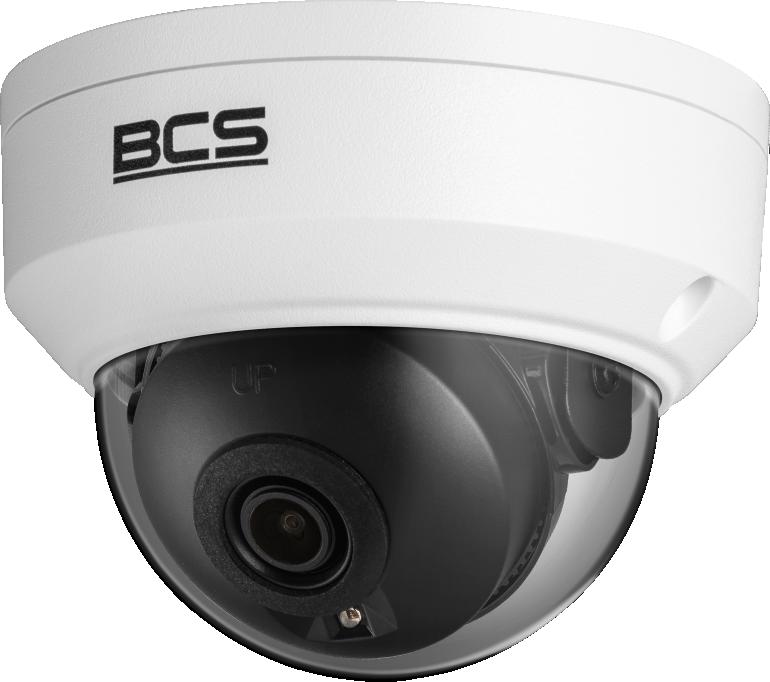

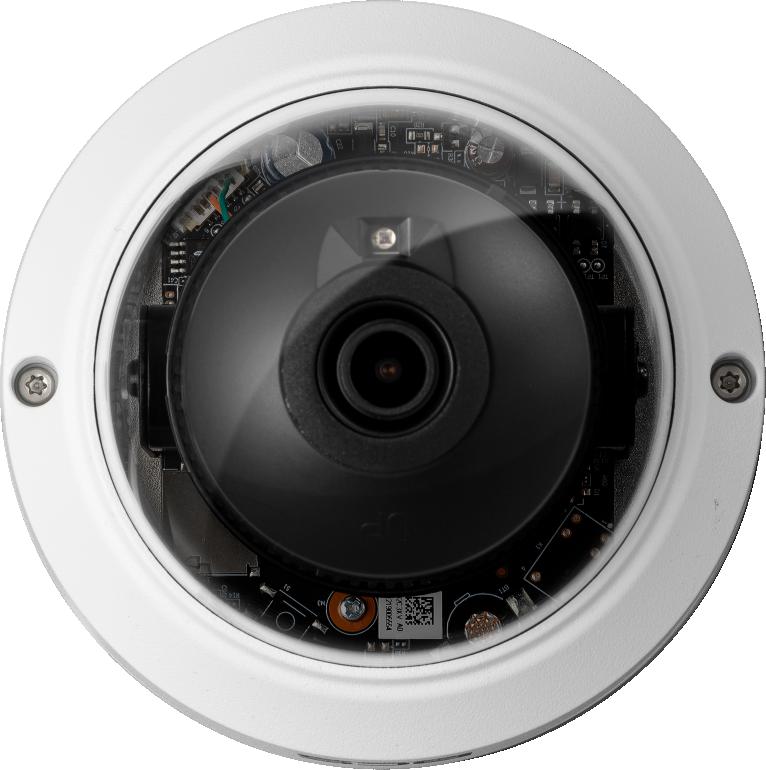

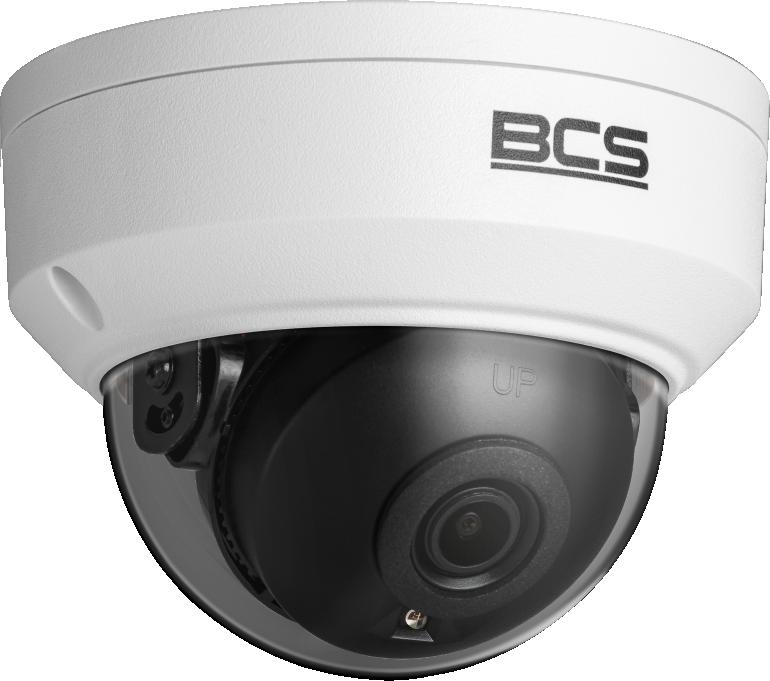

1080P BCS punktveida kupola kamera BCS-P-DIP12FWR3
Modelis: BCS-P-DIP12FWR3
Main functions
- 2Mpx kupola IP Kamera
- 1/2,7 collu PS CMOS sensors
- NDAA compliant
- 2.8mm fixed lens
- WDR120dB
- IR 30 m
- IP67, IK10 housing
Technical specifications
| Device name | BCS-P-DIP12FWR3 |
| Product line | BCS POINT |
| NDAA | |
| Type Camera | Dome |
| Resolution | |
| Sensors | 1/2.7 inch CMOS |
| Scanning system | Progressive scan |
| Pixels | 1920(H)×1080(V) |
| Lens | Fixed |
| Focal length | 2.8mm |
| Aperture | F2.0 |
| Focus | Fixed |
| Shutter | Fixed |
| Digital Zoom | 16× |
| Viewing angle | A: 112,9° Vertikāls: 59,1° |
| DORI | Atklāšana 42 m / Novērošana 17 m / Atpazīšana 8 m / Identificēšana 4 m |
| Camera sensitivity | 0,01 lukss (F2,0, AGC) 0 lukss (melnbalts,IR) |
| Signal to noise ratio | 52dB |
| White balance | (AWB) Automatic / Manual |
| WDR | 120dB |
| Backlight compensation | BLC/HLC/WDR (120dB) |
| Shutter speed | Automatic / manual 1~1/100000s |
| Gain control | (AGC) Automatic/Manual |
| Noise reduction | 2D/3D DNR |
| Attēla apgriešana | Mirror, rotation 0°/90°/180°/270° |
| Number of streams | 2 |
| Resolutions | 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288) |
| Mainstream | 1920×1080@30 kadri/s 1280×720@30 kadri/s |
| Otrā papildu straume | |
| Bit rate | 128Kbps~6144kbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/Night | ICR |
| Illuminator type | |
| Illuminator | |
| Memory card slot | microSD 128 GB |
| Support | web service, CMS BCS Manager (Windows/Linux/MAC), mobile app (iOS, Android) |
| Motion detection | 4 |
| Privacy masks | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF (S/G/T) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP |
| Power supply type | |
| Energy consumption | maks. 5 W |
| Body color | White |
| IP protection class | IP67 |
| IK10 | Yes |
| Operating conditions | -30°C~+60°C max. 95% relative humidity |
| Dimensions | Ø109×81 mm |
| Weight | 0,36 kg |
