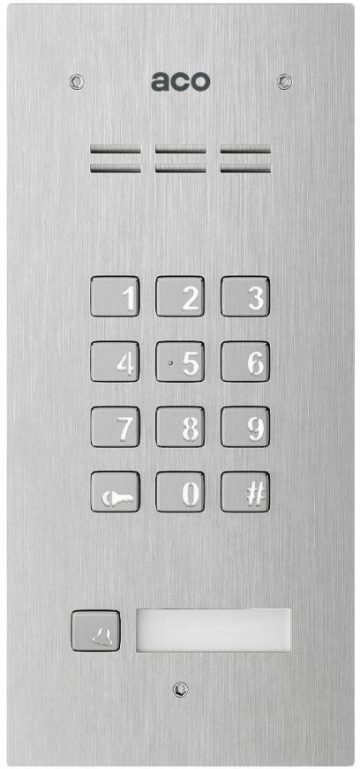

ACO COMO-PRO-CODE-A1 intercom panel COMO-PRO-CODE-A1, audio, 1 call button, code key, code key
digital with code lock, key fob reader and 1 button
The COMO-PRO-CODE series is a continuation and next generation of the well-known FAMILIO-PRO series of panels. It is not only a name change, but also a completely new design of the intercom control electronics to provide even greater reliability and capabilities of the device. The third generation of these intercoms includes support for larger (longer) installations, a larger number of subscribers, remote device management (from anywhere in the system), software updates and full management of proximity key fobs using “master” and “super master” key fobs. The panel will be constantly improved, and thanks to software updates, all new functionalities and capabilities of the panel will also be available to people who have already purchased it.
The doorphone is equipped with a code lock, a proximity key fob reader, lighting buttons, and a description field.
COMO panels are designed for single-family and multi-family homes. The combination of modern technology with brushed stainless steel creates timeless solutions designed for individual customers who value design and functionality.
-Index COMO-PRO-CODE-A1
-Description Digital, intercom proximity key reader and 1 call button
-Designed with a 2mm thick flat front panel and brushed stainless steel buttons
-Modules
- Combination lock – separate four-digit opening code for each room
- one separately illuminated call button and illuminated description field with integrated key description
<12U lauks
-Max subscribers 97×90
Flush mounting box 179x73x32
-Installation method
- Digital PRO system: min. 3 core or twisted pair cat. 5e or 6
-Line length Max 1000m
-Power supply 15V DC / 400mA
-Power consumption in standby mode ~2.5W
-Exits
2 screw connectors:
various types of CD, 1 or electrical connection N-PK relay module (contact load capacity max. 5A, e.g. electromagnetic lock, gate)
5 x screw connectors (PRO system bus connection):
- audio signal connection: “LINE”
- power supply connection: “+DC” and “-DC”
- > 1 RJ45:
- Connecting the PRO system bus
- connection of an external opening button (NO button), e.g. a doorbell button, possibility of setting an electrical activation delay of up to 25 s.
-Entrances
2 removable screw connectors:
power connection option
>
ike from a separate power source (DC or AC)
-Devices for people with disabilities
- Acoustic and optical signaling of panel functions
- automatic opening function: automatically opens the door when someone rings (the function is activated for GLASS-PRO-7/MPRO7 receivers
- possibility of connecting an additional acoustic or light device for signaling (requires PRO-I/O module connected to the system bus)
without opening the door to the connected module/s) using an additional button or e.g. remote control (requires connection to the panel terminals or optional PRO-I/O module connected to the system bus)
-Functions
- Intuitive and easy operation and configuration C)
- individually illuminated call buttons with illuminated, easily replaceable description areas
- access control – built-in proximity key fob reader, integrated with the bottom description field and support for 1020 individual opening codes and 1 administrative code (accessible via computer program)
- by default, the ability to change codes via a call, 1 code is active via a computer 10 proximity key fobs (10 for each apartment)
- two key fobs (including one “Master”) assigned to the first apartment
- the ability to use up to 10240 proximity key fobs, despite fewer physical call buttons, including 10 administrative buttons (accessible from a computer)
- only for opening keys (acoustic information) given apartment (applies to UPRO, MPRO, xPRO800, GLASS-PRO-7 receivers; possibility to disable the function from the computer)
- support for many expansion modules that increase the functionality of the system
- optional ability to select a call number using the numeric keypad (option disabled by default)
- home automation: control of external devices such as entrance gates, barriers, lighting using an access module and roller shutters that are connected to the system (optional). fob
- possibility to connect many receivers that ring simultaneously
- receiver presence detection (the panel will not ring if there is no receiver)
- possibility of safe door opening control: the electric strike is connected to an additional PRO-I/O module (relay contacts), and the panel activates the opening via the system bus, compatible with PRO 3.
- COMO-PRO-CODE panels:
- up to 4 panels in one system (no additional module required)
- adding and removing proximity tags using the “master” tag (for each apartment separately) and the “super master” tag (for all apartments)
- programming settings and software updates via system bus (PRO-USB is required for all device groups 2.li). device management
- the ability to manage devices and update them in a running system
- one software to operate all devices: PRO 3 Manager
digital devices.
