Name: ACO INSPIRO 15+ (G2)
SKU: 52535
Availability: OutOfStock

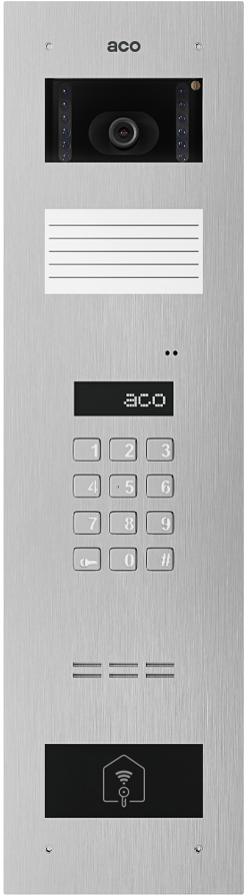

ACO INSPIRO 15+ (G2)

INSPIRO 15+ Digitālais videoieejas tālrunis ar kodu atslēgu, nelielu aprakstu sarakstu un tuvuma nolasītāju

.Inspiro series

isa modern and stylish solution designed for apartment buildings. Inspiro intercoms are characterized by a wide range of functions and excellent resistance to changing weather conditions.

The Inspiro line panels aredesigned for large apartment buildings where it is necessary to implement modern master/controller apartment systems.

There are devices that offer many features that greatly facilitate the configuration of the intercom system and its daily use.

Minimalist design, top quality steel, precise workmanship, reliability and versatility makes Inspiro panels popular with both installers and users.

Main parameters:

weather and vandal resistant
it is possible to set a 6-digit room number
pieejamie kodi: 1020 īrnieks (4 ciparu), 5 administrators (4 vai 6 ciparu), 1 uzstādītājs (8 ciparu)
programmable entry on the main display (maximum 30 characters). characters)
adjustable max. call time (40-120 seconds)
supports multiple expansion modules to increase system functionality
supports multiple input Master/Slave/Multimaster systems

for operation in 1020 rooms, additional SW4S-DIN module required
opening of an electric door opener or additional relay output without conversation (CDN-I/O)
home automation: control of external devices, e.g. gates, barriers, lighting, blinds, using a code lock, key fob, receiver.
operation of various types of electric door openers and electromagnetic jump devices

Inspiro 15+ specifikācija

.Plakans 2 mm priekšējais panelis un aizmugures izgaismotas matēta nerūsējošā tērauda pogas

Display

.- automatic or remote (with a button) door opening without answering the call and the possibility of adding an additional acoustic or light signaling device (CDN-U)

.td>

).- adjustable number of openings during a call (1-3)

Description	.Digitālais videoieejas tālrunis ar kombinēto slēdzeni, nelielu aprakstu sarakstu un tuvuma nolasītāju
Sastāvs
Modules	Camera:
		– augstas izšķirtspējas krāsu (min.600 augsta izšķirtspēja (min. 600 rindu) ar 2,8 mm platleņķa objektīvu
		– horizontāli regulējama kameras pozīcija kameras virziena virzienā	.- horizontāli regulējama kamera skata virzienā
		.- infrasarkanais LED apgaismojums
	– perfekts attēls gan dienā, gan naktī
./td>
	5N – neliels izgaismots aprakstošā saraksta modulis
	/td>
	Koda slēdzene – individuāls četru ciparu atvēršanas kods katrai telpai
	.ACC – unikāls 125 kHz bezkontakta nolasītājs
	LCD (heated)
Max. Number of subscribers	1020 units
Assembly method	Under-surface installation
	Natynkowy (dodatkowa puszka montowa INS-P-XL NT)
Dimensions (mm)	Panel 111×412
			Description field 73×39
.	Graduation box 92x393x31.5
Type of exhibition	Digitālā: vītā pāra kat. 5e vai6
Line length	Max. 1000 m
Source of supply	15 V līdzstrāva / 300 mA
.Gaidīšanas režīma enerģijas patēriņš	~ 1,35 W
Exits	2 x “ELOCK” screw connectors:
		– traditional connection (max. 1A) or version (max. 0.5A) or relay module CDN-PK (max. 5 A)
		2 x screw connectors
		– audio signal connection: “LINE+” and “LINE- (GND)”
	2 x screw connectors
2 x screw connectors/td>
	– connection of the second relay output (OUTPUT): “N” and “NO” (max. 2A, 30 VDC) – Master only
Entrances	-4 x screw connectors:
	– power supply connection: fixed “+DC” and “GND”
	1 x “INPUT” screw connector:
	1 x screw connector:
	– audio signal connection from the top panel (Master Line): “ML+” (slave only)
	2 x “EXTMOD” socket for connecting additional modules
	2 x “EXTMOD” socket for connecting additional modules.

Izstrādājumi cilvēkiem ar īpašām vajadzībām	– illuminated keyboard keys, optionally compatible with Braille
.	– acoustic and optical signaling of panel functions

Features	.- odorny nawarunki atmosferyczne orazakty vandalizmu
	– possibility to set a 6-digit extension number	– possibility to set a 6-digit extension number

		– 4 different code tables
		– available codes: 1020 tenant (4 digits),
	5 administrator (4 or 6 digits), 1 installer (8 digits)
		5 administrator (4 or 6 digits), 1 installer (8 digits)/td>
	– programmable entry on the main display (max. 30 symbols)
	– support for up to 6144 zoom elements
	– any number of proximity elements assigned to each room from a set of 6144 elements
	– any number of proximity elements assigned to each room from 6144
	– any number of administrator and installer access proximity elements
		– any number of approximation elements/td>
	– adjustable max. call time (40-120 seconds)
	– support for multiple expansion modules that increase system functionality
		– increasing system functionality
		– support for multiple input Master/Slave/Multimaster systems
	– to support 1020 rooms, an additional SW4S-DIN module is required
		.- opening of the electric door opener or additional relay output without conversation (CDN-I/O)
	– home automation: control of external devices, e.g. Home automation: control of external devices, e.g. gates, barriers, lighting, shutters, using a code lock, key fob, receiver. Also without an active connection: .
	– enable or disable access to control external devices separately for each room
– possibility to connect multiple receivers under one number using active receivers
	.- extensive options to individually configure settings for each room
	– intuitive and easy to use and configure	– intuitive and easy to use and configure	.
	– possibility of changing call range groups
	.- possibility of changing call number groups
	– possibility to set up to 8 numbers that can be called without a call
	– automatic opening function for each room
	– corridor opening function	– corridor opening function

	– possibility to enter any max. possibility to enter any text of up to 6 characters on the display during a porter call
	– adjustable number of times opened during a call (/ /td>

	– operation of electric openings and solenoid calls
	– operation of electric openings and solenoid calls
	different types
	.- 8 priority additional numbers with individual calling parameter settings
		./td>	– call forwarding to additional numbers
		.td>- programming from the computer level without an external power supply
	.- programming from PBX and computer via USB cable
	.- free software available on the “download” website”
	– compatible with all digital devices in the group: CDN, Inspiro and Familio P/PV
