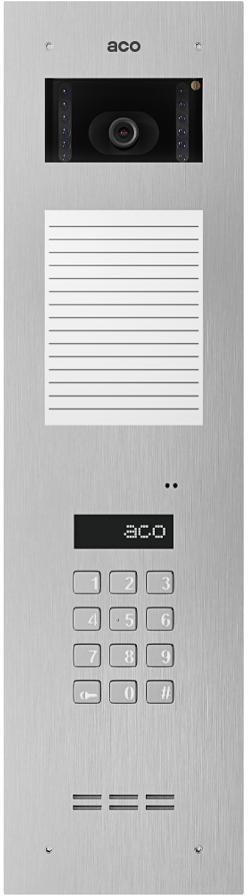

ACO INSPIRO 16+ (G2)

Name: ACO INSPIRO 16+ (G2)
SKU: 52536
Availability: OutOfStock

Preces kods: 52536

Piegādes laiks: 20-22 Aprīlī

Estimated Delivery Dates

423,03 €

Availability: 0

Apraksts
Additional information

ACO INSPIRO 16+ (G2)

Inspiro sērija

isa modern and stylish solution designed for apartment buildings. Inspirro domofonus raksturo a wide range of functions and excellent resistance to changing weather conditions.

The Inspiro line panels aredesigned for large apartment buildings where it is necessary to implement modern master/controller apartment systems.

There are devices that offer many features that greatly facilitate the configuration of the intercom system and its daily use.

Minimalist design, top quality steel, precise workmanship, reliability and versatility makes Inspiro panels popular with both installers and users.

Main parameters:

weather and vandal resistant
it is possible to set a 6-digit room number
pieejamie kodi: 1020 īrnieks (4 ciparu), 5 administrators (4 vai 6 ciparu), 1 uzstādītājs (8 ciparu)
programmable entry on the main display (maximum 30 characters). characters)
adjustable max. call time (40-120 seconds)
supports multiple expansion modules to increase system functionality
supports multiple input Master/Slave/Multimaster systems

for operation in 1020 rooms, additional SW4S-DIN module required
opening of an electric door opener or additional relay output without conversation (CDN-I/O)
home automation: control of external devices, e.g. gates, barriers, lighting, blinds, using a code lock, key fob, receiver.
operation of various types of electric door openers and electromagnetic jump devices

Inspiro 16+ G2 specifikācija

.td>

.- automatic or remote (with a button) door opening without answering the call and the possibility of adding an additional acoustic or light signaling device (CDN-U)

.td>

).- adjustable number of openings during a call (1-3)

Description	.Digitālais videoieejas tālrunis ar kombinēto slēdzeni un vidējo aprakstu sarakstu
Design	.2 mm plakans priekšējais panelis un aizmugures izgaismotas matēta nerūsējošā tērauda pogas
Modules	Camera:
		– augstas izšķirtspējas krāsu (min.600 līniju) ar 2,8 mm platleņķa objektīvu
	– horizontāli regulējama kameras skata pozīcija
.	– infrasarkanais LED apgaismojums
	– perfekts attēls gan dienā, gan naktī
	6N – vidējais modulis izgaismotam aprakstošajam sarakstam
		Koda slēdzene – individuāls četru ciparu atvēršanas kods katrai telpai

Display	LCD (heated)
Max. Number of subscribers	1020 units
Assembly method	Under-surface installation
	Natynkowy (dodatkowa puszka montowa INS-P-XL NT)
Dimensions (mm)	Panel 111×412
			Apraksta lauks 73×99,5
Lodziņš iebūvējamai montāžai 92x393x31,5
Type of exhibition	Digitālais: vītā pāra kat. 5e vai6
Line length	Max. 1000 m
Source of supply	15 V līdzstrāva / 240 mA
.Gaidīšanas režīma enerģijas patēriņš	~ 0,7 W
Exits	2 x “ELOCK” screw connectors:
		– traditional connection (max. 1A) or version (max. 0.5A) or relay module CDN-PK (max. 5 A)
		2 x screw connectors
		– audio signal connection: “LINE+” and “LINE- (GND)”
	2 x screw connectors
2 x screw connectors/td>
	– connection of the second relay output (OUTPUT): “N” and “NO” (max. 2A, 30 VDC) – Master only
Entrances	-4 x screw connectors:
	– power supply connection: fixed “+DC” and “GND”
	1 x “INPUT” screw connector:
	1 x screw connector:
	– audio signal connection from the top panel (Master Line): “ML+” (slave only)
	2 x “EXTMOD” socket for connecting additional modules
	2 x “EXTMOD” socket for connecting additional modules.

Accessibility for people with disabilities	– illuminated keyboard keys, optionally compatible with Braille
.	– acoustic and optical signaling of panel functions

Features	.- odorny nawarunki atmosferyczne orazakty vandalizmu
	– possibility to set a 6-digit extension number	– possibility to set a 6-digit extension number

		– 4 different code tables
		– available codes: 1020 tenant (4 digits),
	5 administrator (4 or 6 digits), 1 installer (8 digits)
		5 administrator (4 or 6 digits), 1 installer (8 digits)/td>
	– programmējams ieraksts galvenajā displejā (maks.30 zīmes)
	– adjustable max. call time (40-120 seconds)
	– support for multiple expansion modules that increase system functionality
		– support for multiple expansion modules that increase system functionality
	– atbalsts vairāku ieeju Master/Slave/Multimaster sistēmām
	– papildu SW4S-DIN modulis, kas nepieciešams 1020 telpu atbalstam
		.- Elektriskā durvju atvērēja atvēršana vai papildu releja izeja bez sarunas (CDN-I/O)
	– home automation: control of external devices, e.g. Home automation: control of external devices, e.g. gates, barriers, lighting, shutters, using a code lock, key fob, receiver. Also without an active connection: .
	– enable or disable access to control external devices separately for each room
– possibility to connect multiple receivers under one number using active receivers
	.- extensive options to individually configure settings for each room
	– intuitive and easy to use and configure	– intuitive and easy to use and configure	./td>
	– corridor opening function
	– izsaukumu diapazona grupu maiņas iespēja	– izsaukumu diapazona grupu maiņas iespēja	– izsaukumu diapazona maiņas iespēja/td>
	– izsaukumu numuru grupu maiņas iespēja
	.- possibility to set up to 8 numbers for which there is an option of ringing without a call
	– auto-answer function for each premise<
	– portera funkcija
	– iespēja ievadīt jebkuru max. iespēja ievadīt jebkuru ne vairāk kā 6 zīmju tekstu uz displeja portera izsaukuma laikā
	– adjustable number of times opened during a call (/ /td>

	– operation of electric openings and solenoid calls
	– operation of electric openings and solenoid calls
	different types
	.- 8 priority additional numbers with individual calling parameter settings
		./td>	– call forwarding to additional numbers
		.td>- programming from the computer level without an external power supply
	.- programming from PBX and computer via USB cable
	.- free software available on the “download” website”
	– compatible with all digital devices in the group: CDN, Inspiro and Familio P/PV
