Audio input: 4 gab. CINCH, 4 gab. BNC, Coaxial audio – Audio no kamerām </span>;>Image compression method: H.265 Pro+ </span>;>Recorded image resolution: HD-TVI / HD-CVI : 8 Mpx, 8M-N, HD-TVI : 5 Mpx (3K), 3 Mpx, HD-TVI / HD-CVI / AHD : 5 Mpx, 3.7 Mpx, IP : max. 8 Mpx </span>;>Supported hard drives: 2 x 10TB SATA </span>;>Alarm inputs/outputs: 8 / 4 </span>;>Intelligent image analysis</span>;
<table>
Standard:
AHD, HD-CVI, HD-TVI, CVBS, IP
Video inputs:
8 pcs. BNC - AHD / HD-CVI / HD-TVI / CVBS
Video outputs:
Audio input:
Audio output:
1 piece CINCH
Image compression method:
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Recorded image resolution:
8 Mpx – 3840 x 2160 px ,
8M-N – 1920 x 2160 px ,
5 Mpx (3K) – 2960 x 1665 px ,
3 Mpx – 1920 x 1536 px ,
5 Mpx – 2560 x 1944 px ,
3.7 Mpx – 2560 x 1440 px ,
1080p – 1920 x 1080 px ,
720p – 1280 x 720 px ,
960H – 960 x 576 px ,
max. 8 Mpx – 3840 x 2160 px
Recording speed adjustment:
8 Mpx IP @ 1 … 25 frame rate
8 Mpx @ 1 … 8 frame rate
8M-N @ 1 … 15 frame rate
5 Mpx (3K) @ 1 … 12 frame rate
5 Mpx @ 1 … 12 frame rate
3.7 Mpx @ 1 … 15 frame rate
3 Mpx @ 1 … 18 frame rate
1080p @ 1 … 25 frame rate
720p @ 1 … 25 frame rate
960H @ 1 … 25 frame rate
for each of the channels
Working mode:
8 times HD-TVI / AHD / HD-CVI / CVBS / IP + 8 x IP
Recording modes:
Manual, sensor, motion detection, schedule
Supported hard drives:
2 x 10TB SATA
Backups on external media:
Backup to USB (pendrive, external drive)
Searching and playing recordings:
Ierakstu meklēšana laika līnijā vai failu sarakstā: atskaņošana uz priekšu, ātrāk, lēnāk.
Plays recordings from up to 8 cameras simultaneously
Smart Search funkcija
Network interface:
1 x RJ-45 – 10/100/1000 Base-T
Network features:
Commercial client software and IE browser: live broadcast, playback and archiving of recordings, partial configuration of digital video recorder parameters
64 on-line lietotāji
ONVIF atbilstība
Mobile phone access:
Port: 8000 or access via cloud
USB:
2 pcs. USB 2.0
Regular ports:
RS-485
Alarm inputs/outputs:
8 / 4
PTZ head rotation control:
RS-485 PELCO-D/P
Vadība saderīga ar coax HD-TVI Hikvision
Motion detection:
2.0
Intelligent image analysis:
Selected functions:
Mouse crew:
IR remote control included:
Source of energy supply:
48V DC / 2.5 A (power adapter included)
Power consumed:
≤ 15 W (without HDD)
Colour:
Black
Weight:
1.97 kg
Size:
385 x 326 x 52 mm
Language selection:
poļu, angļu, bulgāru, horvātu, čehu, dāņu, igauņu, grieķu, spāņu, Holandiešu, vācu, norvēģu, portugāļu, krievu, rumāņu, serbu, slovāku, slovēņu, zviedru, turku, ungāru, itāļu
Manufacturer / Brand:
Hikvision
SAP Code:
300227801
WARRANTY:
3 years

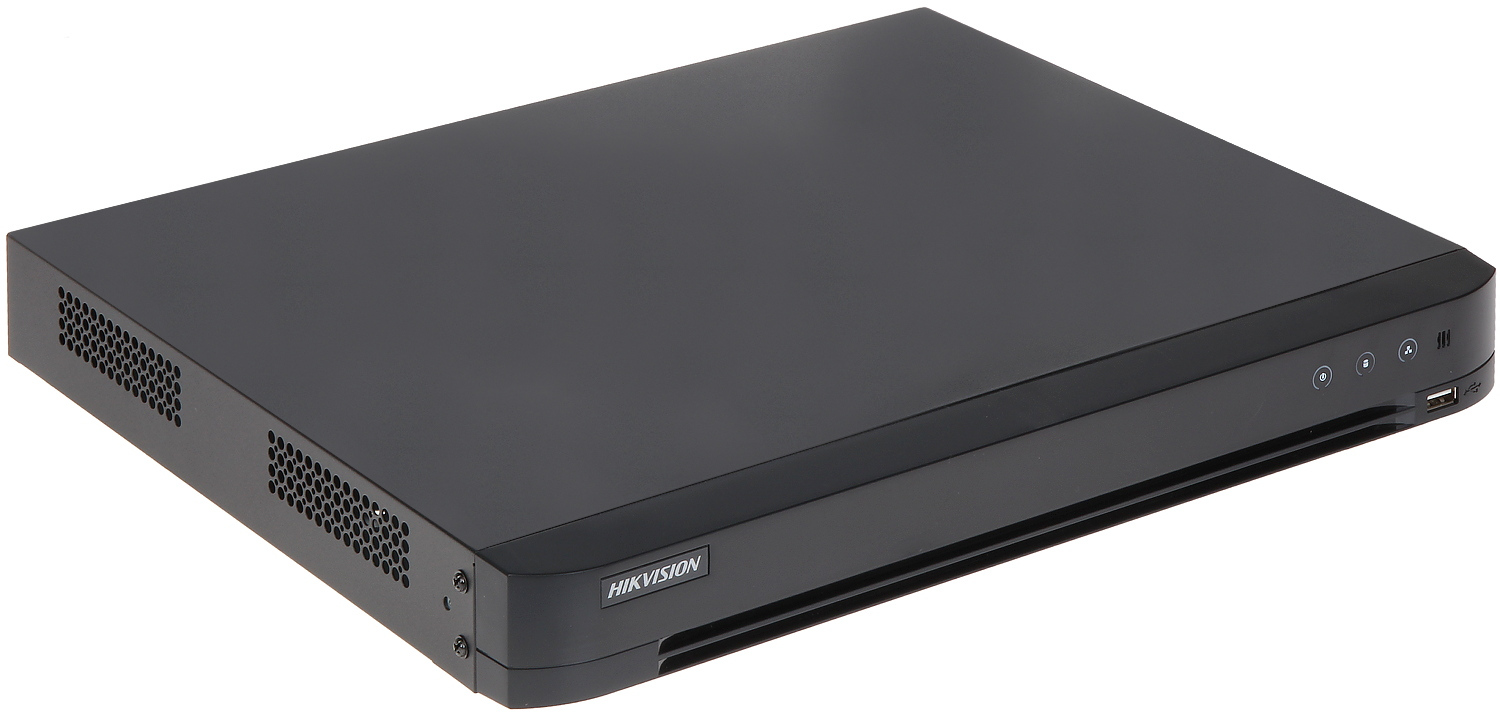

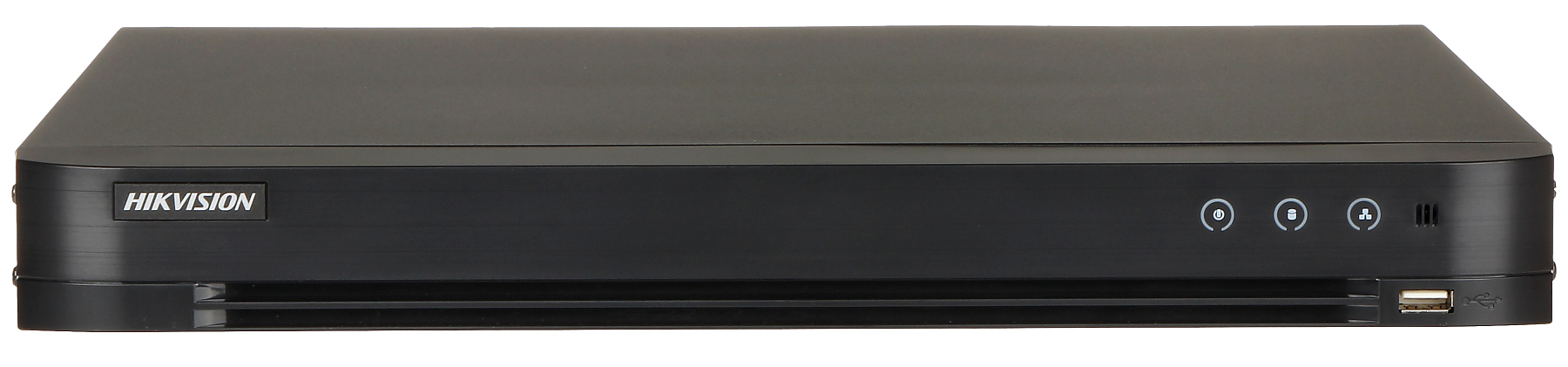

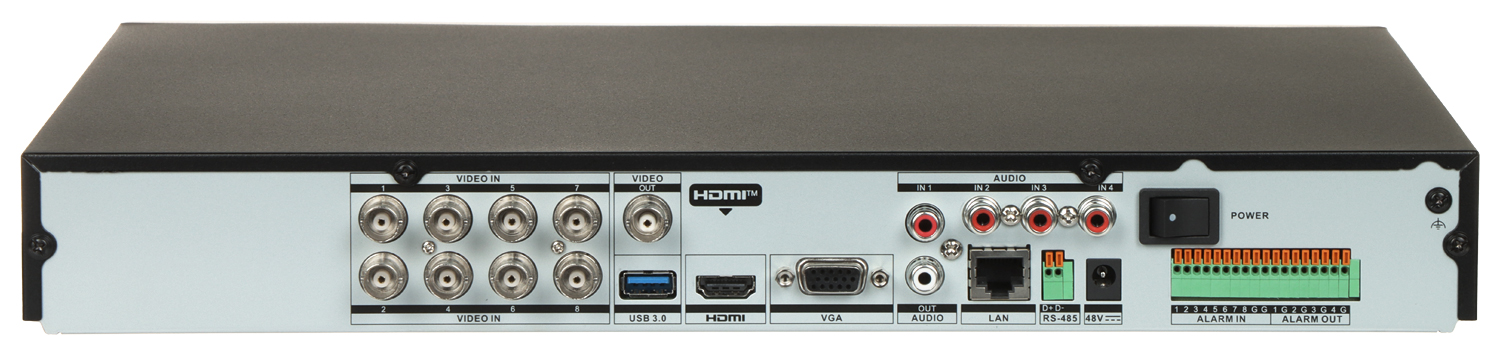

AHD, HD-CVI, HD-TVI, CVBS, IP REJESTRATORS IDS-7208HUHI-M2/P(C)/4A+8/4ALM 8 KANĀLI AcuSense PoC Hikvision
Estimated Delivery Dates
308,36 €
Availability: 1
Additional information
| Svars | 3,2600 kg |
|---|---|
| Dimensions | 435 × 135 × 390 cm |
