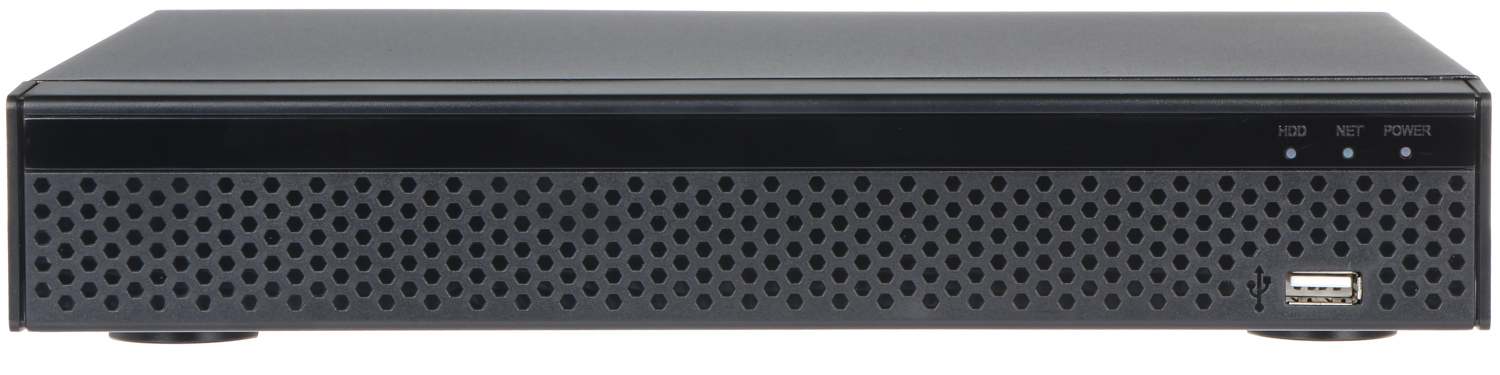

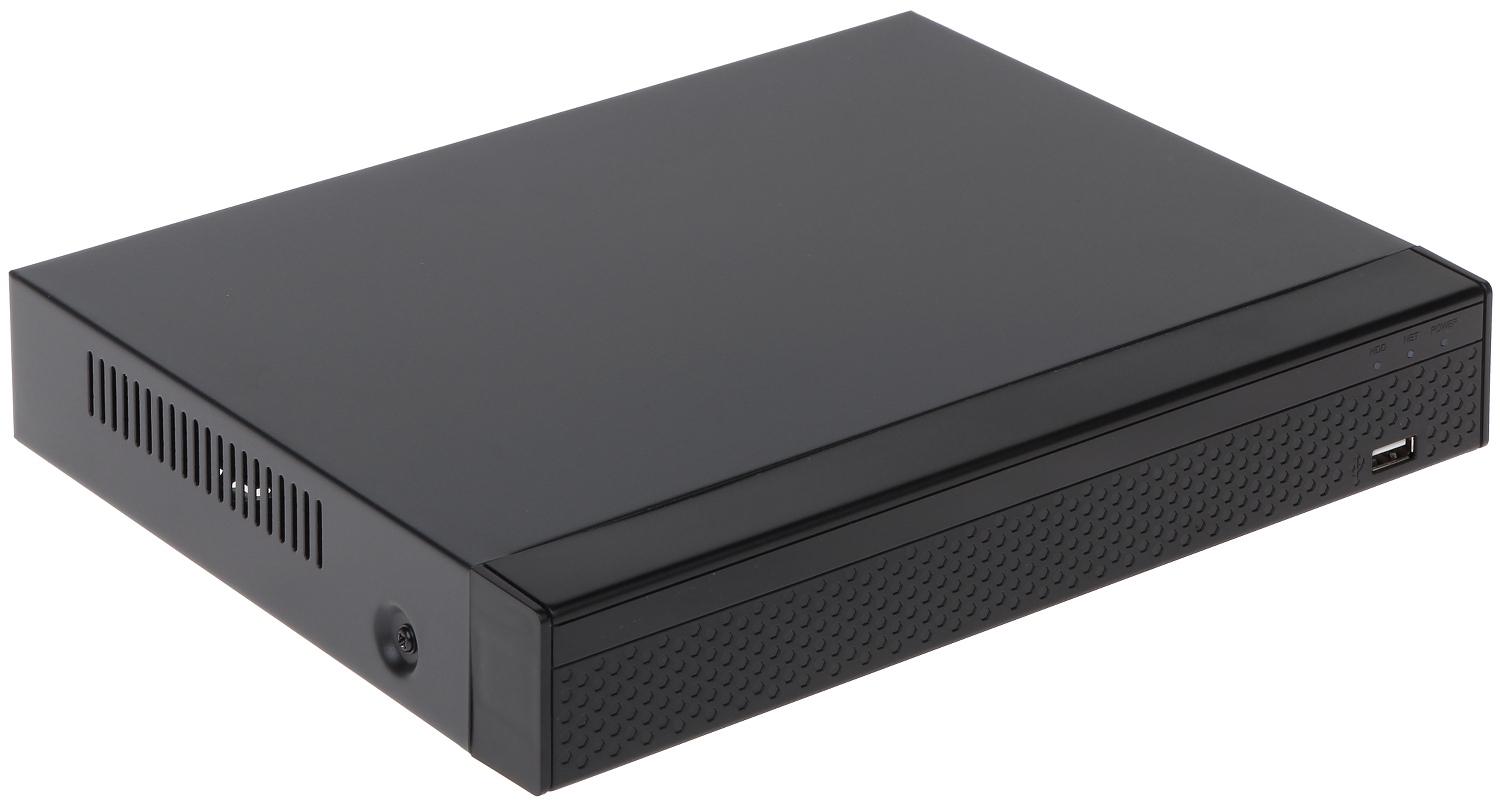

AHD, HD-CVI, HD-TVI, CVBS, TCP/IP Network Video Recorder Video Recorder APTI-XB0801H-S34 8 CHANNELS

Audio input: 8 – Audio playback via coaxial cable, 6 pcs. CINCH </span>;>Image compression method: H.265+ </span>;>Recorded image resolution: AHD / HD-TVI : 8M-N – 1920 x 2160 px, 5 Mpx – 2592 x 1944 px, HD-CVI : 8M-N – 1920 x 2160 px, 4 Mpx – 2560 x 1440 px, CVBS : 960H – 960 x 576 px, IP : max. 8.3 Mpx - 3840 x 2160 px </span>;>Supported hard drives: 1 x 8TB SATA </span>; <table>

Standard:
AHD, HD-CVI, HD-TVI, PAL, TCP/IP

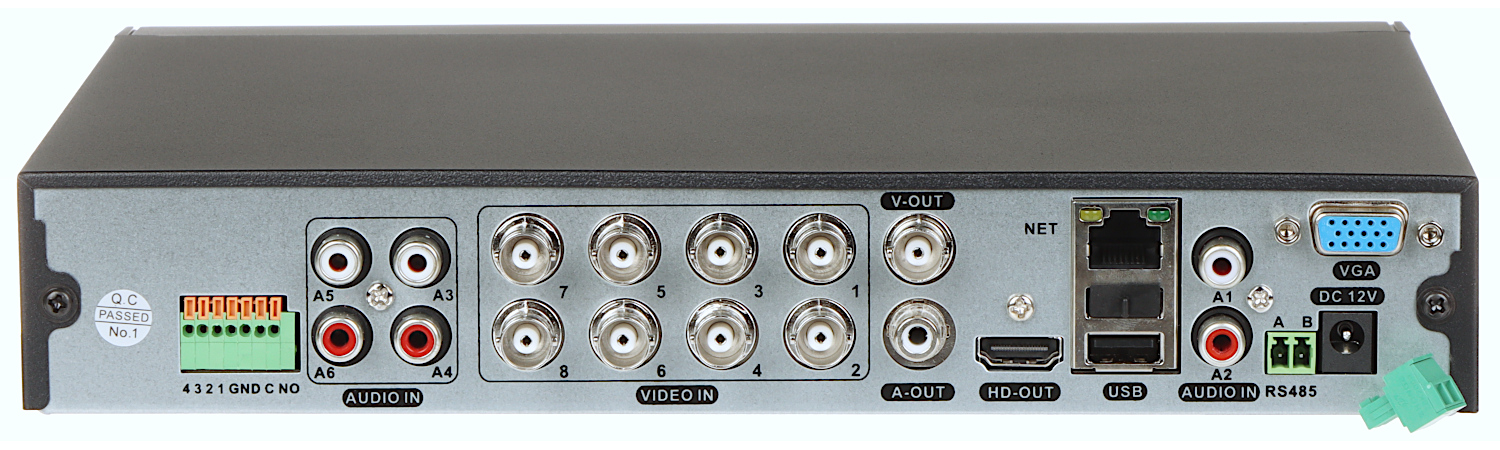

Video inputs:
8 pcs. BNC - AHD / HD-CVI / HD-TVI / CVBS

Video outputs:

1 piece HDMI

1 piece VGA

1 piece Composite Video (CVBS) – BNC socket
Audio input:

8 – Audio playback via coaxial cable,

6 pcs. CINCH

Audio output:
1 piece CINCH
Image compression method:
H.265+ / H.265 / H.264+ / H.264

Recorded image resolution:

AHD / HD-TVI :
8M-N – 1920 x 2160 px,
5 Mpx – 2592 x 1944 px,
5M-N – 1296 x 1944 px,
4 Mpx – 2560 x 1440 px,
4M-N – 1280 x 1440 px,
3 Mpx – 2048 x 1536 px,
1080p – 1920 x 1080 px,
720p – 1280 x 720 px,

HD-CVI :
8M-N – 1920 x 2160 px,
4 Mpx – 2560 x 1440 px,
4M-N – 1280 x 1440 px,
1080p – 1920 x 1080 px,
720p – 1280 x 720 px,

CVBS :
960H – 960 x 576 px,

IP :
max. 8.3 Mpx – 3840 x 2160 px
Recording speed adjustment:
8.3 Mpx IP @ 1 … 25 frame rate
8M-N @ 1 … 8 frame rate
5 Mpx @ 1 … 6 frame rate
5M-N @ 1 … 10 frame rate
4 Mpx @ 1 … 8 frame rate
4M-N @ 1 … 15 frame rate
3 Mpx @ 1 … 9 frame rate
1080p @ 1 … 15 frame rate
720p @ 1 … 25 frame rate
960H @ 1 … 25 frame rate
for each of the channels

Working mode:

8 times  AHD / HD-CVI / HD-TVI / CVBS + 4 x IP max. 8.3 Mpx

6 times  AHD / HD-CVI / HD-TVI / CVBS + 8 x IP max. 8.3 Mpx

4 times  AHD / HD-CVI / HD-TVI / CVBS + 10 x IP max. 8.3 Mpx

2 times  AHD / HD-CVI / HD-TVI / CVBS + 12 x IP max. 8.3 Mpx

16 x IP max. 8.3 Mpx

All modes allow any combination of AHD, HD-CVI, HD-TVI, CVBS cameras
Recording modes:
Motion detection, schedule

Supported hard drives:
1 x 8TB SATA
Backups on external media:
Copy of the recording (.avi) in USB (pendrive) format

Searching and playing recordings:
Search for a recording in the timeline or file list. Playback: forward, backward, fast, slow.
Plays recordings from up to 4 cameras simultaneously
Network features:

Client program (iVMS320): live broadcast, playback and archiving of recordings

IE browser: live broadcast, playback and archiving of recordings, and configuration of recorder parameters

Mobile phone access:
Port: 6000 or access via cloud

Android: Free application BitVision, Android: Free application iVMS320

iOS (iPhone): Free app BitVision, iOS: Free app iVMS320
Default IP address:
192.168.1.88

Default username/admin password:
admin / 12345
Browser access ports:
80, 5000, 554

Access ports using PC application:
80, 5000, 554
Access ports using the mobile application:
80, 5000, 6000

Alarm inputs/outputs:

PTZ head rotation control:
Pelco-D, Pelco-P

Motion detection:
Screen division: 22 x 18 motion zones
USB:
2 pcs. USB 2.0

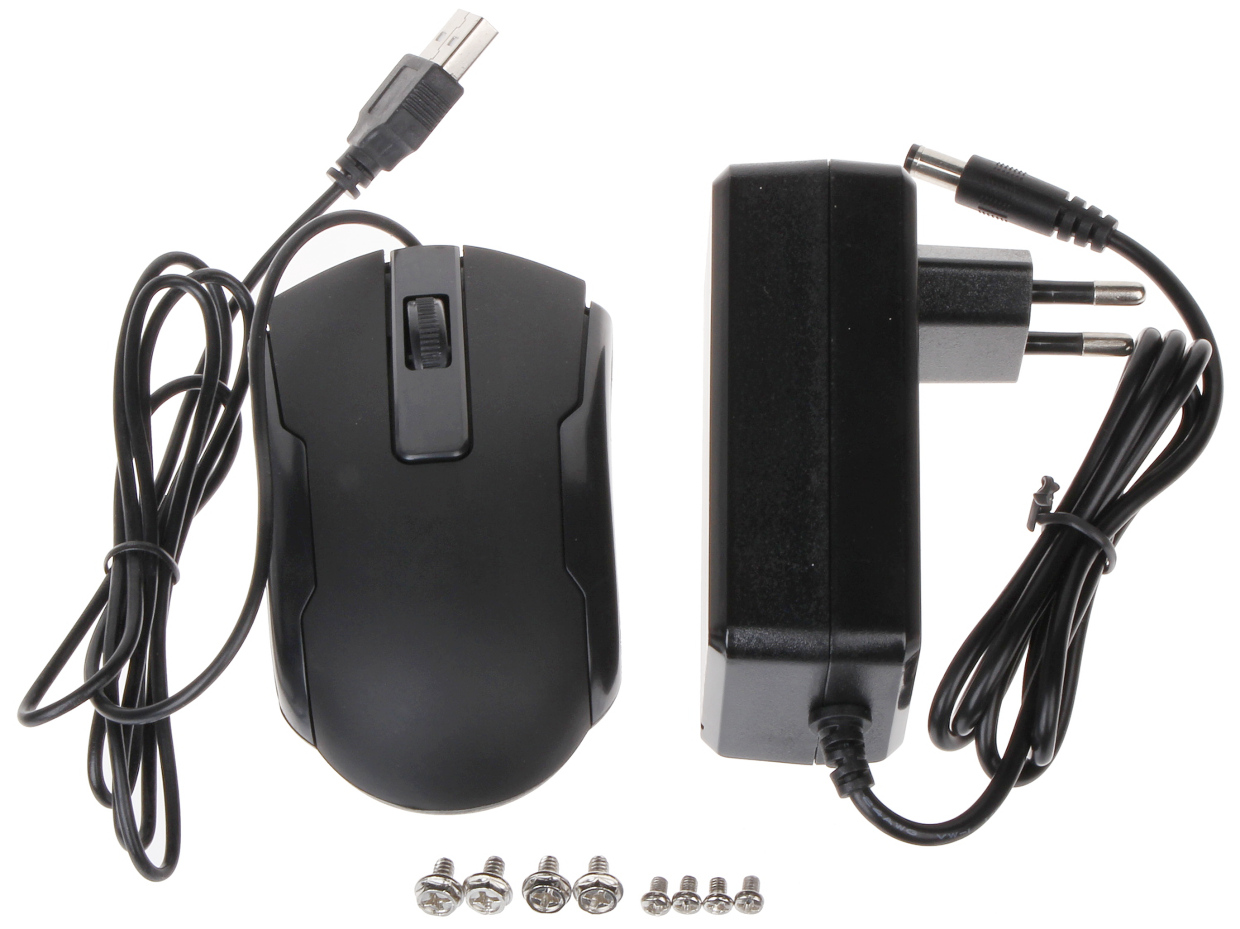

Mouse crew:

IR remote control included:


Source of energy supply:
12 V DC / 2 A (power adapter included)
Colour:
Black

Weight:
0.82 kg
Size:
260 x 242 x 45 mm

Language selection:
Polish, English, Bulgarian, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Turkish, Hungarian, Italian
Country of origin:
China

Manufacturer / Brand:
APTI
WARRANTY:
2 years
