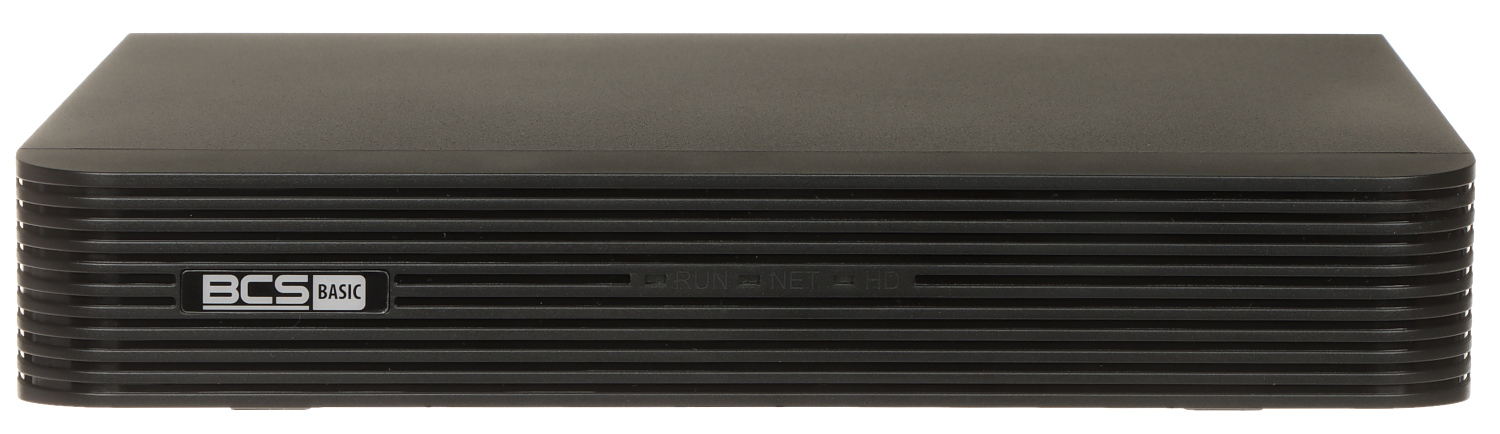

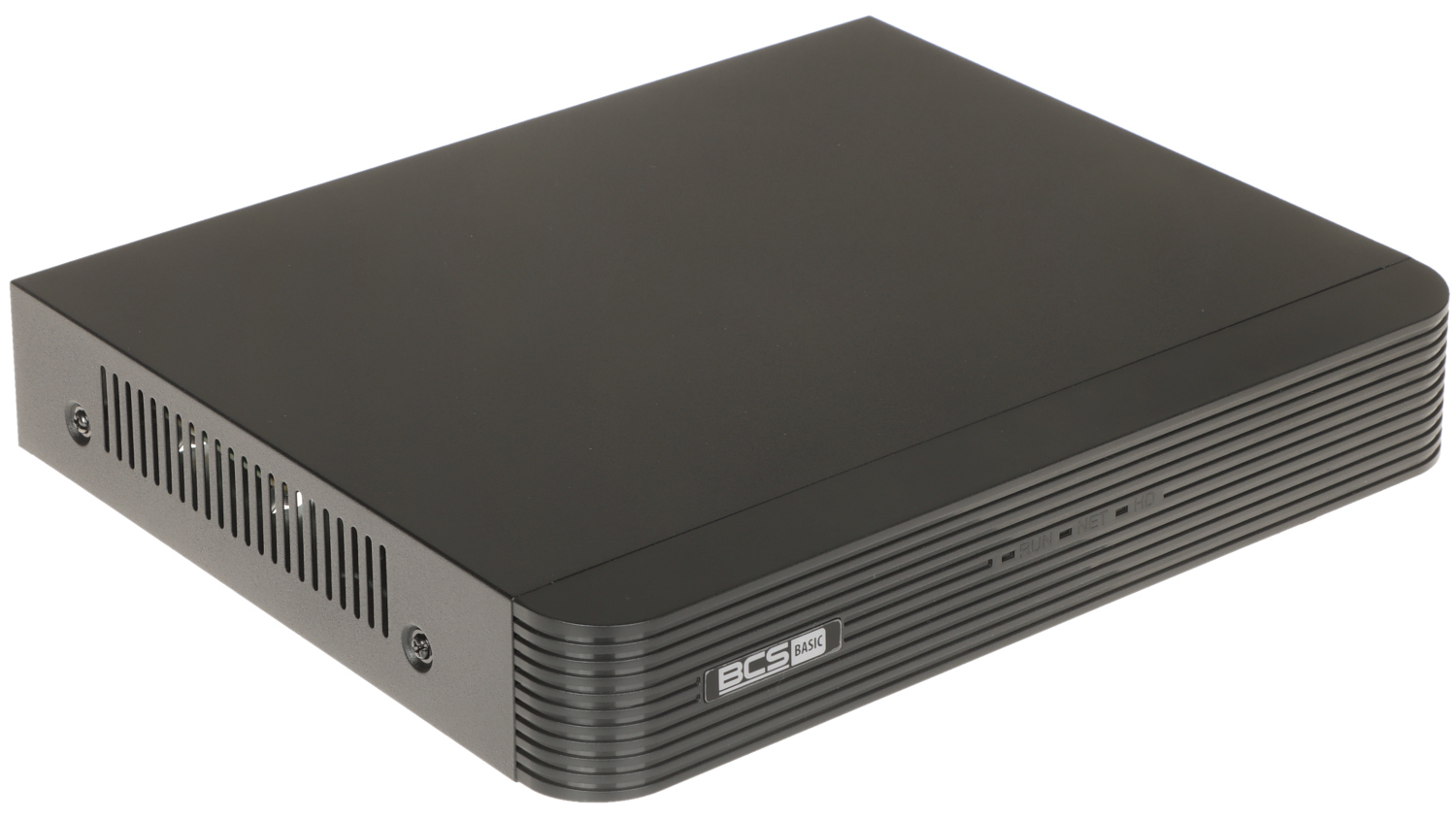

AHD, HD-CVI, HD-TVI, CVBS, TCP/IP Tīkla Video Ierakstītājs Videoreģistrators BCS-B-XVR0801(2.0) 8 KANĀLI BCS BASIC

Preces kods: BCS-B-XVR0801(2.0)

EAN: 5904890707412

Piegādes laiks: 9-12 Jūnijā

Estimated Delivery Dates

91,25

Availability: 0

Audio input: 1 gab. CINCH, 8 – Audio atskaņošana, izmantojot koaksiālo kabeli </span>;>Image compression method: H.265 </span>;>Recorded image resolution: AHD / HD-TVI : 5M-N, 4M-N, 1080N, IP : max. 4 Mpx </span>;>Supported hard drives: 1 x 6TB SATA </span>; <table>

Standard:
AHD, HD-CVI, HD-TVI, CVBS, TCP/IP

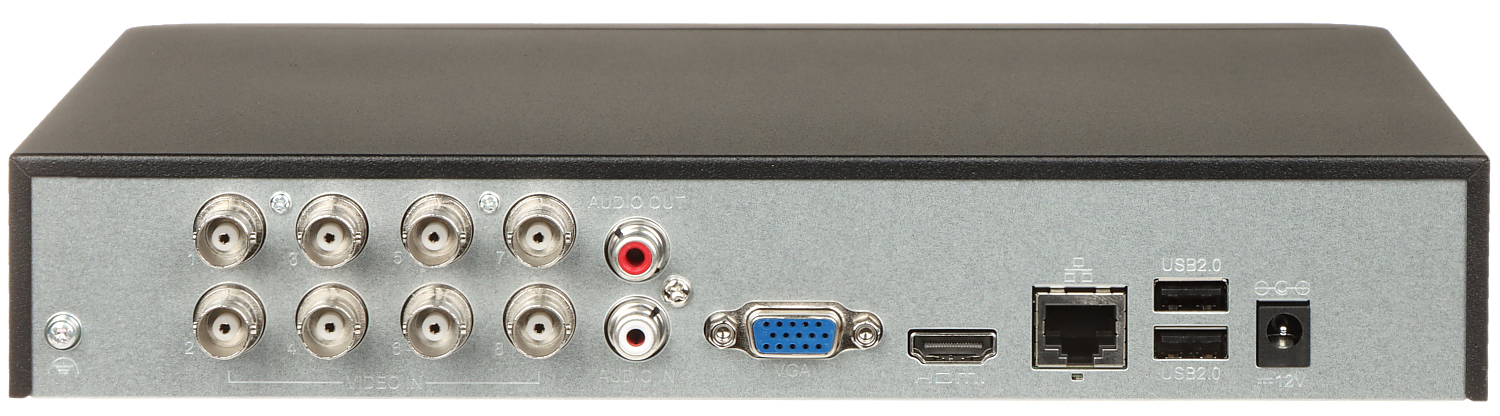

Video inputs:
8 pcs. BNC

Video outputs:
1 piece HDMI
1 piece VGA
Audio input:

  • 1 piece CINCH,
  • 8  – Audio atskaņošana, izmantojot koaksiālo kabeli

    Audio output:
    1 piece CINCH
    Image compression method:
    H.265 / H.264

    Recorded image resolution:
  • AHD / HD-TVI :
    5M-N – 1296 x 1944  – kamerām 12 frame rate ,

  • AHD / HD-CVI / HD-TVI :
    4M-N – 1280 x 1440  – kamerām 15 frame rate ,
    1080N – 960x1080, ,
    720p – 1280 x 720

  • CVBS :
    960H – 960 x 576  ,

  • IP :
    max. 4 Mpx – 2560 x 1440
    Recording speed adjustment:
    Mpx IP @ 1 … 25 frame rate ,
    5M-N @ 1 … 6 frame rate ,
    4M-N @ 1 … 8 frame rate ,
    1080N @ 1 … 15 frame rate ,
    720p @ 1 … 15 frame rate ,
    960H @ 1 … 15 frame rate
    for each of the channels

    Working mode:
    4 times  AHD / HD-CVI / HD-TVI / CVBS + 4 x  AHD / HD-CVI / HD-TVI / CVBS / IP + 4 x IP
    Recording modes:
    Manual, motion detection, schedule

    Supported hard drives:
    1 x 6TB SATA
    Backups on external media:
    Converting an image or recording frame from an archive to a USB drive

    Searching and playing recordings:
    Recording search: by time + timeline with recording type. Playback: forward, fast, slow, step by step
    Advanced search (up to a second)
    1/4/8 kanālu sinhronā atskaņošana
    Network interface:
    1 x RJ-45 – 10/100 Base-TX

    Network features:
    Full network support, Remote recording copy, Built-in web server
    max. 128 online users
    Mobile phone access:
    Port: 80 or access via cloud
  • Android: Free application BCS Manager
  • iOS (iPhone): Free app BCS Manager

    USB:
    2 times USB 2.0
    Alarm inputs/outputs:
    &apos;

    PTZ head rotation control:
    IP Speed Dome cameras
    Motion detection:
    &apos;

    Mouse crew:
    &apos;
    IR remote control included:
    &apos;

    Source of energy supply:
    12 V DC / 2 A (power adapter included)
    Power consumed:
    ≤ 8 W (bez HDD)

    Colour:
    Black
    Weight:
    0.86 kg

    Size:
    255  x 260  x 46 mm
    Language selection:
    English, Czech, French, Spanish, Dutch, German, Polish, Portuguese, Slovak, Italian

    Manufacturer / Brand:
    BCS BASIC
    WARRANTY:
    3 years
  • Additional information

    Svars 1,2260 kg
    Dimensions 405 × 270 × 75 cm
